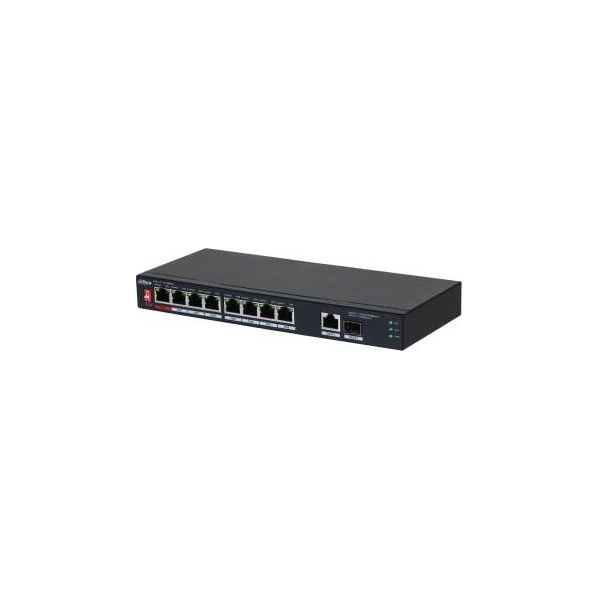

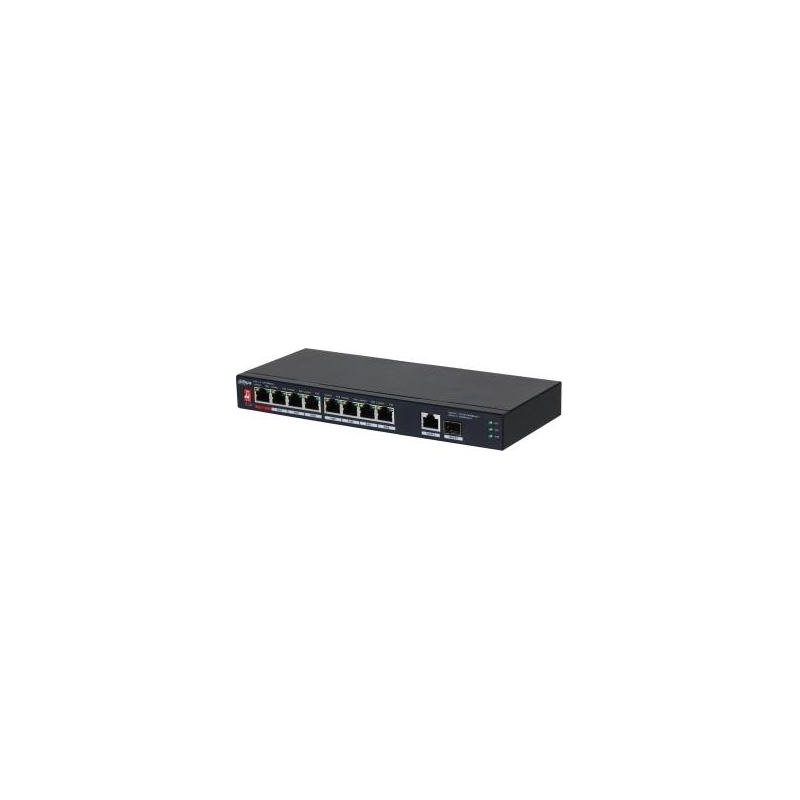

Dahua Switch|DAHUA|PFS3110-8ET1GT1GF-96|Desktop/pedestal|8x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base

Intelligent PoEP

rovides power consumption control and real-time monitoring toguarantee priority of power supply for important ports and preventmalfunctioning caused by power consumption change. Supports ultrawide power supply, able to adapt to IPC power fluctuation.

Red Port 90 W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption of 90W perport. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing/turning on the WEB page switch. It enables the switch toautomatically detect port status and restart the failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its true sense andeffectively reduces manual maintenance costs.

Long Distance PoEB

y dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirement of wired transmission (bandwidth reduced to 10 Mbps).

• 100 Mbps PoE ports and gigabit uplink ports
• The red port meets the IEEE 802.3bt standard
• Power supply supports up to 90 W
• PoE watchdog monitors the status of terminals in real-time
• Supports 250 m long-distance power supply
• Supports the power management policy
• 8-pin PoE offers better compatibility and reduces cable loss
• Durable full-metal housing provides great heat dissipation
