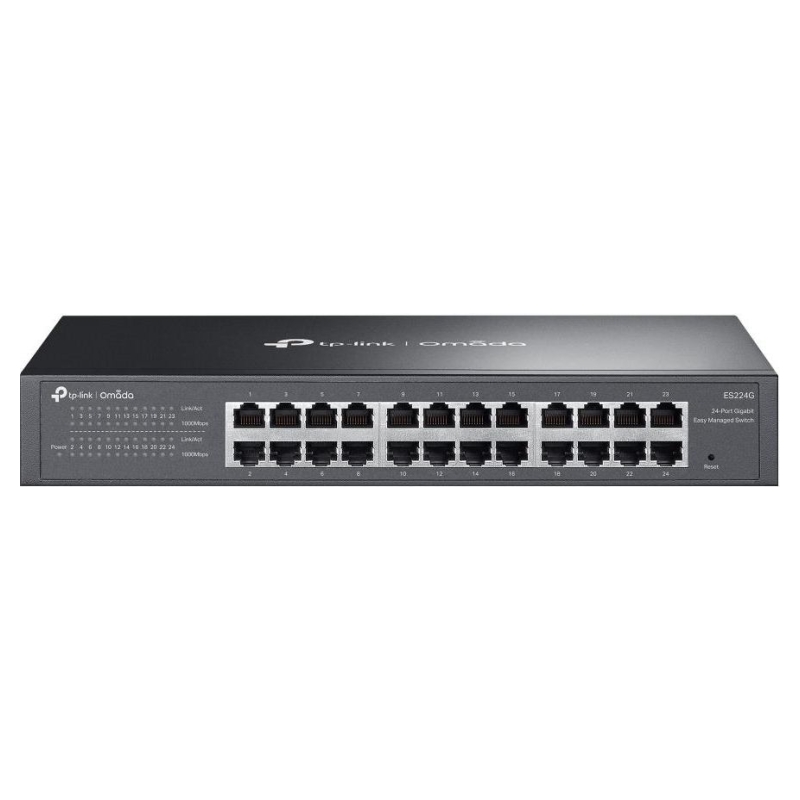

Tp-Link Switch|TP-LINK|ES224G|Type L2|ES224G
- Write a review
€132.61
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Manufacturer Website:
https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es224g/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.24
- Unit Box Length
- 0.34
- Unit Box Width
- 0.08
- Cloud-managed
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Unified static configuration
- Yes
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 24
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Broadcast storm control
- Yes
- Fast leave
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 32
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN/Port-based VLAN
- VLAN support
- Yes
- Forwarding rate
- 35.7 Mpps
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Packet buffer memory
- 4 MB
- Store-and-forward
- Yes
- Switching capacity
- 48 Gbit/s
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- Multicast support
- Yes
- Product colour
- Black
- Rack mounting
- Yes
- Fanless
- Yes
- Firmware upgradeable
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power source
- AC
- Power supply included
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 50 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 140 mm
- Height
- 44 mm
- Width
- 294 mm
- Cables included
- AC
- Rack mount kit
- No
- User guide
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Model
- Omada
- Series
- ES224G
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.006528 cubm
- Unit Calculated Weight
- 1.964 kg
ES224G
2 Items
Specific References
- EAN13
- 1210002600705
- MPN
- ES224G
