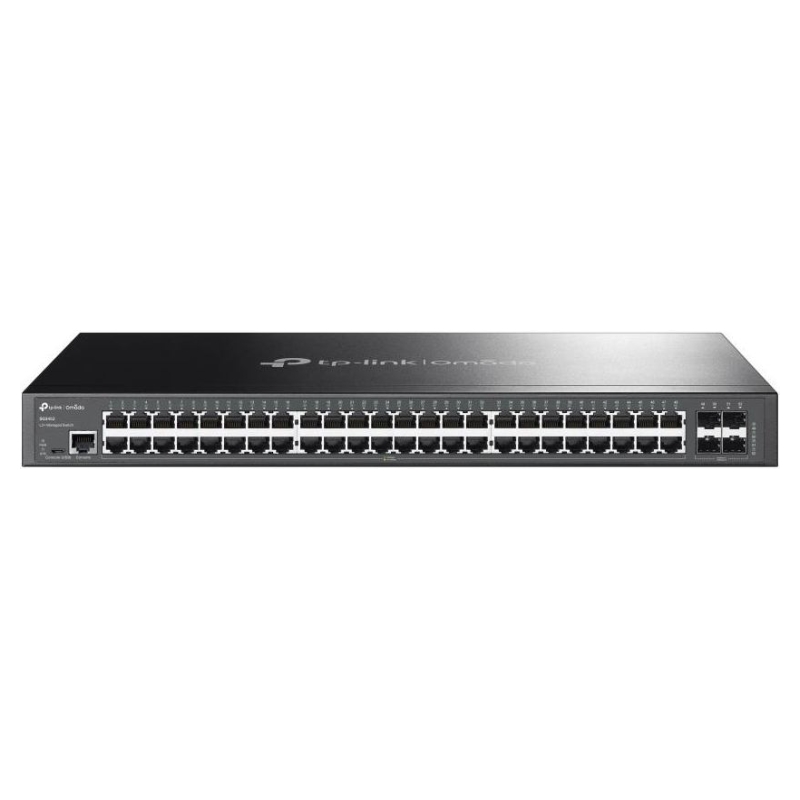

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Manufacturer Website:https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3452/- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.335
- Unit Box Length
- 0.53
- Unit Box Width
- 0.1
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2+
- Switch type
- Managed
- System event log
- Yes
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Console port
- RJ-45/Micro-USB
- Gigabit Ethernet (copper) ports quantity
- 48
- SFP module slots quantity
- 4
- 10G support
- No
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Flow control support
- Yes
- Head-of-line (HOL) blocking
- Yes
- IP routing
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
- Number of VLANs
- 4000
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
- VLAN support
- Yes
- Forwarding rate
- 77.38 Mpps
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- MAC address table
- 16000 entries
- Static route
- Yes
- Store-and-forward
- Yes
- Switching capacity
- 104 Gbit/s
- Access Control List (ACL)
- Yes
- Authentication
- MAC-based authentication,Port-based authentication
- Authentication type
- AAA,RADIUS,TACACS+
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
- Multicast Listener Discovery (MLD) snooping
- Y
- Multicast support
- Yes
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Form factor
- 1U
- Product colour
- Black
- Rack mounting
- Yes
- Fanless
- Yes
- Flash memory
- 32 MB
- Internal memory
- 256 MB
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 34.86 W
- Power source
- AC
- Power supply included
- Yes
- Power over Ethernet (PoE)
- No
- Heat dissipation
- 118.94 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 220 mm
- Height
- 44 mm
- Width
- 440 mm
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
- Certification
- CE, FCC, RoHS
- Series
- Omada
- Model name
- Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
- Units per Shipping Box
- 4
- Unit Calculated Volume
- 0.02104 cubm
- Unit Calculated Weight
- 4.53 kg
