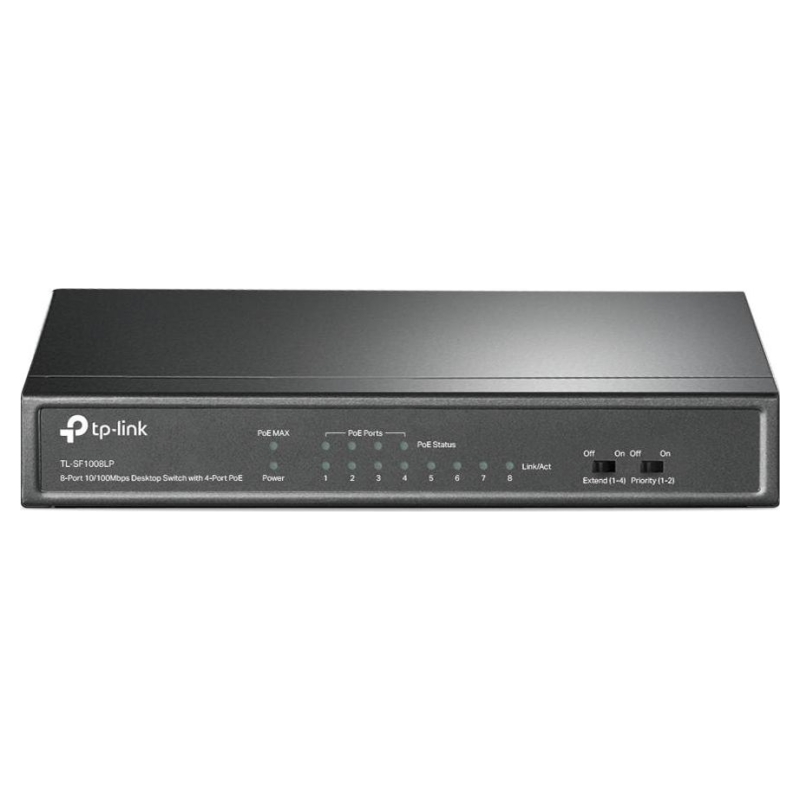

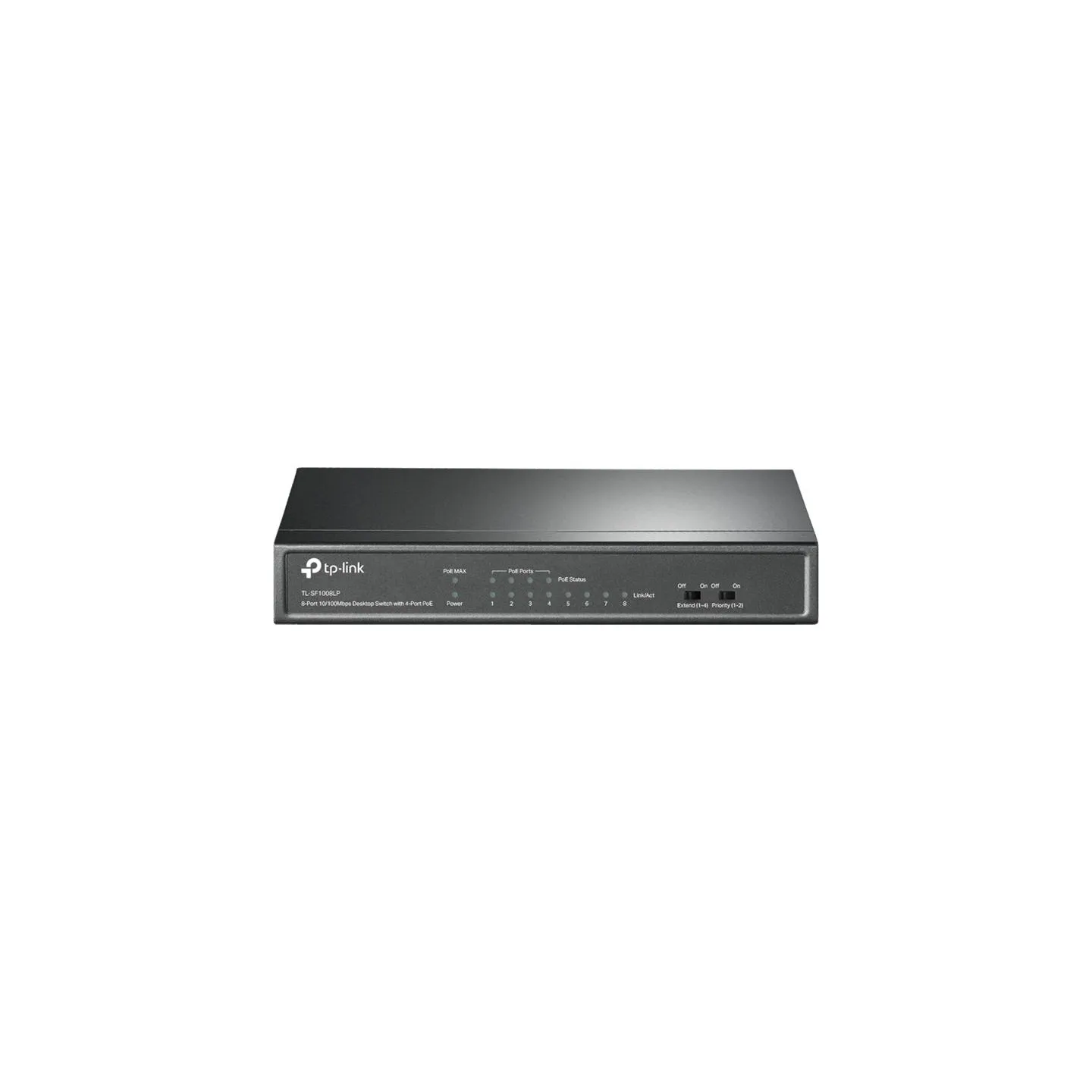

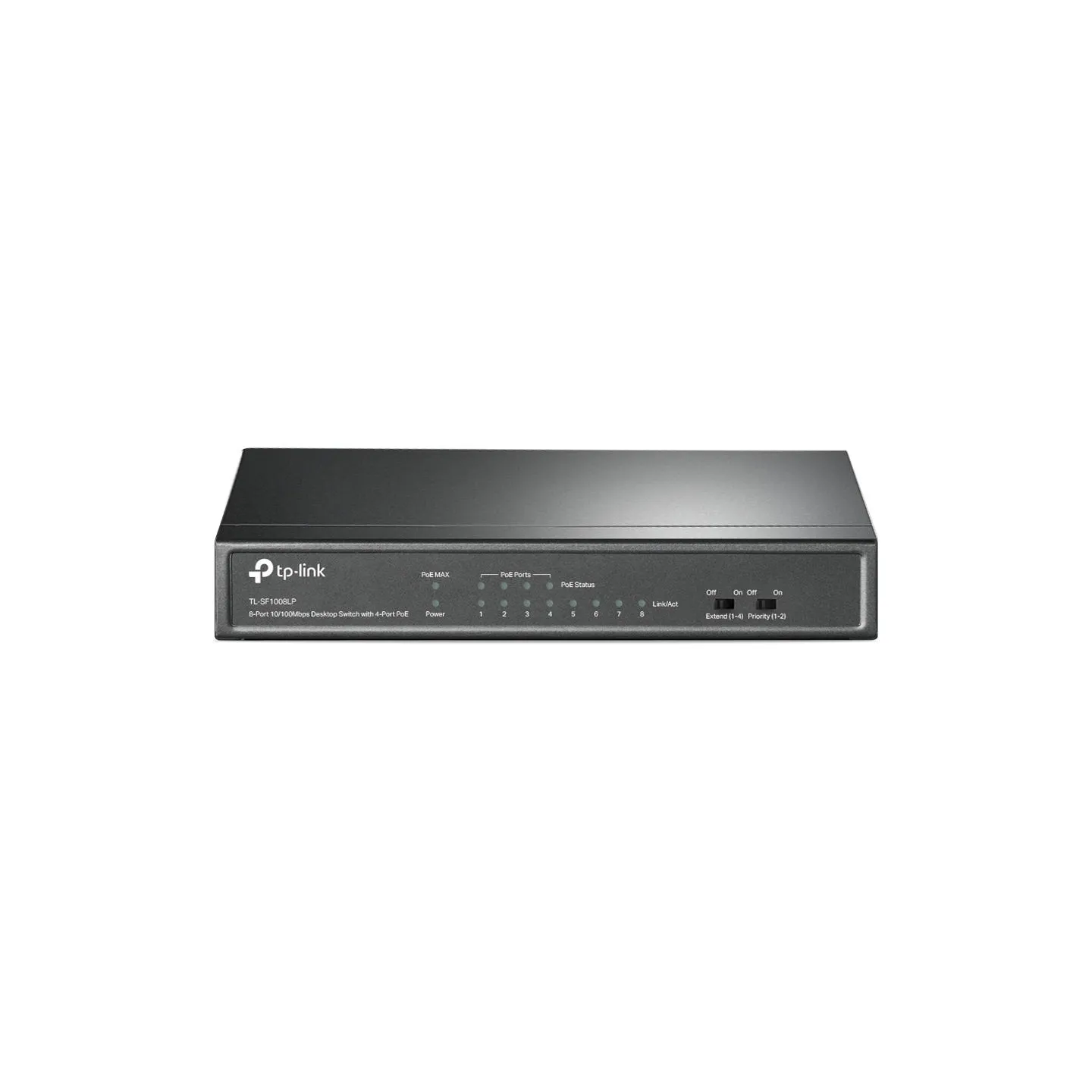

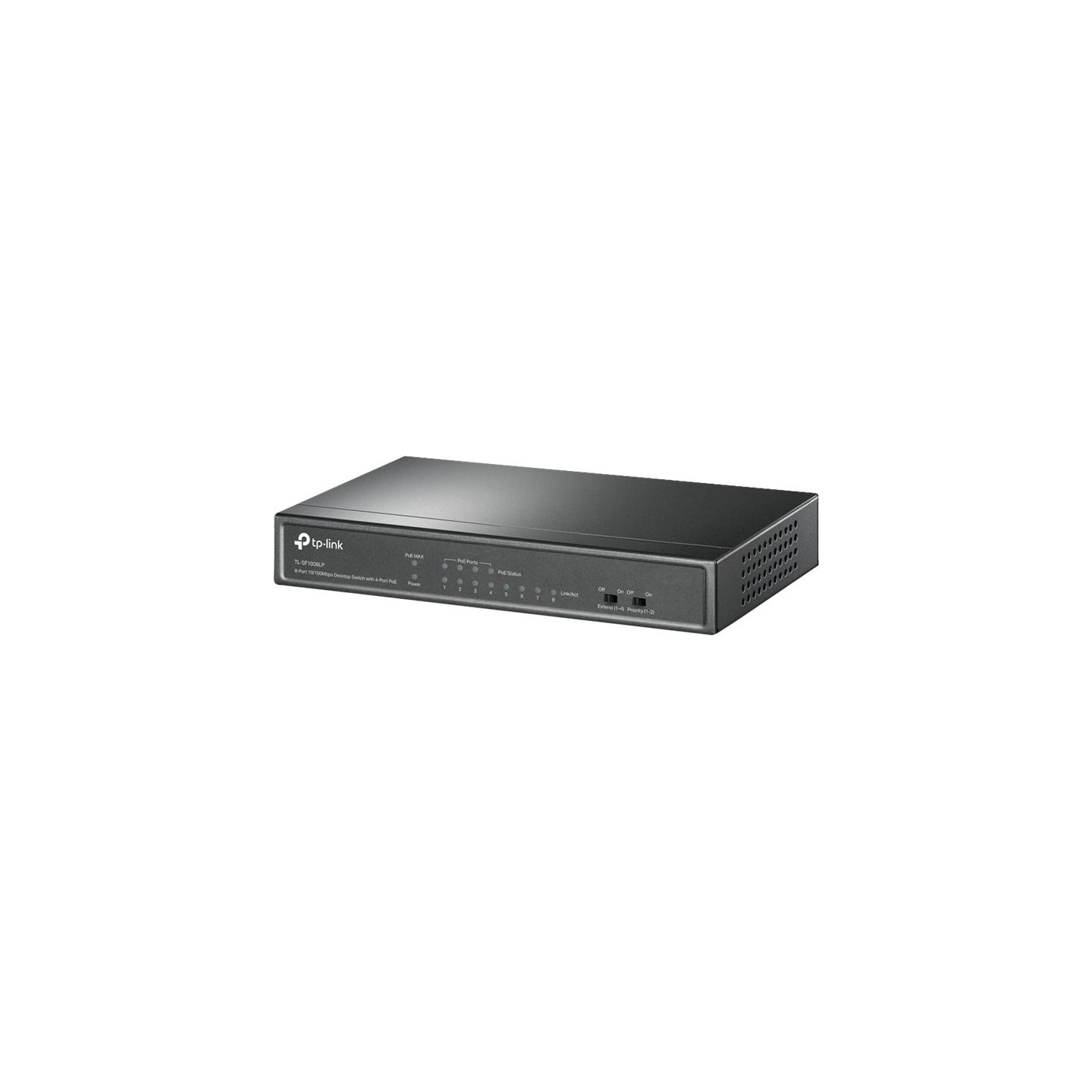

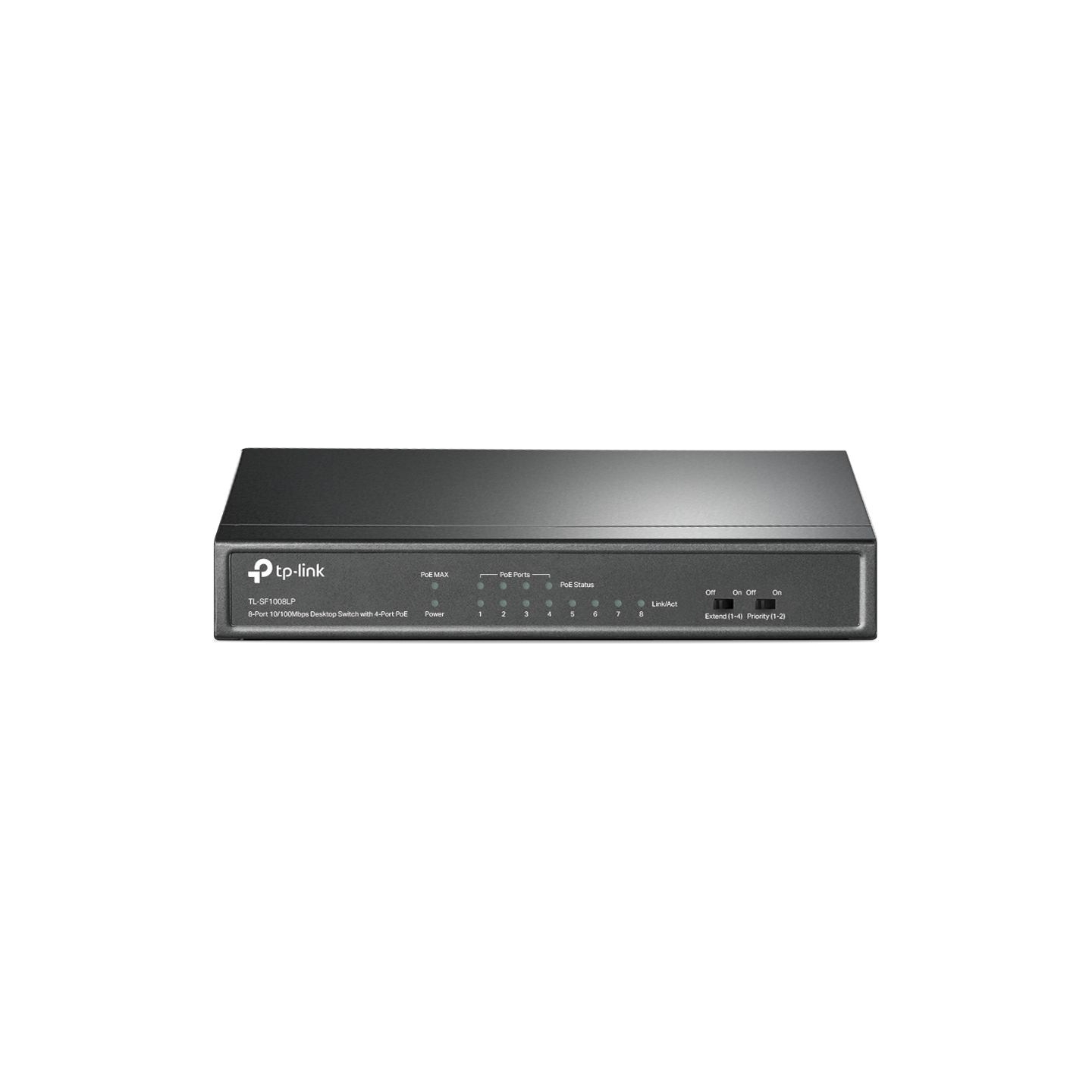

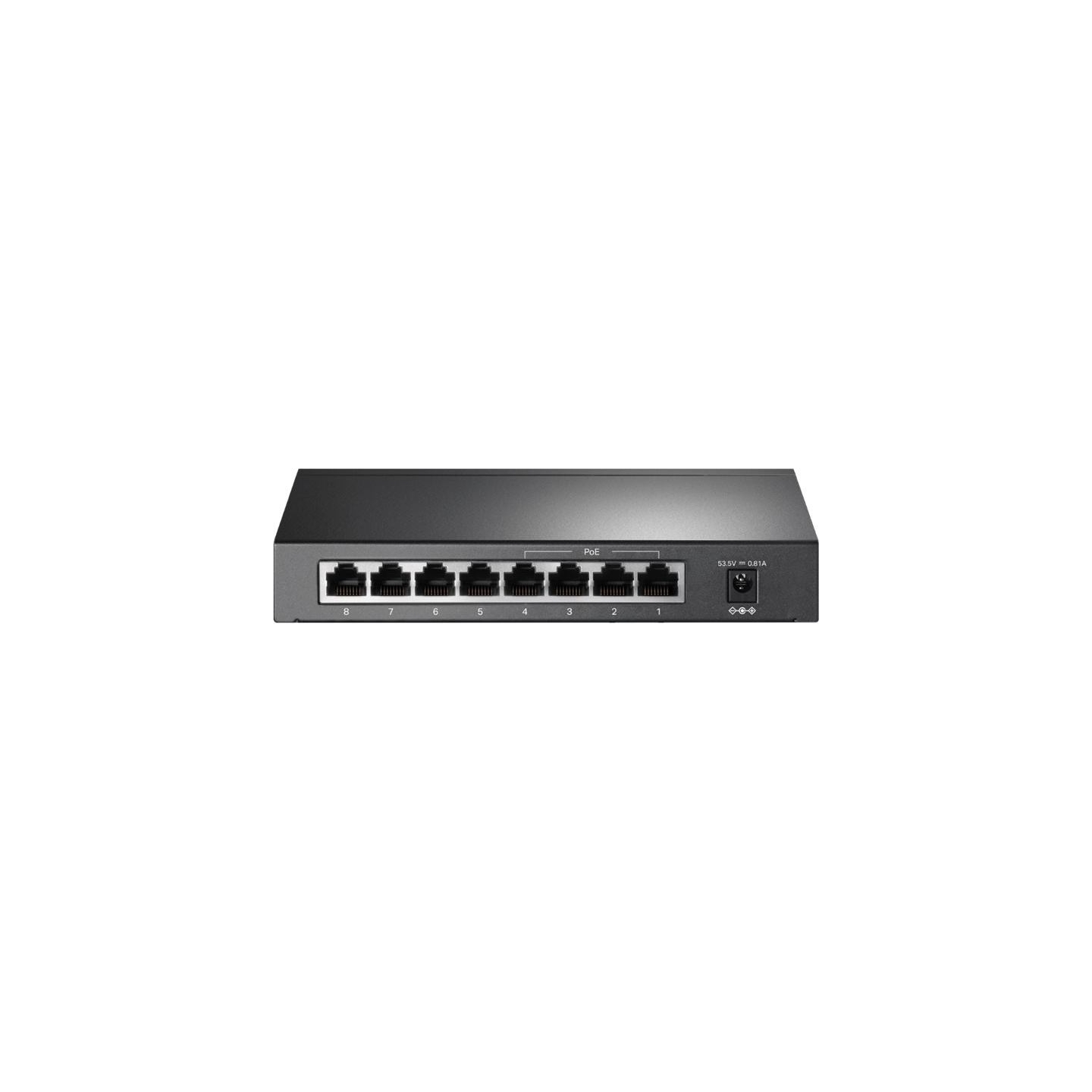

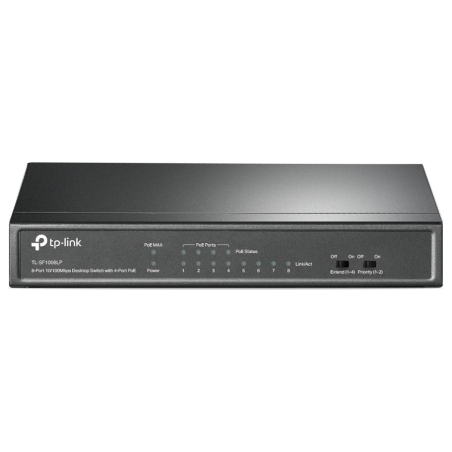

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

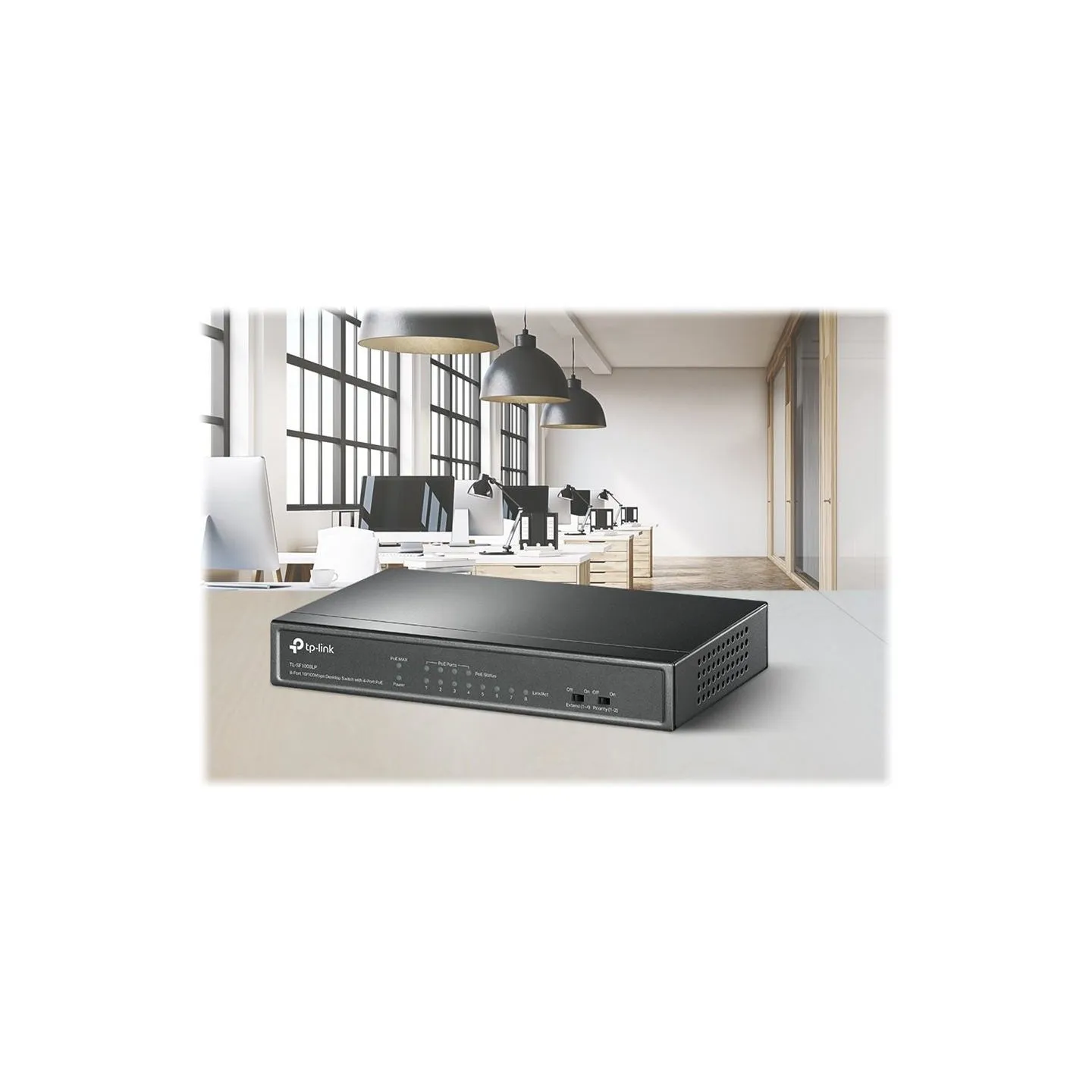

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

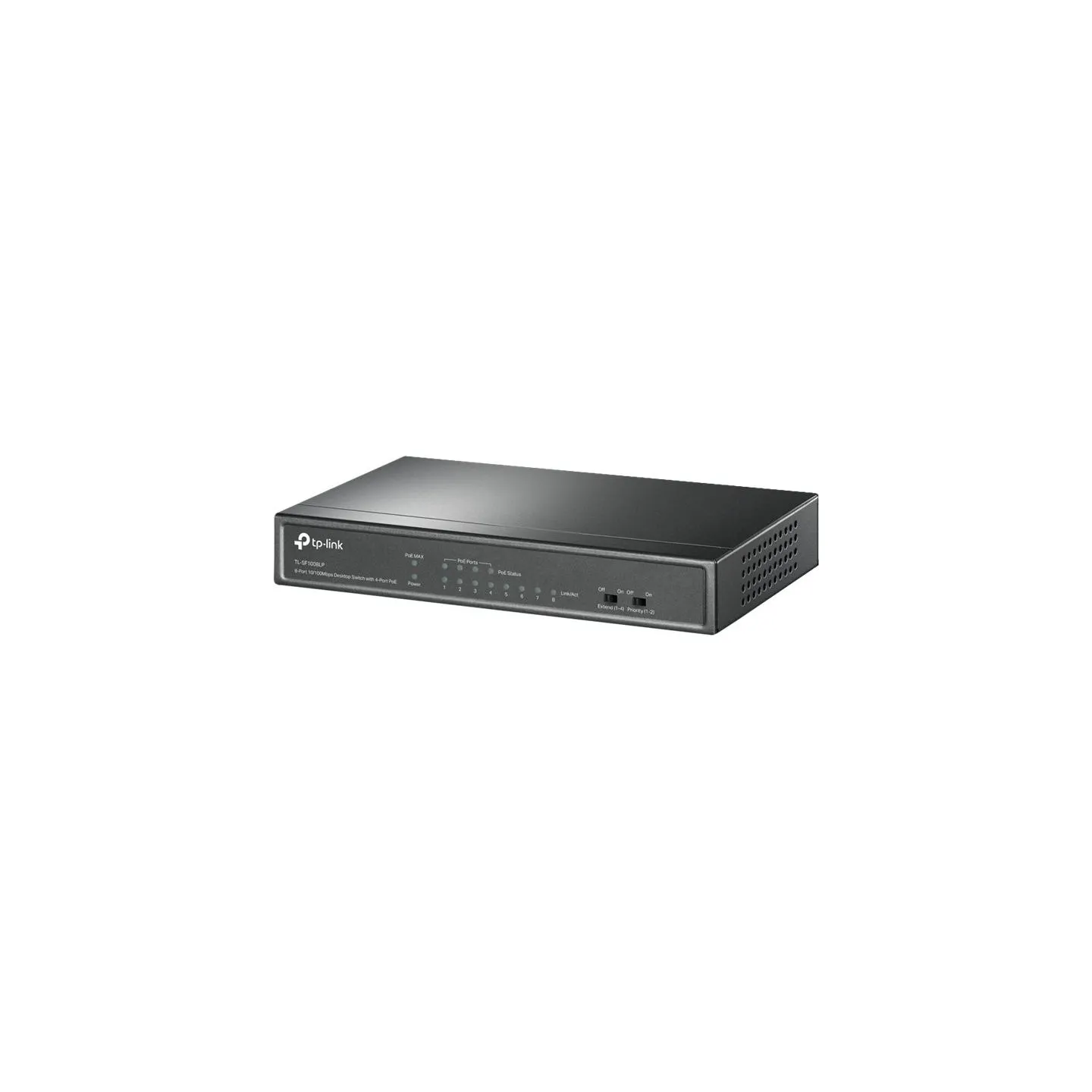

Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Manufacturer Website:https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1008lp/#overview- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.226
- Unit Box Length
- 0.282
- Unit Box Width
- 0.068
- Switch type
- Unmanaged

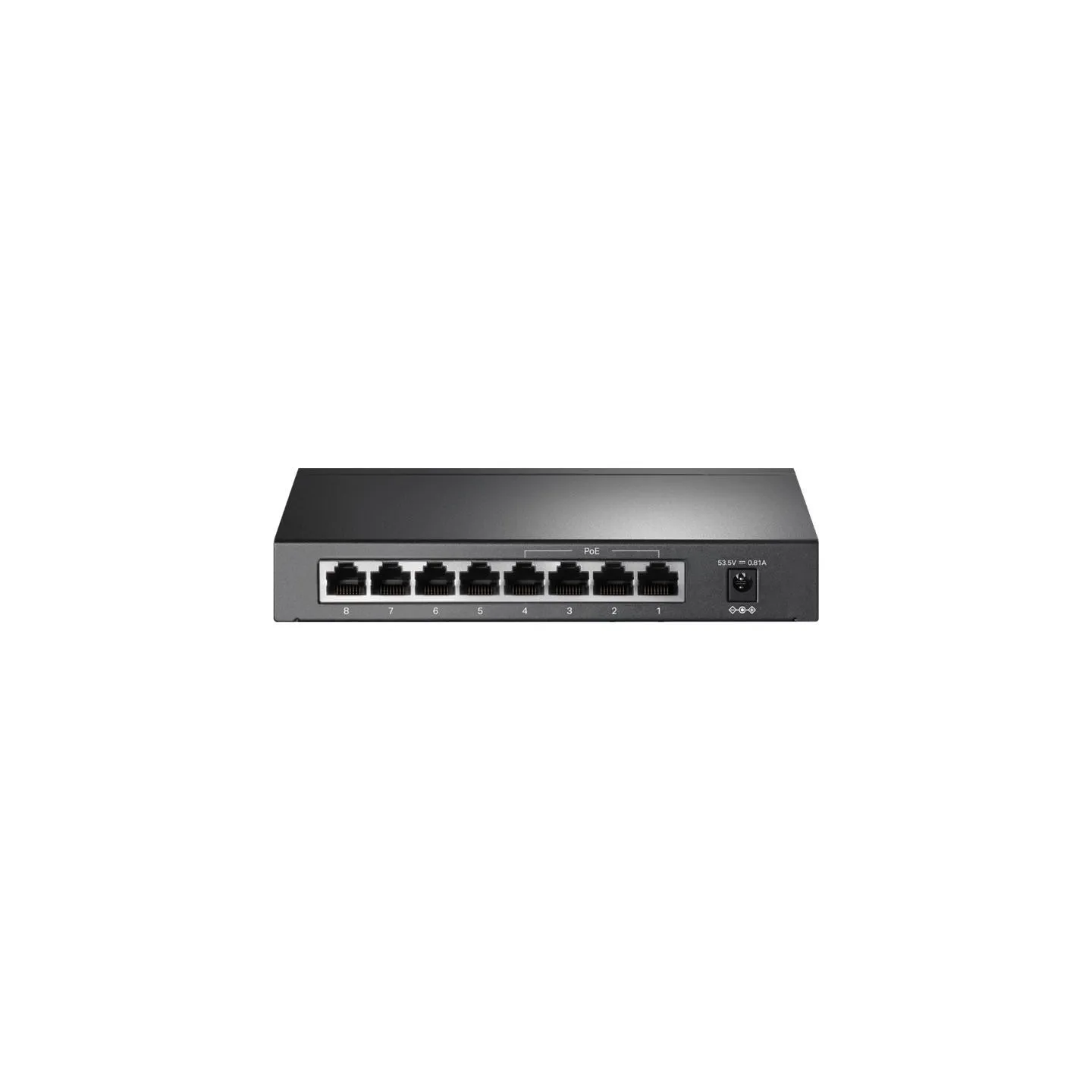

- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity
- 8
- Power connector
- DC-in jack
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Copper ethernet cabling technology
- 100BASE-TX/10GBASE-T
- Flow control support
- Yes
- Full duplex
- Yes
- Half duplex
- Yes
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3x
- Forwarding rate
- 1.1904 Mpps
- Jumbo frames
- 2000
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Store-and-forward
- Yes
- Switching capacity
- 1.6 Gbit/s
- DHCP features
- DHCPv6 relay
- IPv4 & IPv6 features
- IPv6 portal
- Routing protocols
- OSPF
- Housing material
- Metal
- LED indicators
- Yes
- Number of fans
- 0 fan(s)
- Product colour
- Black
- Rack mounting
- No
- Stackable
- No
- Wall mountable
- Yes
- Fanless
- Yes
- AC input frequency
- 50 Hz
- AC input voltage
- 220 V
- DC input voltage
- 53.5 V
- Input current
- 0.81 A
- Power consumption (max)
- 47.1 W
- Power source
- DC/PoE
- Power supply included
- No
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 41 W
- Bandwidth
- 1.6 Gbit/s
- Heat dissipation
- 160.61 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 98 mm
- Height
- 27 mm
- Width
- 171 mm
- Cables included
- AC
- User guide
- Yes
- AC adapter included
- Yes
- Package depth
- 280 mm
- Package height
- 68 mm
- Package weight
- 750 g
- Package width
- 223 mm
- Sustainability compliance
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Harmonized System (HS) code
- 85176990
- Model
- TL-SF1008LP
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.004334 cubm
- Unit Calculated Weight
- 0.93 kg
