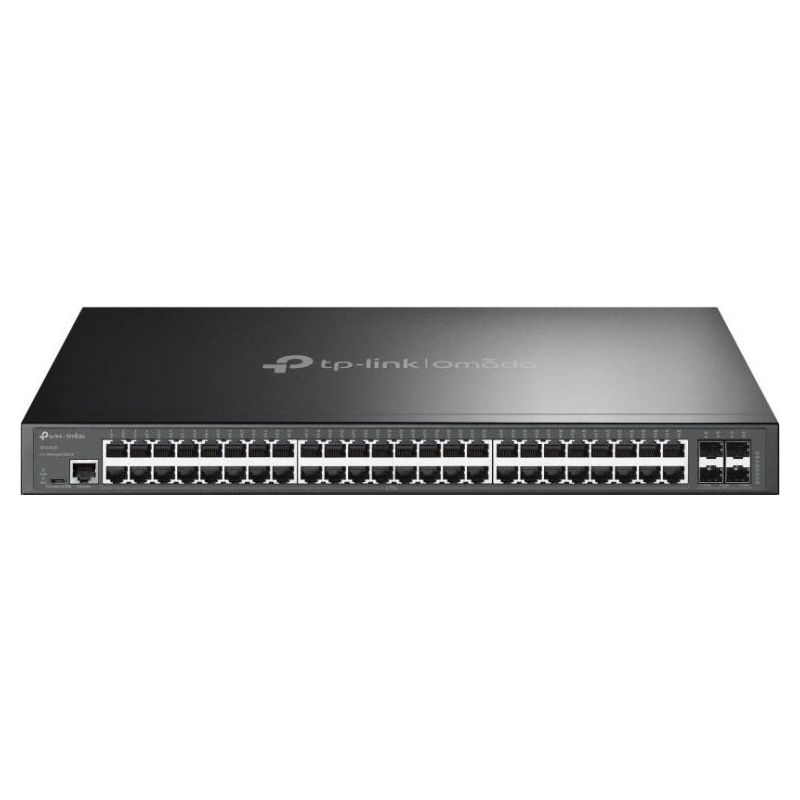

    Tp-Link Switch|TP-LINK|Omada|TL-SG3452X|Type L2+|Rack|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xConsole|1|TL-SG3452X

Tp-Link Switch|TP-LINK|Omada|TL-SG3452X|Type L2+|Rack|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xConsole|1|TL-SG3452X

€580.18
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 48× Gigabit RJ45 ports
  • 176 Gbps Switching Capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Fanless design for silent operation
  • Durable metal casing and rackmountable design



Manufacturer Website:
https://www.tp-link.com/uk/business-networking/omada-sdn-switch/tl-sg3452x/

Category Code
SWI
CnCode
85176200
Unit Box Height
0.105
Unit Box Length
0.53
Unit Box Width
0.337
ARP inspection
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Huawei-proprietary MIB
Y
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB
Y
Quality of Service (QoS) support
Yes
Switch layer
L2+
Switch type
Managed
System event log
Yes
Web-based management
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
SFP+ module slots quantity
4
10G support
Yes
Broadcast storm control
Yes
Flow control support
Yes
Head-of-line (HOL) blocking
Yes
IPv4 routes
48
IPv6 routes
48
Link aggregation
Yes
Networking standards
IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad
Number of VLANs
4000
Port mirroring
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Virtual LAN features
Private VLAN/Tagged VLAN/VLAN mapping/Voice VLAN
VLAN support
Yes
Forwarding rate
130.9 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
16000 entries
Number of static routes
48
Packet buffer memory
12 MB
Static route
Yes
Switching capacity
176 Gbit/s
Access Control List (ACL)
Yes
Authentication
Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type
AAA,RADIUS,TACACS+
BPDU filtering/protection
Yes
DHCP features
DHCP client/DHCP relay/DHCP server
IGMP proxy
Yes
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Loop protection
Yes
MAC address filtering
Yes
Password protection
Yes
Queue scheduling algorithms
SP/Weighted Round Robin (WRR)/WRR+SP
SSH/SSL support
Yes
Static port security
Yes
Multicast Listener Discovery (MLD) snooping
Y
Multicast support
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Management protocols
SNMPv1/v2c/v3, SNTP
Form factor
1U
LED indicators
Yes
Number of fans
0 fan(s)
Product colour
Black
Rack mounting
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
32.72 W
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
No
Heat dissipation
111.65 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
220 mm
Height
44 mm
Width
440 mm
Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes
Package type
Box
Rack rails
Yes
Certification
CE, FCC, RoHS
Series
Omada
Model name
Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Units per Shipping Box
1
Unit Calculated Volume
0.01875 cubm
Unit Calculated Weight
4.14 kg
TL-SG3452X
3 Items

Specific References

EAN13
6935364006471
MPN
TL-SG3452X
