SlotsCPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 modeChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15 Gold Contact in VGA PCIe Slot (PCIE1)StorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) modeChipset:- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Integrated AMD RDNA graphics (Support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and max resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 4K 120Hz
Sound card
7.1 CH HD Audio with Ochrona Treści (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna supporting 2 (Transmit) x 2 (Receive) diversity technology. SupportsBluetooth 5.4 Supports MU-MIMO
USB ports at back panel
8
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
2 x SMA
External connectors
1 x Flash BIOS Button
External connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x TPM header
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
2 x USB 2.0/1.1 header
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
micro ATX
Dimensions
24.4 cm x 24.4 cm
Accessories included

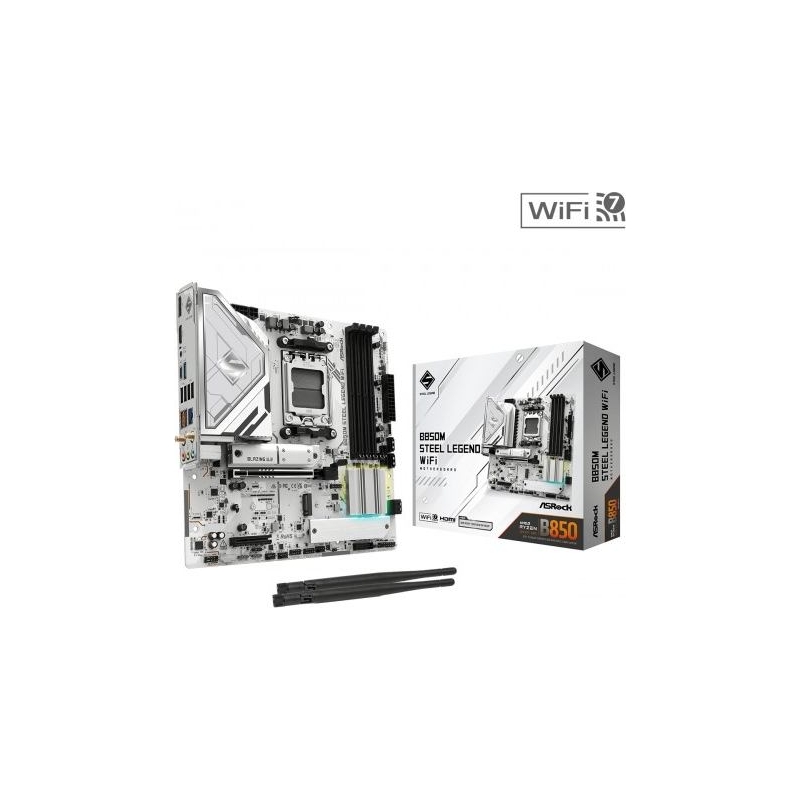

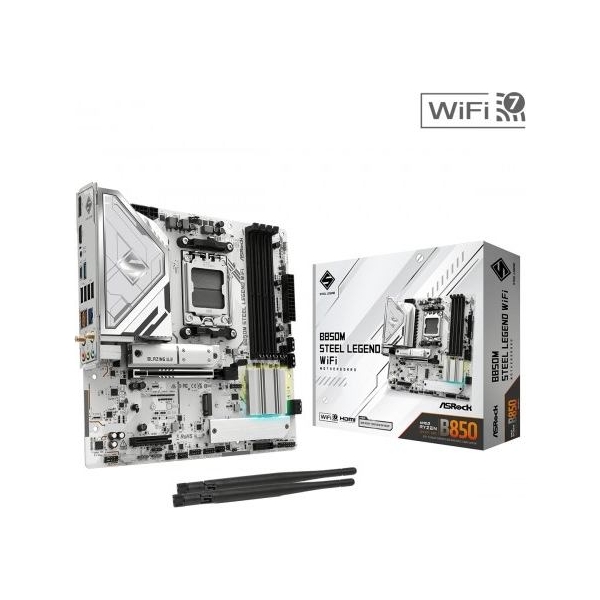

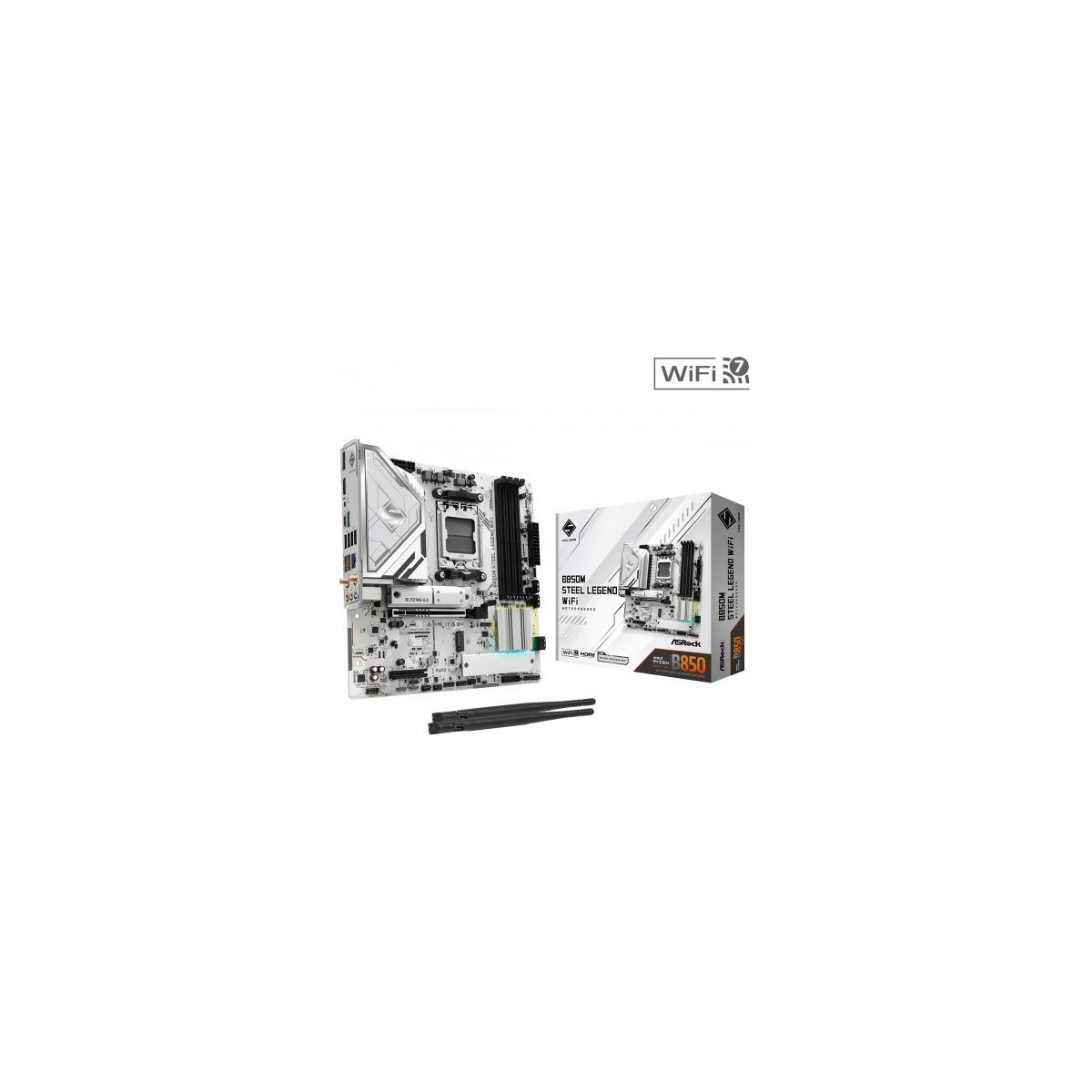

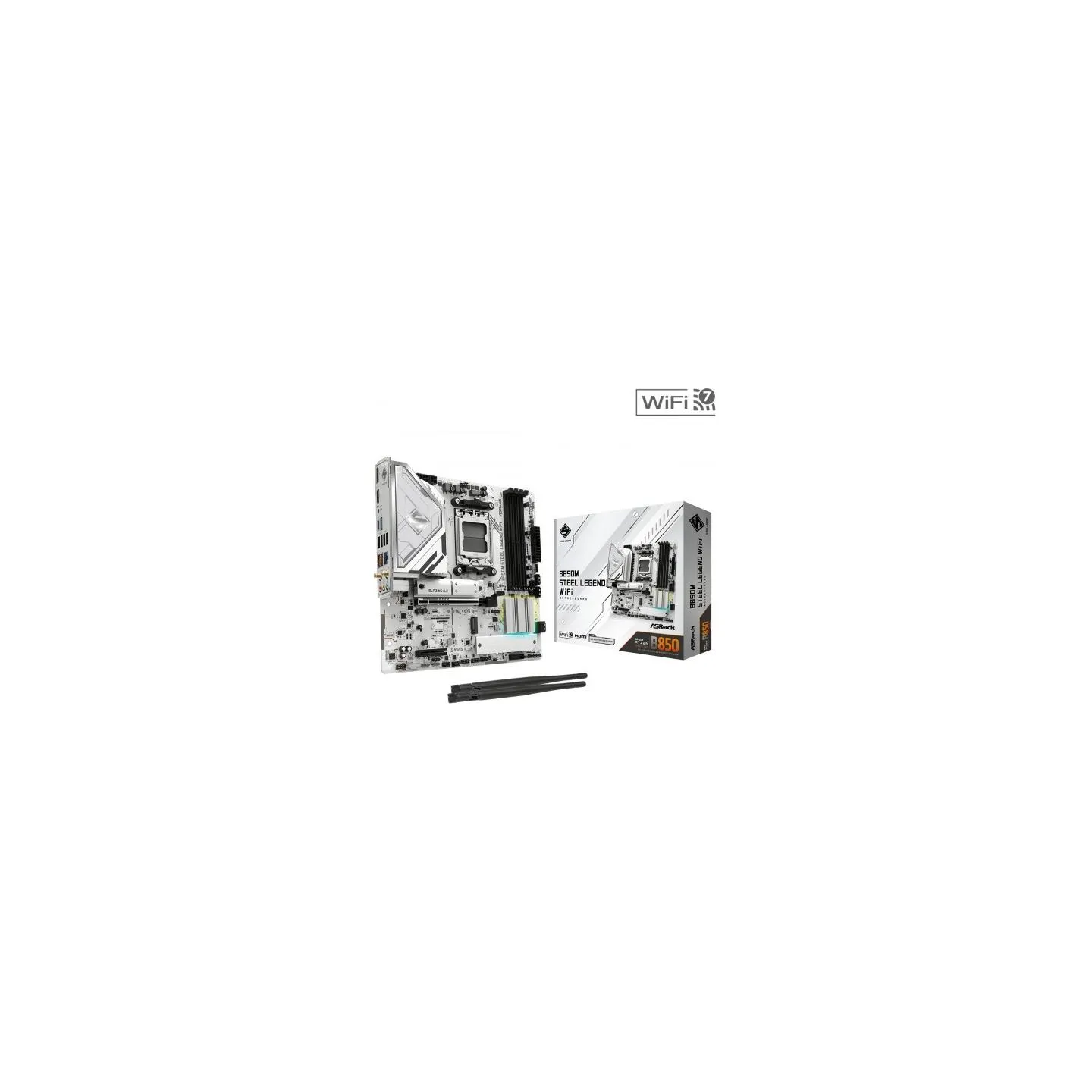

2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Thermistor Cable 2 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
