Axis NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS
- Write a review
€1,205.37
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

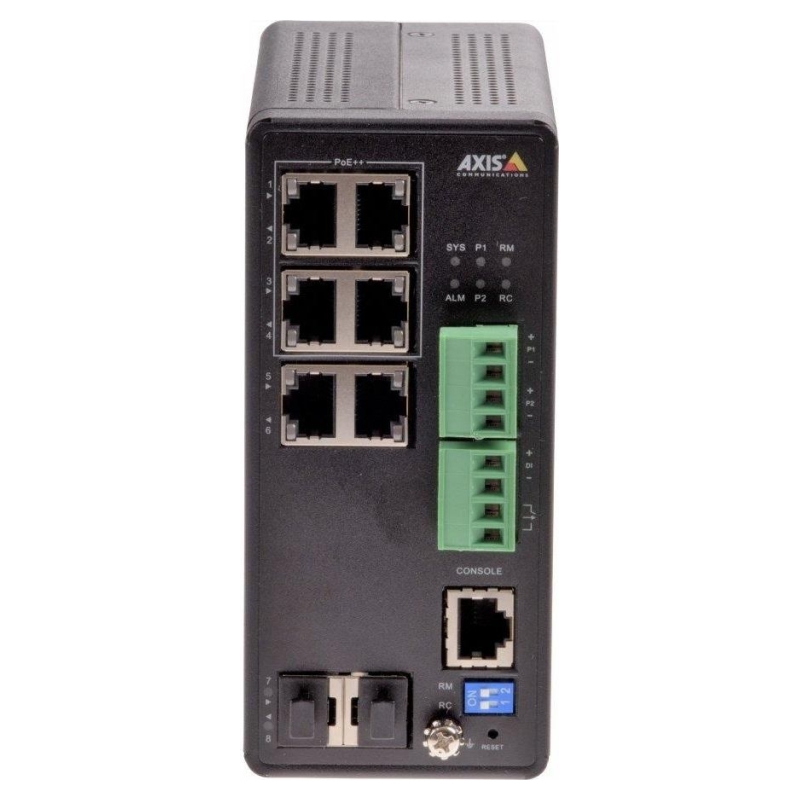

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.
- 60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant
Manufacturer Website:
https://www.axis.com/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.21
- Unit Box Length
- 0.26
- Unit Box Width
- 0.085
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Console port
- RJ-45
- Fiber optic connector
- SFP
- Power connector
- DC-in jack
- 10G support
- No
- Networking standards
- IEEE 802.1Q/IEEE 802.1x
- VLAN support
- Yes
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Switching capacity
- 16 Gbit/s
- Throughput
- 11.9 Mpps
- Authentication type
- RADIUS
- Password protection
- Yes
- Security algorithms
- HTTPS/SNMP/SNMPv3
- Housing material
- Aluminium
- Product colour
- Black
- DC input voltage
- 54 - 57 V
- Surge protection
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 60 W
- Total Power over Ethernet (PoE) budget
- 240 W
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Depth
- 130 mm
- Height
- 135 mm
- Weight
- 600 g
- Width
- 62 mm
- Quick start guide
- Yes
- Mounting brackets included
- Yes
- Certification
- EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003
- Harmonized System (HS) code
- 85176990
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.004641 cubm
- Unit Calculated Weight
- 1.06 kg
01633-001
2 Items
Specific References
- EAN13
- 7331021066199
- MPN
- 01633-001
