Supports a total of three M.2 slots and four SATA 6 Gb/s ports.AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 mode) 4.0 x4/x2) AMD B850 Chipset M.2_3 (M Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports
Graphics
1 x DisplayPort port** 1 x HDMI port*** ** Supports up to 8K at 30 Hz as per DisplayPort 1.4 specification. *** Supports 4K at 60 Hz as per HDMI 2.1 specification.
Sound card
Realtek ALC1220P 7.1 high-resolution audio codec Impedance detection for front and rear headphone outputs Internal audio amplifier for superior sound quality on headphones and speakers Supports: headphone jack detection, multi-streaming, and front-panel jack remapping High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Cover Unique De-Pop Circuit
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands Supports Wi-Fi 7 160 MHz bandwidth, transfer speeds up to 2.9 Gbps Bluetooth v5.4
USB ports at back panel
10
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
1
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

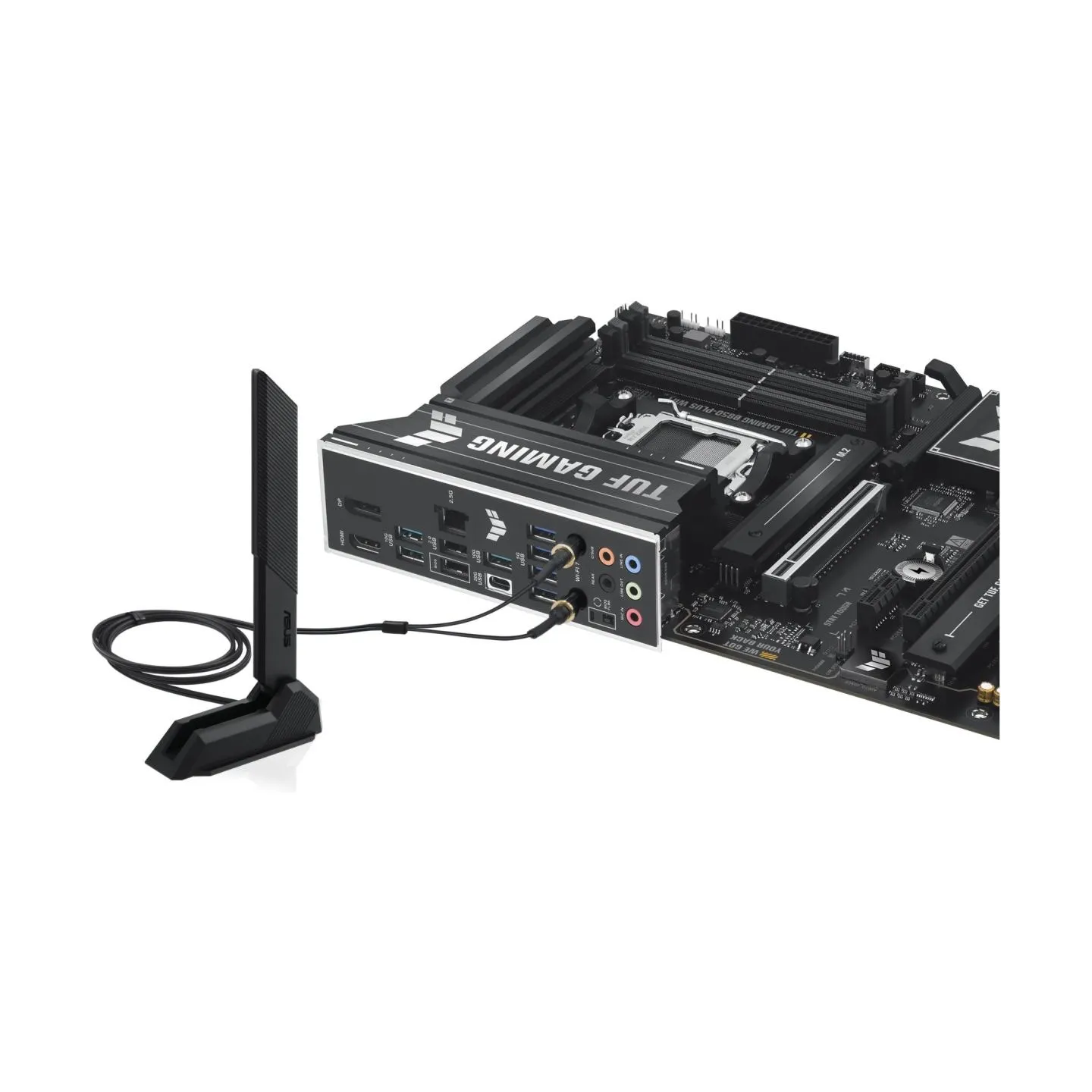

External connectors
1 x Central Speaker / Subwoofer
External connectors
1 x Rear Speaker
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
2 x USB 2.0
External connectors
4 x USB 3.0
External connectors
3 x USB 3.1
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
2 x SMA
External connectors
1 x USB BIOS Flashback button
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Thunderbolt header
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Form factor
ATX
Accessories included

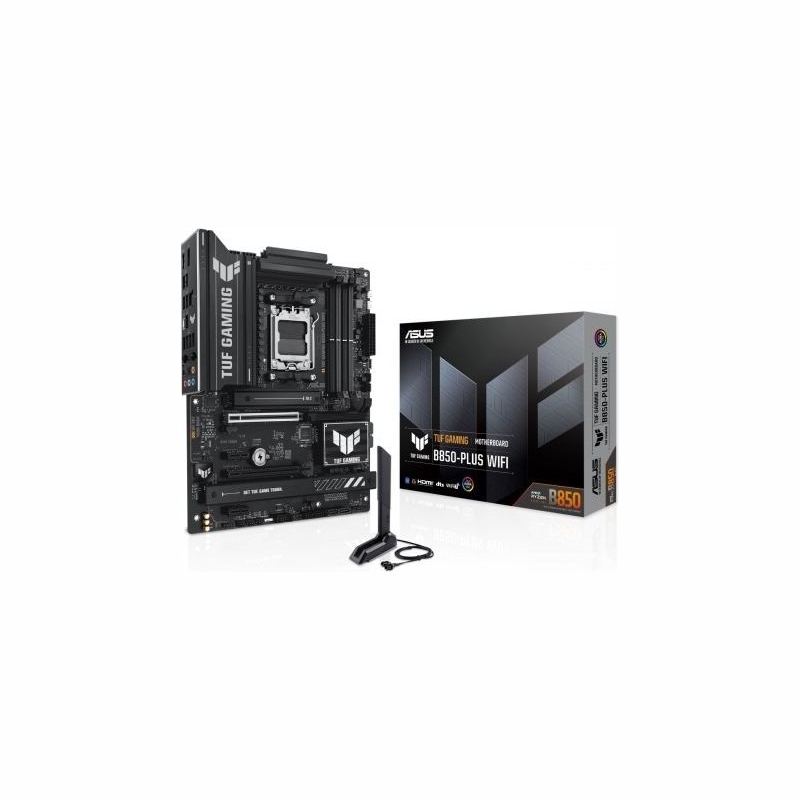

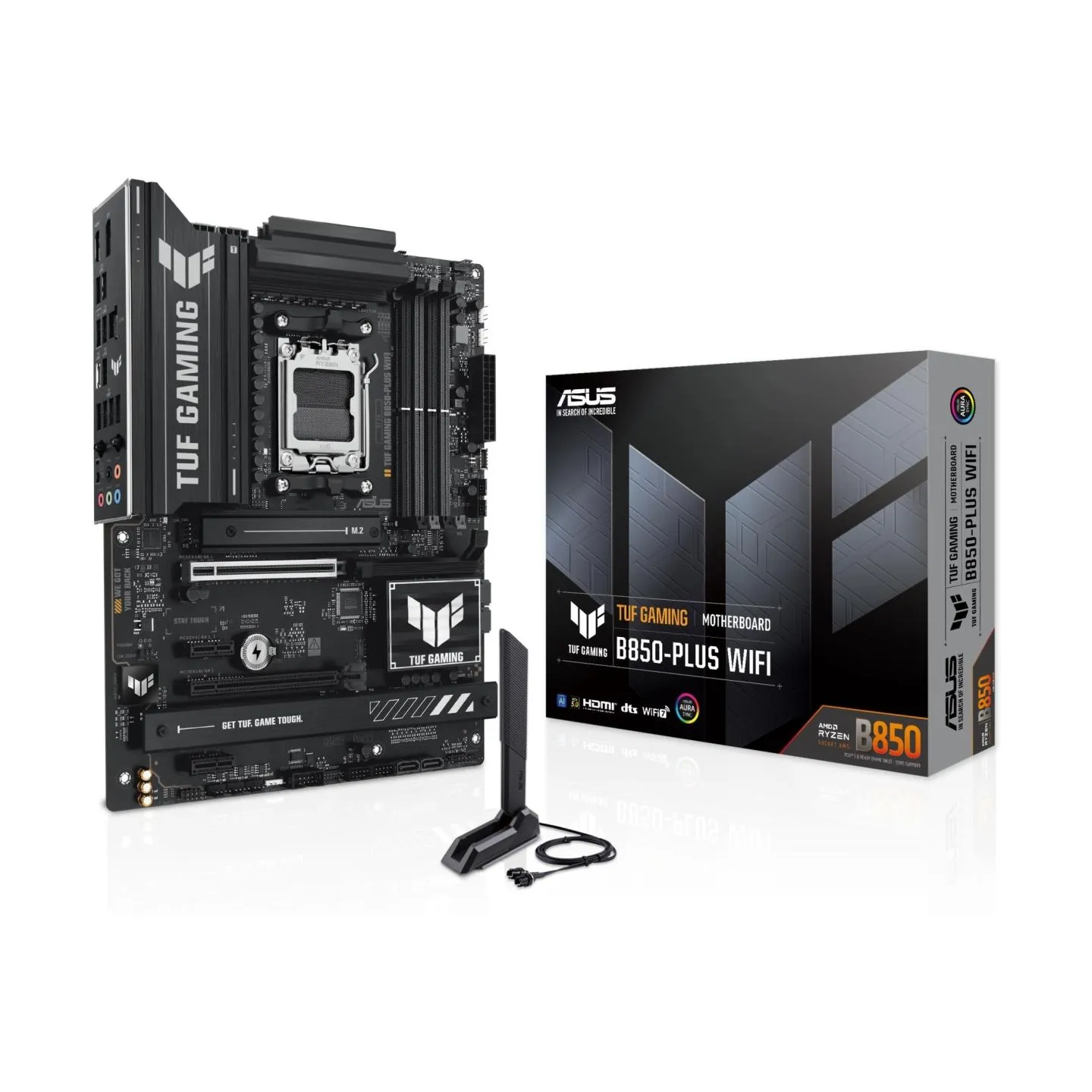

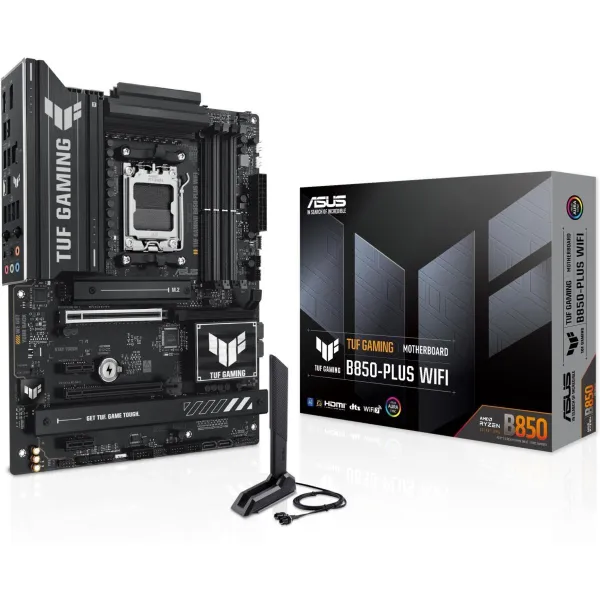

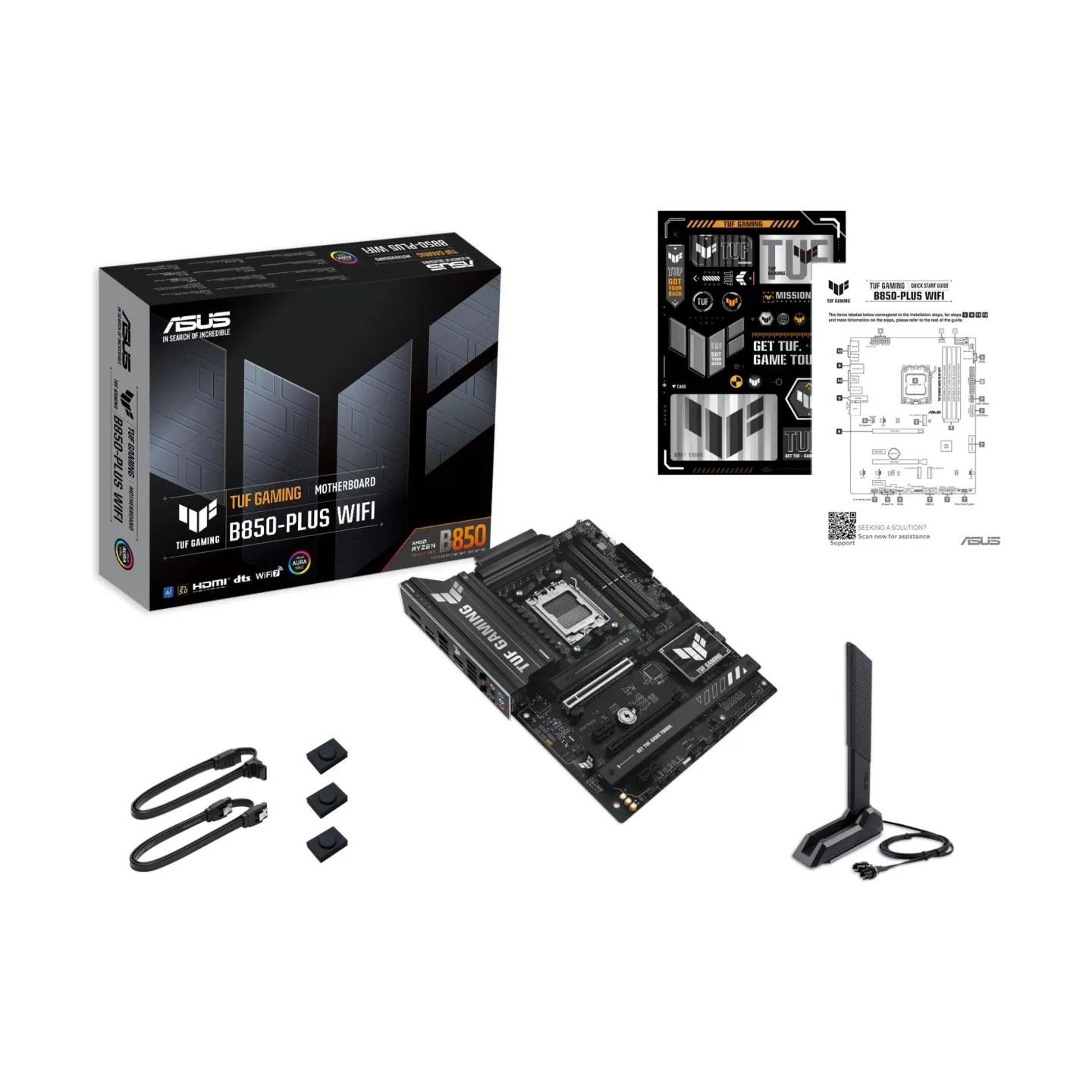

Cables 2 x SATA 6 Gb/s cables Other 1 x ASUS WiFi Q antenna 1 x TUF GAMING sticker 2 x M.2 rubber packs Documentation 1 x Quick Start Guide
Supported operating systems
Windows 11
Software
ASUS Exclusive SoftwareArmory Crate Aura Creator Aura Sync Fan Xpert 4 Power Saving ASUS DriverHubASUS GlideXTurboV CoreTUF GAMING CPU-ZDTS Audio ProcessingNorton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
