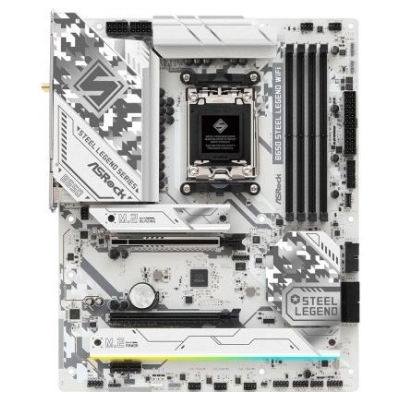

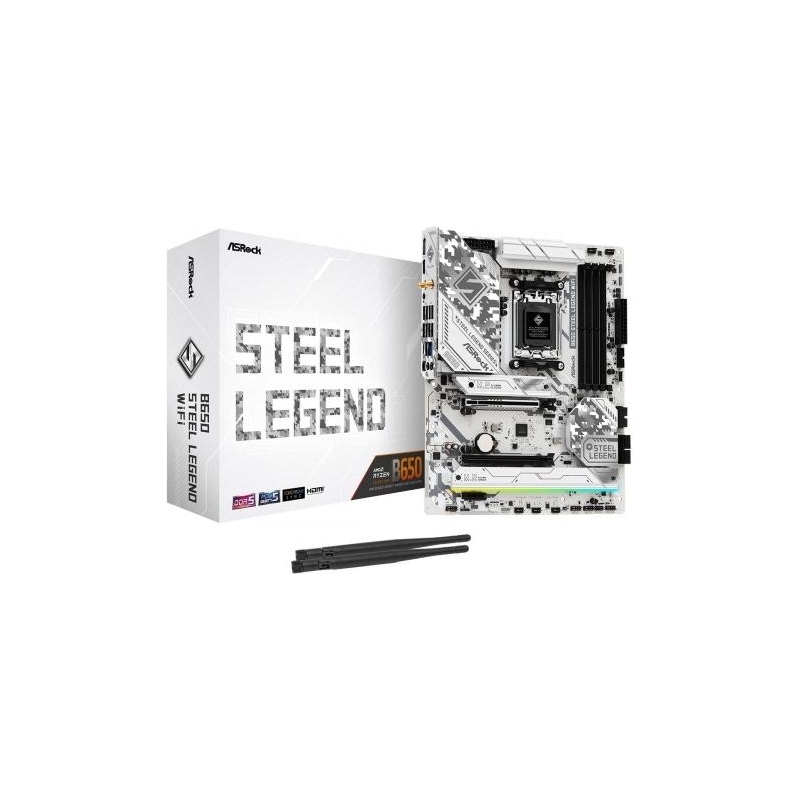

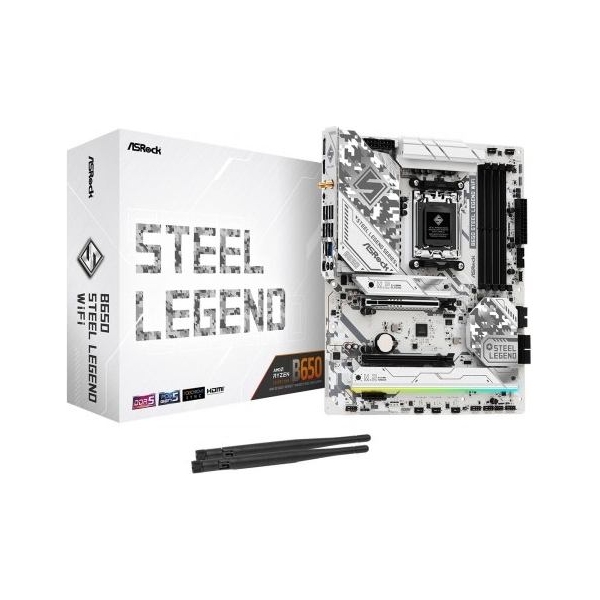

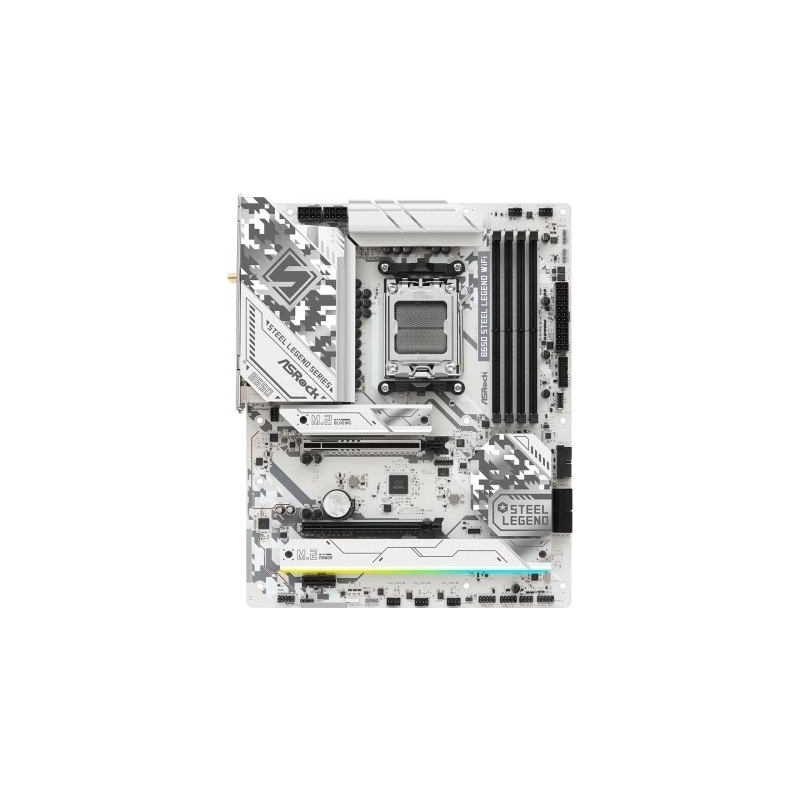

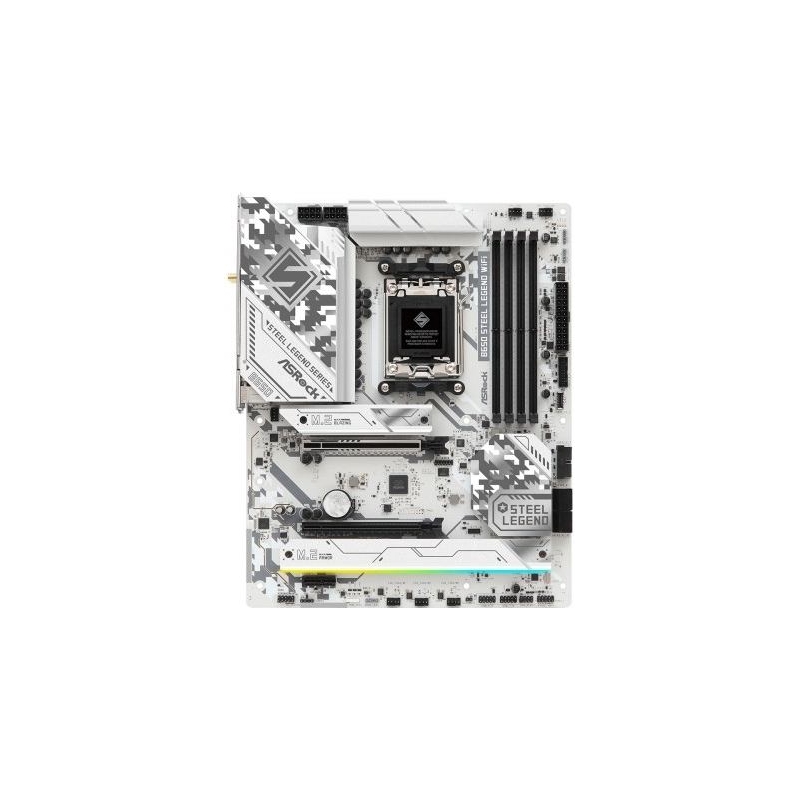

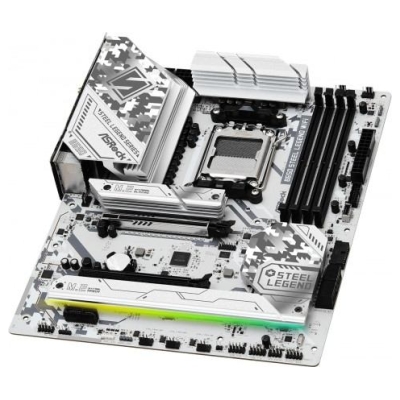

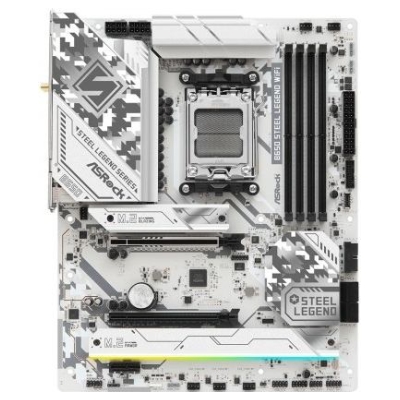

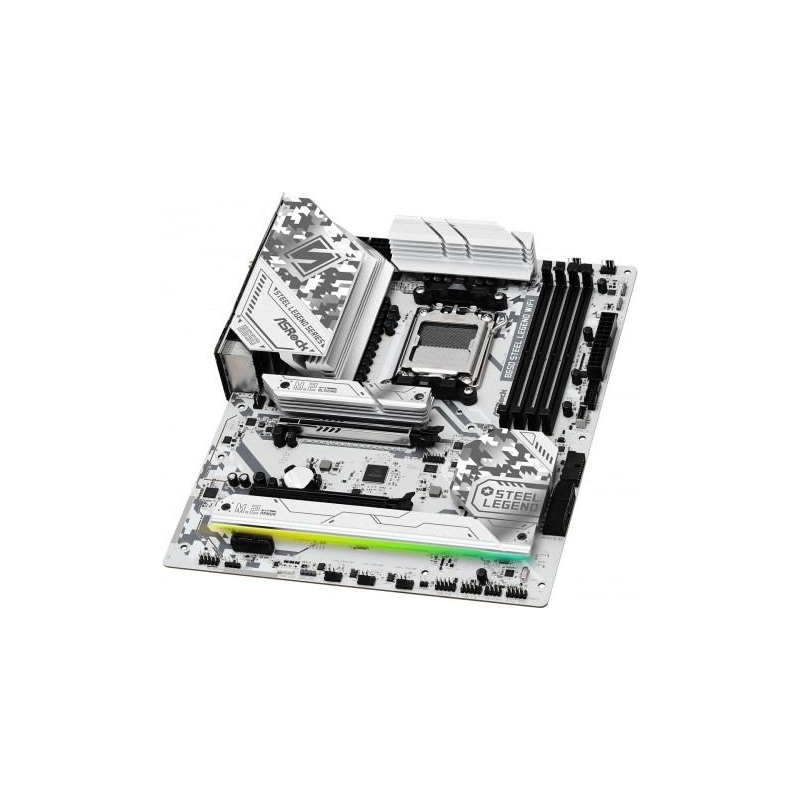

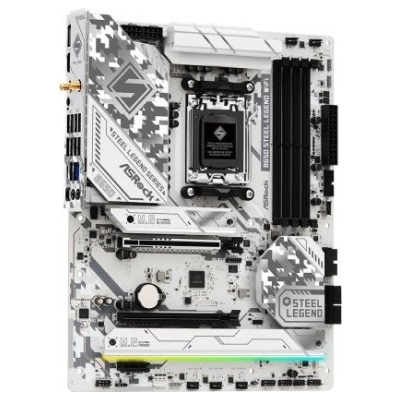

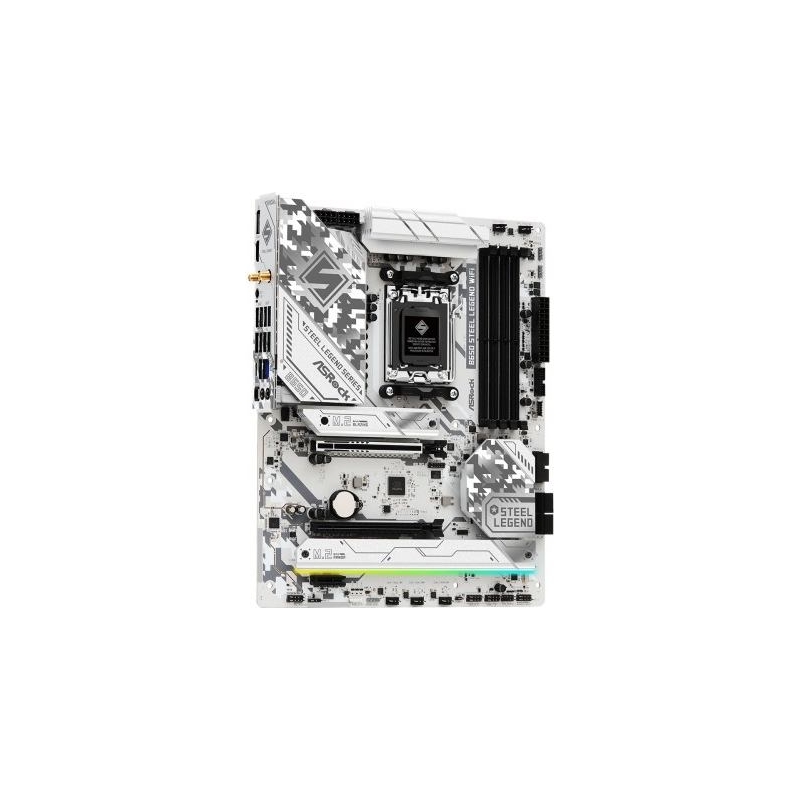

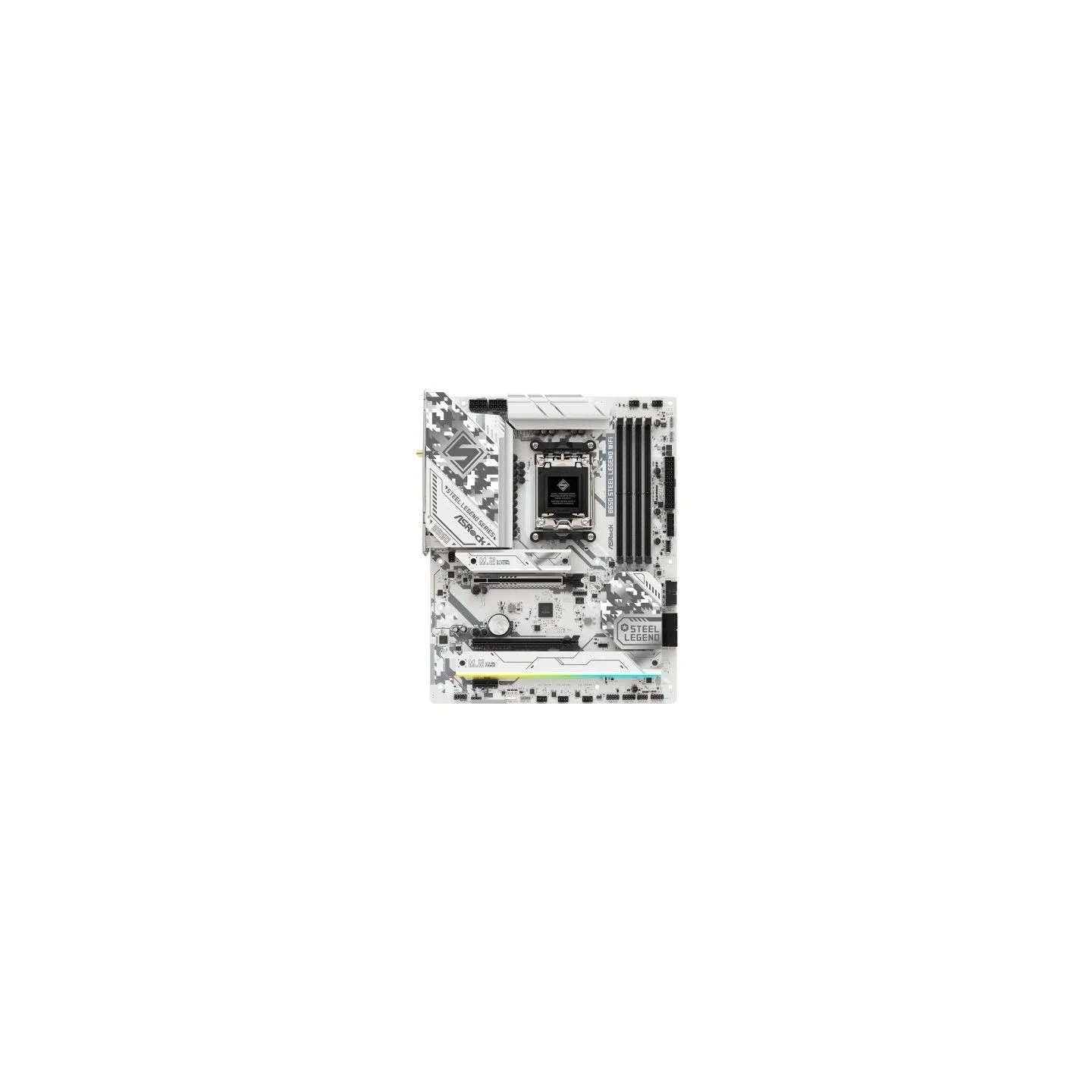

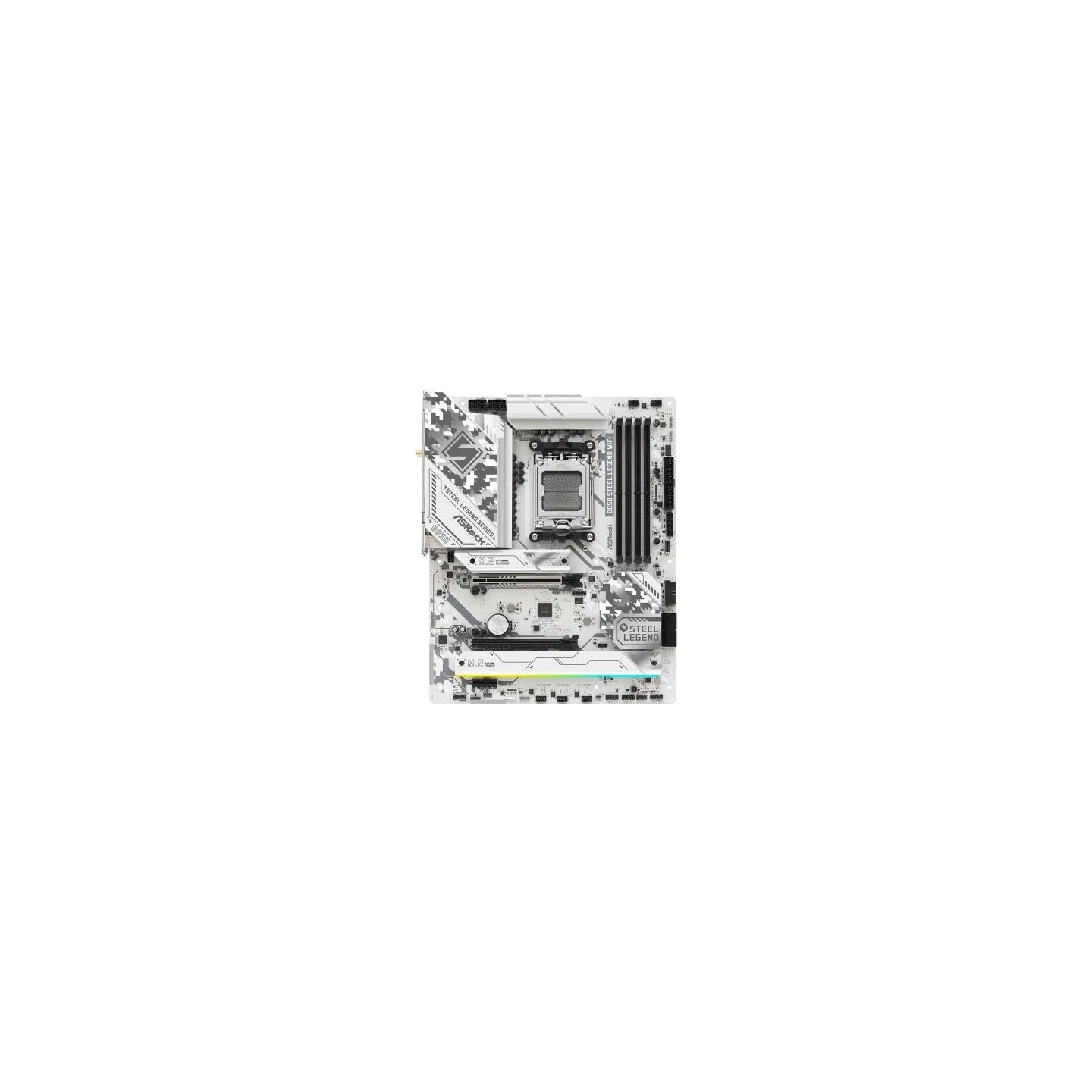

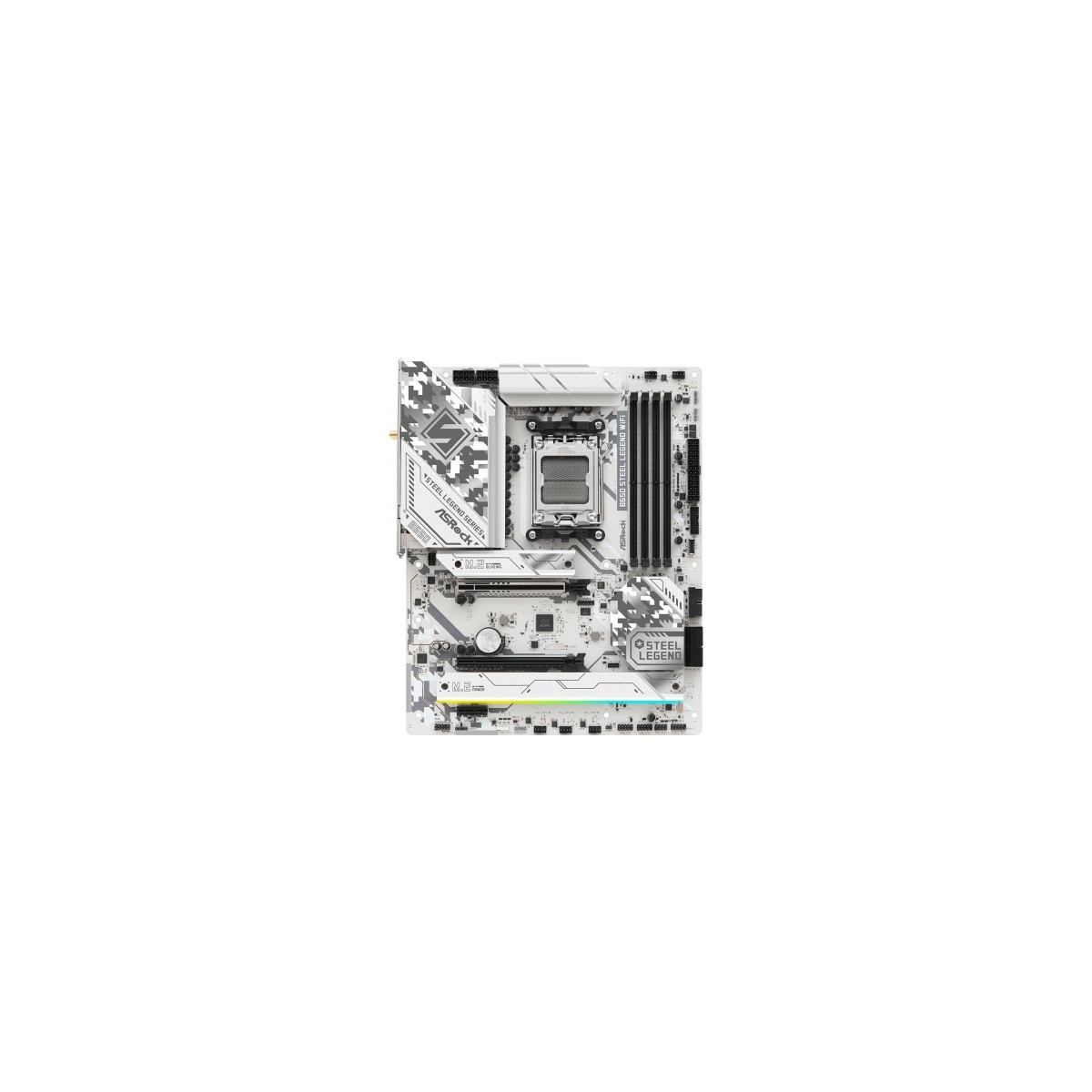

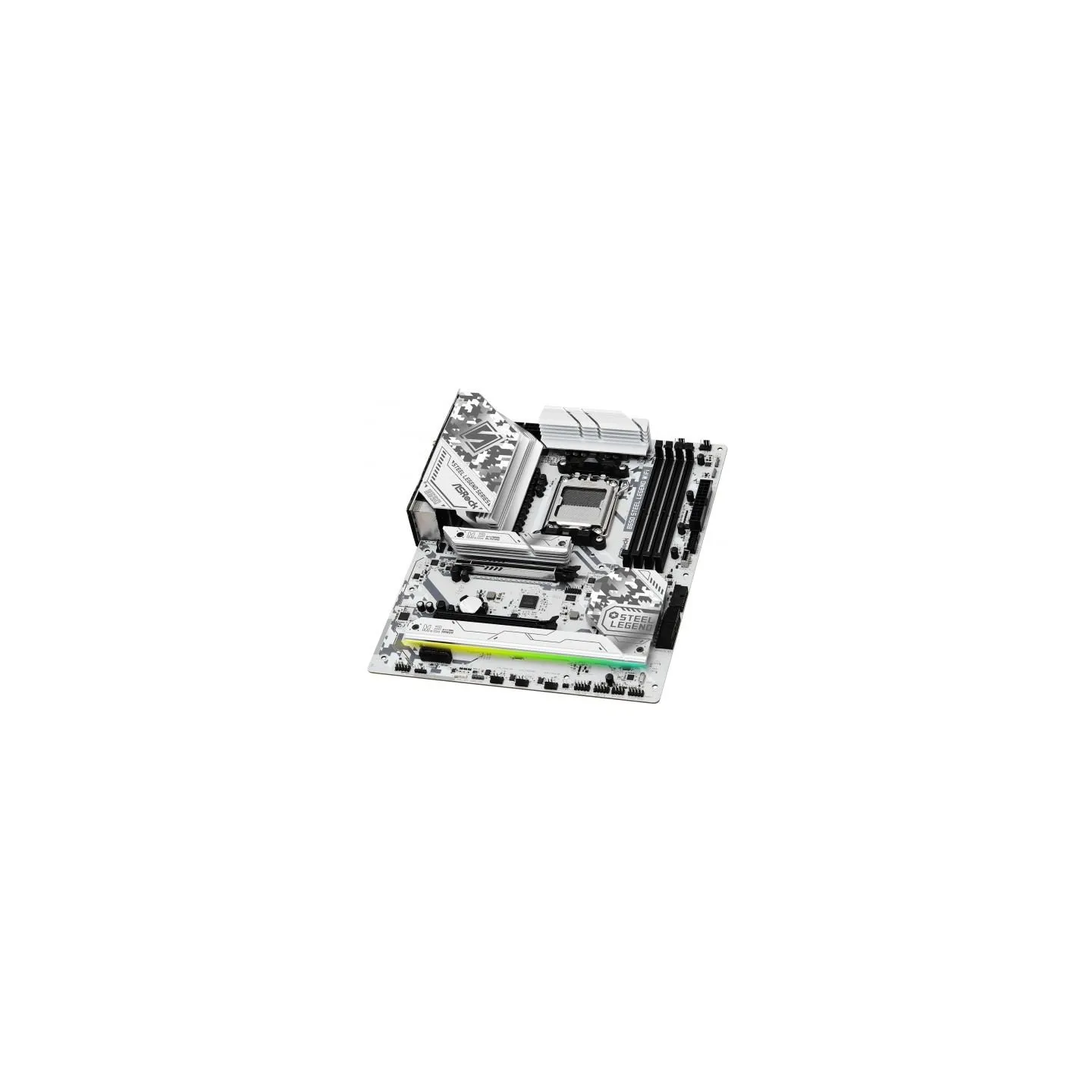

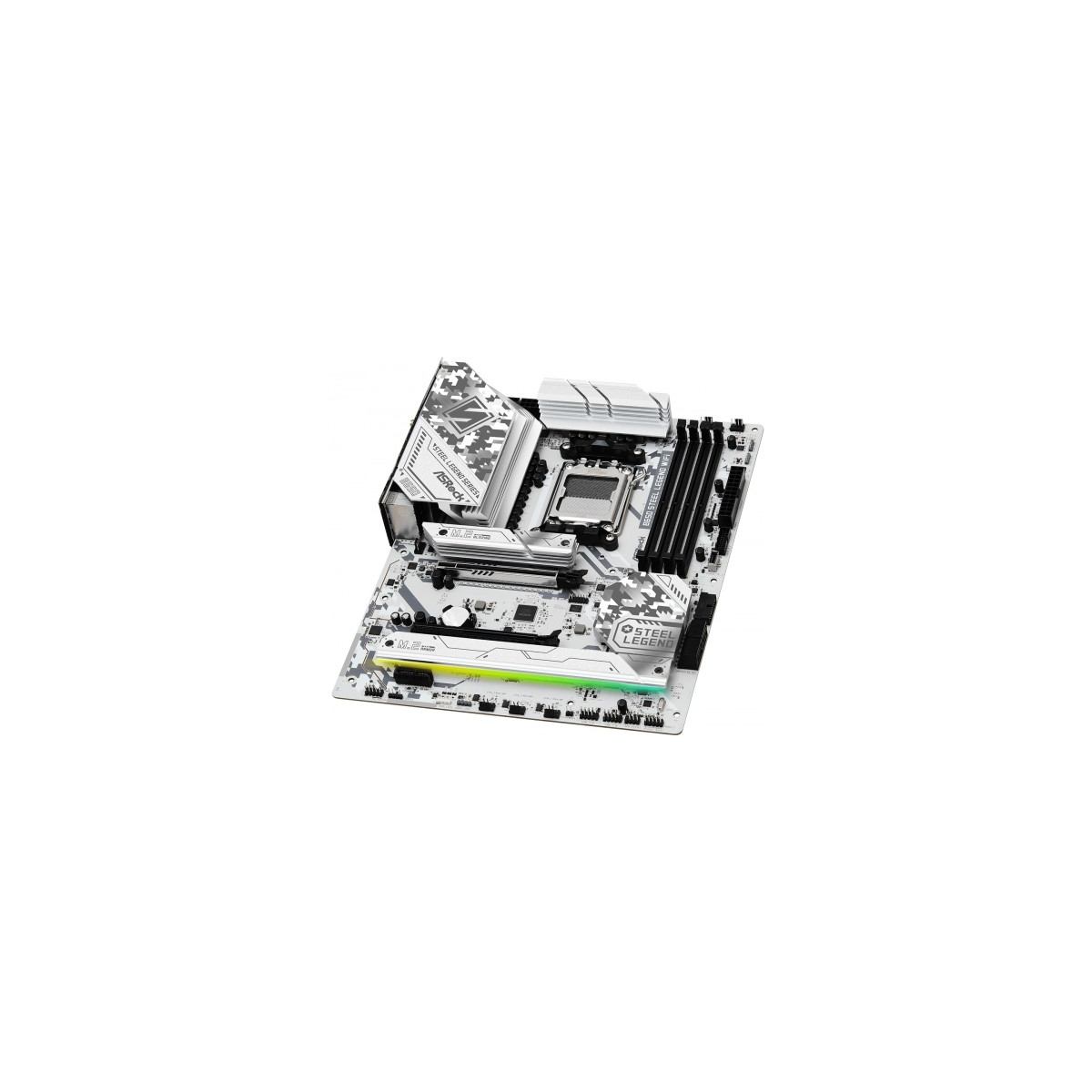

Asrock B650 STEEL LEGEND WIFI AM5 4DDR5 HDMI/DP M2 AT
- Write a review
€210.24
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRAA8B650A05
- Barcode
- 4710483944598
- Model
- B650 Steel Legend WiFi
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B650
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 2 x SATA3 6.0 Gb/s connectors** ASMedia ASM1061: 2 x SATA3 6.0 Gb/s connectors * Supports NVMe SSD as boot disks ** If SATA3_0 and SATA3_1 ports are occupied, PCIE2 mode will be downgraded to x2 mode
- Graphics
- Integrated AMD RDNA Graphics (Support may vary depending on CPU) 1 x HDMI 2.1 TMDS/FRL (8G compatible), supports HDR, HDCP 2.3 and a maximum resolution of up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and a maximum resolution of up to 4K 120Hz
- Sound card
- 7.1 Channel HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB layers for left and right audio channels Impedance sensing on the rear output port Nahimic Audio
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/axe
- USB ports at back panel
- 10
- USB ports on motherboard
- 8
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 9
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x MIC (front)
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm

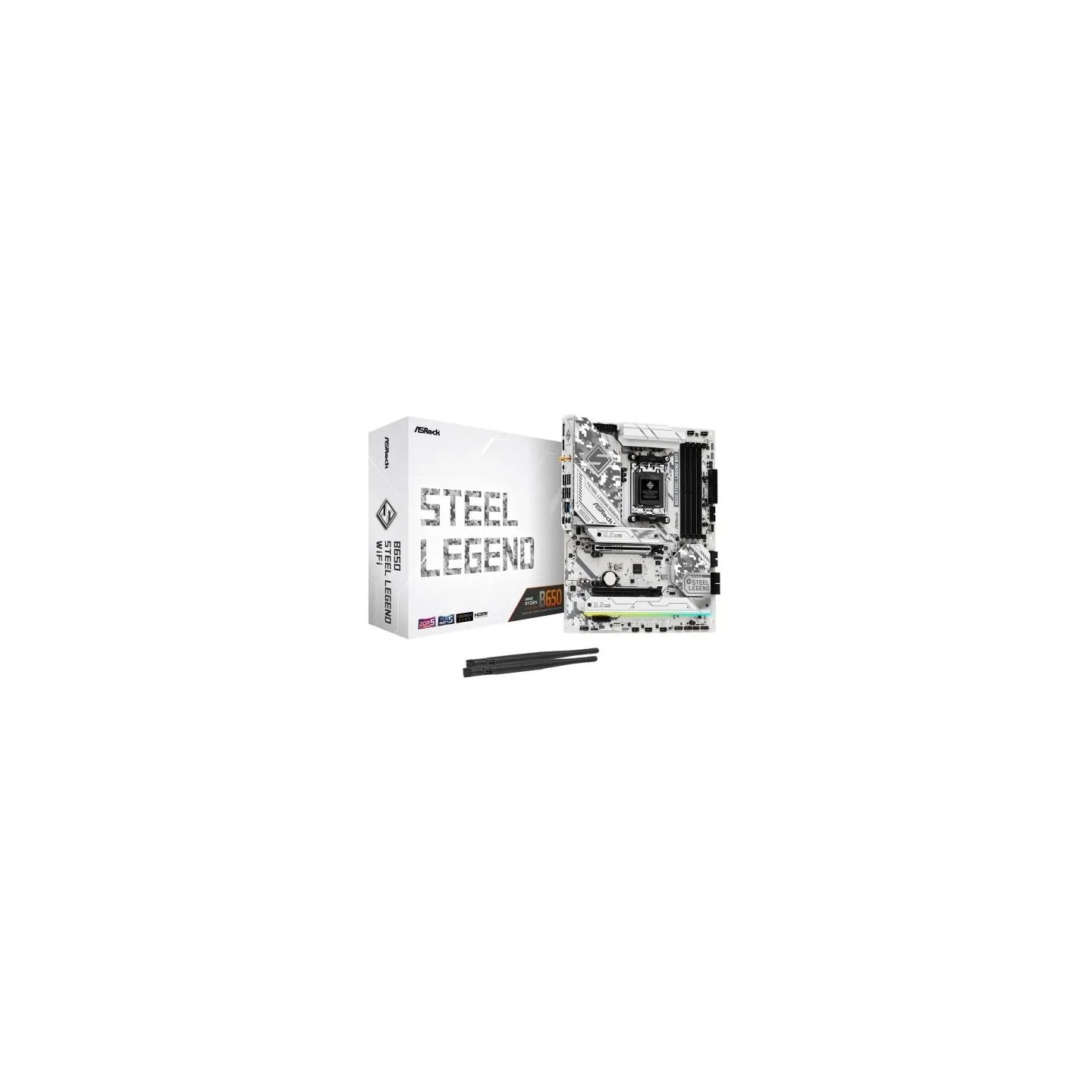

- Accessories included
- 1 x User Manual 2 x SATA data cables 2 x ASRock WiFi antennas (2.4/5/6 GHz) 3 x M.2 socket screws 1 x M.2 standoff
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash Feature
- Designation
- CE+WEEE
B650 STEEL LEGEND WIFI
7 Items
Specific References
- EAN13
- 4710483944598
- MPN
- B650 STEEL LEGEND WIFI
