AMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Graphics
1 x HDMI port*** 1 x 10 Gbps USB port supports USB Type-C display output**** *** Supports 4K@60Hz as per HDMI 2.1 specification. **** Supports up to 4K@60Hz as per DisplayPort 1.4a specification.***** VGA resolution support depends on the resolution of the processor or graphics card.
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Rear Optical S/PDIF Output Premium Audio Capacitors Audio Shield *A chassis with a front-panel HD audio module is required for 7.1 Surround Sound audio output.**The rear-panel LINE OUT port does not support surround sound. To enjoy surround sound, connect your audio output device to the front-panel audio jack or use a USB audio device.
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel
8
USB ports on motherboard
5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
7
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x Wi-Fi Module
External connectors
1 x Flash BIOS Button
External connectors
1 x Przycisk Clear CMOS
External connectors
2 x USB 2.0
External connectors
4 x USB 3.2 Gen 2 Type-A
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors
1x CPU/DRAM overvoltage jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
2 x Addressable LED
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
1 x USB 2.0/1.1 header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x 4-pin Extra Flow Fan header
Onboard connectors
1 x System panel header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
mini ITX
Dimensions
17 cm x 17 cm
Accessories included

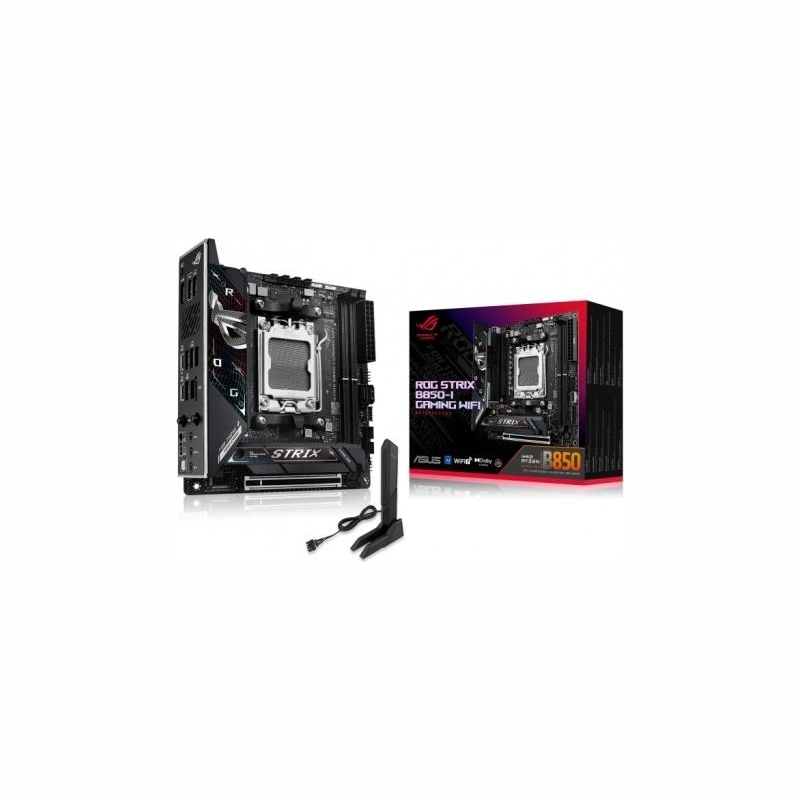

2 SATA 6Gb/s Cables ASUS WiFi Q-Antenna Cable Tie Pack Q-Latch M.2 Backplate Pack Q-Slide M.2 Backplate Pack ROG Keychain ROG Strix Stickers M.2 Rubber Backplate Pack Quick Start Guide
Supported operating systems
Windows 11
Software
ROG-exclusive software ROG CPU-Z Dolby Atmos ASUS-exclusive software Armoury Crate - AIDA64 Extreme (60-day free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
