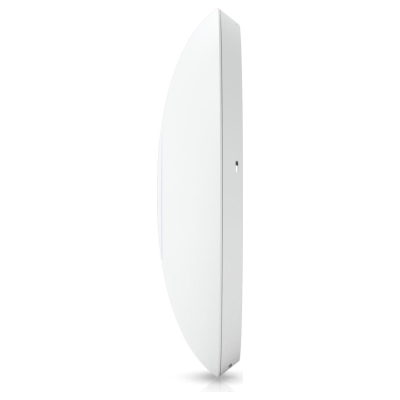

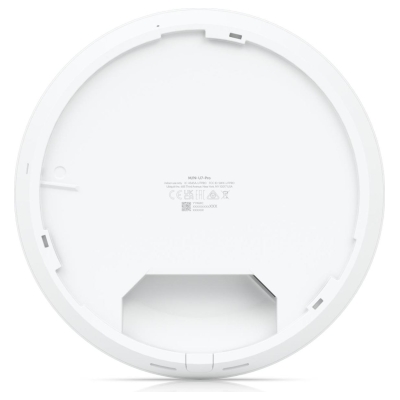

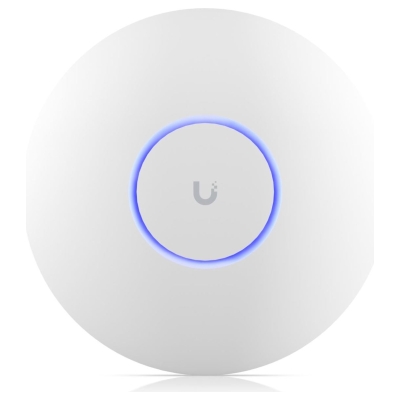

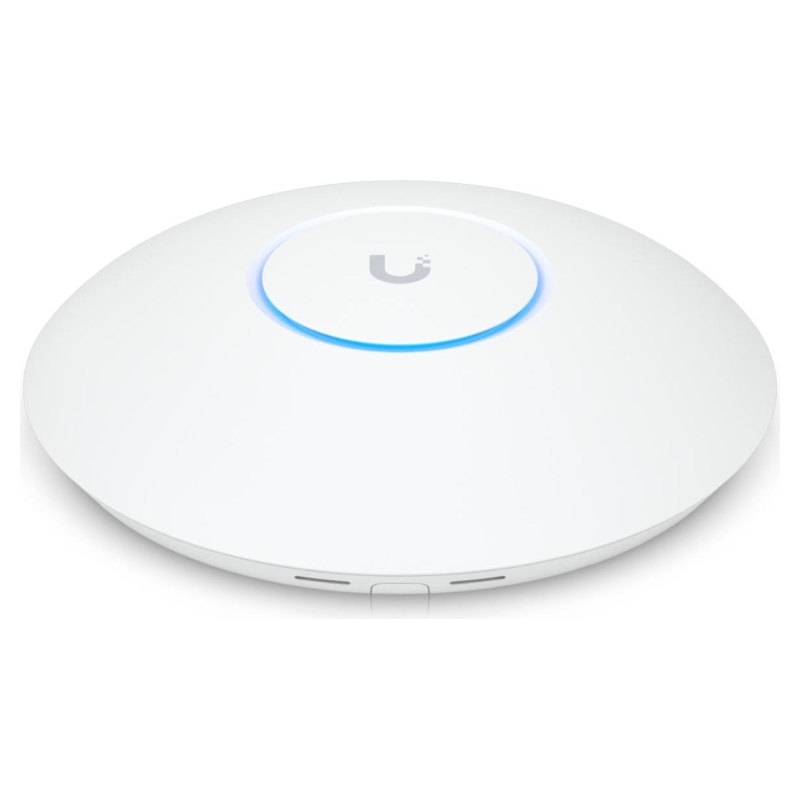

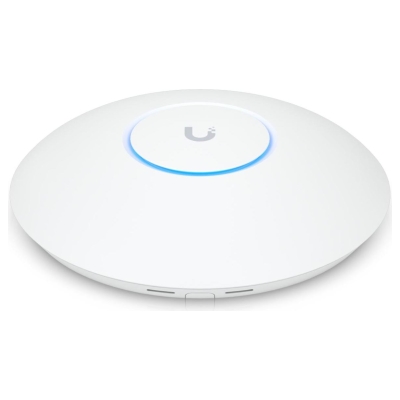

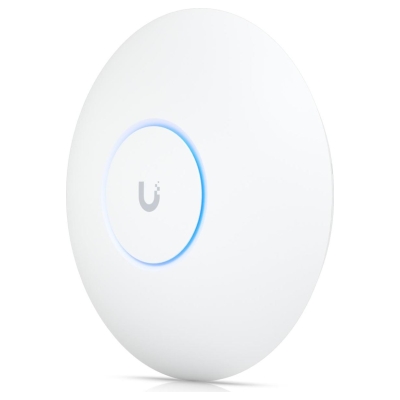

Ubiquiti U7 Pro PoE+ Access point

Write a review

€218.29

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

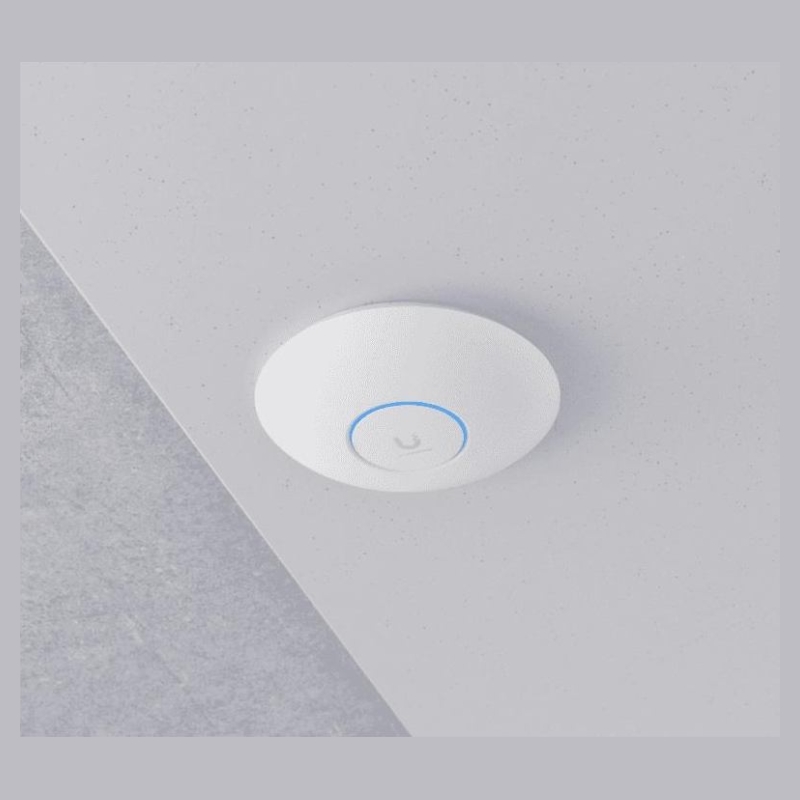

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

WiFi 7 tri-radio with 6 GHz
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink

Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/category/whats-new/products/u7-pro

Category Code: WAP
CnCode: 85176200
Unit Box Height: 0.245
Unit Box Length: 0.246
Unit Box Width: 0.096
2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Band steering: Yes
Coverage area: 140 m²
Ethernet LAN data rates: 1000/2500 Mbit/s
Fast roaming: Yes
Fit AP mode features: Hotspot 2.0
Frequency band: 2.4 - 6 GHz
Maximum data transfer rate: 5800 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Maximum data transfer rate (6 GHz): 5800 Mbit/s
Maximum Tx power (2.4 GHz): 22 dBmW
Maximum Tx power (5 GHz): 26 dBmW
Maximum Tx power (6 GHz): 23 dBmW
MIMO: Yes
MIMO type: Multi User MIMO
Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.1Q/IEEE 802.3at
Number of users: 300 user(s)
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Throughput data rate: 5765 Mbit/s
VLAN support: Yes
Security algorithms: PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

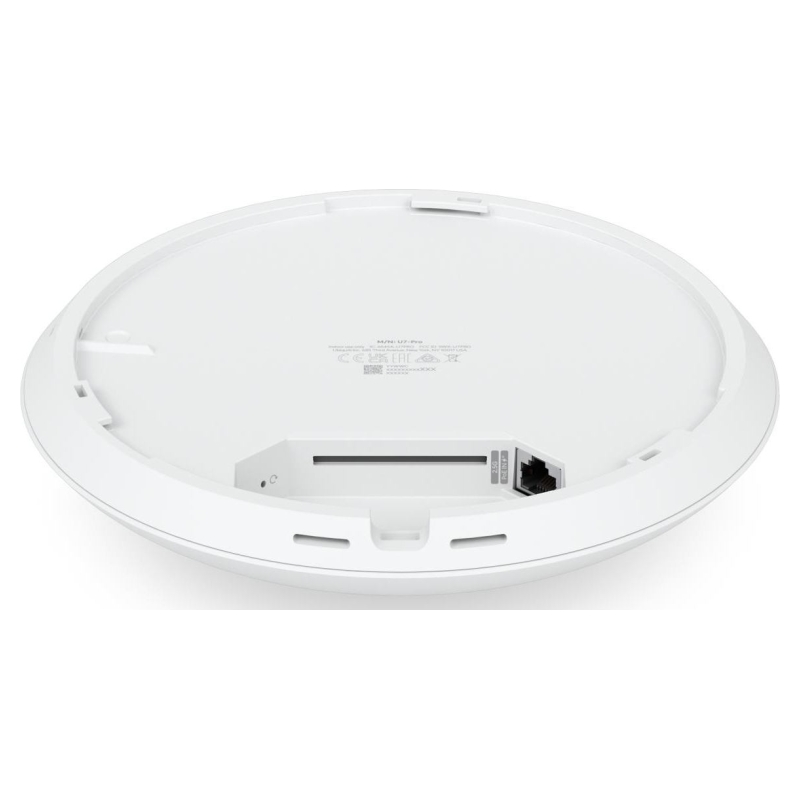

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
DC voltage range: 44 - 57 V
Power consumption (max): 21 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
Housing material: Metal,Polycarbonate (PC)
LED indicators: Yes

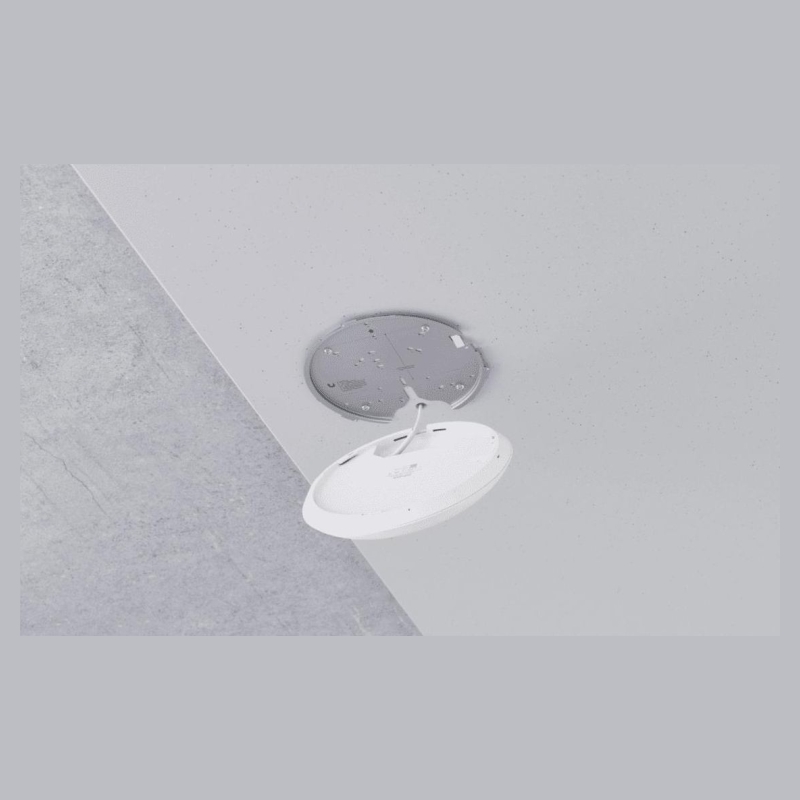

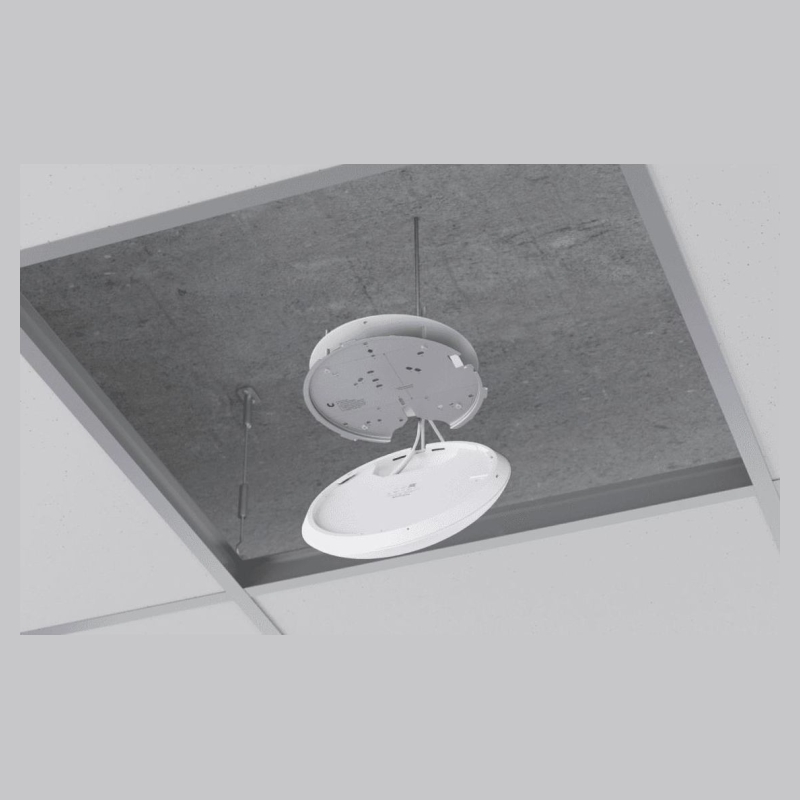

Placement: Ceiling,Wall
Product colour: White
Reset button: Yes
Antenna gain level (max): 6 dBi
Antenna type: Internal
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Depth: 206 mm
Height: 46 mm
Weight: 680 g
Width: 206 mm
Mounting kit: Yes
Quantity per pack: 1 pc(s)
Operating relative humidity (H-H): 5 - 95 %
Operating temperature (T-T): -30 - 60 °C
Sustainability compliance: Yes
Model name: U7 Pro
Units per Shipping Box: 5
Unit Calculated Volume: 0.01157 cubm
Unit Calculated Weight: 1.58 kg

Reference U7-PRO

In stock 100 Items

Data sheet

Interface: Ethernet/Wi-Fi
Antenna: Internal
Package type: Retail
Networking features: 2x2 MIMO
Power over Ethernet plus (PoE+)
Warranty Products Returnable: Yes
Warranty Term (month): 24
Warranty Validation Criteria: Serial Number
Warranty Term Notes: 24 months - for EU
Pieces in pack: 1
Box Length (mm): 568 mm
Box Width (mm): 325 mm
Box Height (mm): 328 mm
Retail Packaging Net Weight Carton: 0 kg
Retail Packaging Net Weight Plastic: 0 kg
Packs in Box: 5
Data Link Protocol Supports: Wi-Fi
2.5 Gbps
Device Location: External
Status Indicator: Activity Status
Networking Compliant Standards: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q(VLAN)
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11be
Certifications: CE, FCC, IC
LAN: 1 (RJ-45)
Power Consumption Operational: 21 W
Included Accessories: Documentation
Mount kit
Maximum Operating Ambient Temperature: 60 °C
Maximum Operating Humidity: 95 %
Minimum Operating Ambient Temperature: -30 °C
Minimum Operating Humidity: 5 %
Built-in Devices: Reset Button
External Color: White
Power over Ethernet: External
DC 44-57 V
Networking Form Factor: External
Data Bit Rate: 5765 Mbps
Wi-Fi Band Frequency: 2.4 GHz/5 GHz/6 GHz
Number of Ports: 1
Encryption Algorithm: WPA-PSK
WPA
WPA2
WPA3
