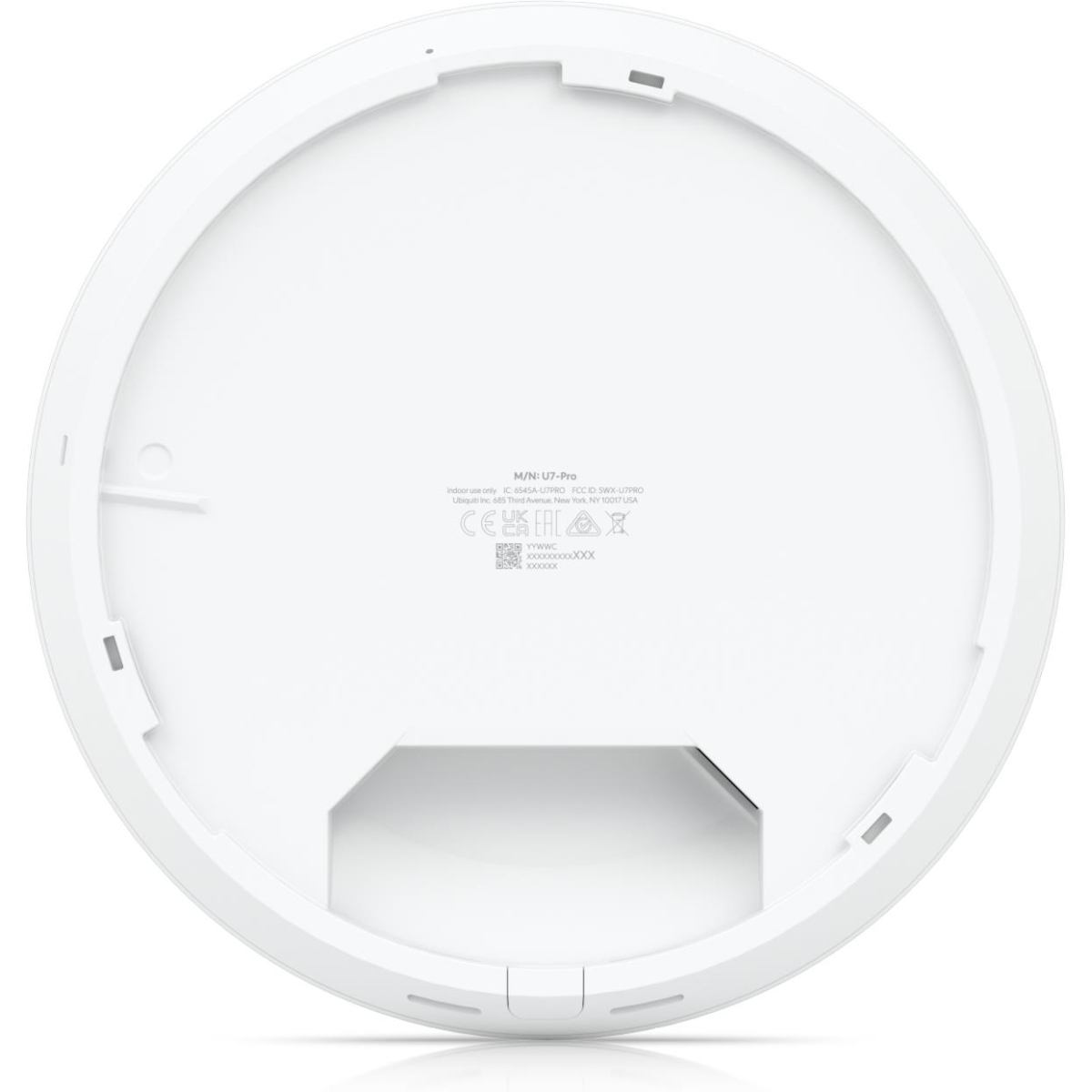

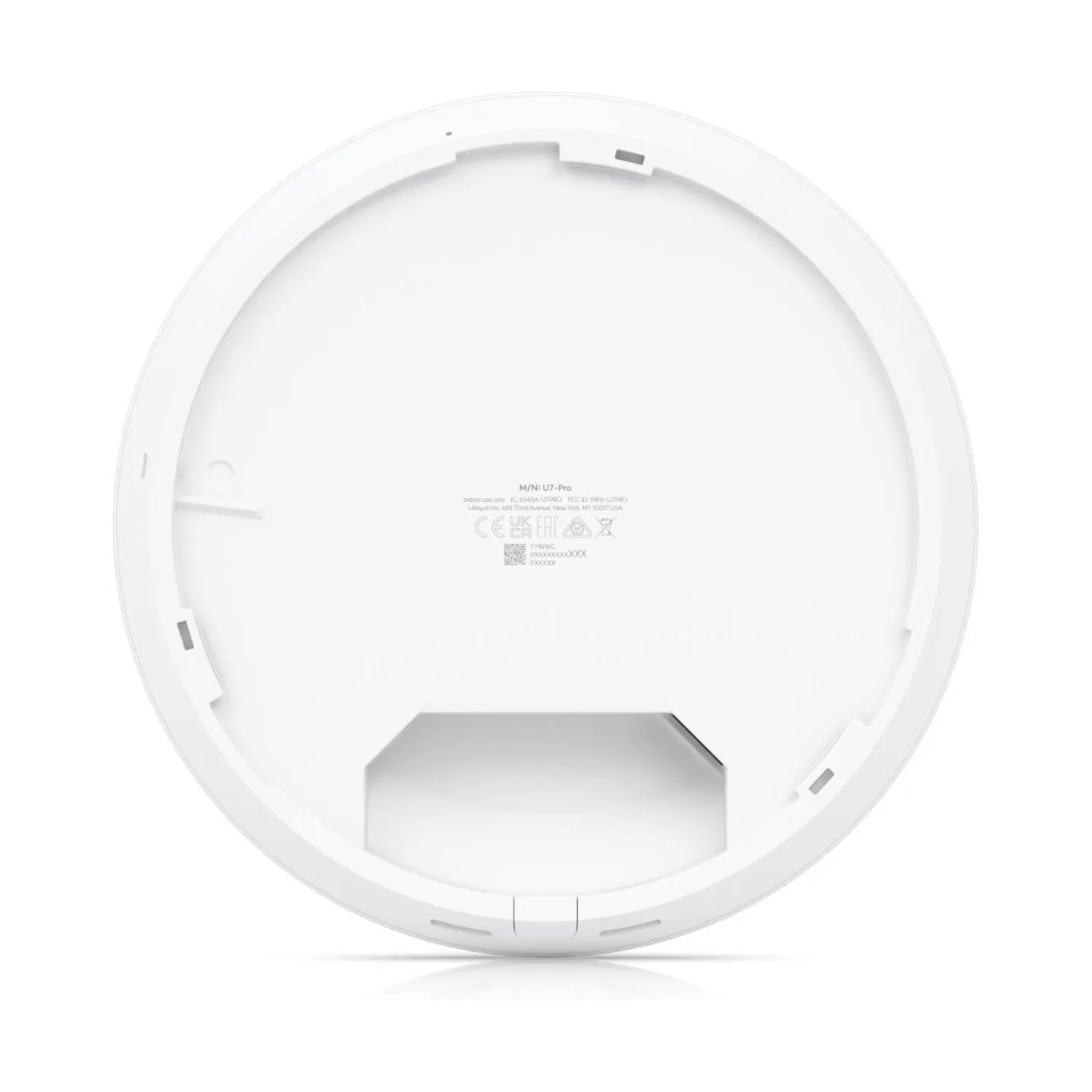

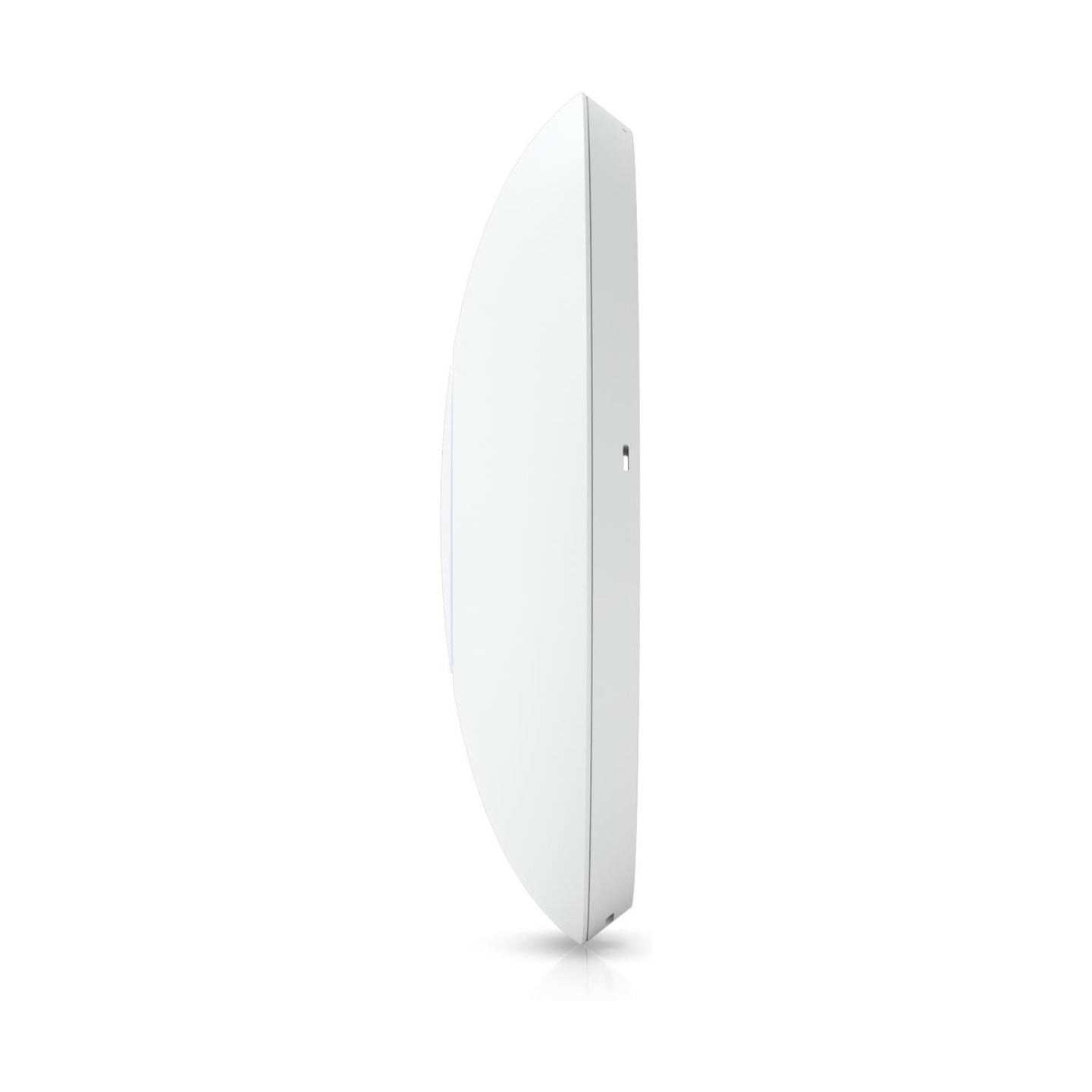

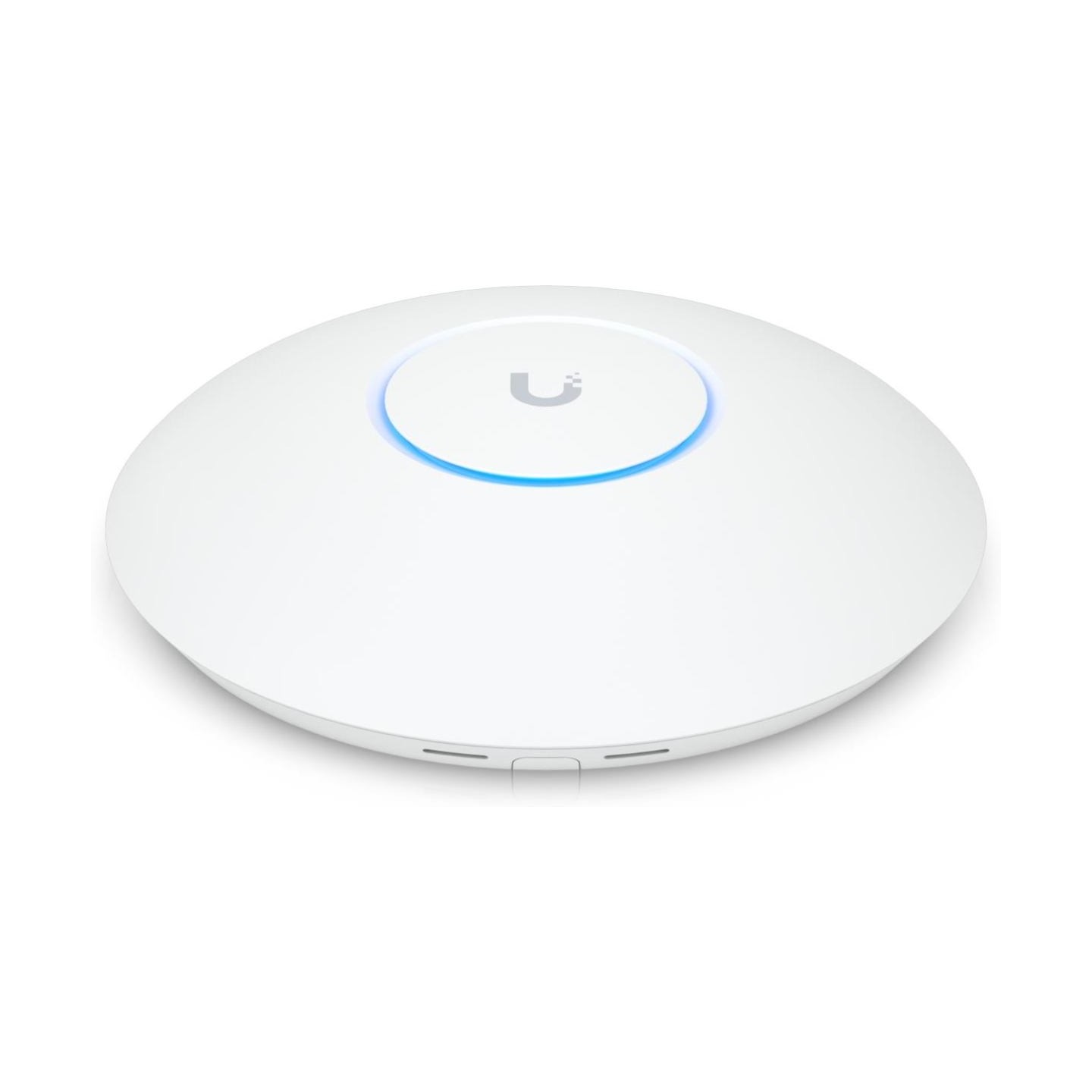

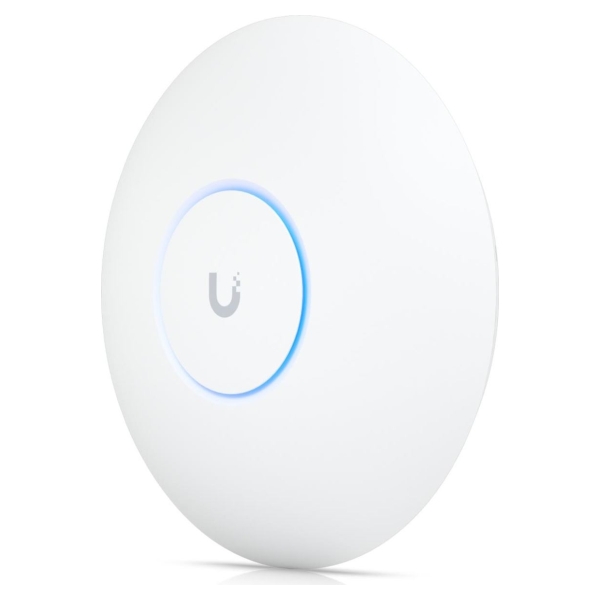

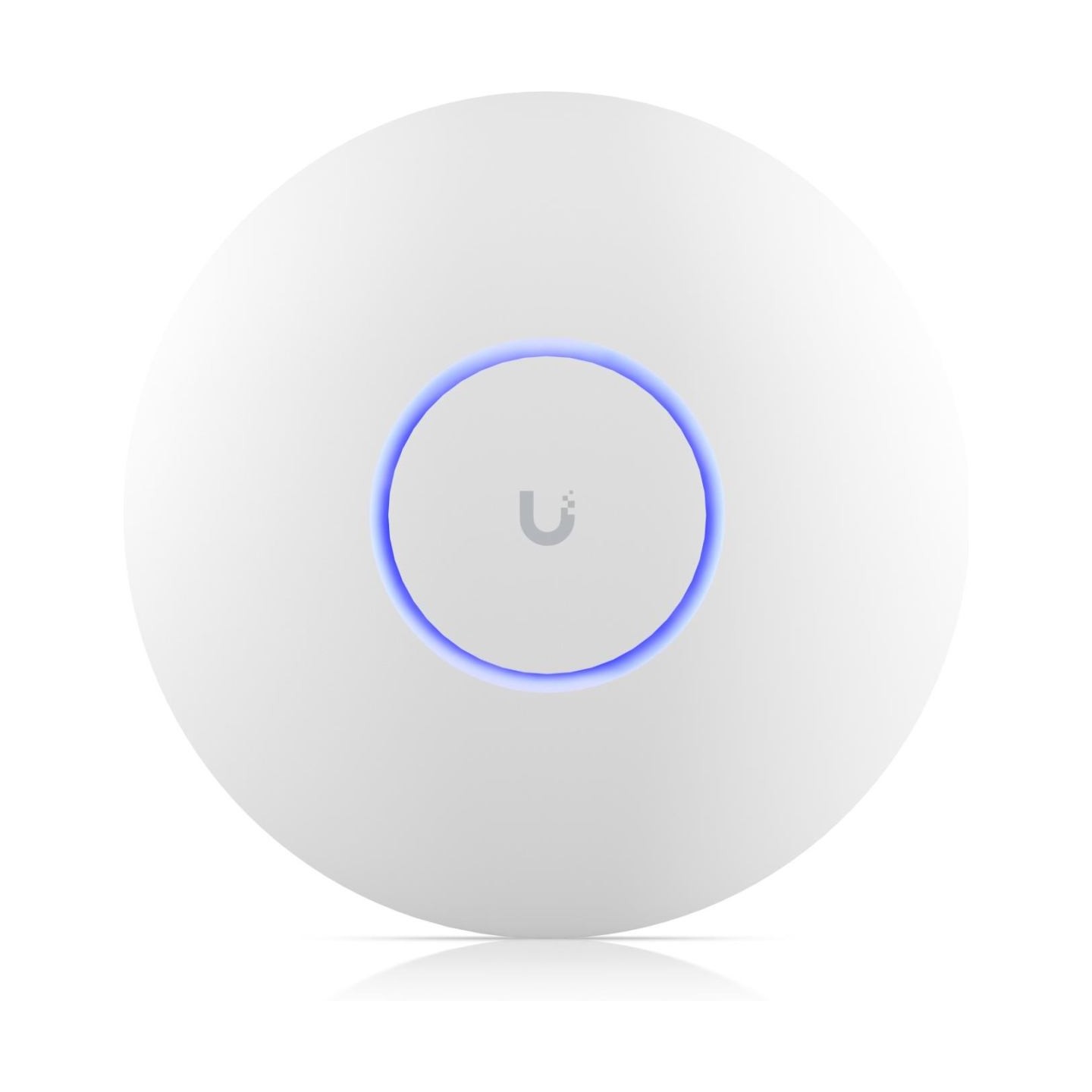

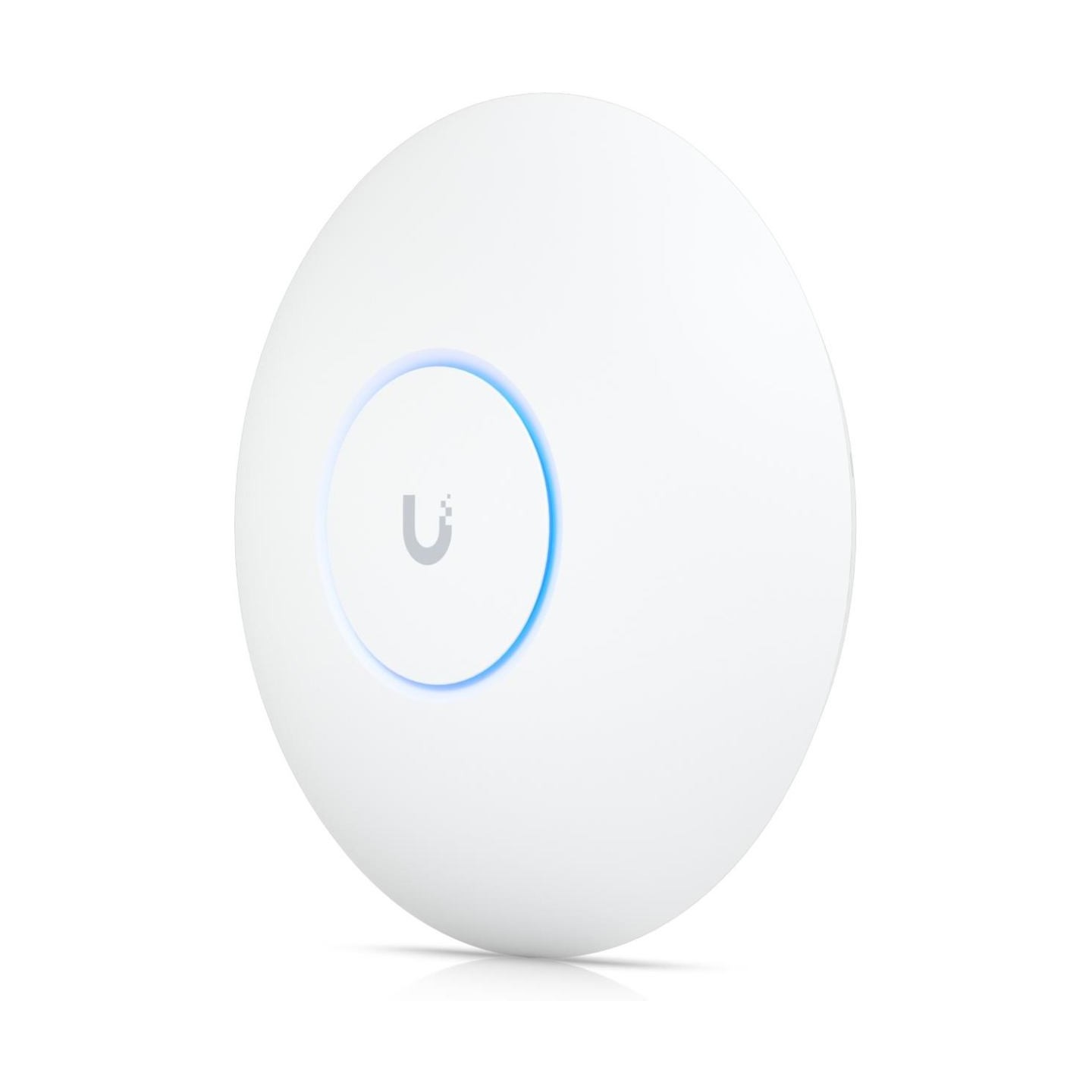

Ubiquiti U7 Pro PoE+ Access point
Price:
€218.29
Tax included
Product Comments module (productcomments) must be installed!
Share on

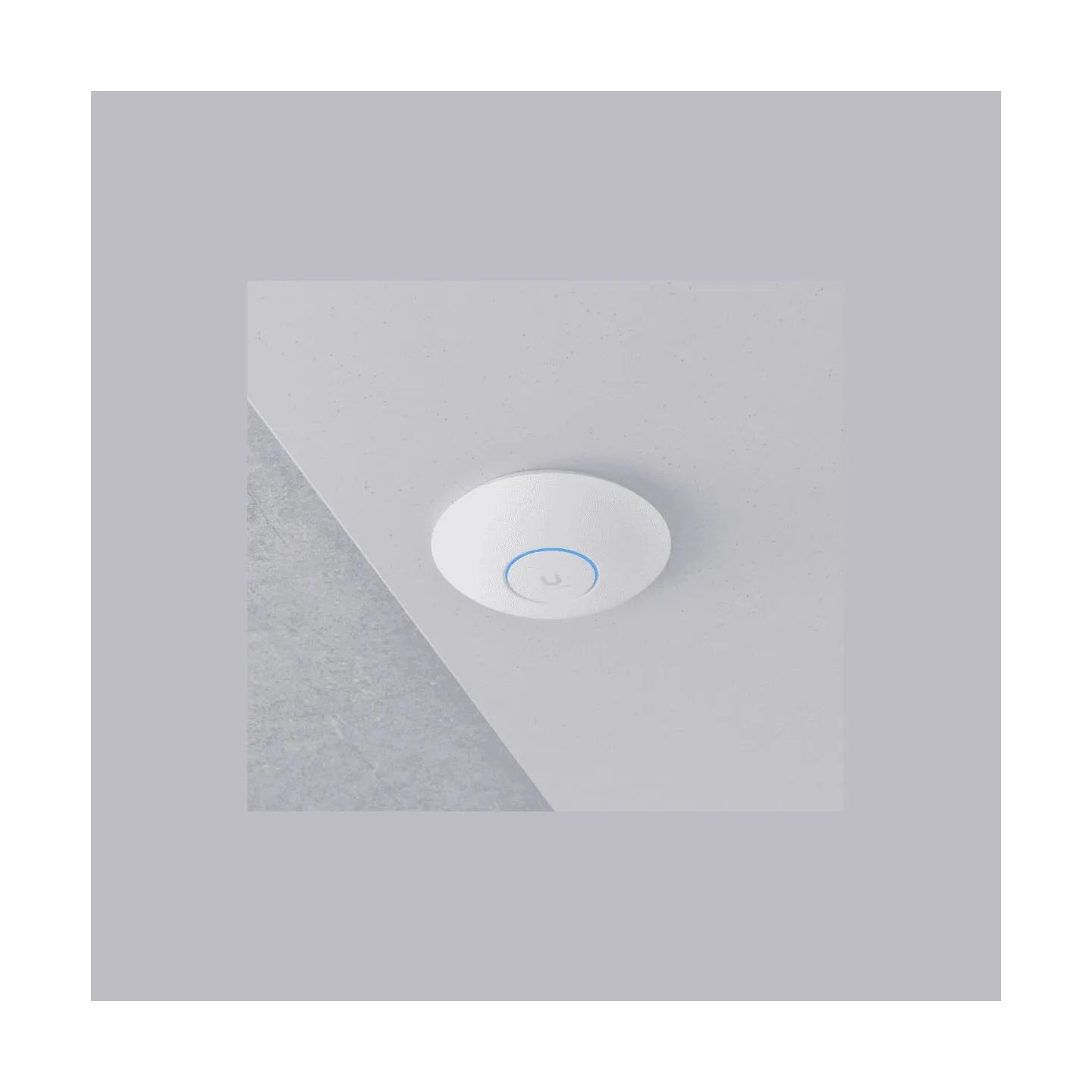

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 tri-radio with 6 GHz
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/category/whats-new/products/u7-pro
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.245
- Unit Box Length
- 0.246
- Unit Box Width
- 0.096
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- Yes
- Band steering
- Yes
- Coverage area
- 140 m²
- Ethernet LAN data rates
- 1000/2500 Mbit/s
- Fast roaming
- Yes
- Fit AP mode features
- Hotspot 2.0
- Frequency band
- 2.4 - 6 GHz
- Maximum data transfer rate
- 5800 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 688 Mbit/s
- Maximum data transfer rate (5 GHz)
- 4300 Mbit/s
- Maximum data transfer rate (6 GHz)
- 5800 Mbit/s
- Maximum Tx power (2.4 GHz)
- 22 dBmW
- Maximum Tx power (5 GHz)
- 26 dBmW
- Maximum Tx power (6 GHz)
- 23 dBmW
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.1Q/IEEE 802.3at
- Number of users
- 300 user(s)
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Throughput data rate
- 5765 Mbit/s
- VLAN support
- Yes
- Security algorithms
- PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

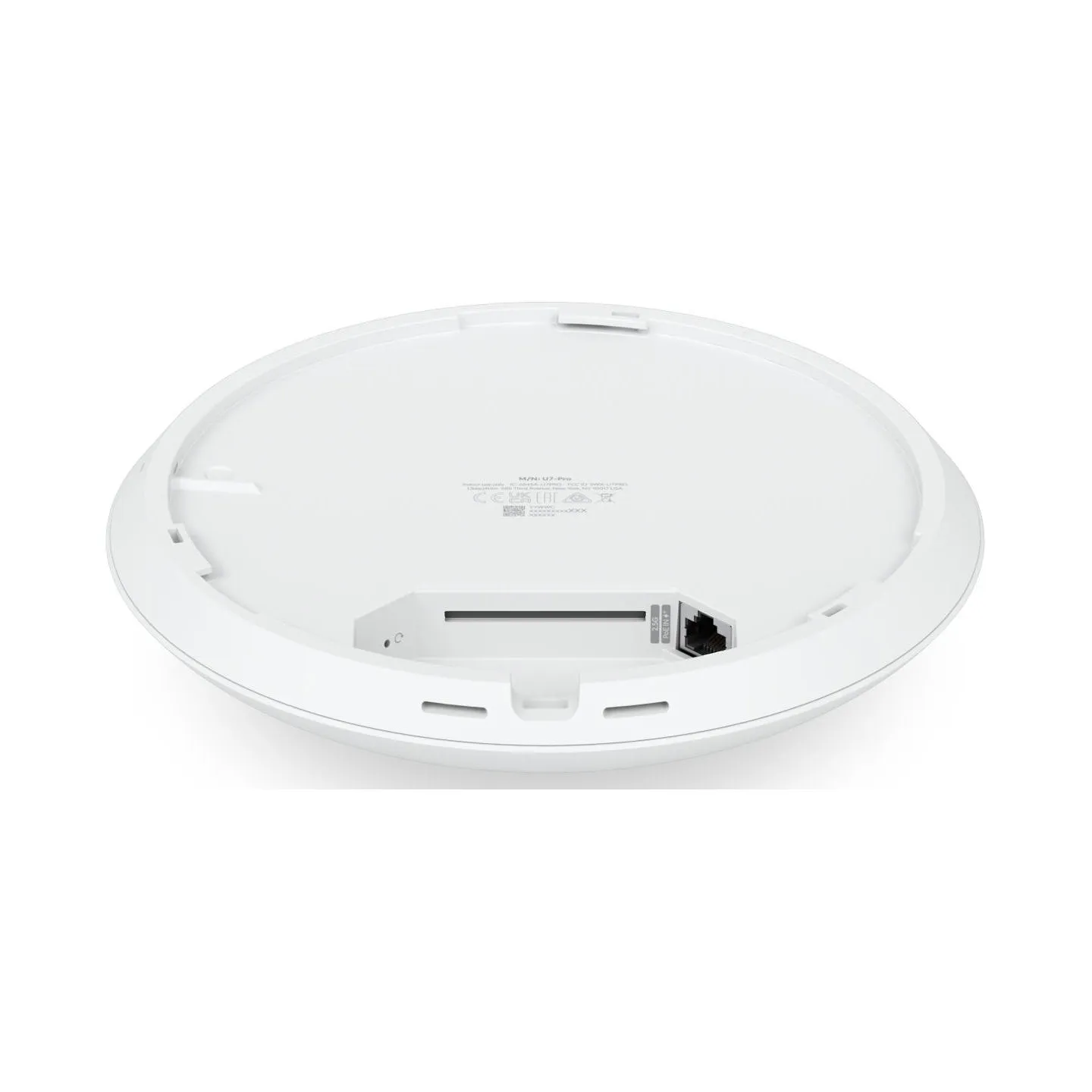

- Ethernet LAN (RJ-45) ports
- 1
- WAN connection
- Ethernet (RJ-45)
- DC voltage range
- 44 - 57 V
- Power consumption (max)
- 21 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE+
- Housing material
- Metal,Polycarbonate (PC)
- LED indicators
- Yes

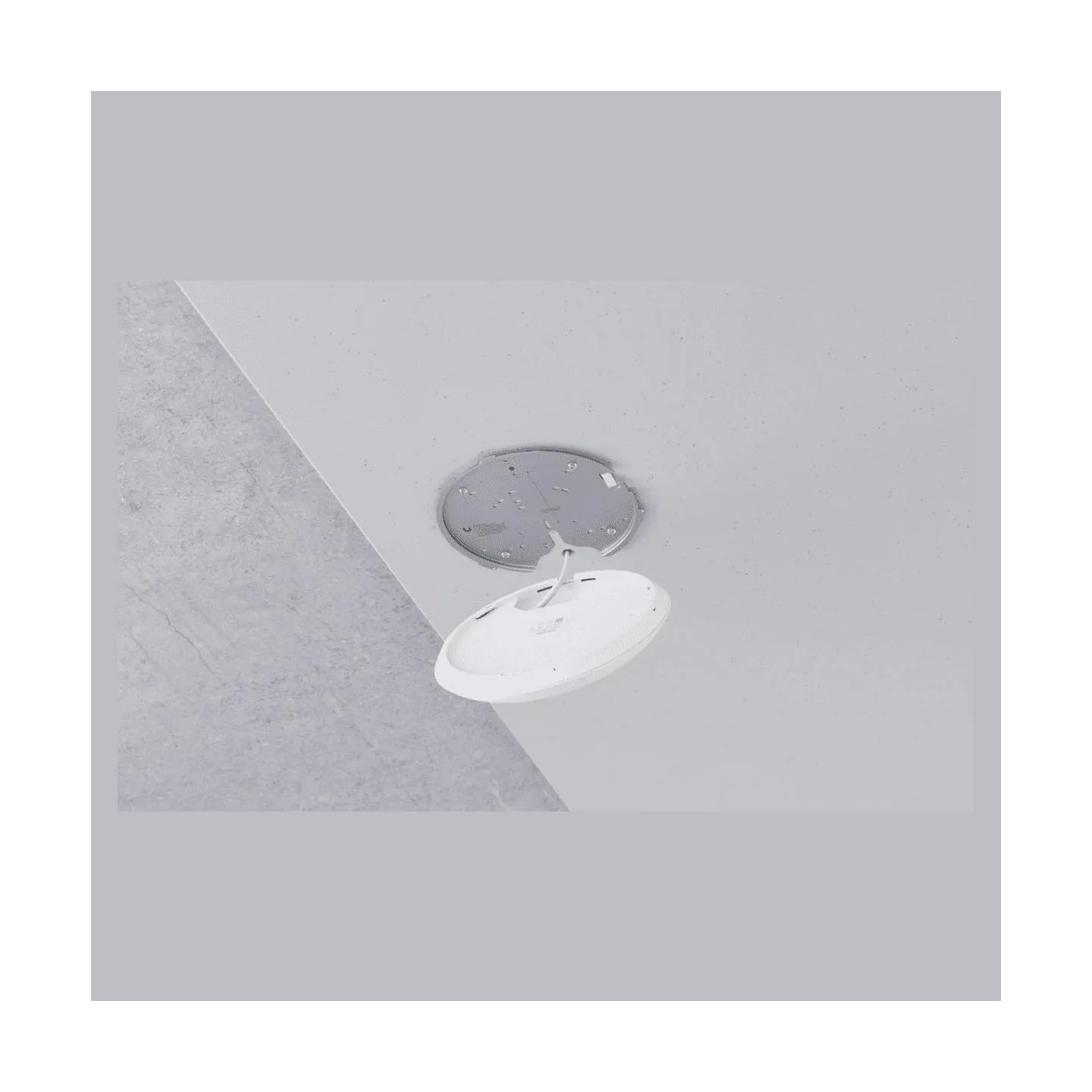

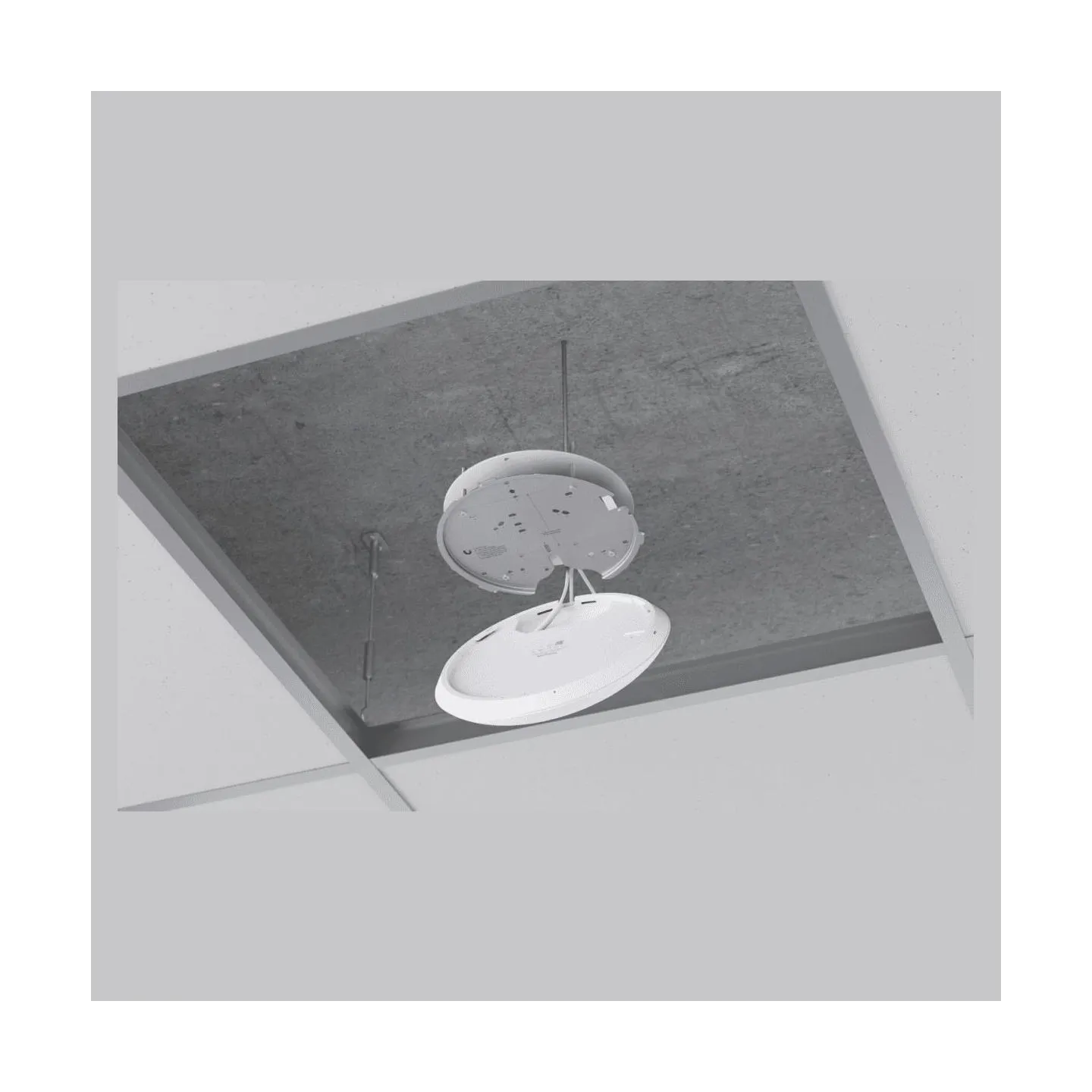

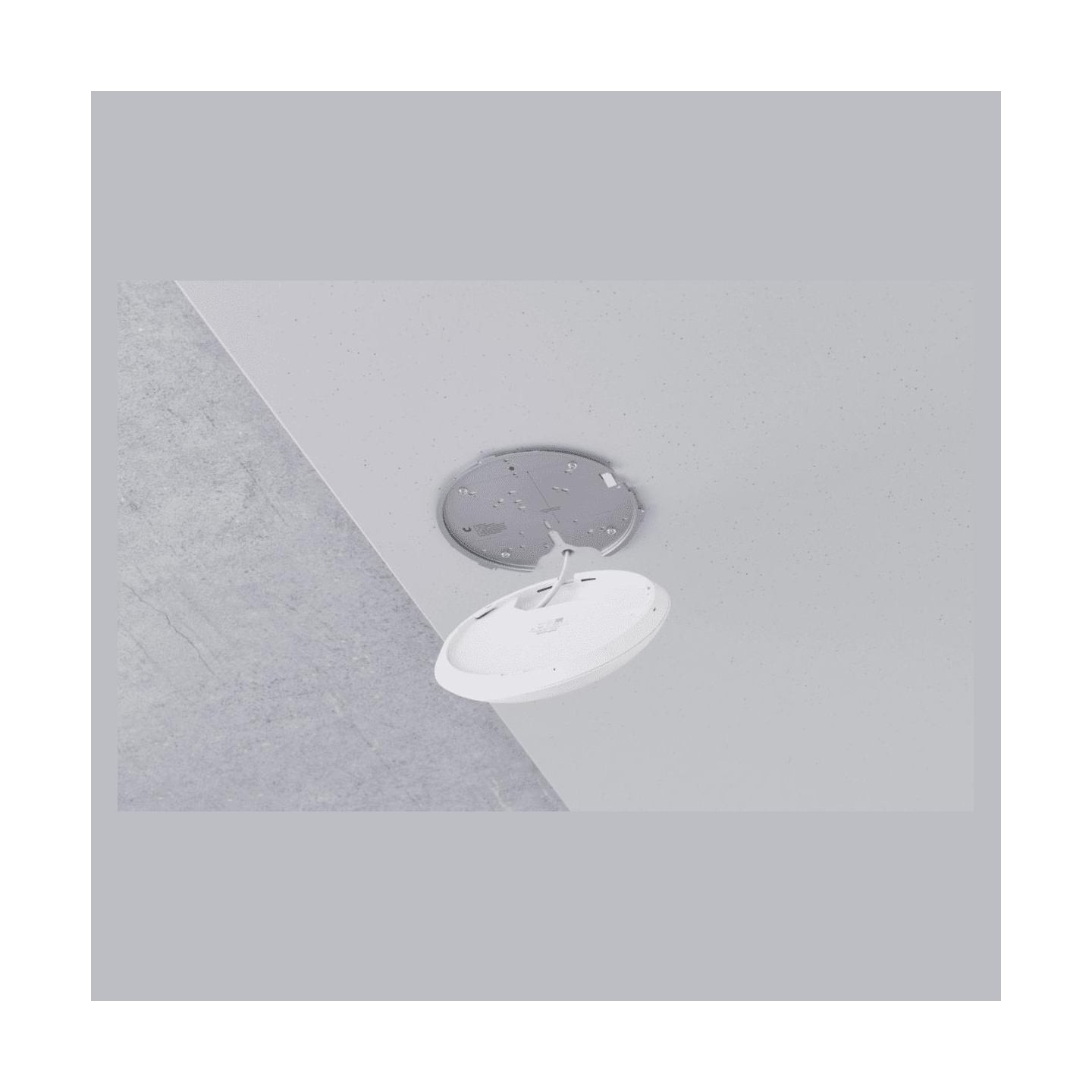

- Placement
- Ceiling,Wall
- Product colour
- White
- Reset button
- Yes
- Antenna gain level (max)
- 6 dBi
- Antenna type
- Internal
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Depth
- 206 mm
- Height
- 46 mm
- Weight
- 680 g
- Width
- 206 mm
- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Sustainability compliance
- Yes
- Model name
- U7 Pro
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.01157 cubm
- Unit Calculated Weight
- 1.58 kg
