Video capture resolution 8 MP Camera technology IP Power over Ethernet (PoE) Support Yes Outdoor ready Yes IR-lighting Yes Wi-Fi No Built-in microphone Yes Integrated Memory Card Reader No Category Turret Optical sensor size, " 1/1.8 Dimensions W x D x H, mm 118 x 118 x 111 Weight, g 990 Connections Ethernet (RJ-45) IP classification IP66 Ethernet LAN (RJ-45) ports quantity 1 Operating temperature range (T-T), °C -30 - 50 IK classification IK08 IR distance max, m 40 Video recording 8MP@30 FPS Certification FCC, IC, CE Built-in speakers Yes Power consumption (max.), W 20
Reference

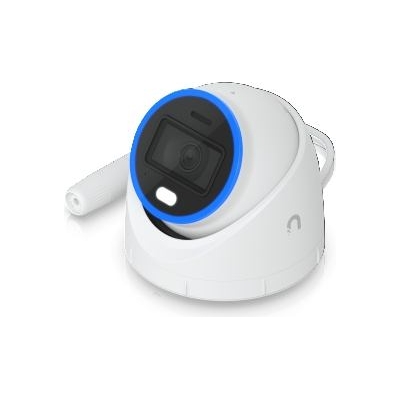

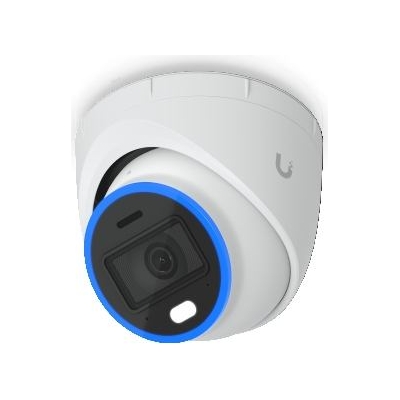

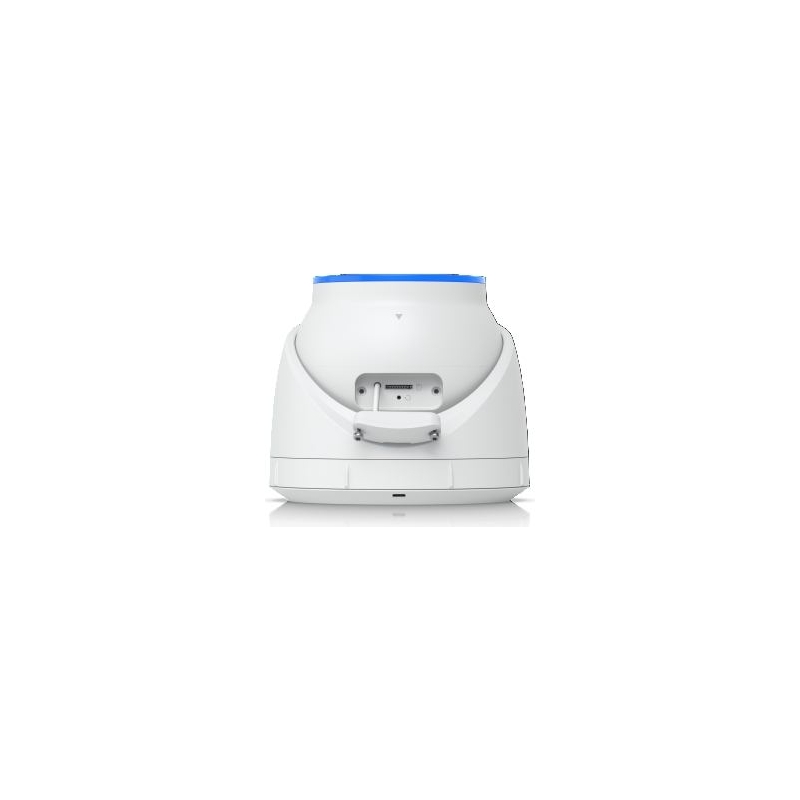

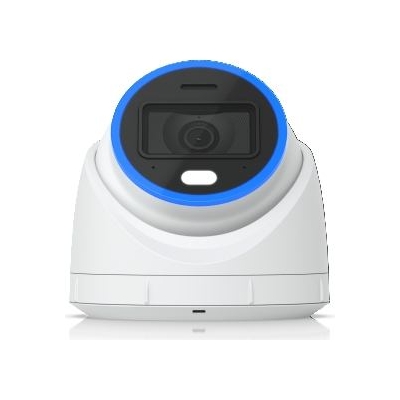

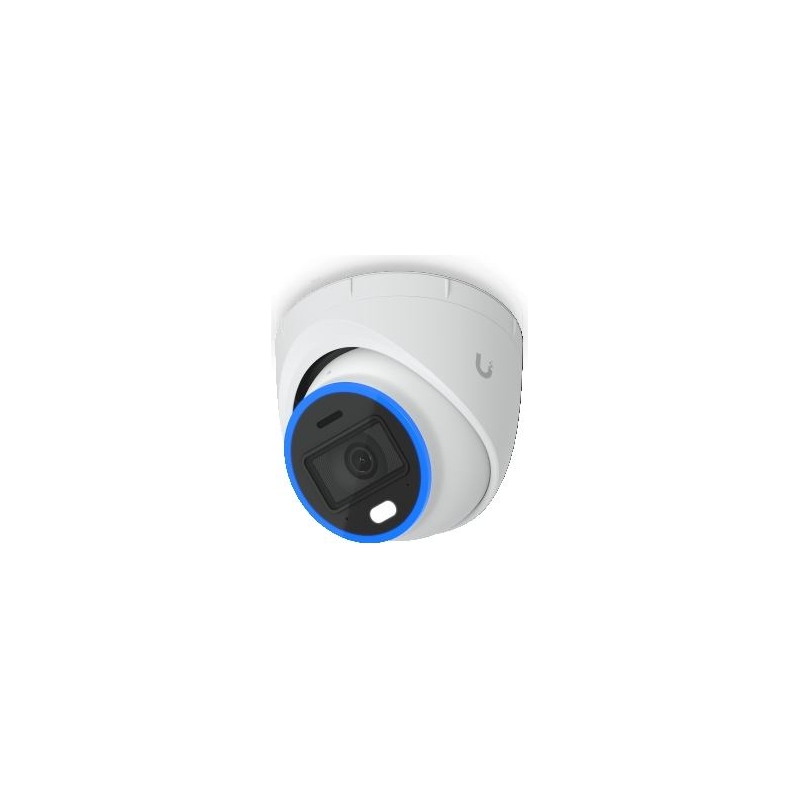

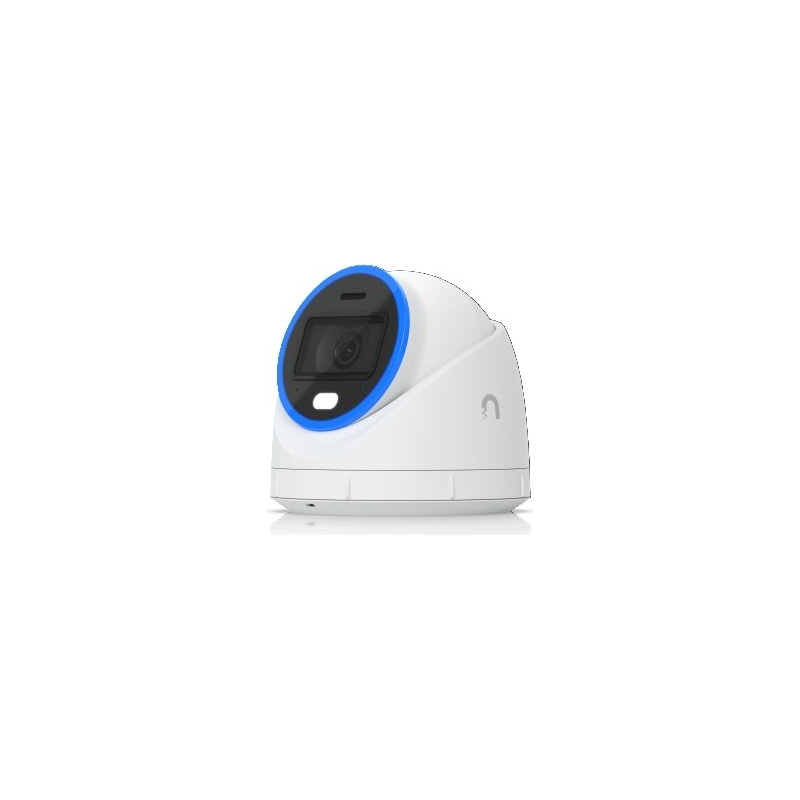

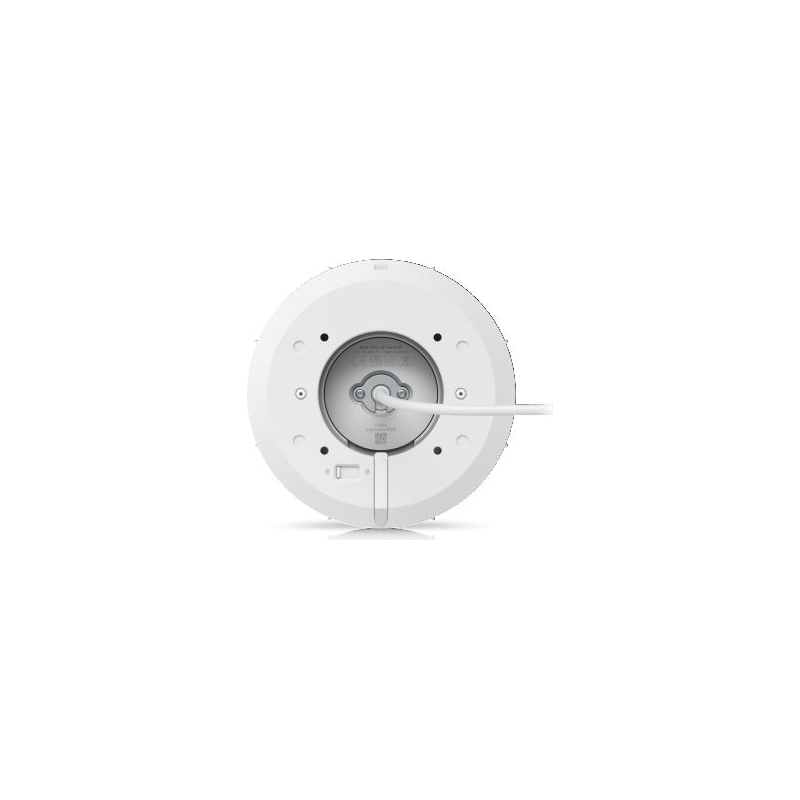

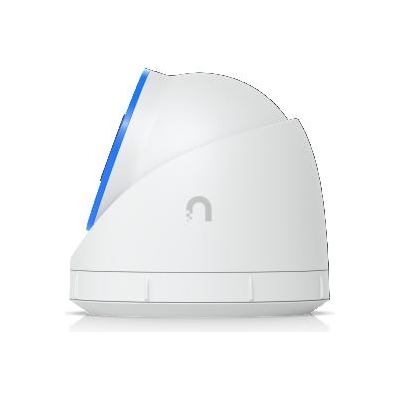

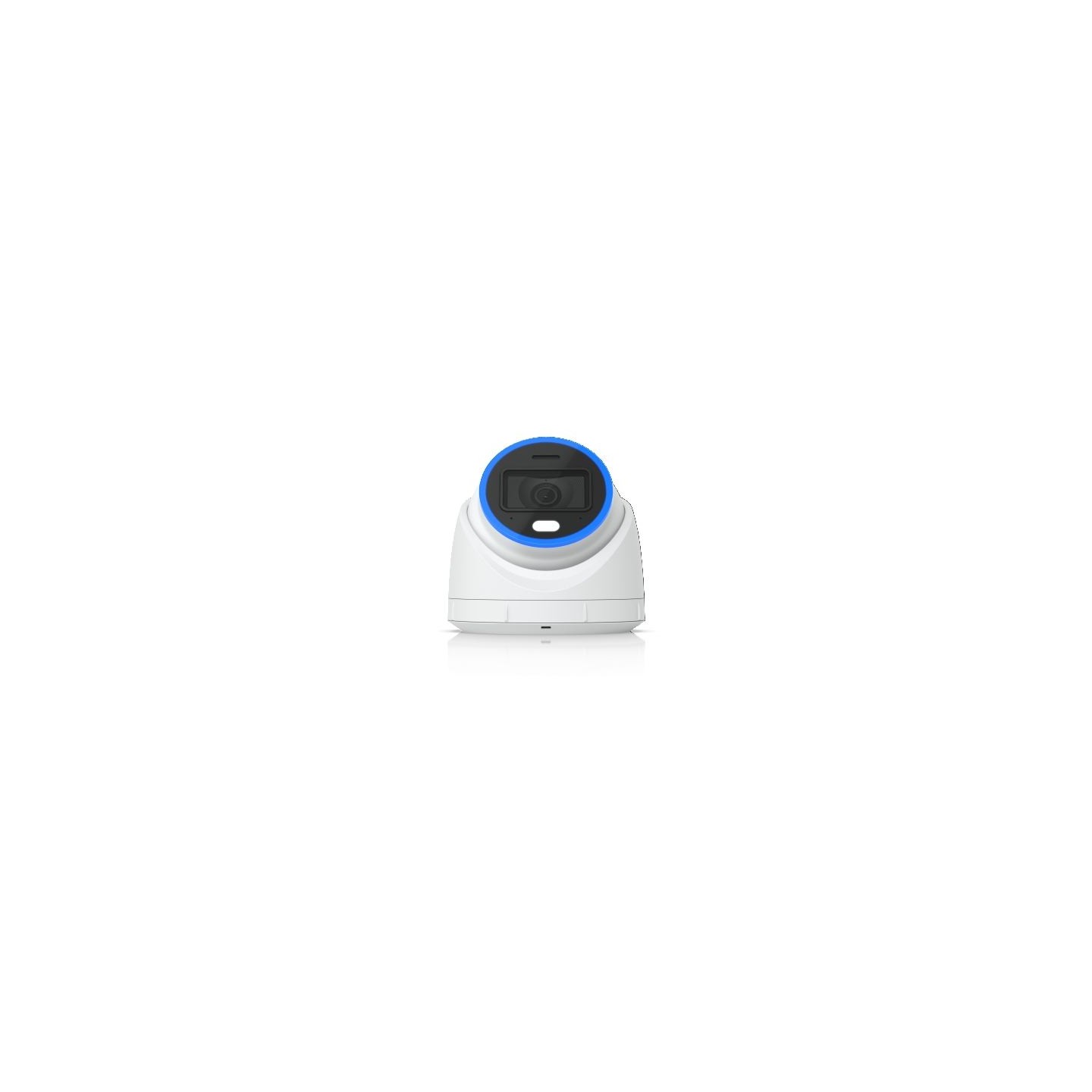

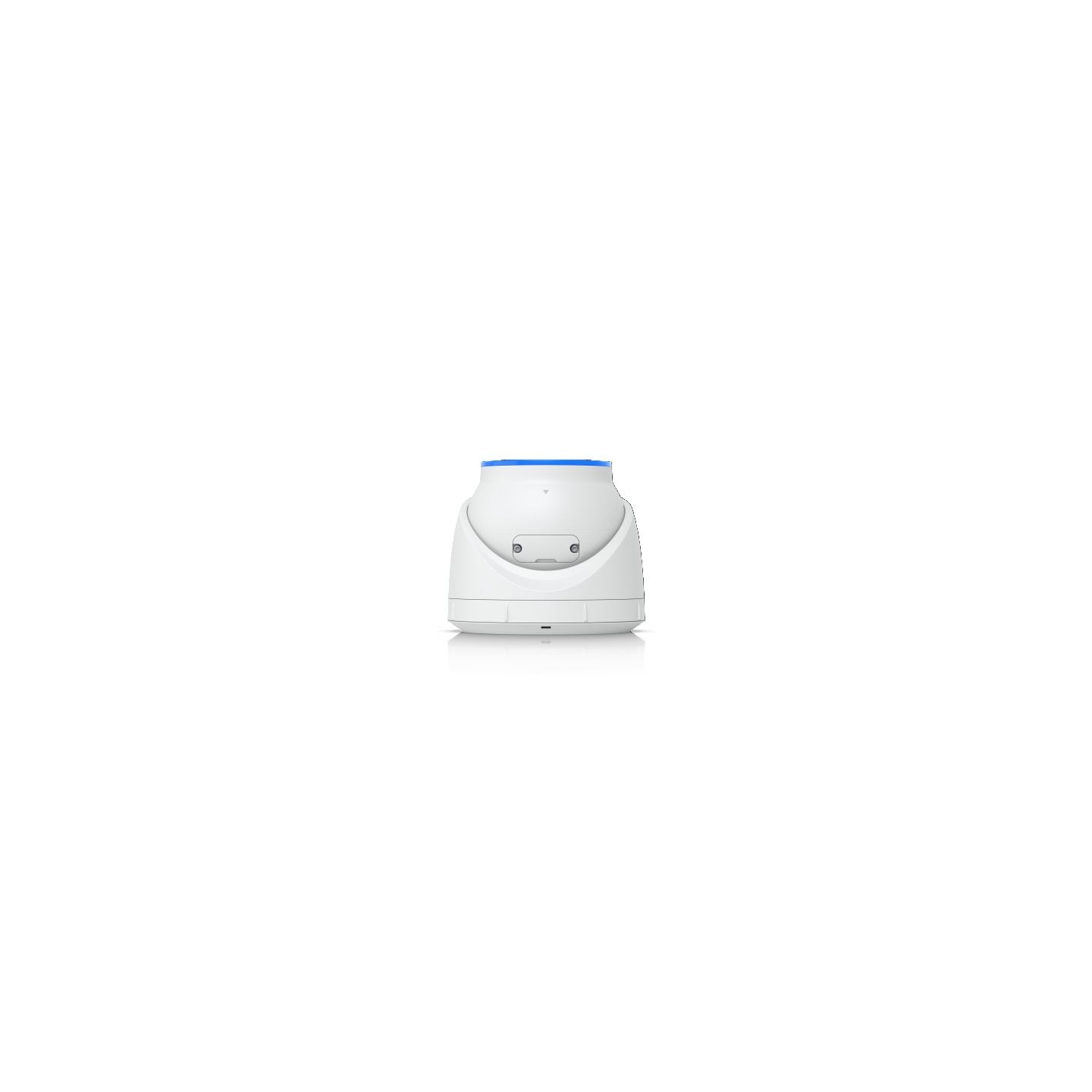

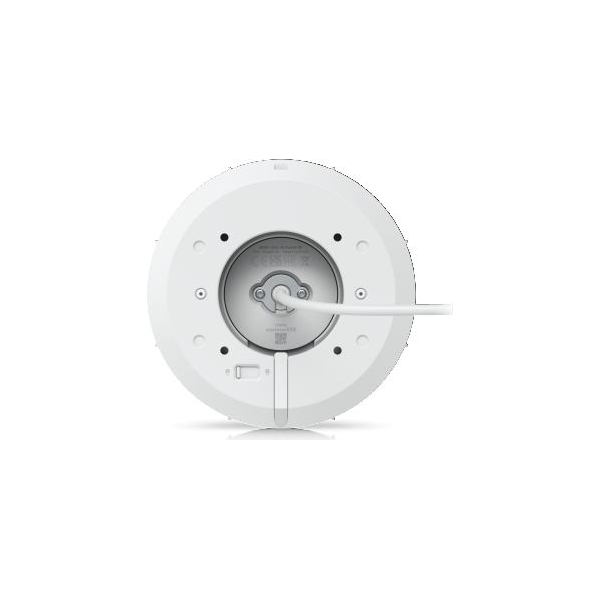

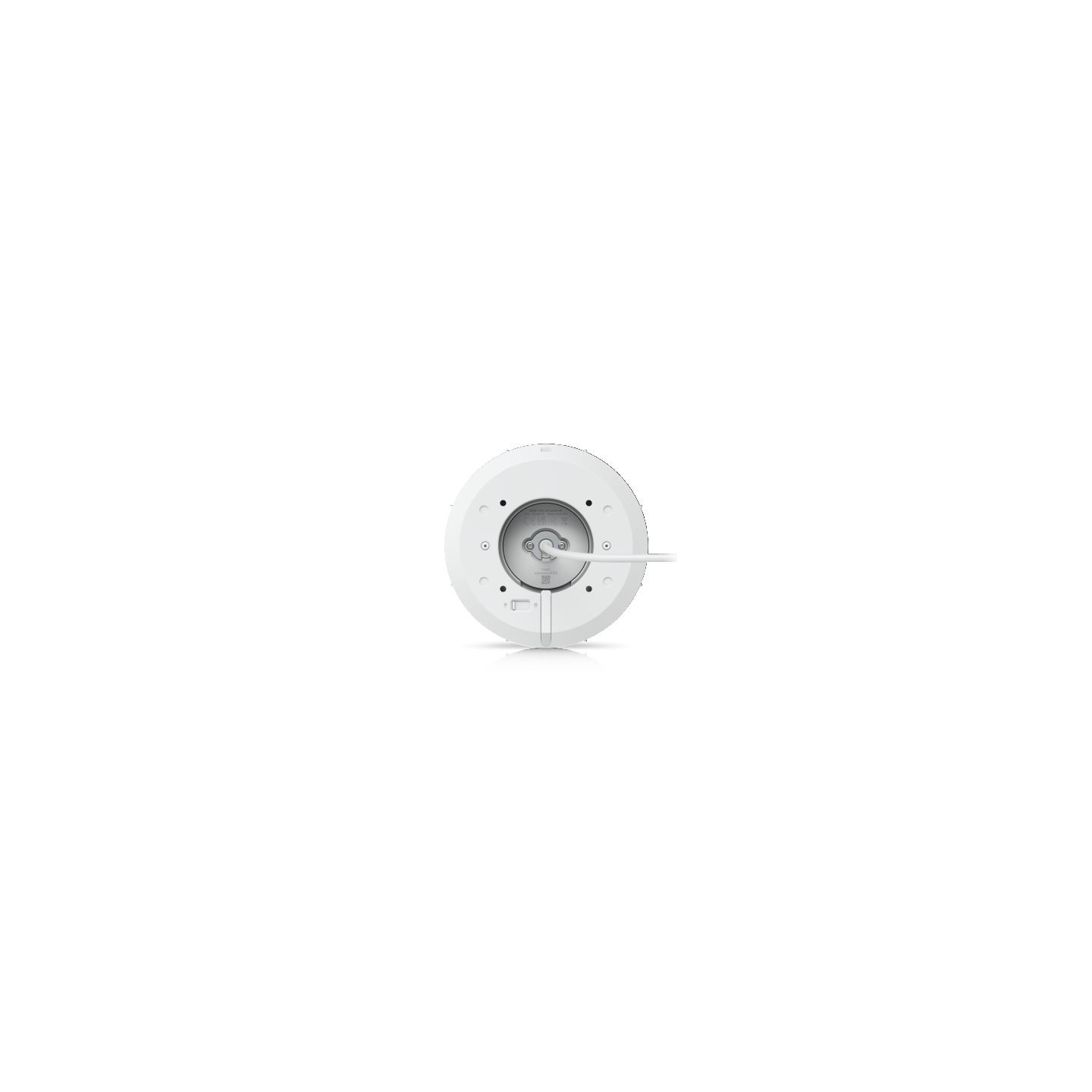

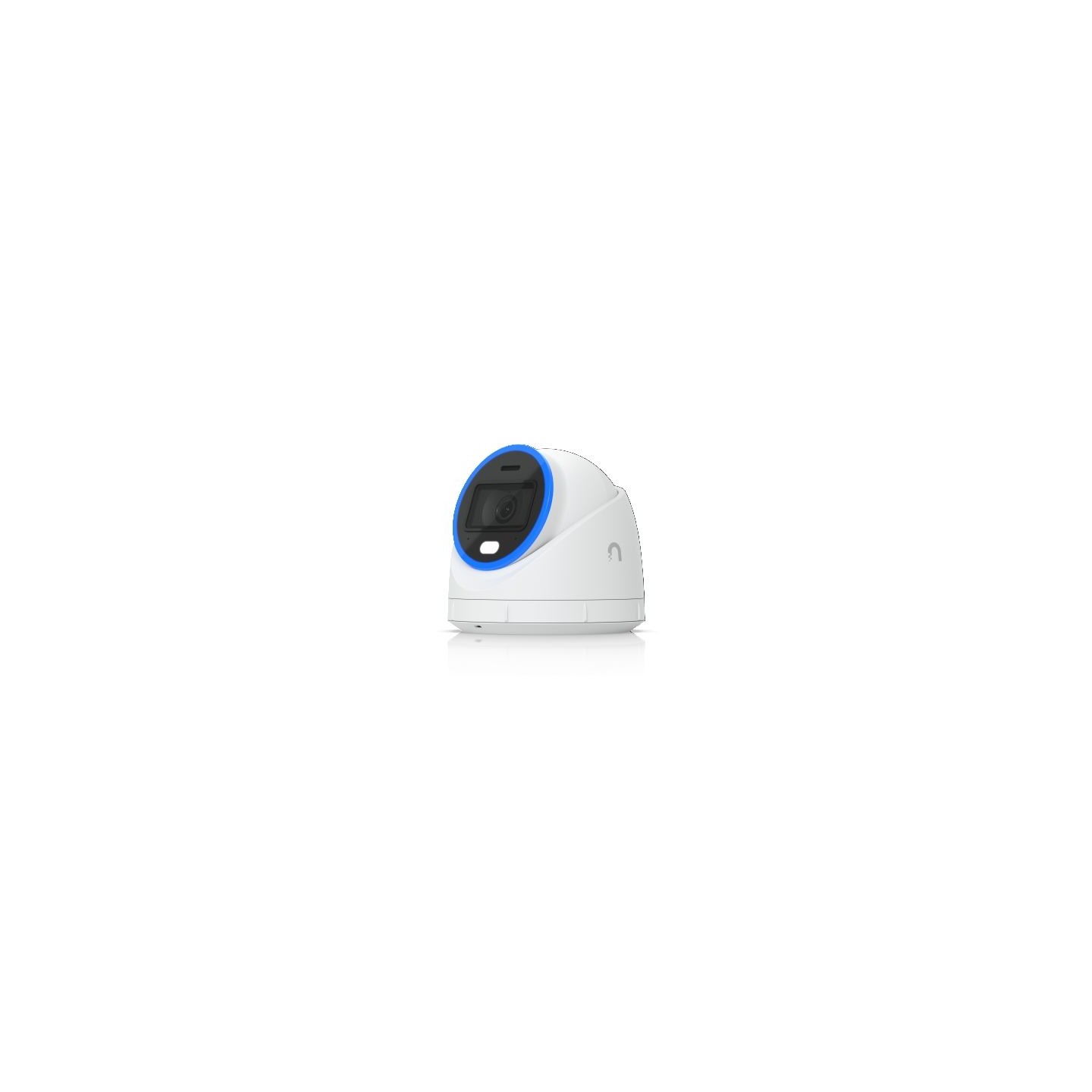

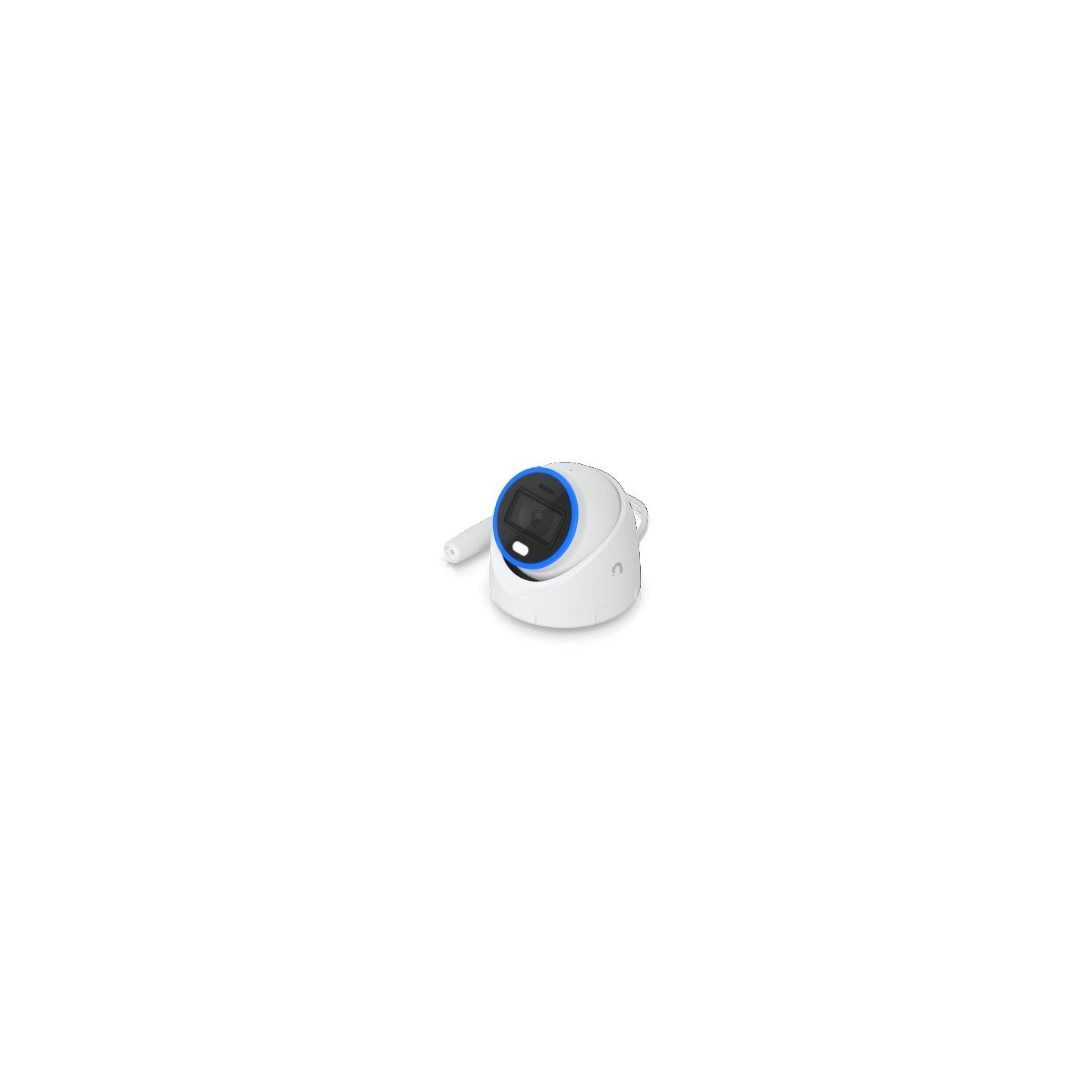

UVC-AI-TURRET-W
In stock
6 Items
Data sheet
Interface
Ethernet
Camera type
IP Camera
Package type
Retail
Maximum video resolution
3840x2160
Warranty Products Returnable
Yes
Warranty Term (month)
12 month(s)
Warranty Validation Criteria
Serial Number
Warranty Term Notes
24 months - for EU
Pieces in pack
1
Box Length (mm)
524 mm
Box Width (mm)
374 mm
Box Height (mm)
234 mm
Retail Packaging Net Weight Carton
0 kg
Retail Packaging Net Weight Plastic
0 kg
Packs in Box
6
Certifications
CE, FCC, IC
LAN
1 (RJ-45)
Included Accessories
Quick Start Guide Wall Kit
Maximum Operating Ambient Temperature
50 °C
Maximum Operating Humidity
90 %
Minimum Operating Ambient Temperature
-30 °C
Minimum Operating Humidity
0 %
Built-in Devices
Card Reader (MicroSD) Reset Button
Power Device Location
External
Maximum Input Voltage
57 V
Minimum Input Voltage
42.5 V
Maximum Power Consumption
20 W
External Color
White
Protection Standarts
IP66 IK08
Power Device Type
Power over Ethernet
Mounting Capability
Ceiling/Wallmount
Sensor Resolution
8 Mpixel
Maximum Frame Capture Rate
30 fps
Diagonal Viewing Angle
134.1°
Web Cam Features
Night Vision Power over Ethernet Fixed Focus Face Detection IR Cut Filter Two-way audio 3D DNR Human Detection 2D DNR HDR Smart Detection Vehicle Detection
Image Sensor Technology
1/1.8"
Horizontal Viewing Angle
109.9°
Vertical Viewing Angle
56.7°
Specific References
EAN13
810084698457
MPN
UVC-AI-TURRET-W
Condition
New
