Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

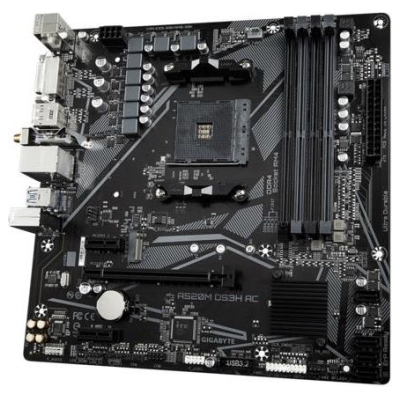

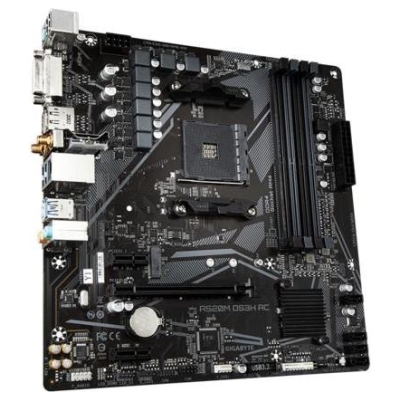

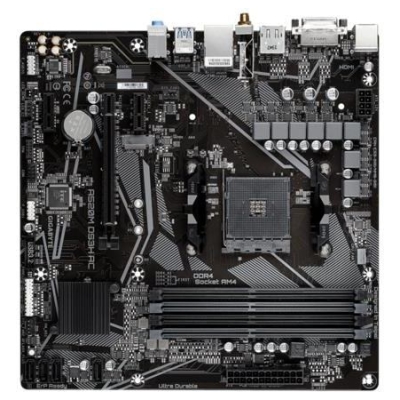

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, Display Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Manufacturer Website: https://www.gigabyte.com/ Category Code MBA CnCode 84733020 Unit Box Height 0.07 Unit Box Length 0.27 Unit Box Width 0.27 Audio output channels 7.1 channels Component for PC Motherboard chipset AMD A520 Motherboard chipset family AMD Motherboard form factor micro ATX PC health monitoring Fan/Temperature/Voltage Power source type ATX Windows operating systems supported Windows 10 x64/Windows 11 Compatible processor series AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series Maximum number of SMP processors 1 Processor manufacturer AMD Processor socket Socket AM4 Supported processor sockets Socket AM4 ECC сompatibility ECC & Non-ECC Maximum internal memory 128 GB Maximum internal memory per slot 32 GB Memory channels Dual-channel Memory slots type DIMM Number of memory slots 4 Supported memory clock speed (max) 4733 MHz Supported memory clock speeds 2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz Supported memory types DDR4-SDRAM Unbuffered memory Yes Number of HDDs supported 4 Number of storage drives supported 5 RAID levels 0/1/10 RAID support Yes Supported storage drive interfaces M.2,SATA III Supported storage drive types HDD & SSD Discrete graphics support Yes HDCP Yes Maximum resolution 5120 x 2880 pixels Number of displays supported 3 Parallel processing technology support Not supported 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of chassis fan connectors 2 Number of CPU fan connectors 1 Number of EPS power connectors (8-pin) 1 Number of RGB LED pin headers 2 Number of SATA III connectors 4 RGB LED pin header Yes Serial port headers 1 Total number of SATA connectors 4 TPM connector Yes USB 2.0 connectors 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 DisplayPort version 1.4 DisplayPorts quantity 1 DVI-D ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Headphone outputs 1 Line-in Yes Microphone in Yes PS/2 ports quantity 1 USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 WiFi-AP antenna jack 2 Bluetooth Yes Bluetooth version 4.2 Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Top Wi-Fi standard Wi-Fi 5 (802.11ac) Wi-Fi Yes Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) WLAN controller model Intel Dual Band Wireless-AC 3168 1st M.2 highest PCI Express generation 3.0 1st M.2 largest key size 2280 Number of M.2 (M) slots 1 PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 3.x) slots 1 ACPI version 5.0 BIOS memory size 128 Mbit BIOS type UEFI AMI Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7 Battery technology Lithium-Manganese Dioxide (LiMnO2) Battery type CR2032 Battery weight 3 g Lithium weight per battery 0.07 g Number of battery cells 1 Package depth 268 mm Package height 68 mm Package weight 1210 g Package width 270 mm Products per shipping (inner) case 1 pc(s) Depth 244 mm Height 35 mm Width 244 mm Antenna included Yes Batteries included Yes Screws included Yes Warranty period 3 year(s) Weight 720 g Model A520M DS3H AC 1.4 Units per Shipping Box 10 Unit Calculated Volume 0.0060088 cubm Unit Calculated Weight 1.03 kg
Reference

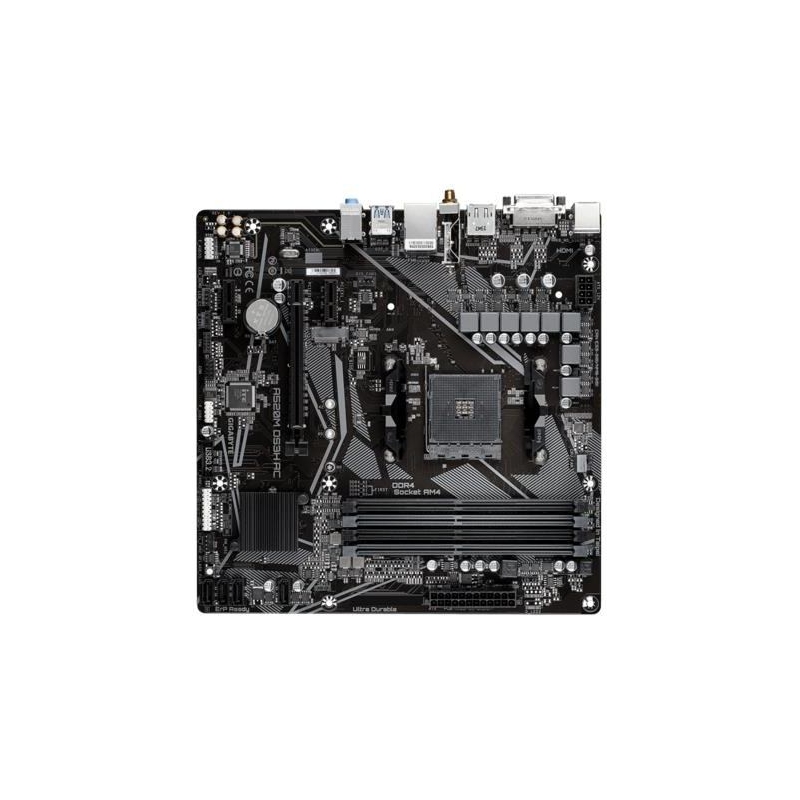

A520M DS3H AC 1.4
In stock
50 Items
Data sheet
Batteries included
yes
Bluetooth
Yes
RAID levels
0/1/10
Windows operating systems supported
Windows 10 x64/Windows 11
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
USB 2.0 ports quantity
2
Audio output channels
7.1 channels
Microphone in
Yes
Headphone outputs
1
Number of storage drives supported
5
Supported storage drive interfaces
M.2,SATA III
Power source type
ATX
Ethernet LAN (RJ-45) ports
1
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Battery type
CR2032
Component for
PC
Maximum resolution
5120 x 2880 pixels
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
1
HDMI ports quantity
1
RAID support
Yes
Wi-Fi
Yes
DisplayPorts quantity
1
HDCP
Yes
Bluetooth version
4.2
Compatible processor series
AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
Motherboard form factor
Micro ATX
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
EPS power connector (8-pin)
Yes
Supported processor sockets
Socket AM4
Number of battery cells
1
Maximum internal memory
128 GB
Supported storage drive types
HDD & SSD
HDMI version
2.1
Category Code
MBA
CnCode
84733020
Units per Shipping Box
10
Warranty period
3 year(s)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
DisplayPort version
1.4
Screws included
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Line-in
Yes
Battery weight
3 g
Number of displays supported
3
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Processor manufacturer
AMD
Antenna included
Yes
Motherboard chipset
AMD A520
Motherboard chipset family
AMD
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Number of memory slots
4
Unbuffered memory
Yes
Number of HDDs supported
4
Parallel processing technology support
Not supported
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
2
Number of SATA III connectors
4
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
WiFi-AP antenna jack
2
1st M.2 highest PCI Express generation
3.0
1st M.2 largest key size
2280
Number of M.2 (M) slots
1
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Supported memory clock speed (max)
4733 MHz
RGB LED pin header
Yes
PC health monitoring
Fan/Temperature/Voltage
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
PS/2 ports quantity
1
PCI Express x1 (Gen 3.x) slots
2
Clear CMOS jumper
Yes
Supported memory clock speeds
2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz
PCI Express x16 (Gen 3.x) slots
1
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Lithium weight per battery
0.07 g
Maximum number of SMP processors
1
Discrete graphics support
Yes
Serial port headers
1
Total number of SATA connectors
4
Maximum internal memory per slot
32 GB
Number of RGB LED pin headers
2
WLAN controller model
Intel Dual Band Wireless-AC 3168
Specific References
EAN13
4719331810696
MPN
A520M DS3H AC 1.4
Condition
New
