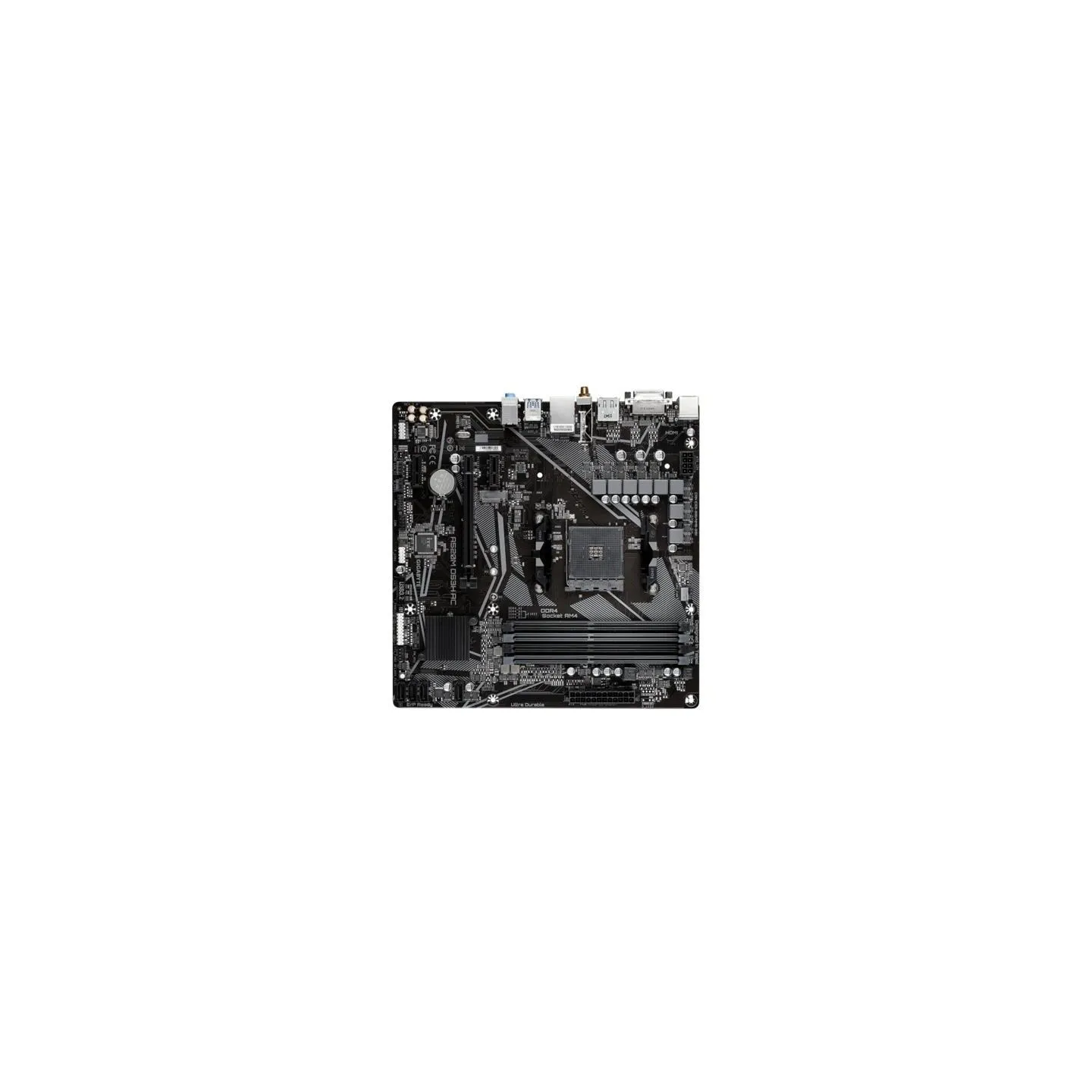

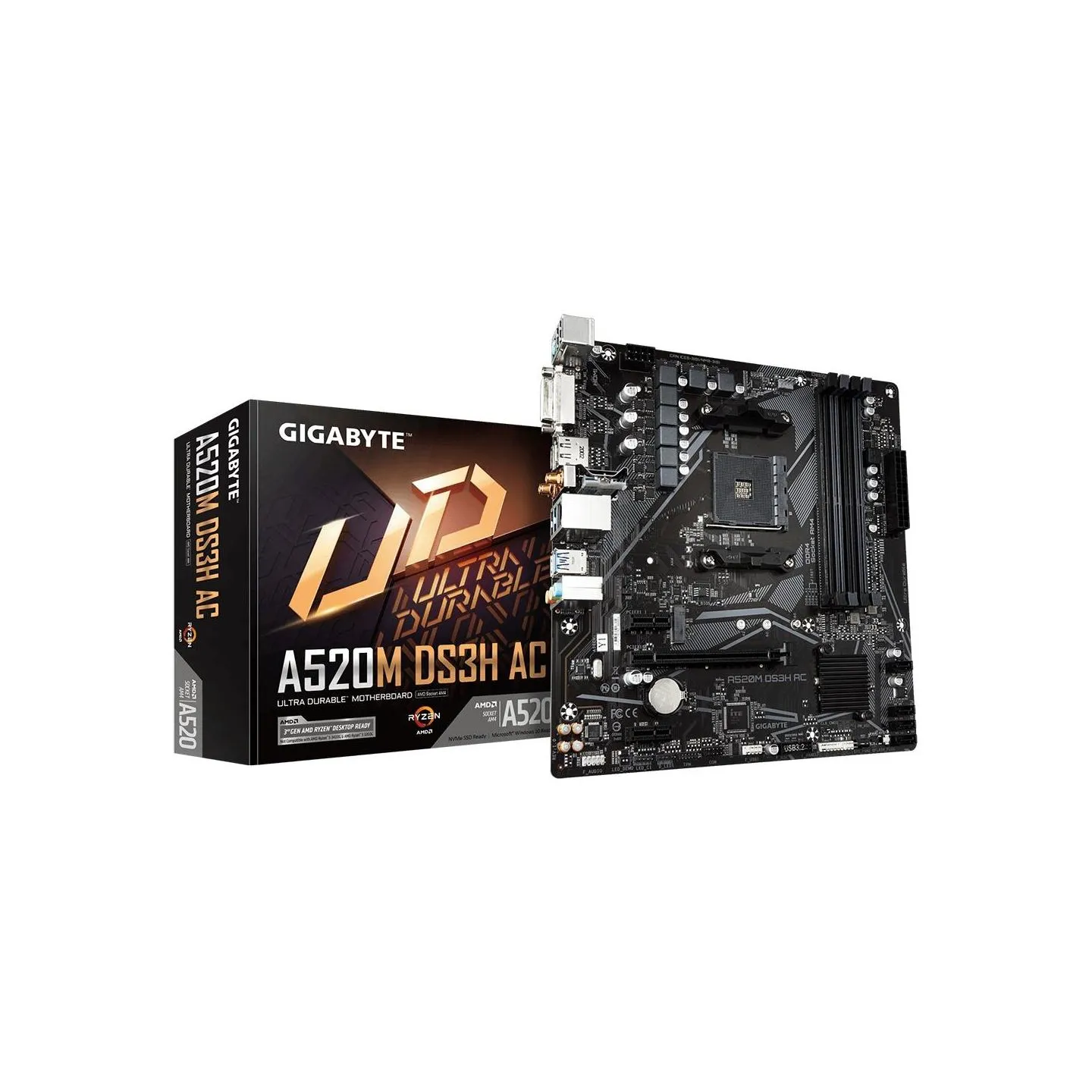

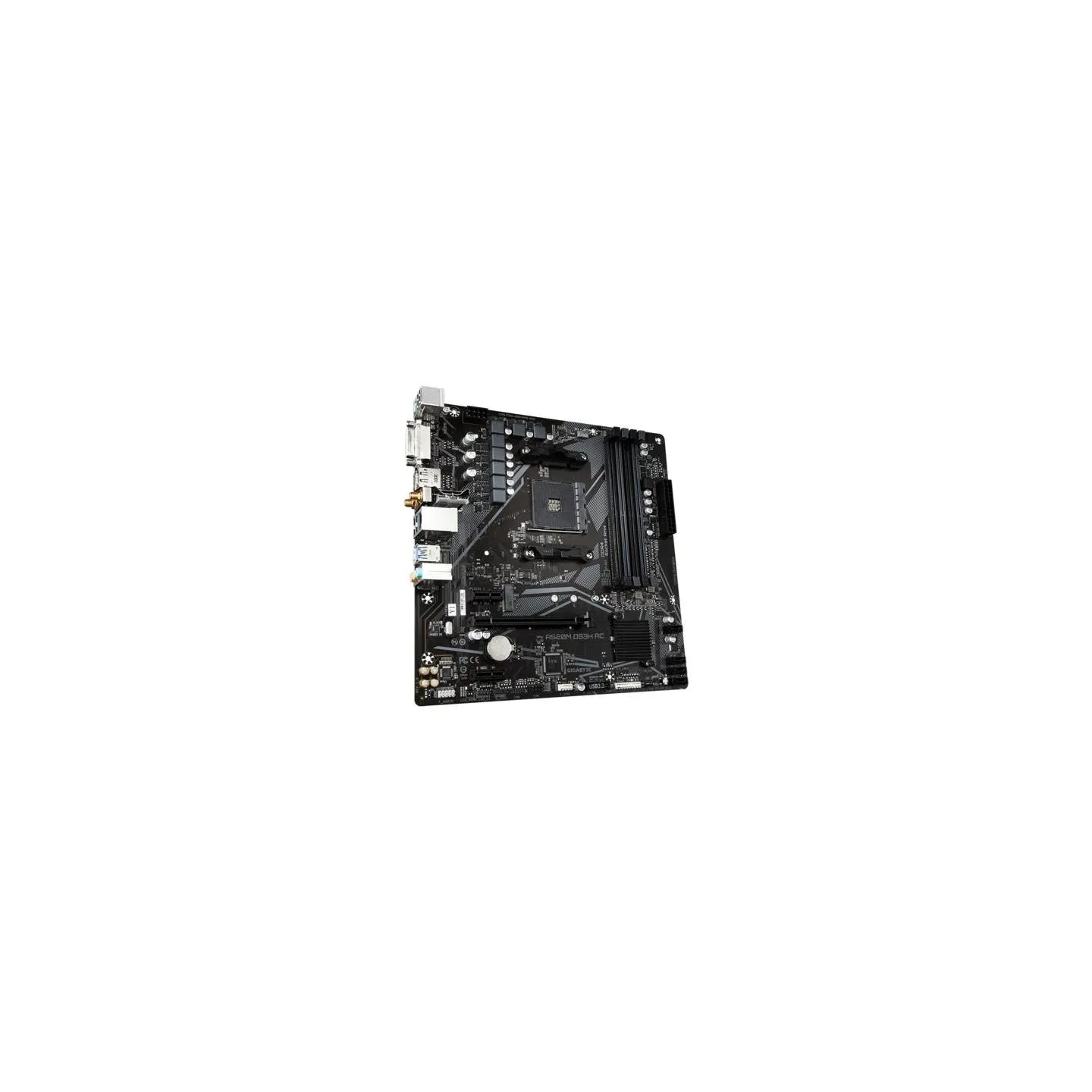

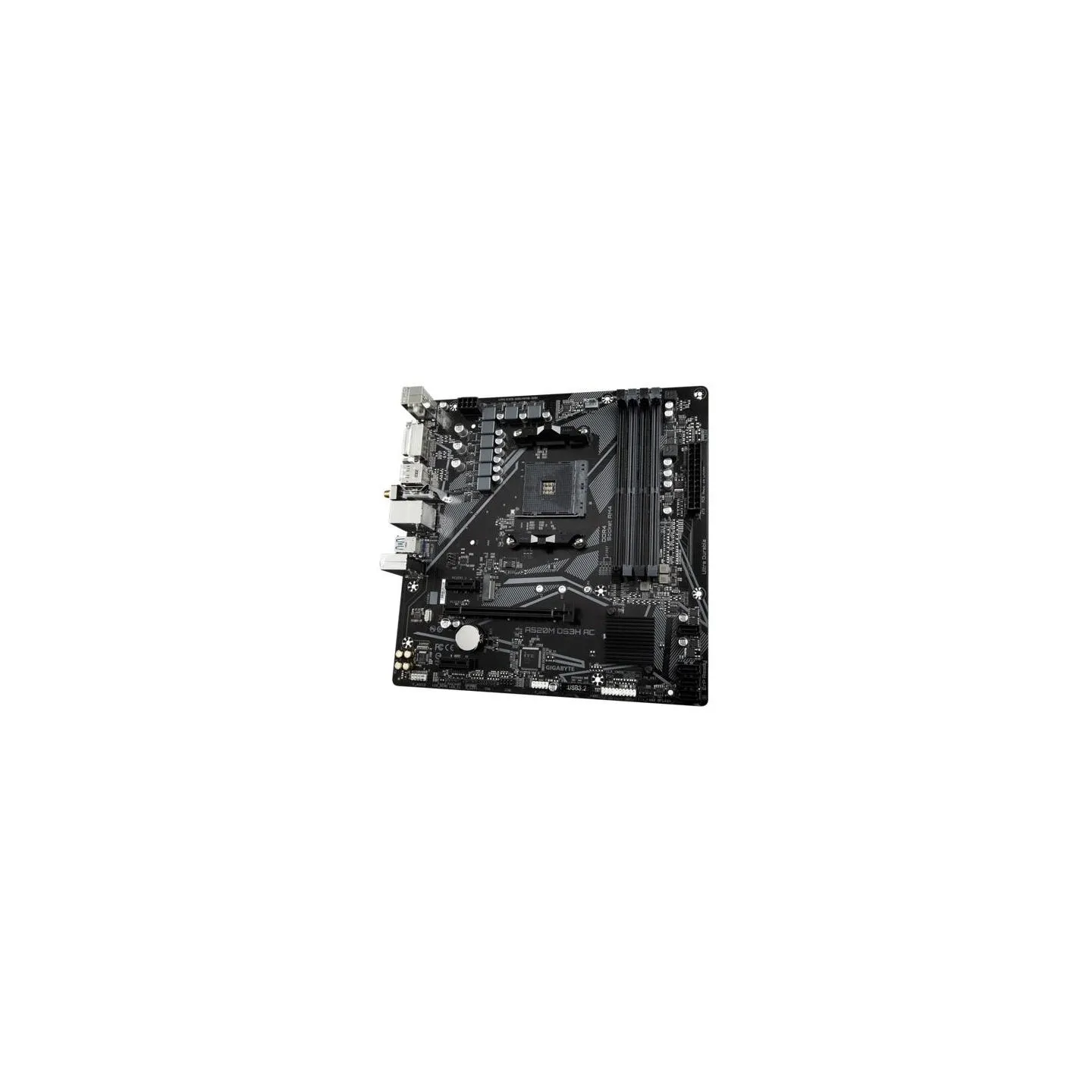

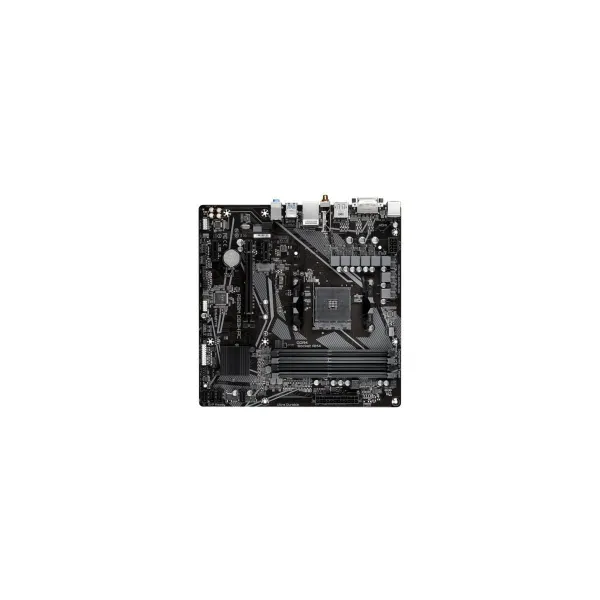

Gigabyte Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HAC1.4
Price:
€86.08
Tax included
Share on
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, Display Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Manufacturer Website:
https://www.gigabyte.com/
- Category Code
- MBA
- CnCode
- 84733020
- Unit Box Height
- 0.07
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD A520
- Motherboard chipset family
- AMD
- Motherboard form factor
- micro ATX
- PC health monitoring
- Fan/Temperature/Voltage
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64/Windows 11
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
- Maximum number of SMP processors
- 1
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Supported processor sockets
- Socket AM4
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Maximum internal memory per slot
- 32 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 4733 MHz
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Number of HDDs supported
- 4
- Number of storage drives supported
- 5
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Yes
- HDCP
- Yes
- Maximum resolution
- 5120 x 2880 pixels
- Number of displays supported
- 3
- Parallel processing technology support
- Not supported
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 2
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- Serial port headers
- 1
- Total number of SATA connectors
- 4
- TPM connector
- Yes
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- DVI-D ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- WiFi-AP antenna jack
- 2
- Bluetooth
- Yes
- Bluetooth version
- 4.2
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
- WLAN controller model
- Intel Dual Band Wireless-AC 3168
- 1st M.2 highest PCI Express generation
- 3.0
- 1st M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- ACPI version
- 5.0
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Package depth
- 268 mm
- Package height
- 68 mm
- Package weight
- 1210 g
- Package width
- 270 mm
- Products per shipping (inner) case
- 1 pc(s)
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 244 mm
- Antenna included
- Yes
- Batteries included
- Yes
- Screws included
- Yes
- Warranty period
- 3 year(s)
- Weight
- 720 g
- Model
- A520M DS3H AC 1.4
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.0060088 cubm
- Unit Calculated Weight
- 1.03 kg
