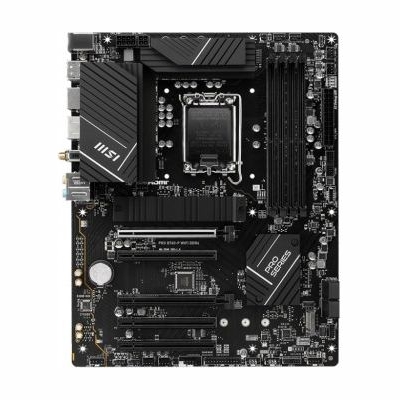

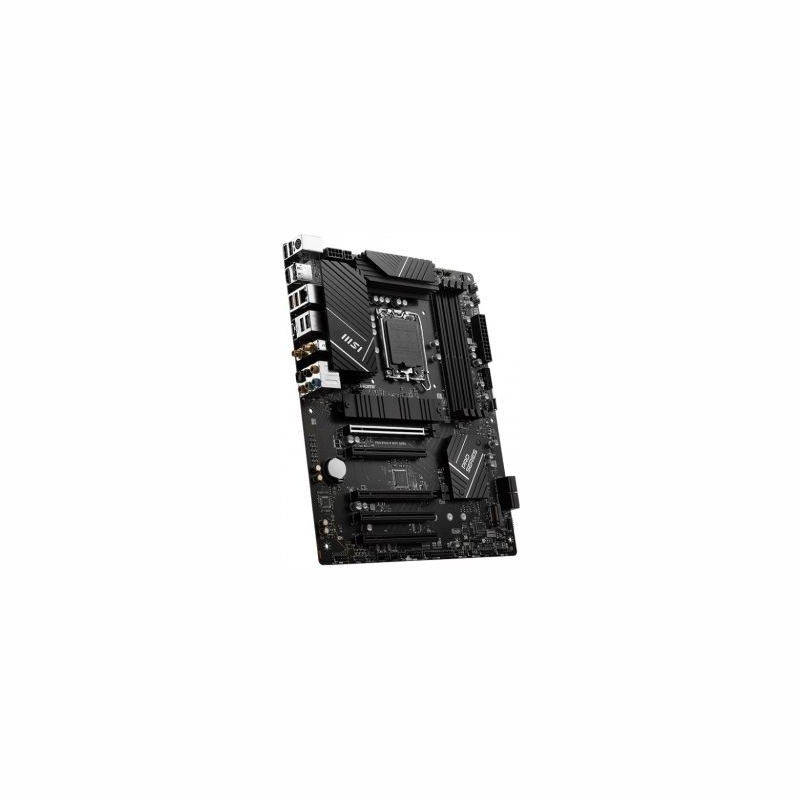

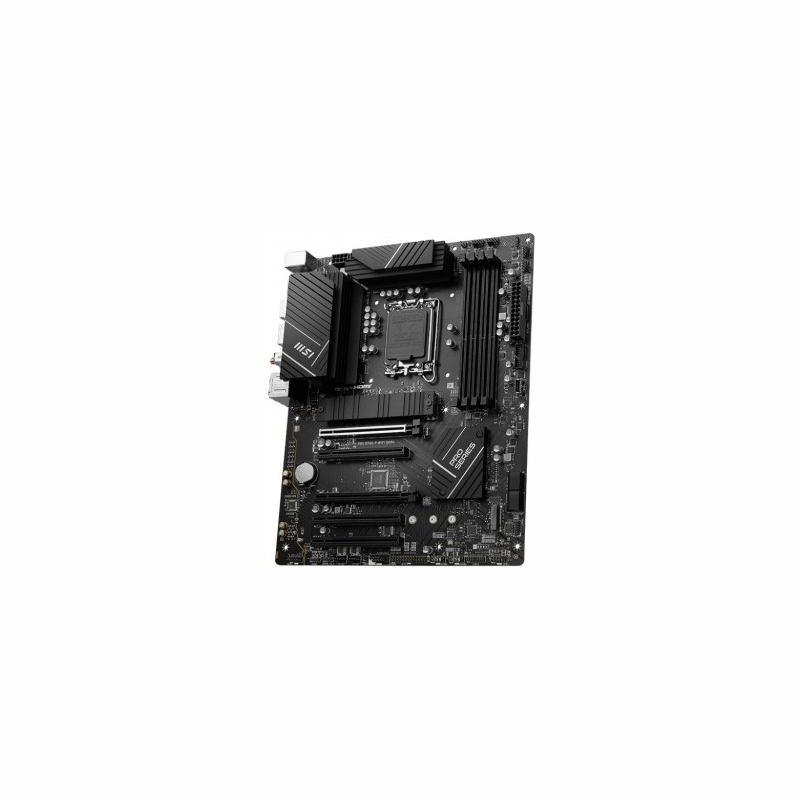

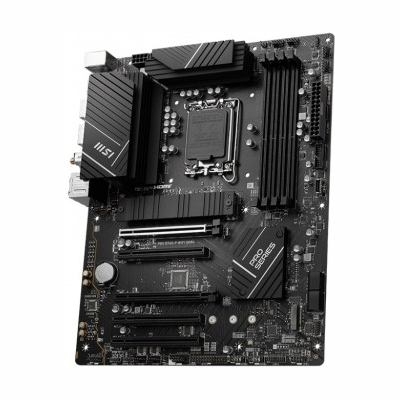

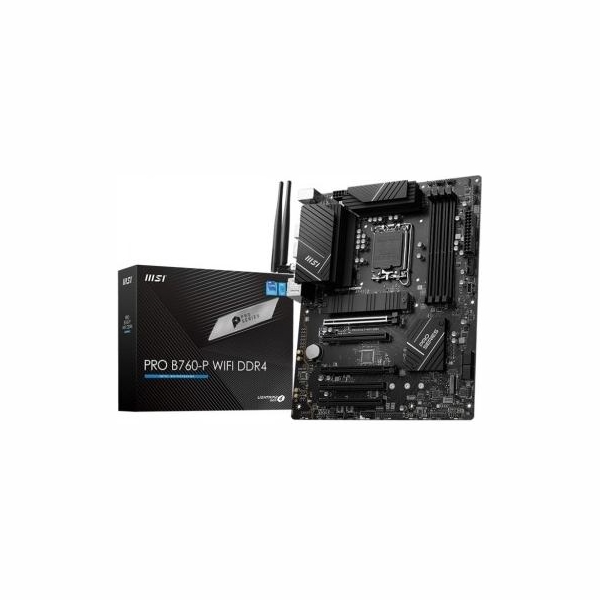

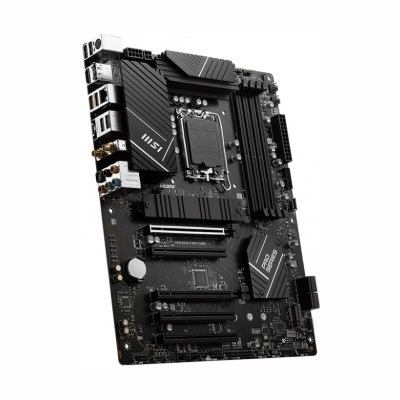

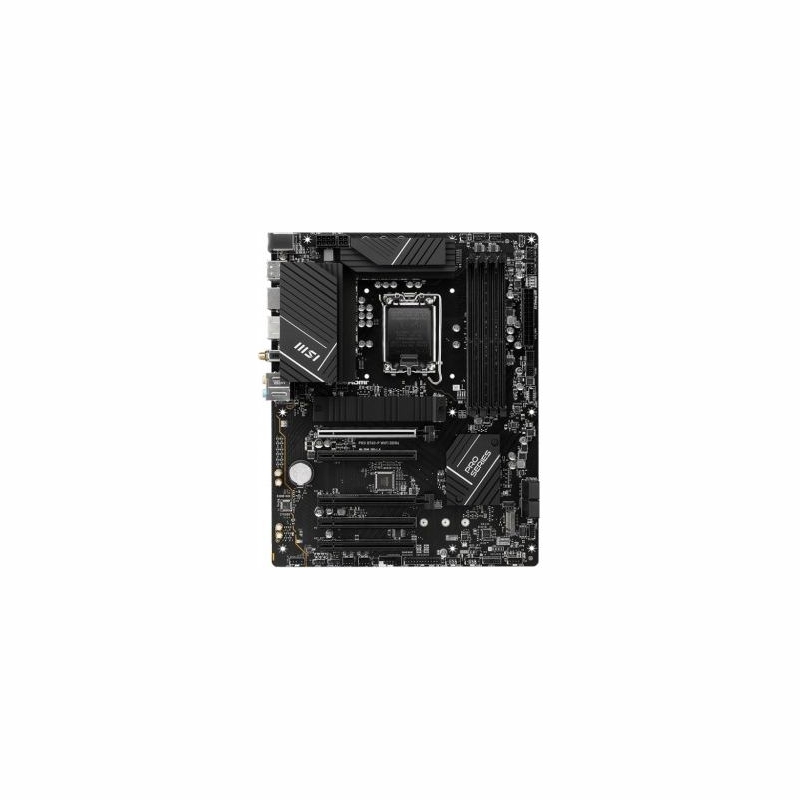

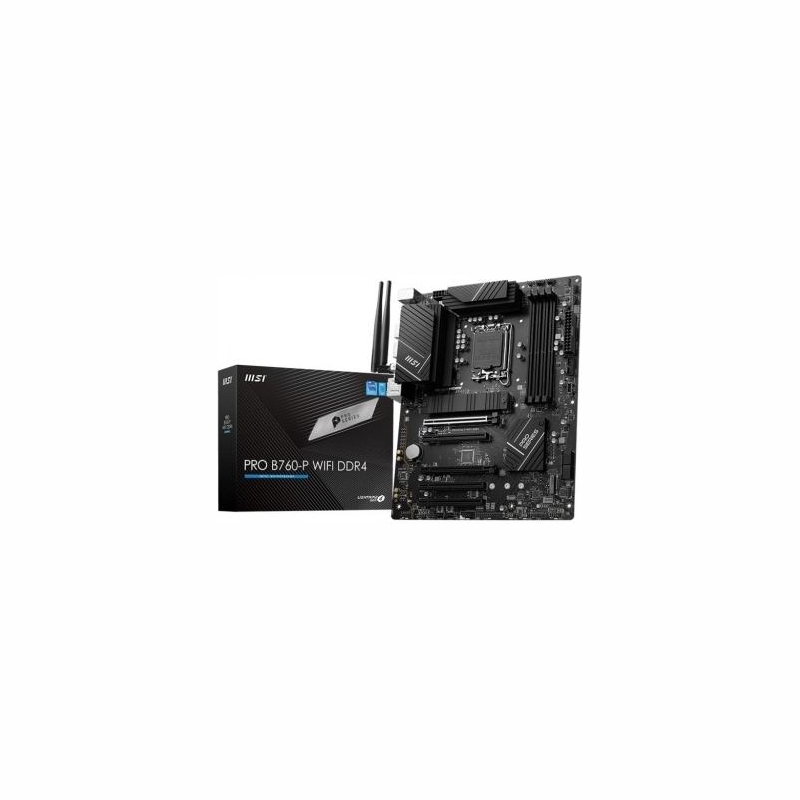

MSI Motherboard PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX

MSI Motherboard PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX

Write a review

€157.93

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBMSIIIEB760A01
Barcode: 4711377028363
Model: PRO B760-P WIFI DDR4
CPU socket: LGA1700
Processor family: Intel Core i3
Processor family: Intel Core i7
Processor family: Intel Core i5
Processor family: Intel Core i9
Processor family: Intel Celeron
Processor family: Intel Pentium Gold
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B760
Memory type: DDR4
Number of DDR4 slots: 4
Memory bus frequency: 3333 MHz
Memory bus frequency: 3200 MHz
Memory bus frequency: 2933 MHz
Memory bus frequency: 2133 MHz
Memory bus frequency: 2400 MHz
Memory bus frequency: 5333 MHz
Memory bus frequency: 3800 MHz
Memory bus frequency: 4000 MHz
Memory bus frequency: 4200 MHz
Memory bus frequency: 4266 MHz
Memory bus frequency: 4400 MHz
Memory bus frequency: 4600 MHz
Memory bus frequency: 4800 MHz
Memory bus frequency: 5000 MHz
Memory bus frequency: 3400 MHz
Memory bus frequency: 3466 MHz
Memory bus frequency: 3600 MHz
Memory bus frequency: 3733 MHz
Memory bus frequency: 2666 MHz
Memory bus frequency: 5200 MHz
Memory bus frequency: 5066 MHz
Max memory size: 128
Expansion slots: 2 x PCIe 4.0 x 16
Expansion slots: 3 x PCIe 3.0 x 1
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
Graphics: HDMI DisplayPort Support HDMI 2.1, maximum resolution 4K 60Hz Support DP 1.4, max resolution 4K 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: LAN: Realtek RTL8125BG 2.5G LAN Wireless communication: Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
USB ports at back panel: 7
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
FireWire (IEEE 1394): No
COM connector / port: Yes

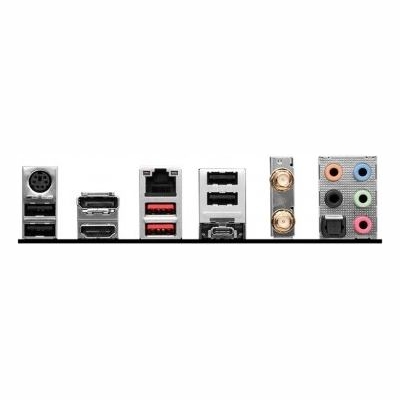

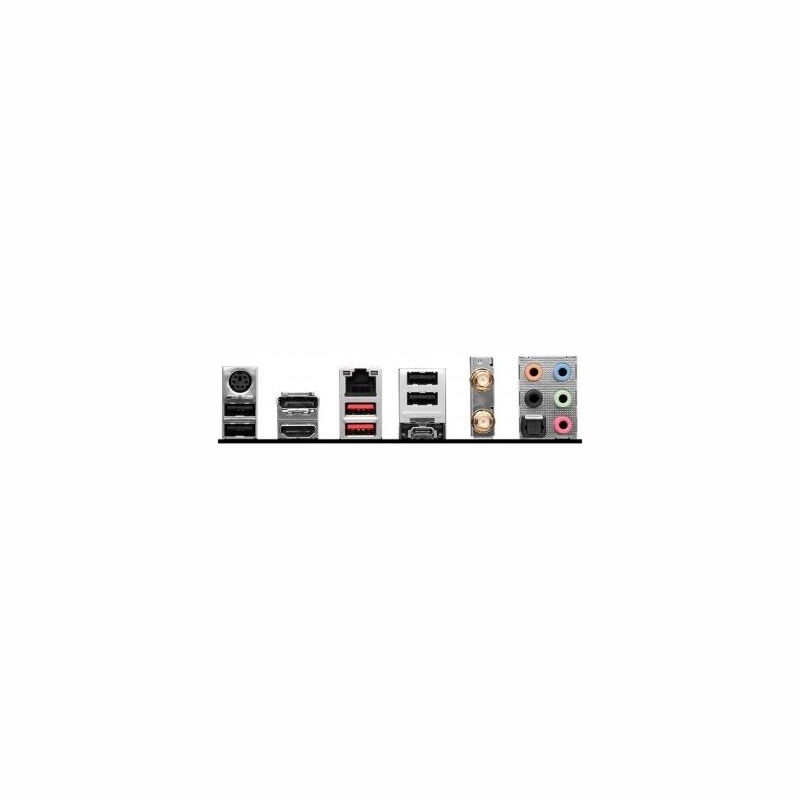

External connectors: 2 x USB 3.1
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 1 x Central Speaker / Subwoofer
External connectors: 1 x Rear Speaker
External connectors: 1 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 1 x RJ-45
External connectors: 1 x S/PDIF
External connectors: 4 x USB 2.0
External connectors: 1 x USB 3.1 Type-C
External connectors: 2 x SMA
Onboard connectors: 2 x Addressable LED
Onboard connectors: 4 x SATA III 6Gb/s
Onboard connectors: 4 x USB 2.0/1.1
Onboard connectors: 2 x USB 3.0 header
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 1 x USB C
Onboard connectors: 1 x Serial port header
Onboard connectors: 1 x Printer Port (JLPT)
Onboard connectors: 1 x TPM header
Onboard connectors: 2 x System panel header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 4 x EZ Debug LED
Onboard connectors: 1 x Chassis intrusion header
Onboard connectors: 5 x 4pin Chassis fan
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 2 x M.2
Onboard connectors: 1 x 4pin CPU fan
Form factor: ATX
Dimensions: 243.84 x 304.8 mm
Supported operating systems: Windows 10
Supported operating systems: Windows 11
Designation: CE+WEEE

Reference PRO B760-P WIFI DDR4

In stock 30 Items

Data sheet

Designation: CE+WEEE
Processor family: Intel Celeron
Intel Core i3
Intel Core i5
Intel Core i7
Intel Core i9
Intel Pentium Gold
CPU socket: LGA1700
Memory type: DDR4
Memory bus frequency: 2133 MHz
2400 MHz
2666 MHz
2933 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3800 MHz
4000 MHz
4200 MHz
4266 MHz
4400 MHz
4600 MHz
4800 MHz
5000 MHz
5066 MHz
5200 MHz
5333 MHz
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B760
Number of DDR4 slots: 4
Max memory size: 128
Expansion slots: 2 x PCIe 4.0 x 16
3 x PCIe 3.0 x 1
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
Graphics: HDMI DisplayPort Support HDMI 2.1, maximum resolution 4K 60Hz Support DP 1.4, max resolution 4K 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface: 1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN: Realtek RTL8125BG 2.5G LAN Wireless communication: Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS
Wi-Fi 802.11a/b/g/n/ac/ax
USB ports at back panel: 7
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 3
FireWire (IEEE 1394): No
COM connector / port: Yes
External connectors: 1 x Central Speaker / Subwoofer
1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x Rear Speaker
1 x RJ-45
1 x S/PDIF
1 x USB 3.1 Type-C
2 x SMA
2 x USB 3.1
4 x USB 2.0
Onboard connectors: 1 x 4-pin water-pump-fan
1 x 4pin CPU fan
1 x Chassis intrusion header
1 x Front panel audio header
1 x Printer Port (JLPT)
1 x RGB LED strip header
1 x Serial port header
1 x TPM header
1 x USB C
2 x Addressable LED
2 x M.2
2 x System panel header
2 x USB 3.0 header
4 x EZ Debug LED
4 x SATA III 6Gb/s
4 x USB 2.0/1.1
5 x 4pin Chassis fan
Form factor: ATX
Supported operating systems: Windows 10
Windows 11
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
