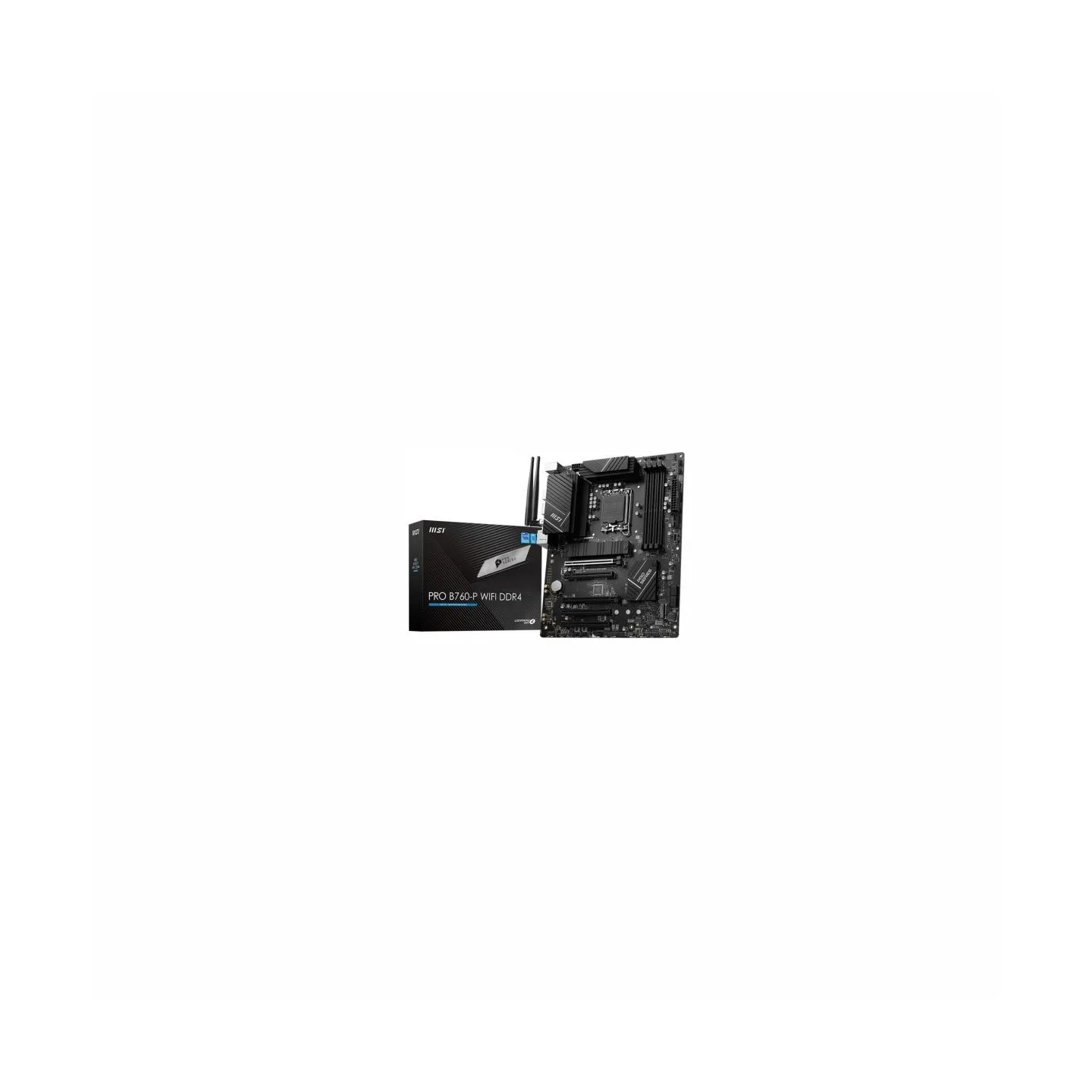

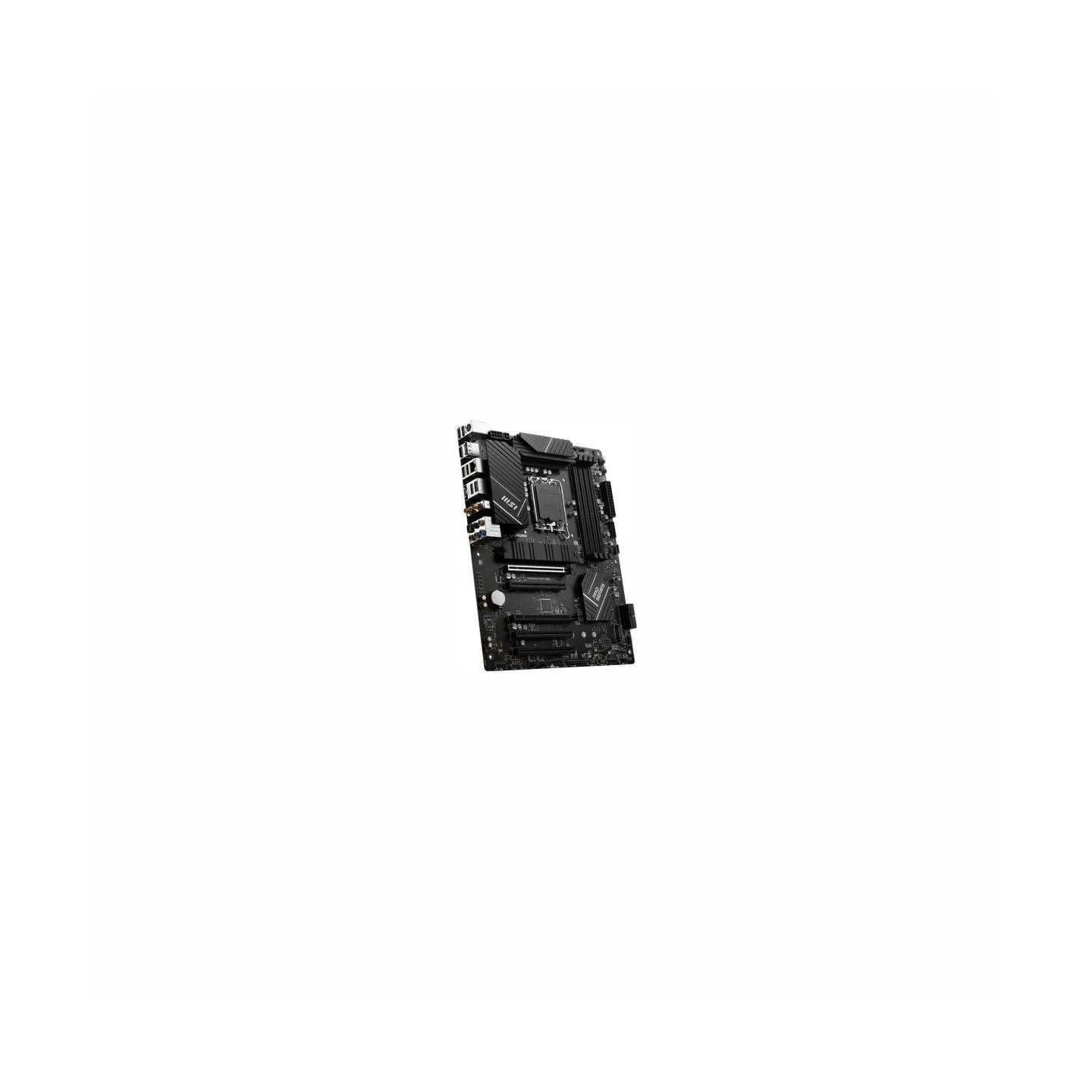

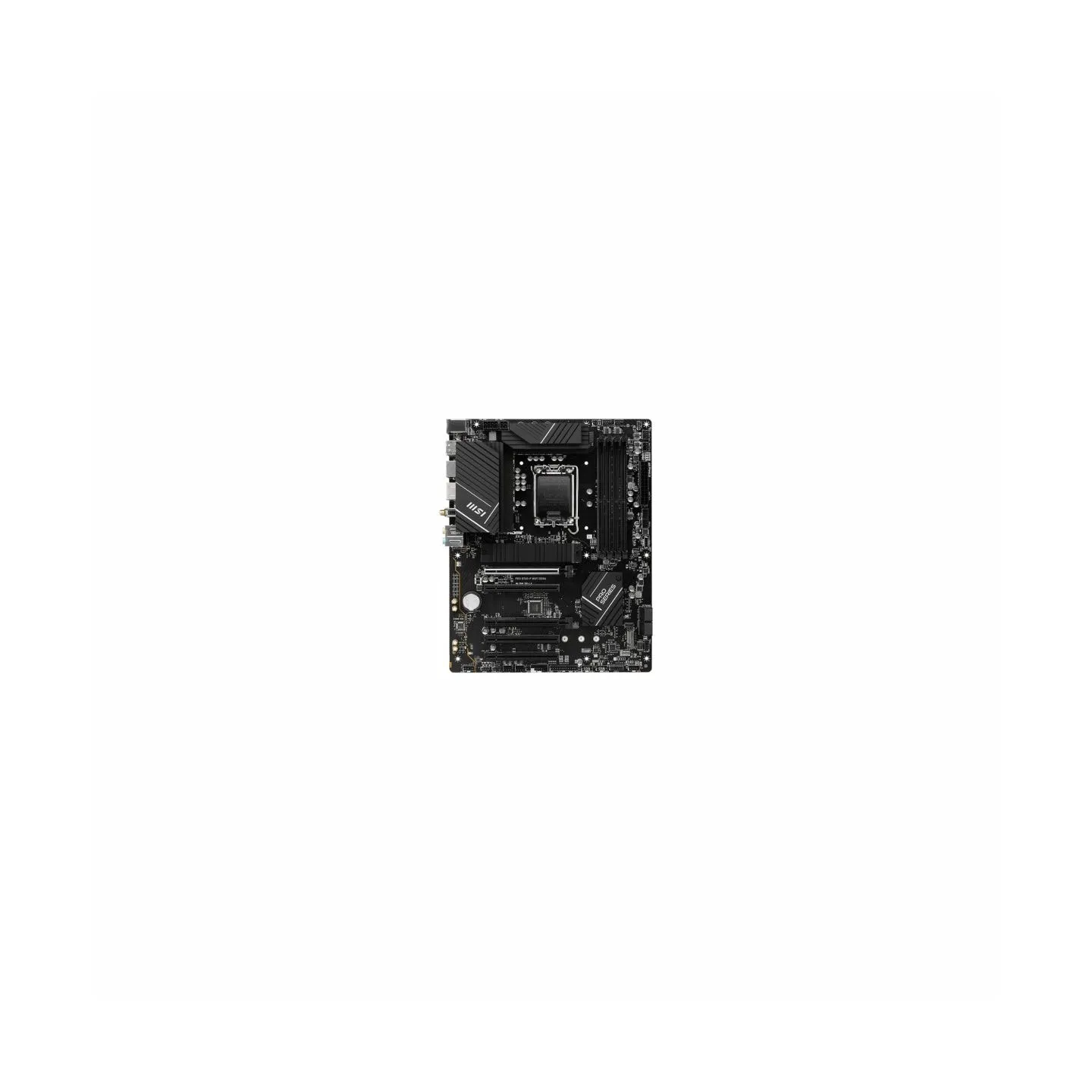

MSI Motherboard PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX
Price:
€157.96
Tax included
Share on
- SKU
- KBMSIIIEB760A01
- Barcode
- 4711377028363
- Model
- PRO B760-P WIFI DDR4
- CPU socket
- LGA1700
- Processor family
- Intel Core i3
- Processor family
- Intel Core i7
- Processor family
- Intel Core i5
- Processor family
- Intel Core i9
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium Gold
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 5333 MHz
- Memory bus frequency
- 3800 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4200 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5066 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 3 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
- Graphics
- HDMI DisplayPort Support HDMI 2.1, maximum resolution 4K 60Hz Support DP 1.4, max resolution 4K 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- LAN: Realtek RTL8125BG 2.5G LAN Wireless communication: Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
- USB ports at back panel
- 7
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- External connectors
- 2 x USB 3.1
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 2 x SMA
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Printer Port (JLPT)
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 5 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x 4pin CPU fan
- Form factor
- ATX
- Dimensions
- 243.84 x 304.8 mm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
