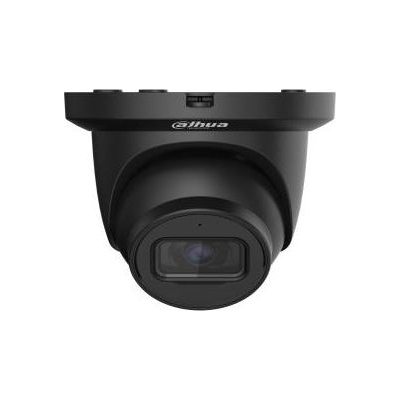

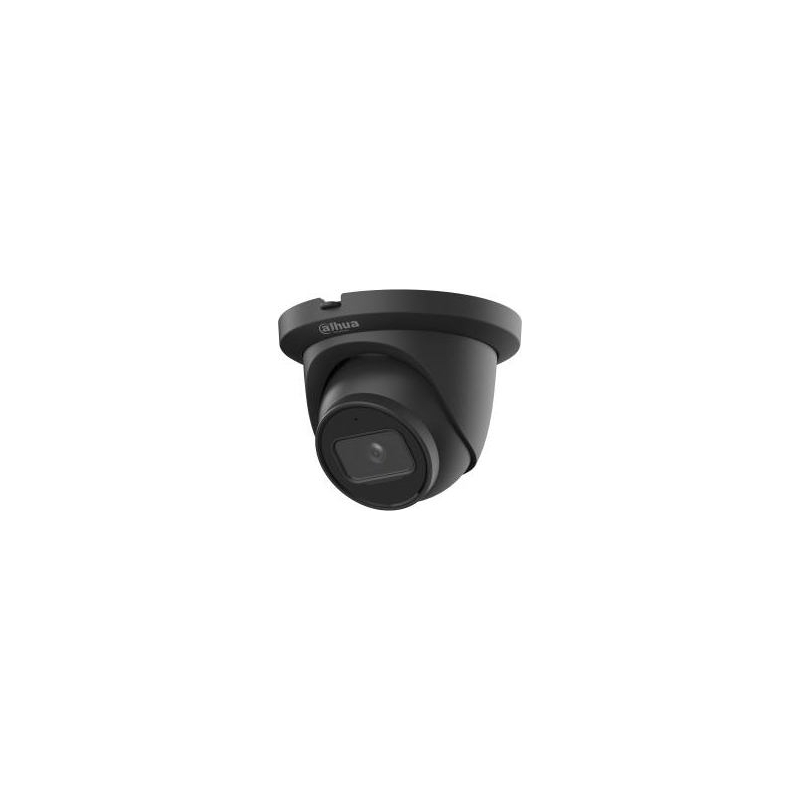

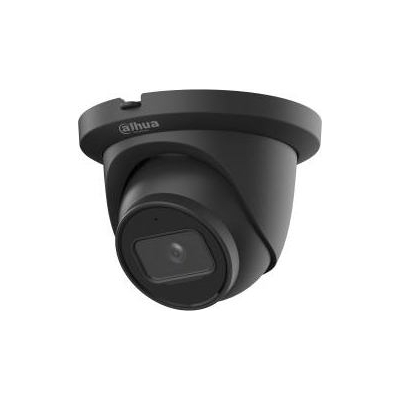

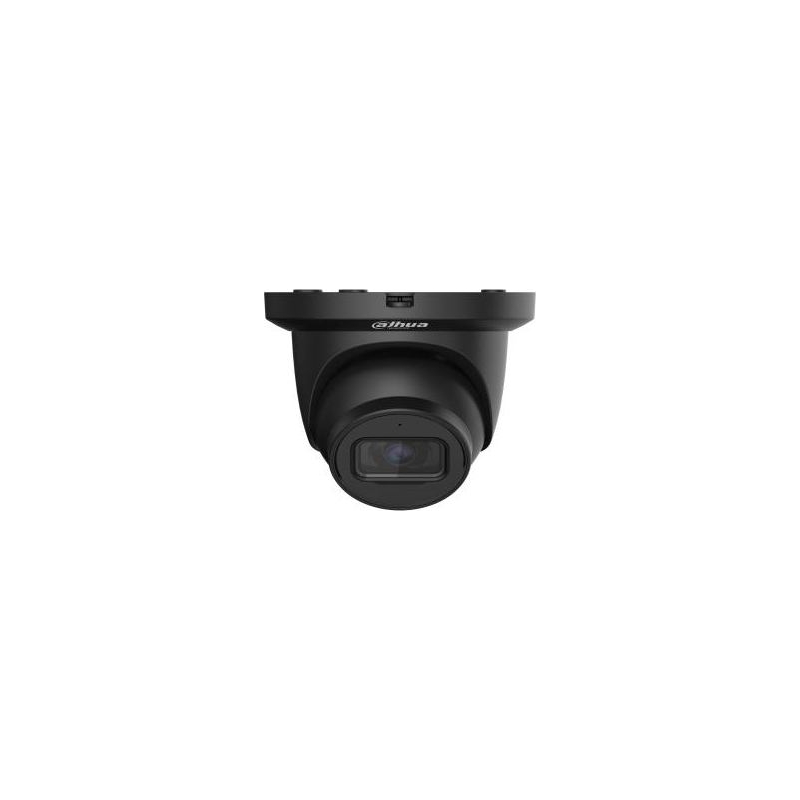

Dahua NET CAMERA 5MP IR EYEBALL/HDW5541TM-ASE-0280B-S3-B DAHUA

Dahua NET CAMERA 5MP IR EYEBALL/HDW5541TM-ASE-0280B-S3-B DAHUA

Write a review

€318.64

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5MP IR Fixed-focal Eyeball WizMind Network Camera

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5 MP (2960 × 1668) @25/30fps
Built-in IR LED, and the max. illumination distance is 50 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
12 VDC/PoE power supply; ePoE
IP67 protection
SMD 3.0

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HDW5541TM-ASE=S3

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.15
Unit Box Width: 0.14
Form factor: Dome
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: Black
Certification: CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360 °
Camera shutter speed: 1/3 s-1/100000 s s
Camera shutter type: Electronic
Lens viewing angle, horizontal: 102 °
Lens viewing angle, vertical: 71 °
Minimum illumination: 0.005 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
White balance: Auto/Lamp/Manual/Natural/Outdoor
Number of effective pixels (H x V): 2592 x 1944 pixels
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
Number of lenses: 1
LED type: IR
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps-8192 Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror: Yes
Frame rate: 60 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2592 x 1944 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 5 MP
Video compression formats: H.264
Video streaming: Yes
Built-in microphone: Yes
Voice codecs: AAC/G.711a/G.711Mu/G.723/G.726
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Wi-Fi: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512 MB
ROM capacity: 128 MB
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Crossing line/Heat map/Intrusion/People counting/Tripwire
Video motion detection: Yes
Web browser: Yes
DC output voltage: 12
Power consumption (typical): 7.2 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 106 mm
Height: 93.6 mm
Weight: 550 g
Package weight: 710 g
Number of cameras: 1
Model: IPC-HDW5541TM-ASE-0280B-S3-B
Units per Shipping Box: 1
Unit Calculated Volume: 0.002835 cubm
Unit Calculated Weight: 0.718 kg
