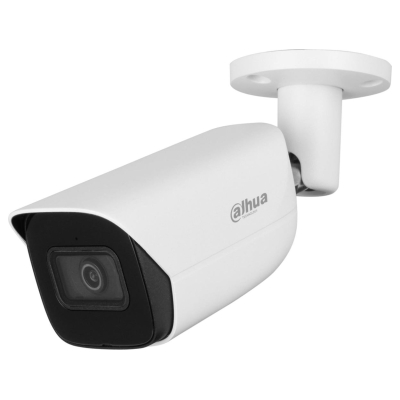

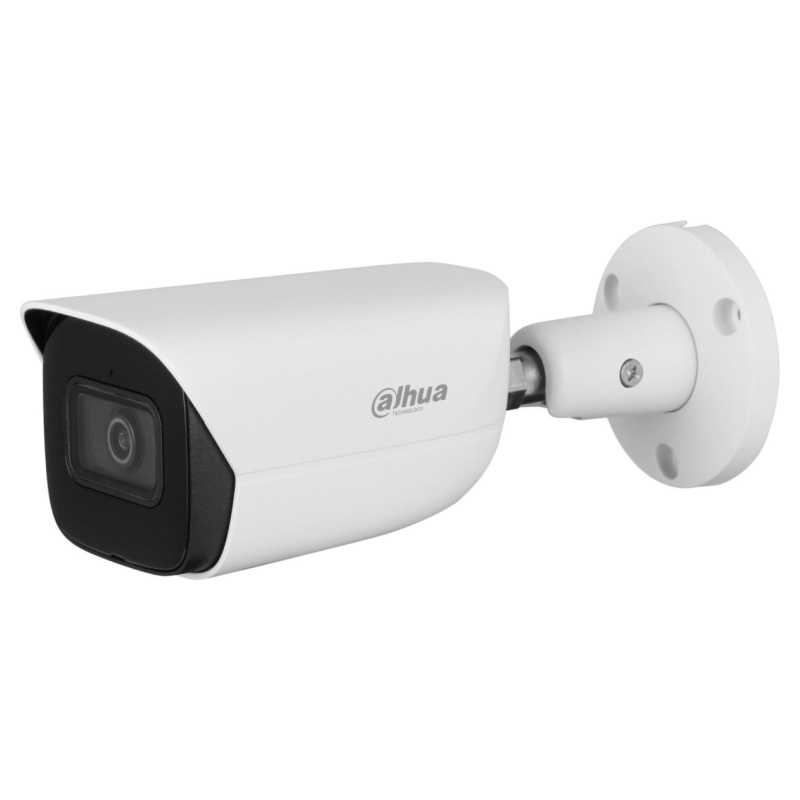

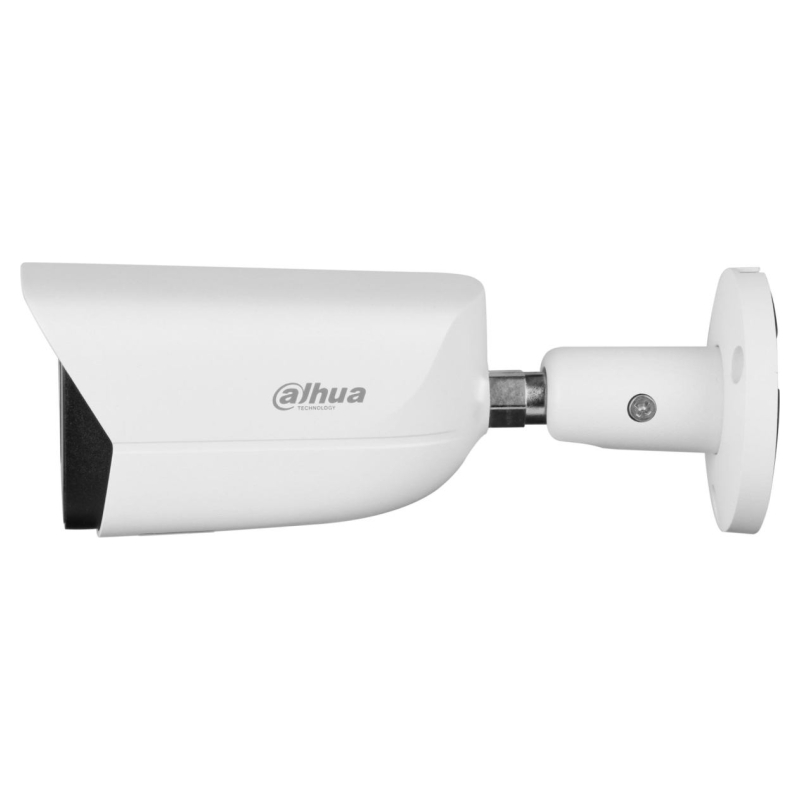

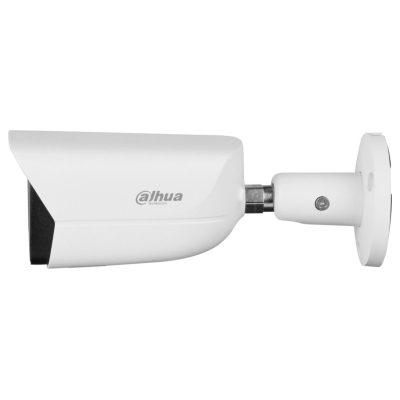

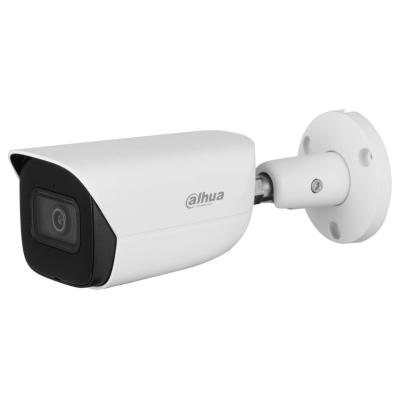

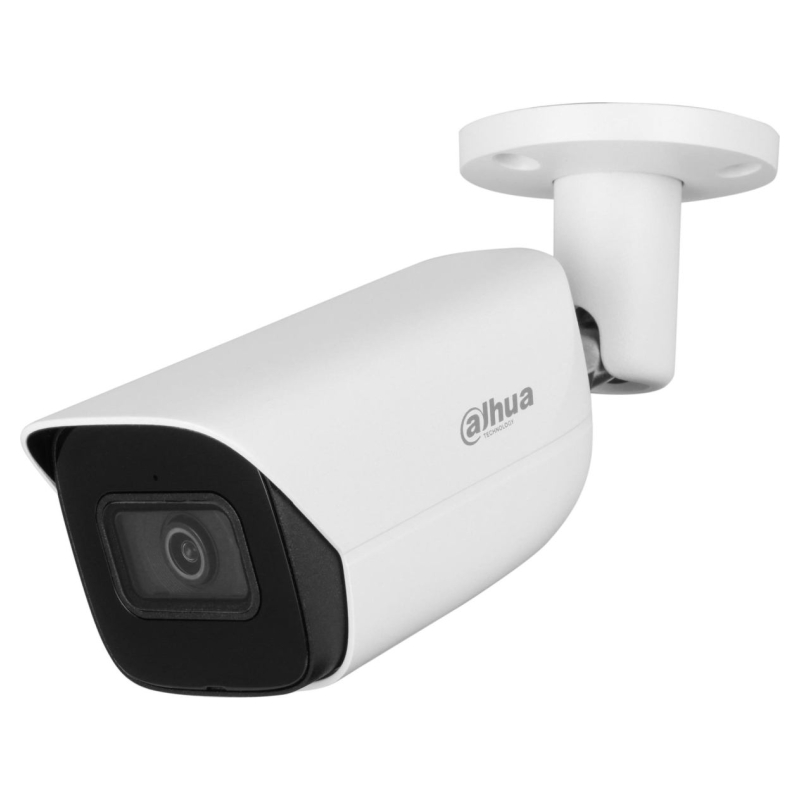

Dahua NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0360B-S3 DAHUA

Dahua NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0360B-S3 DAHUA

Write a review

€318.64

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5 MP (2960×1668) @25/30fps
Built-in IR LED, and the max. illumination distance is 50 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
12 VDC/PoE power supply; ePoE
IP67 protection
SMD 3.0

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HFW5541E-ASE=S3

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.1
Unit Box Length: 0.22
Unit Box Width: 0.11
Form factor: Bullet
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Pole clamp
Product colour: White
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120 dB
People counting function: Yes
Placement supported: Indoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera tilt control: Yes
Lens viewing angle, diagonal: 110 °
Lens viewing angle, horizontal: 92 °
Lens viewing angle, vertical: 45 °
Minimum illumination: 0.0005 lx
Number of Privacy masking areas: 8
Pan range: 0 - 360 °
Tilt angle range: 0 - 90 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.7 m
Detect distance: 85.4 m
Fixed focal length: 3.6 mm
Fixed focus: Yes
Identify distance: 8.5 m
Maximum aperture number: 1.6
Observe distance: 34.2 m
Recognize distance: 17.1 m
LED type: IR
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 1
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto
Highlight Compensation (HLC): Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video recording: Yes
Video streaming: Yes
Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Built-in microphone: Yes
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1000 GB
RAM capacity: 1024 MB
ROM capacity: 4096 MB
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Human and vehicle targets classification: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion/Tripwire
IP address filtering: Yes
Mirror: Yes
Network access storage (NAS): Yes
Video motion detection: Yes
DC output voltage: 12
Power consumption (max): 6.2 W
Power consumption (typical): 4 W
Power source type: DC,PoE
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 10 - 95 %
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Height: 66.4 mm
Length: 192.7 mm
Weight: 590 g
Width: 70.5 mm
Compliance certificates: CE/Federal Communications Commission (FCC)/UL
Package weight: 780 g
Manual: Yes
Number of cameras: 1
Model: IPC-HFW5541E-ASE-0360B-S3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00242 cubm
Unit Calculated Weight: 0.78 kg
