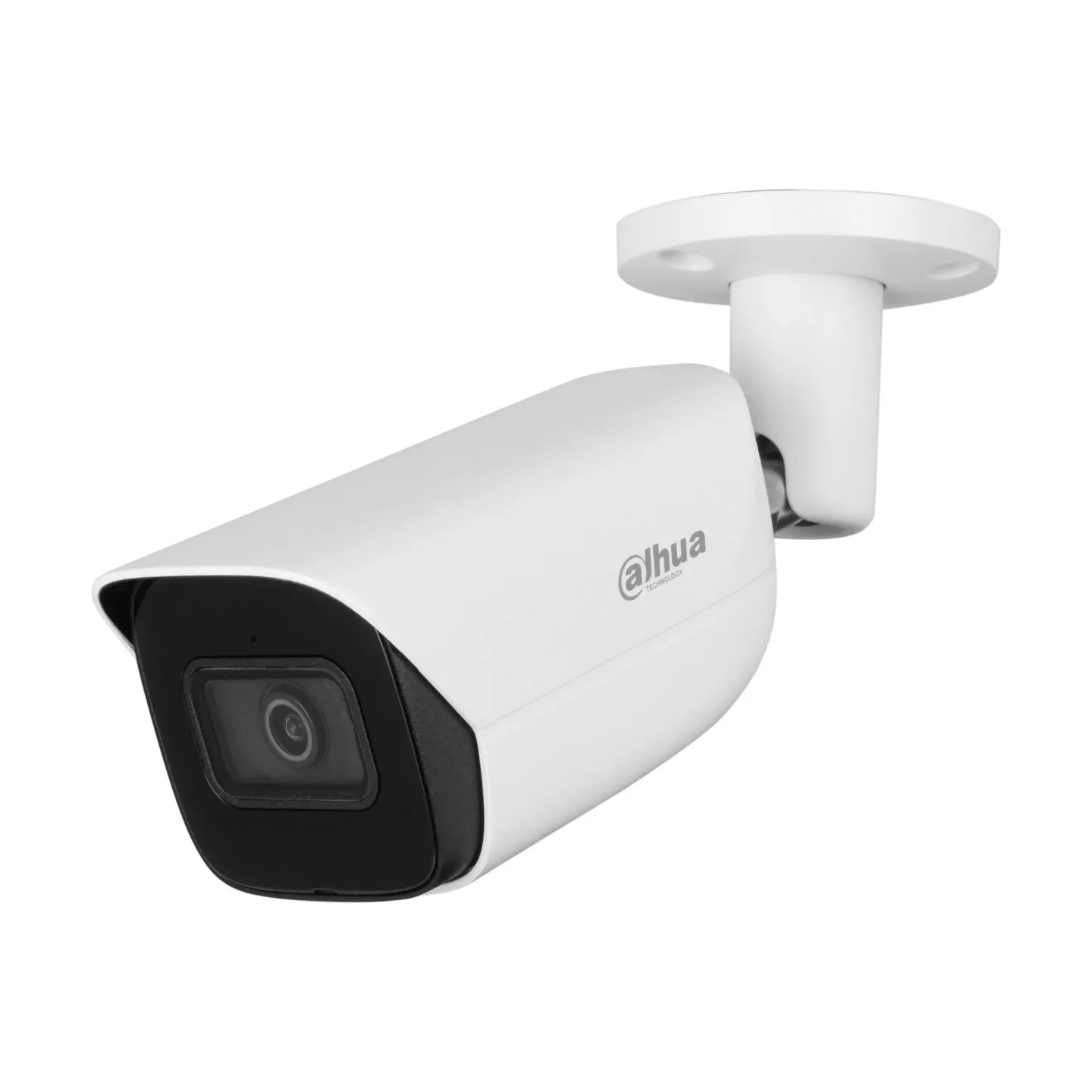

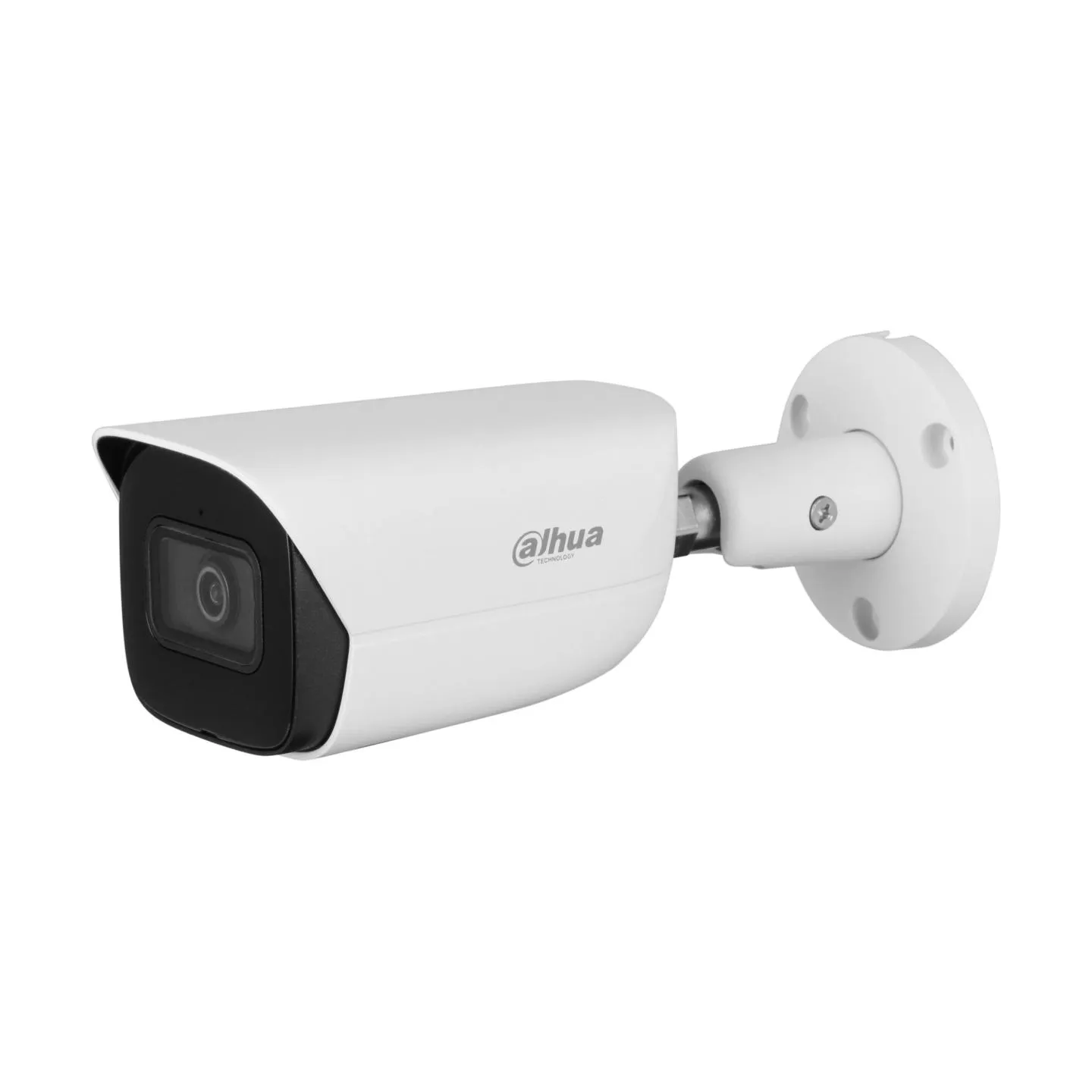

Dahua NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0360B-S3 DAHUA
Price:
€318.64
Tax included
Share on
- 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 5 MP (2960×1668) @25/30fps
- Built-in IR LED, and the max. illumination distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 protection
- SMD 3.0
Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HFW5541E-ASE=S3
- Category Code
- FNC
- CnCode
- 85258900
- Unit Box Height
- 0.1
- Unit Box Length
- 0.22
- Unit Box Width
- 0.11
- Form factor
- Bullet
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Pole clamp
- Product colour
- White
- Alarm input/output
- Yes
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Dynamic range
- 120 dB
- People counting function
- Yes
- Placement supported
- Indoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
- Angle of rotation
- 360 °
- Camera pan control
- Yes
- Camera shutter speed
- 1/3 - 1/100000 s
- Camera tilt control
- Yes
- Lens viewing angle, diagonal
- 110 °
- Lens viewing angle, horizontal
- 92 °
- Lens viewing angle, vertical
- 45 °
- Minimum illumination
- 0.0005 lx
- Number of Privacy masking areas
- 8
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 90 °
- White balance
- Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
- Number of sensors
- 1
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
- Closest focusing distance
- 1.7 m
- Detect distance
- 85.4 m
- Fixed focal length
- 3.6 mm
- Fixed focus
- Yes
- Identify distance
- 8.5 m
- Maximum aperture number
- 1.6
- Observe distance
- 34.2 m
- Recognize distance
- 17.1 m
- LED type
- IR
- Night vision
- Yes
- Night vision distance
- 50 m
- Number of illumination LEDs
- 1
- Back Light Compensation (BLC)
- Yes
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Frame rate
- 30 fps
- Gain control type
- Auto
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2960 x 1668 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Total megapixels
- 5 MP
- Video compression formats
- H.264/H.264B/H.264H/H.265/M-JPEG
- Video recording
- Yes
- Video streaming
- Yes
- Audio formats supported
- G.711 µ-law/G.711 A-law/G.723/G.726/PCM
- Built-in microphone
- Yes
- Bluetooth
- No
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.1x/IEEE 802.3af
- Quality of Service (QoS) support
- Yes
- Streaming method
- Multicast
- Supported network protocols
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
- Wi-Fi
- No
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 1000 GB
- RAM capacity
- 1024 MB
- ROM capacity
- 4096 MB
- DC-in jack
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Alarm input channels
- 1
- Alarm output channels
- 1
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- IP address filtering
- Yes
- Mirror
- Yes
- Network access storage (NAS)
- Yes
- Video motion detection
- Yes
- DC output voltage
- 12
- Power consumption (max)
- 6.2 W
- Power consumption (typical)
- 4 W
- Power source type
- DC,PoE
- Operating temperature (T-T)
- -40 - 60 °C
- Storage relative humidity (H-H)
- 10 - 95 %
- Storage temperature (T-T)
- -40 - 60 °C
- Mobile operating systems supported
- Android/iOS
- Height
- 66.4 mm
- Length
- 192.7 mm
- Weight
- 590 g
- Width
- 70.5 mm
- Compliance certificates
- CE/Federal Communications Commission (FCC)/UL
- Package weight
- 780 g
- Manual
- Yes
- Number of cameras
- 1
- Model
- IPC-HFW5541E-ASE-0360B-S3
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00242 cubm
- Unit Calculated Weight
- 0.78 kg
