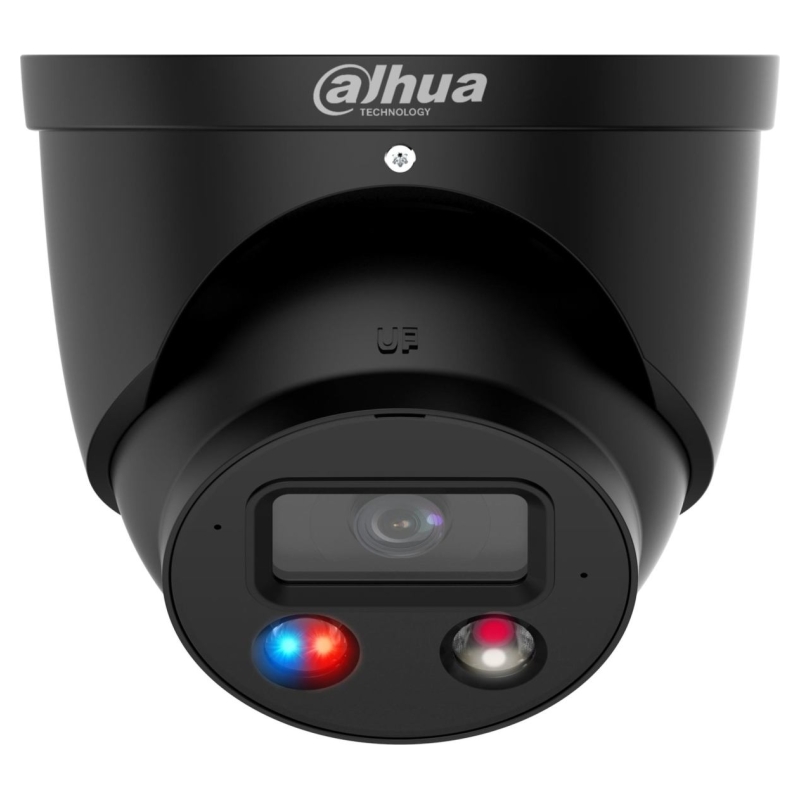

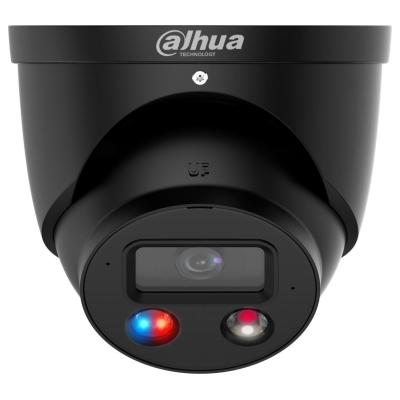

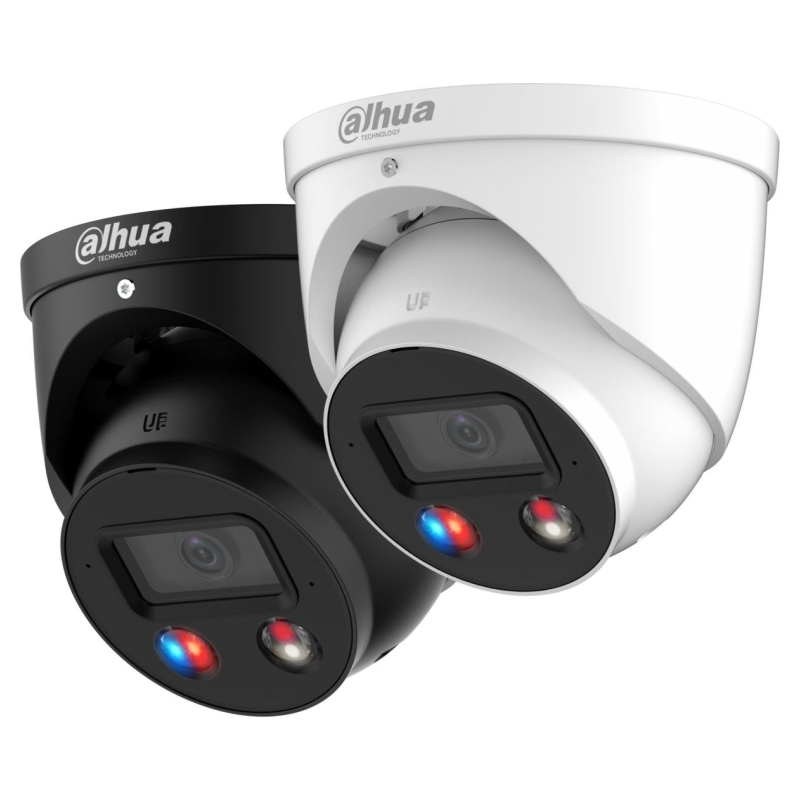

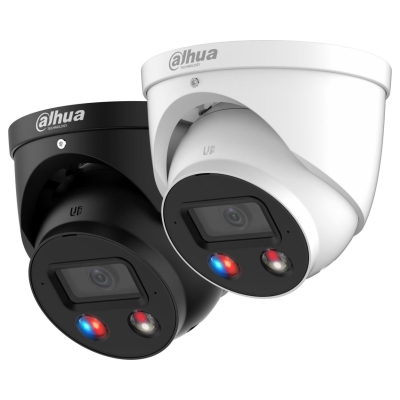

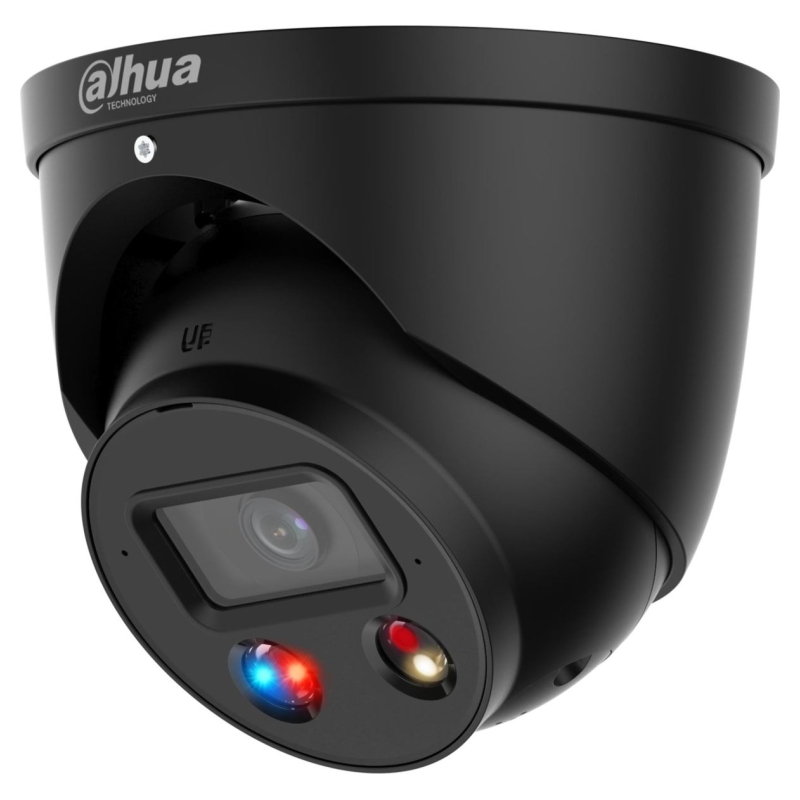

Dahua NET CAMERA 8MP EYEBALL/HDW3849H-AS-PV-0360BS5B DAHUA

Dahua NET CAMERA 8MP EYEBALL/HDW3849H-AS-PV-0360BS5B DAHUA

Write a review

€347.61

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

The parameters and datasheets below can only be applied to 3849-PV-S5 series.

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 ×2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection. · Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms

Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-3-Series/TiOC/IPC-HDW3849H-AS-PV=S5

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.16
Unit Box Width: 0.16
Form factor: Turret
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Product colour: Black
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera shutter speed: 1/3 - 1/100000 s
Lens viewing angle, diagonal: 125 °
Lens viewing angle, horizontal: 106 °
Lens viewing angle, vertical: 55 °
Minimum illumination: 0.0004 lx
Number of Privacy masking areas: 4
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.5 m
Detect distance: 66 m
Fixed focus: Yes
Identify distance: 6.6 m
Maximum aperture number: 1
Number of lenses: 1
Observe distance: 26.4 m
Recognize distance: 13.2 m
LED type: IR/White
Night vision: Yes
Night vision distance: 30 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1536 x 2048/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8 MP
Video compression formats: H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming: Yes
Audio formats supported: G.723/G.726
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Built-in speaker(s): Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet LAN: Yes
Number of users: 20 user(s)
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
RAM capacity: 2000 MB
ROM capacity: 256 MB
Alarm input channels: 1
Alarm output channels: 1
Digital watermark: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion/Tripwire
Mirror: Yes
Security algorithms: HTTPS
Video motion detection: Yes
Management software: Smart PSS Lite; DSS; DMSS
DC output voltage: 12
Power consumption (max): 8.6 W
Power consumption (Power over Ethernet (PoE)): 5.8 W
Power consumption (typical): 4.5 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 110.9 mm
Weight: 750 g
Compliance certificates: CE/Electromagnetic Compatibility (EMC)
Package type: Box
Package weight: 920 g
Manual: Yes
Number of cameras: 1
Browser supported: IE: IE 9/11, Chrome, Firefox
Lens mount interface: M12
Units per Shipping Box: 1
Unit Calculated Volume: 0.003584 cubm
Unit Calculated Weight: 0.92 kg
