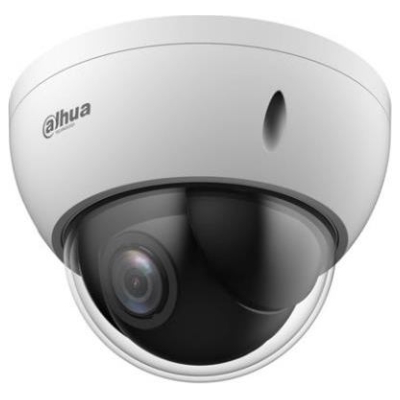

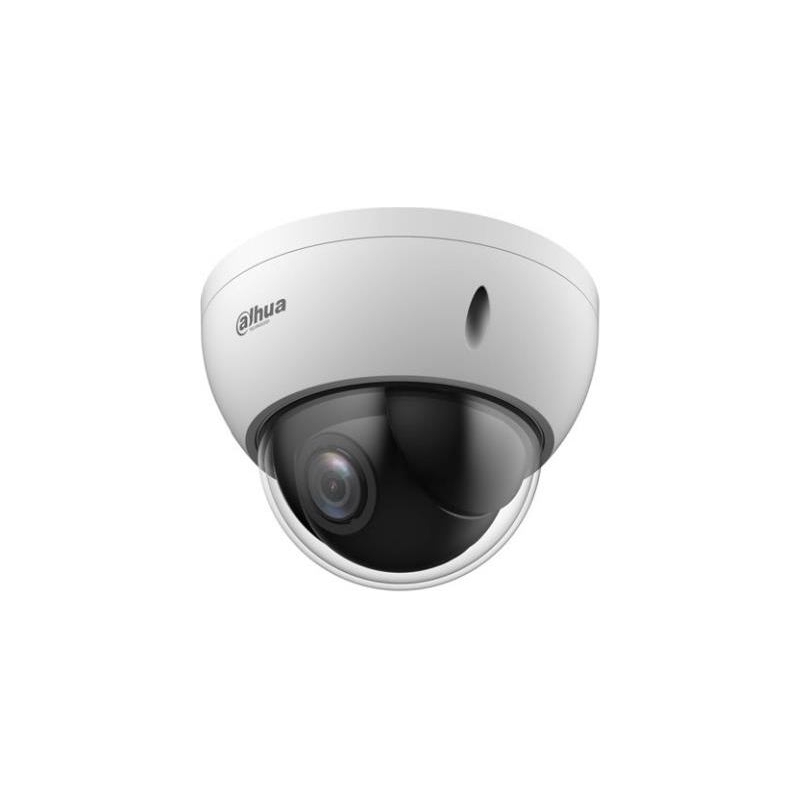

Dahua NET CAMERA 2MP PTZ DOME/SD22204DB-GC DAHUA

Write a review

€394.28

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Dome
Ceiling
White
IP code IP66
CCTV security camera
Wired
Placement Indoor & outdoor
PTZ control Yes
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Minimum illumination 0.0005 lx
Pan range 0 - 355 °
White balance Auto/Manual/Outdoor/ATW/Indoor
Camera shutter type Electronic
Optical sensor size 1/2.8 "
Sensor type CMOS
Zoom capability Yes
Identify distance 15.2 m
Night vision Yes
Total megapixels 2 MP
Frame rate 30 fps
Noise reduction Yes
Power source type DC
Weight 600 g
1xNumber of cameras

Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/PTZ-Cameras/HDCVI-PTZ-Cameras/SD2/SD22204DB-GC

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.16
Unit Box Width: 0.16
Form factor: Dome
IK code: IK10
International Protection (IP) code: IP66
Mounting type: Ceiling
Product colour: White
Certification: CE: EN55032/EN55024/EN50130-4 FCC: Parte 15 subparte B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
Preset points: Yes
PTZ control: Yes
PTZ modes: 8 Tour/Preset sequence
PTZ protocols: Pelco-P/D
Type: CCTV security camera
Wide Dynamic Range (WDR): Yes
Camera pan control: Yes
Camera shutter speed: 1/1 - 1/30000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, diagonal: 117.7 °
Lens viewing angle, horizontal: 99.1 °
Lens viewing angle, vertical: 53.4 °
Minimum illumination: 0.0005 lx
Pan preset speed: 100 °/sec
Pan range: 0 - 355 °
Pan speed: 100 °/sec
Tilt angle range: 0 - 90 °
Tilt speed: 60 °/sec
White balance: ATW/Auto/Indoor/Manual/Outdoor
Number of effective pixels (H x V): 1920 x 1080 pixels
Optical sensor size: 1/2.8 "
Progressive scan: Yes
Sensor type: CMOS
Detect distance: 151.7 m
Digital zoom: 16 x
Focal length range: 2.7 - 11 mm
Focus: Motorized/Manual
Identify distance: 15.2 m
Observe distance: 59.9 m
Optical zoom: 4 x
Recognize distance: 30.3 m
Zoom capability: Yes
LED type: IR
Night vision: Yes
Back Light Compensation (BLC): Yes
Bit rate: 448K - 8192Kbps, 5120K - 10240Kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR): Yes
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 1920 x 1080 pixels
Noise reduction: Yes
Noise reduction technology: 2D noise reduction,3D noise reduction
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/352 x 240/352 x 288/704 x 480/704 x 576
Supported video modes: 1080p/720p
Total megapixels: 2 MP
Video compression formats: H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming: Yes
Signal-to-Noise Ratio (SNR): 50 dB
Bluetooth: No
Ethernet LAN: No
Wi-Fi: No
Built-in HDD: No
Internal memory: 256 MB
ROM capacity: 128 MB
BNC output ports: 1
DC-in jack: Yes
RS-485 ports: 1
Video motion detection: Yes
DC output current: 1 A
DC output voltage: 12
Power consumption (max): 9 W
Power consumption (typical): 7 W
Power source type: DC
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 0 - 95 %
Storage temperature (T-T): -30 - 60 °C
Diameter: 122 mm
Height: 88.9 mm
Weight: 600 g
Package type: Box
Package weight: 650 g
Number of cameras: 1
Model: SD22204DB-GC
Units per Shipping Box: 1
Unit Calculated Volume: 0.003584 cubm
Unit Calculated Weight: 0.7 kg
