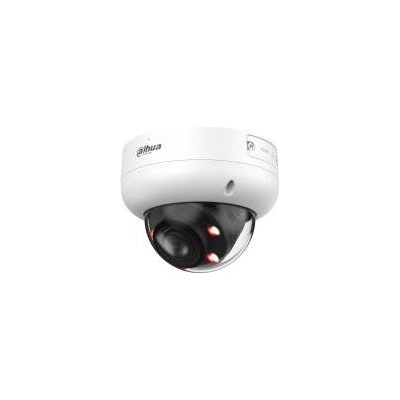

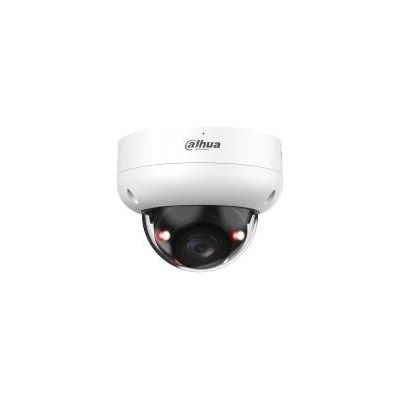

Dahua NET CAMERA 8MP DOME/HDBW3849R-ZAS-IL-27135 DAHUA

Dahua NET CAMERA 8MP DOME/HDBW3849R-ZAS-IL-27135 DAHUA

Write a review

€523.02

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

8MP Smart Dual Light Vari-focal Dome WizSense Network Camera

- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67, IK10 protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.

Manufacturer Website:
https://www.dahuasecurity.com/

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.14
Unit Box Width: 0.15
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Built-in light: Yes
Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120 dB
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/3 s-1/100,000 s
Lens viewing angle, diagonal: 138 - 36 °
Lens viewing angle, horizontal: 114 - 32 °
Lens viewing angle, vertical: 58 - 17 °
Minimum illumination: 0.007 lx
Number of Privacy masking areas: 8
Pan range: 0 - 360 °
Tilt angle range: 0 - 80 °
Vertical field of view (thermal module): 58 °
White balance: Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Number of effective pixels (H x V): 3840 x 2160 pixels
Number of sensors: 1
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Auto focus: Yes
Closest focusing distance: 1.5 m
Detect distance (tele): 257.4 m
Detect distance (wide): 89.9 m
Fixed focus: Yes
Focal length range: 2.7 - 13.5 mm
Focus: Motorized/Manual
Identify distance (tele): 25.7 m
Identify distance (wide): 19 m
Maximum aperture number: 1
Number of lenses: 1
Observe distance (tele): 103 m
Observe distance (wide): 36 m
Recognize distance (tele): 51.5 m
Recognize distance (wide): 18 m
LED type: IR/White
Night vision: Yes
Night vision distance: 50 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8 MP
Video compression formats: H.264/H.265
Video streaming: Yes
Audio formats supported: G.711/G.723/G.726/PCM
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Bit rate range: 3 - 8192 Kbit/s
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
User access level: User
Wi-Fi: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
RAM capacity: 1024 MB
ROM capacity: 256 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Digest authentication: Yes
Mirror: Yes
Password protection: Yes
Video motion detection: Yes
Firmware upgradeable: Yes
Management software: Smart PSS; DSS; DMSS
DC output voltage: 12
Power consumption (max): 9 W
Power consumption (Power over Ethernet (PoE)): 3.9 W
Power source type: DC,PoE
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 94 mm
Weight: 560 g
Package weight: 740 g
Number of cameras: 1
Model: IPC-HDBW3649R-ZAS-IL
Units per Shipping Box: 1
Unit Calculated Volume: 0.00294 cubm
Unit Calculated Weight: 0.75 kg
