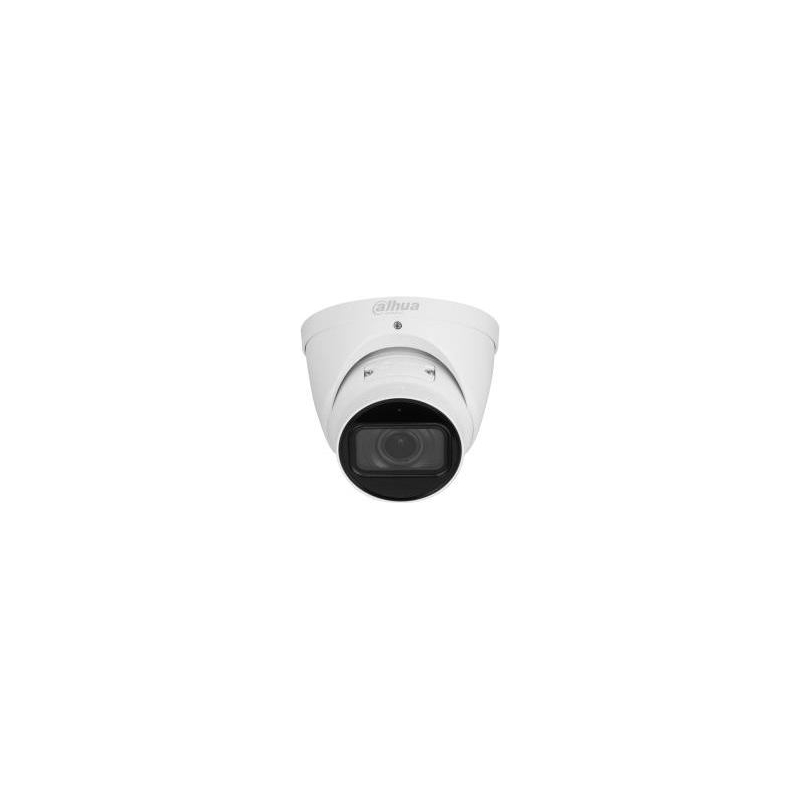

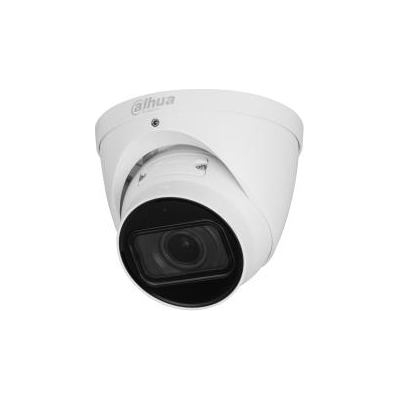

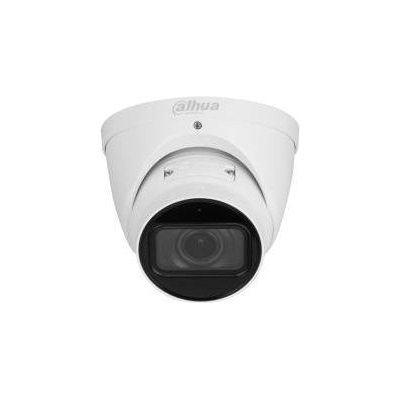

Dahua NET CAMERA 5MP IR EYEBALL/IPC-HDW5541T-ZE-27135-S3 DAHUA

Dahua NET CAMERA 5MP IR EYEBALL/IPC-HDW5541T-ZE-27135-S3 DAHUA

Write a review

€627.63

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata,
smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI ISP technology and has the Deeplight night vision effect. The camera
is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5MP (2960×1668) @25/30 fps
Built-in IR LED, and the max. illumination distance is 40 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc
Supports max. 1 TB Micro SD card, built-in MIC
12 VDC/PoE power supply; ePoE
IP67 protection
SMD 3.0

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HDW5541T-ZE=S3

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.136
Unit Box Length: 0.155
Unit Box Width: 0.157
Form factor: Turret
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Connectivity technology: Wired
Day/night mode: Yes
People counting function: Yes
Placement supported: Indoor & outdoor
Type: CCTV security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 138-36 °
Lens viewing angle, horizontal: 114-32 °
Lens viewing angle, vertical: 58-17 °
Minimum illumination: 0.0005 lx
Number of Privacy masking areas: 8
Pan range: 0 - 360 °
Tilt angle range: 0 - 78 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Number of effective pixels (H x V): 2960 x 1668 pixels
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.8 m
Detect distance: 210 m
Focal length range: 2.7 - 13.5 mm
Identify distance: 21 m
Maximum aperture number: 1.5
Observe distance: 84 m
Recognize distance: 42 m
LED type: IR
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Flip & mirror: Yes
Gain control type: Auto
Highlight Compensation (HLC): Yes
Image stabilizer: Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Total megapixels: 5 MP
Video compression formats: H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video recording: Yes
Bit rate range: 12 - 16384 Kbit/s
Built-in microphone: Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Number of users: 20 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1000 GB
RAM capacity: 1000 MB
ROM capacity: 4000 MB
Ethernet LAN (RJ-45) ports: 1
Digital watermark: Yes
Mirror: Yes
Video motion detection: Yes
DC output voltage: 12
Power consumption (max): 8.5 W
Power consumption (Power over Ethernet (PoE)): 4.8 W
Power consumption (typical): 3.7 W
Power source type: DC,PoE
Operating relative humidity (H-H): -40 - 60 %
Operating temperature (T-T): -30 - 60 °C
Storage relative humidity (H-H): 10 - 95 %
Storage temperature (T-T): 0 - 95 °C
Diameter: 122 mm
Height: 108.3 mm
Weight: 700 g
Package weight: 960 g
Number of cameras: 1
Model: IPC-HDW5541T-ZE-27135-S3
Units per Shipping Box: 1
Unit Calculated Volume: 0.00331 cubm
Unit Calculated Weight: 0.94 kg
