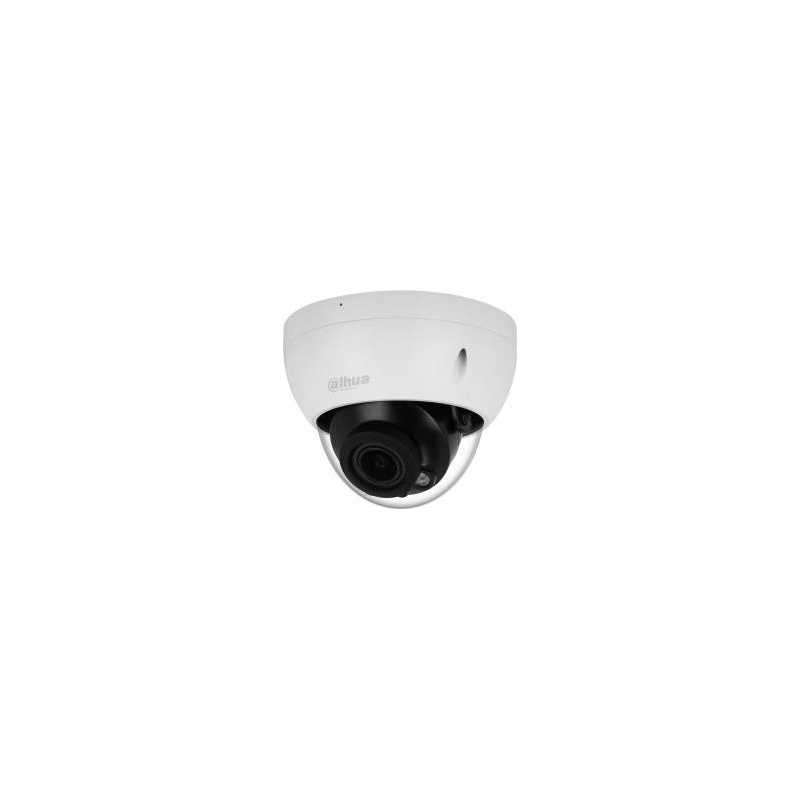

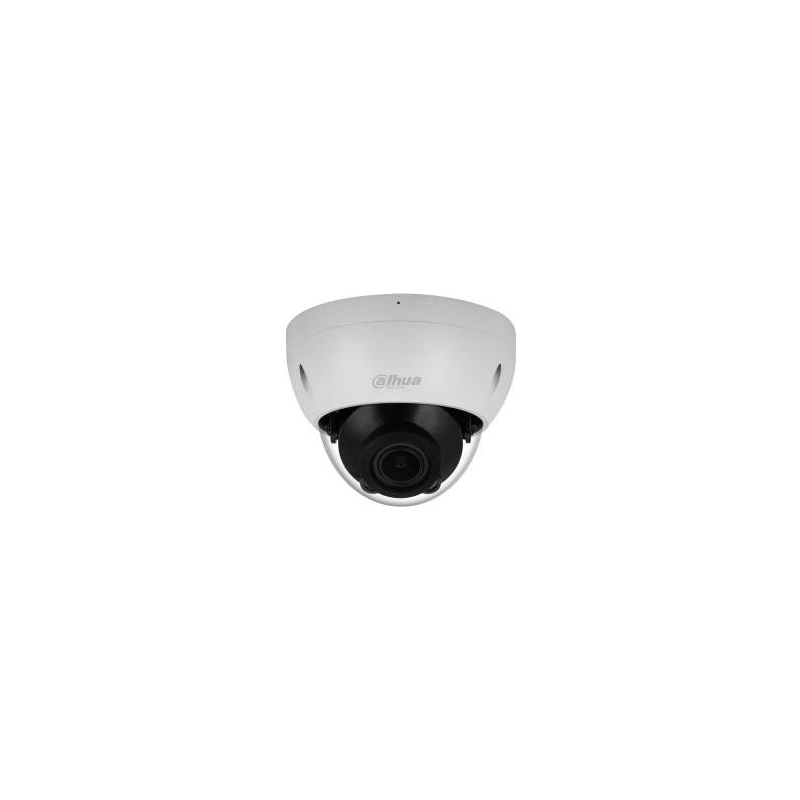

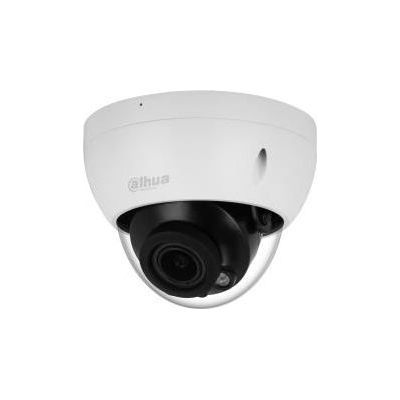

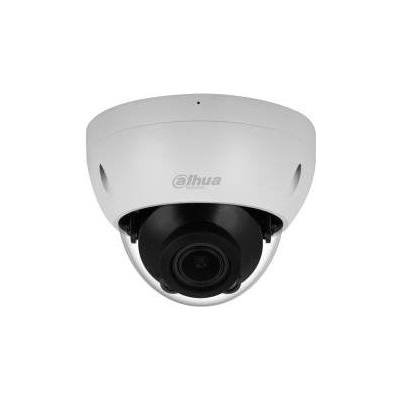

Dahua NET CAMERA 4MP IR DOME/IPC-HDBW2441R-ZAS-27135 DAHUA

Dahua NET CAMERA 4MP IR DOME/IPC-HDBW2441R-ZAS-27135 DAHUA

Write a review

€386.23

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, and the max. illumination distance is 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC
12 VDC/PoE power supply, easy for installation
IP67 and IK10 protection
SMD Plus

Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDBW2441R-ZAS

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.16
Unit Box Width: 0.16
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120 dB
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355 °
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Lens viewing angle, diagonal: 125 - 34 °
Lens viewing angle, horizontal: 104 - 29 °
Lens viewing angle, vertical: 54 - 16 °
Minimum illumination: 0 lx
Number of Privacy masking areas: 4
Pan range: 0 - 355 °
Tilt angle range: 0 - 75 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/2.9 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.8 m
Detect distance (tele): 210 m
Detect distance (wide): 64 m
Focal length range: 2.7 - 13.5 mm
Identify distance (tele): 21 m
Identify distance (wide): 6.4 m
Minimum aperture number: 1.5
Observe distance (tele): 84 m
Observe distance (wide): 25.6 m
Recognize distance (tele): 42 m
Recognize distance (wide): 12.8 m
LED type: IR
Night vision: Yes
Night vision distance: 40 m
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 12 kbps-6144 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2688 x 1520 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 4 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Audio formats supported: G.711 µ-law/G.711 A-law/G.726/PCM
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Built-in speaker(s): Yes
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet LAN: Yes
Number of users: 6 user(s)
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Flash memory: 128 MB
Internal memory: 128 MB
Maximum memory card size: 256 GB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Mirror: Yes
Video motion detection: Yes
Management software: Smart PSS; DSS; DMSS
Web browser: No
DC output voltage: 12
Power consumption (max): 6.5 W
Power consumption (Power over Ethernet (PoE)): 3.2 W
Power consumption (typical): 2.3 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 93.4 mm
Weight: 520 g
Package weight: 680 g
Number of cameras: 1
Model: IPC-HDBW2441R-ZAS-27135
Units per Shipping Box: 1
Unit Calculated Volume: 0.003584 cubm
Unit Calculated Weight: 0.68 kg
