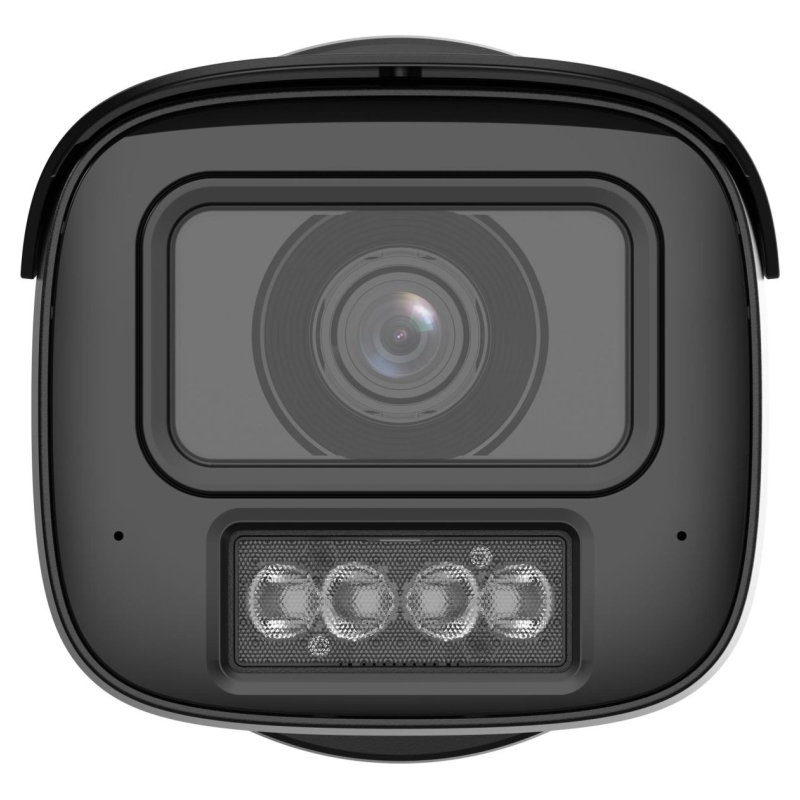

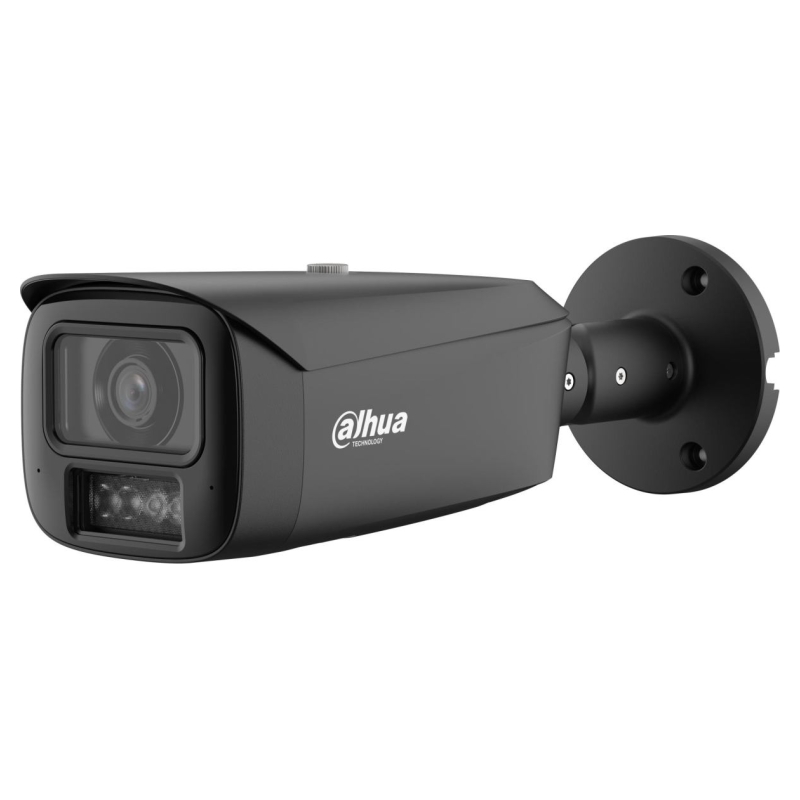

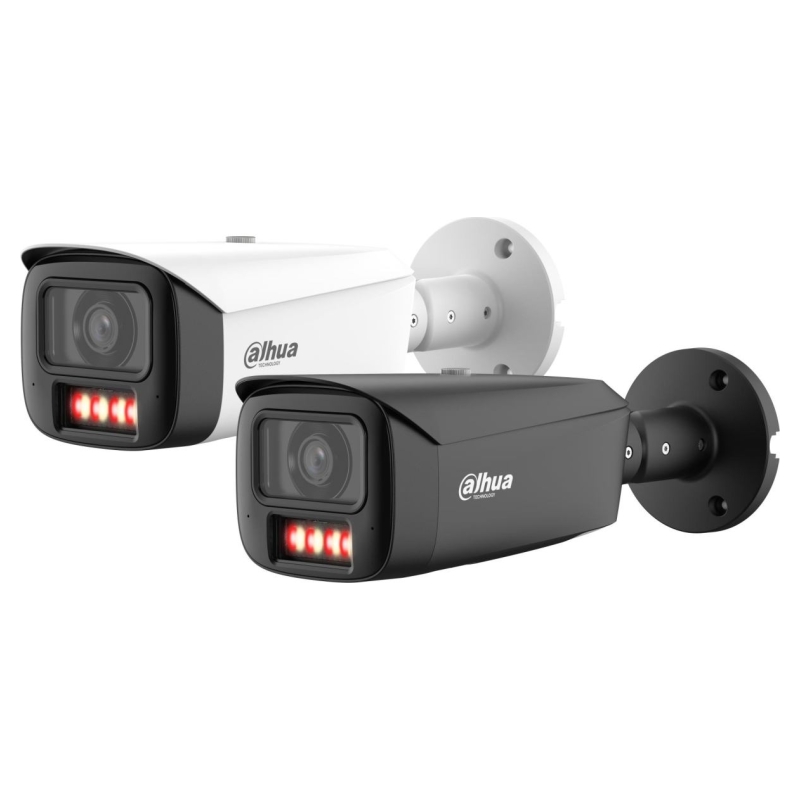

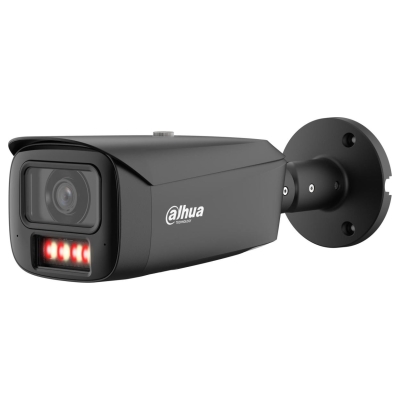

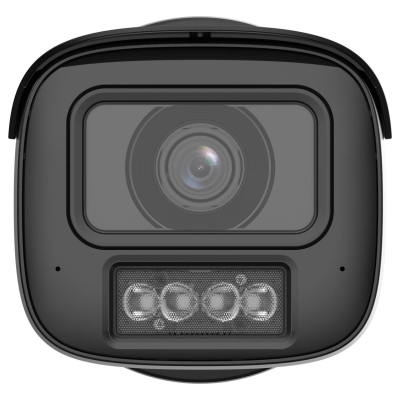

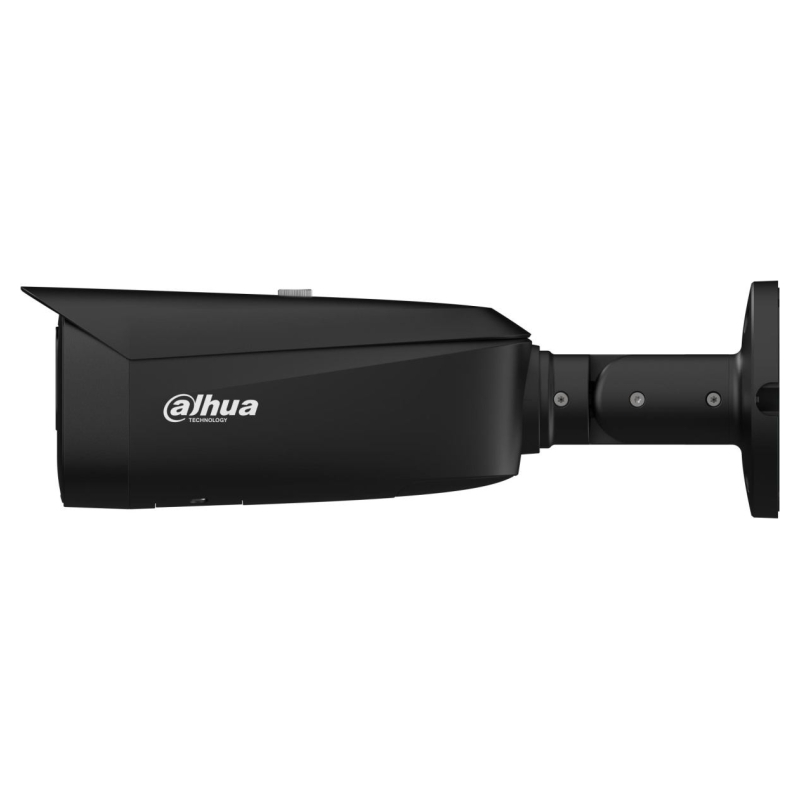

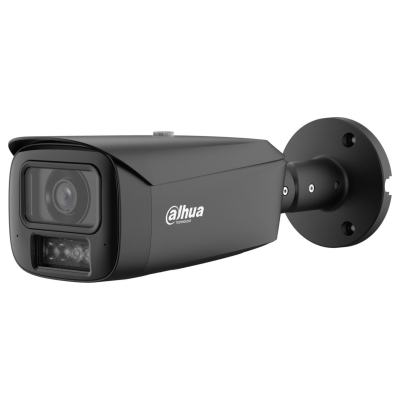

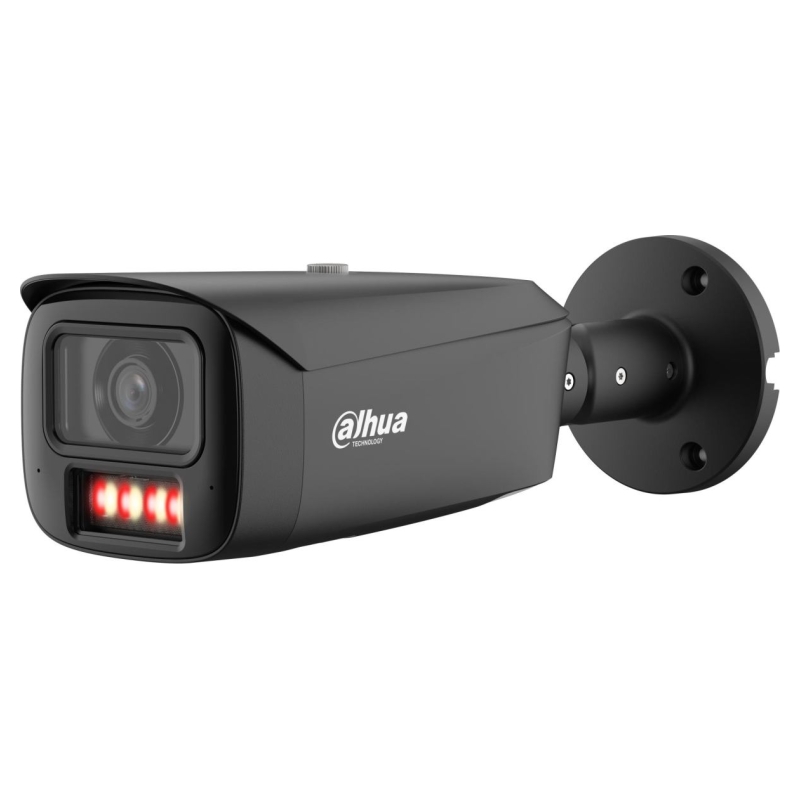

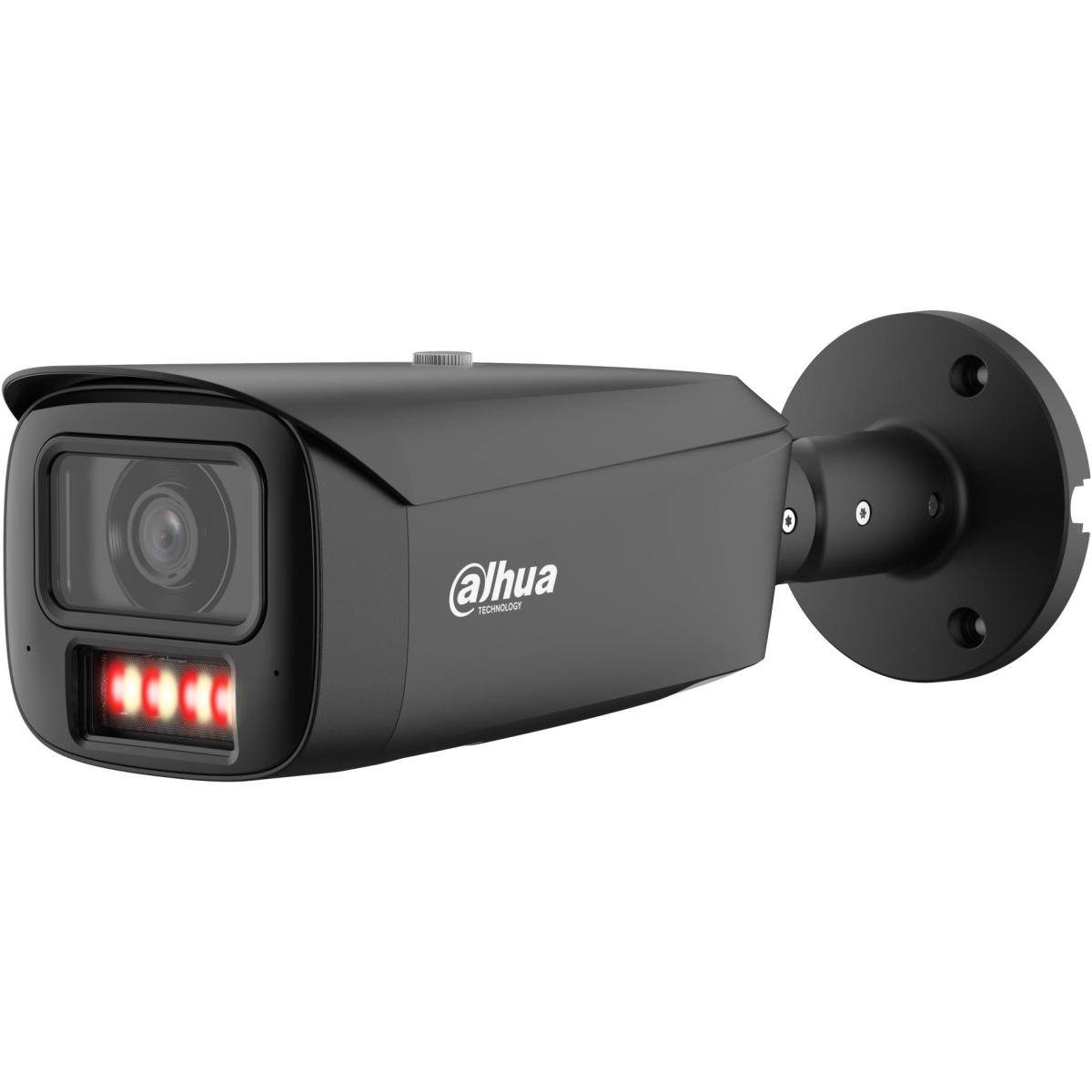

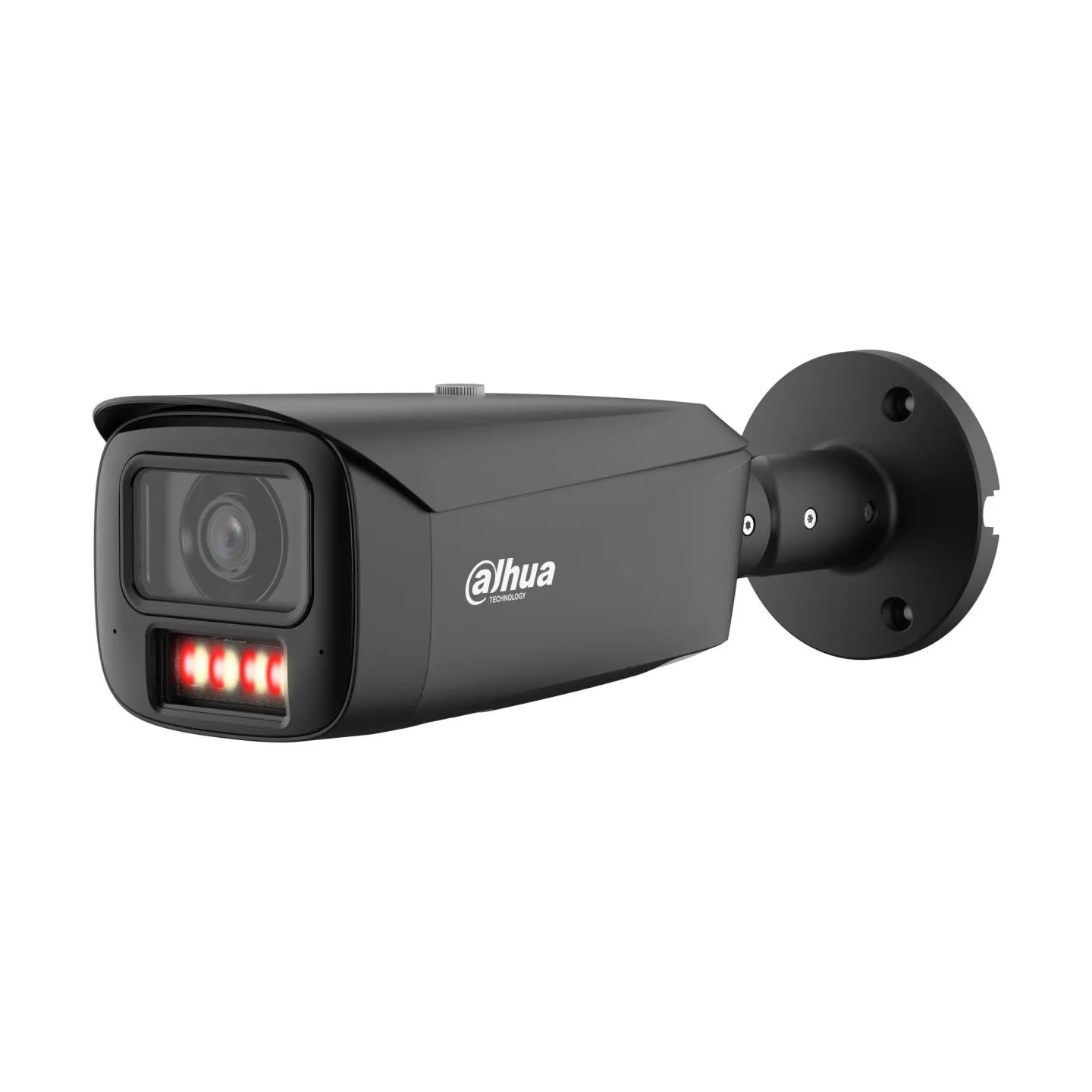

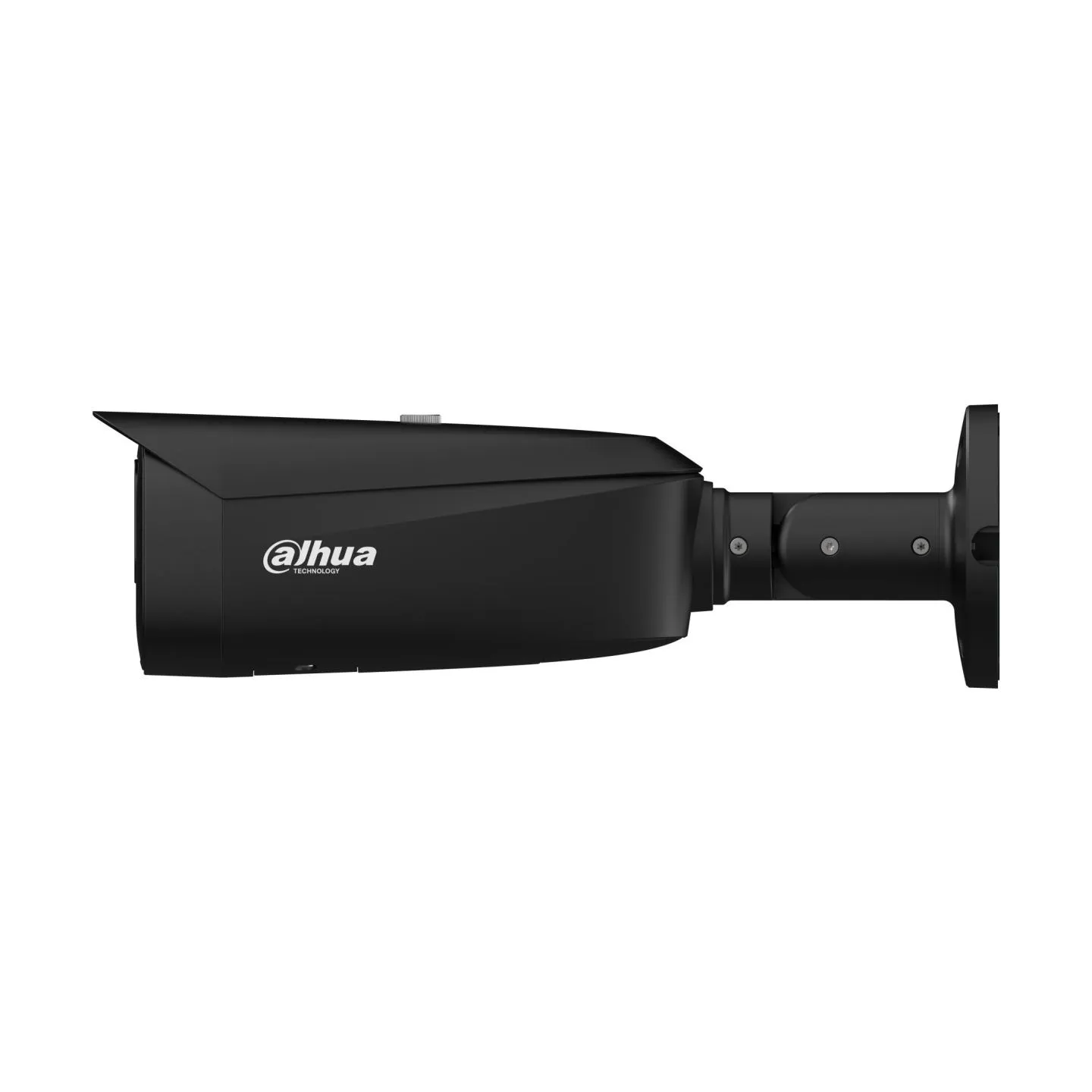

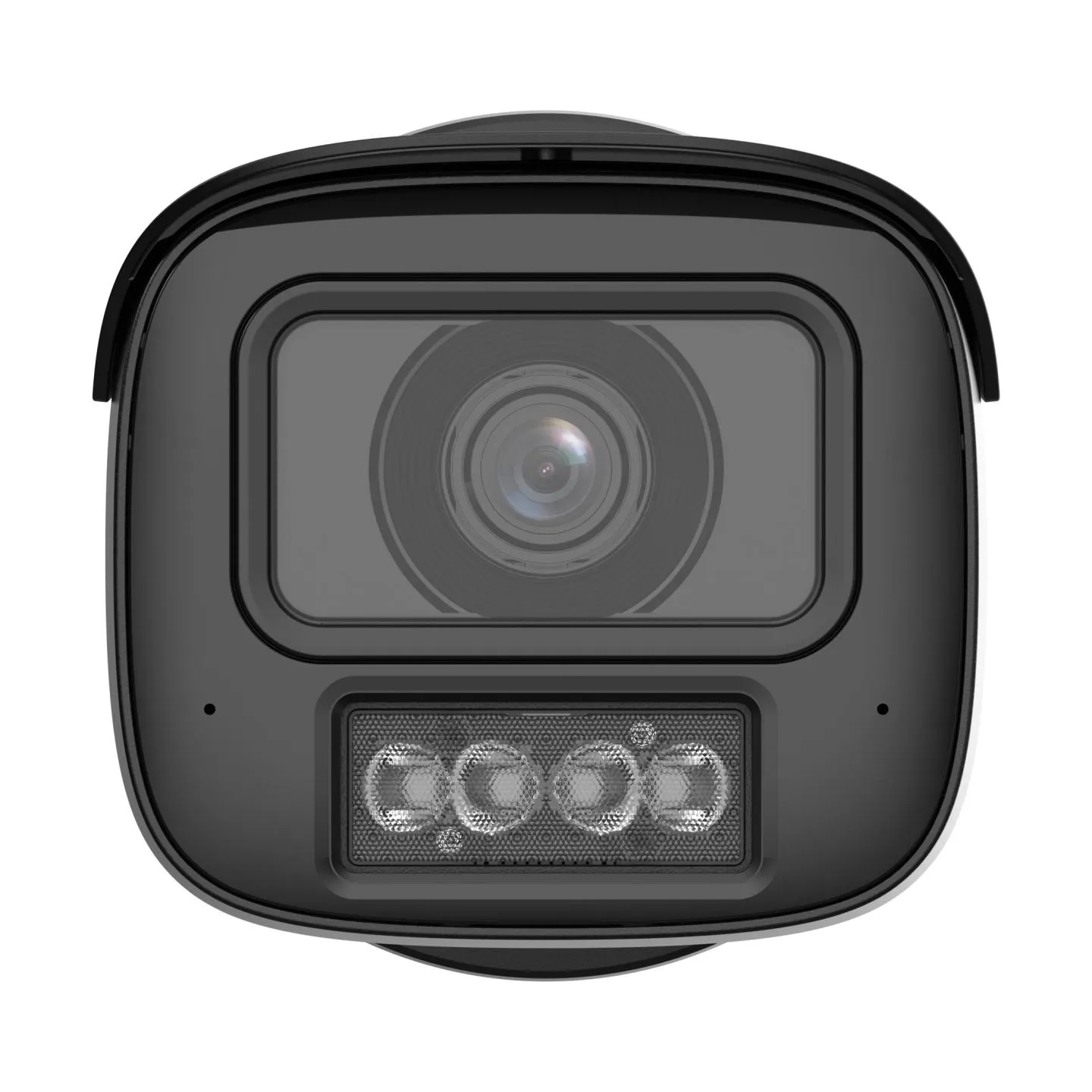

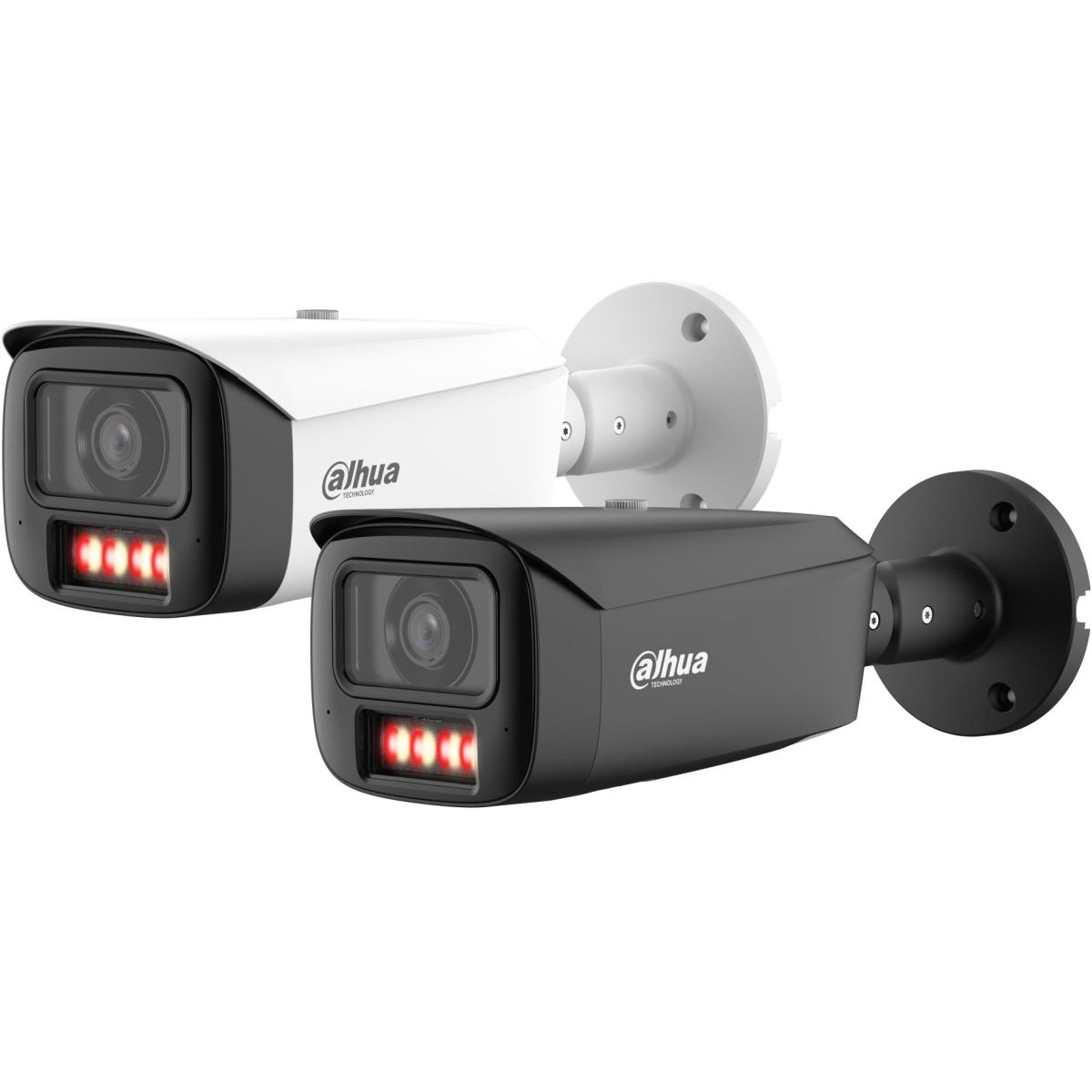

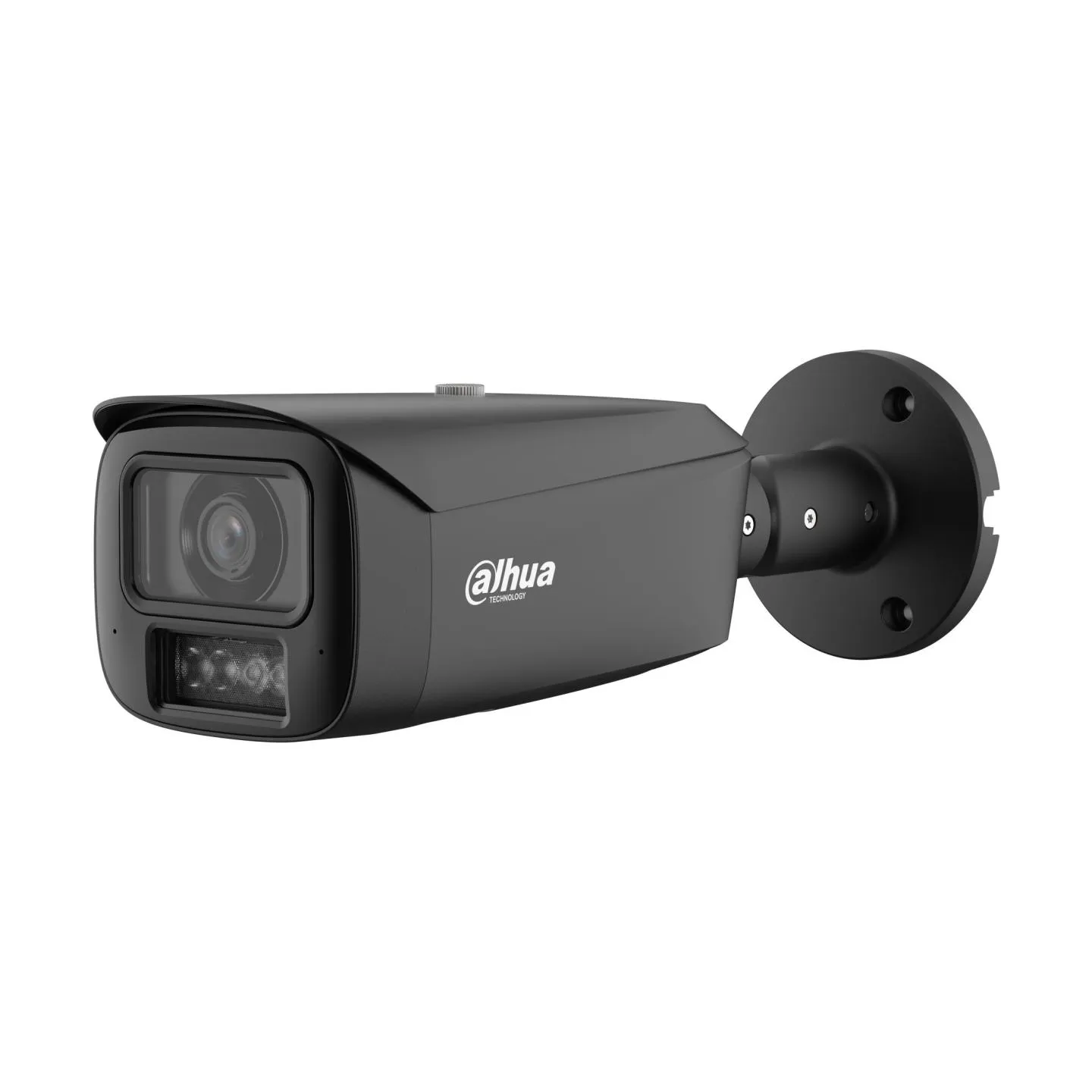

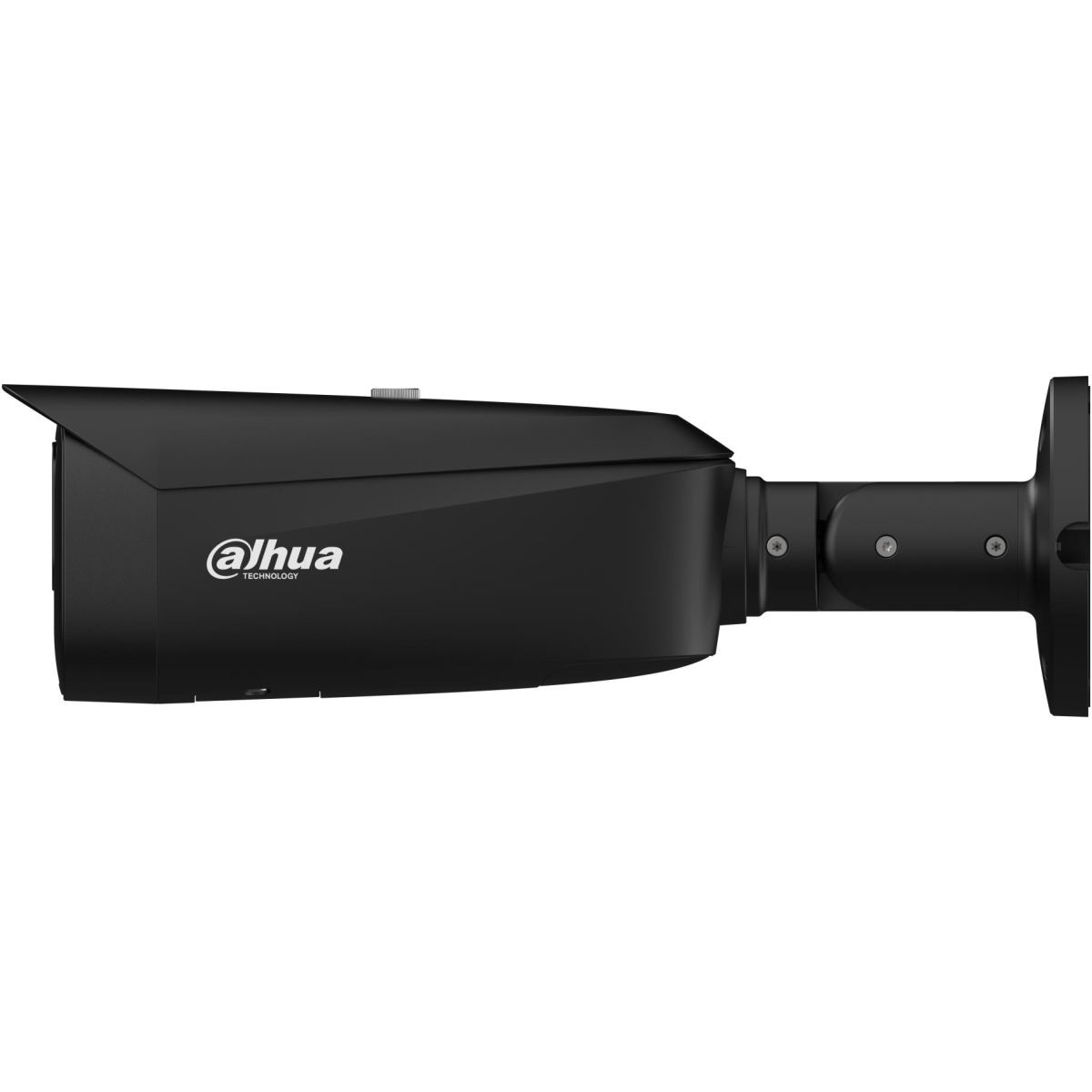

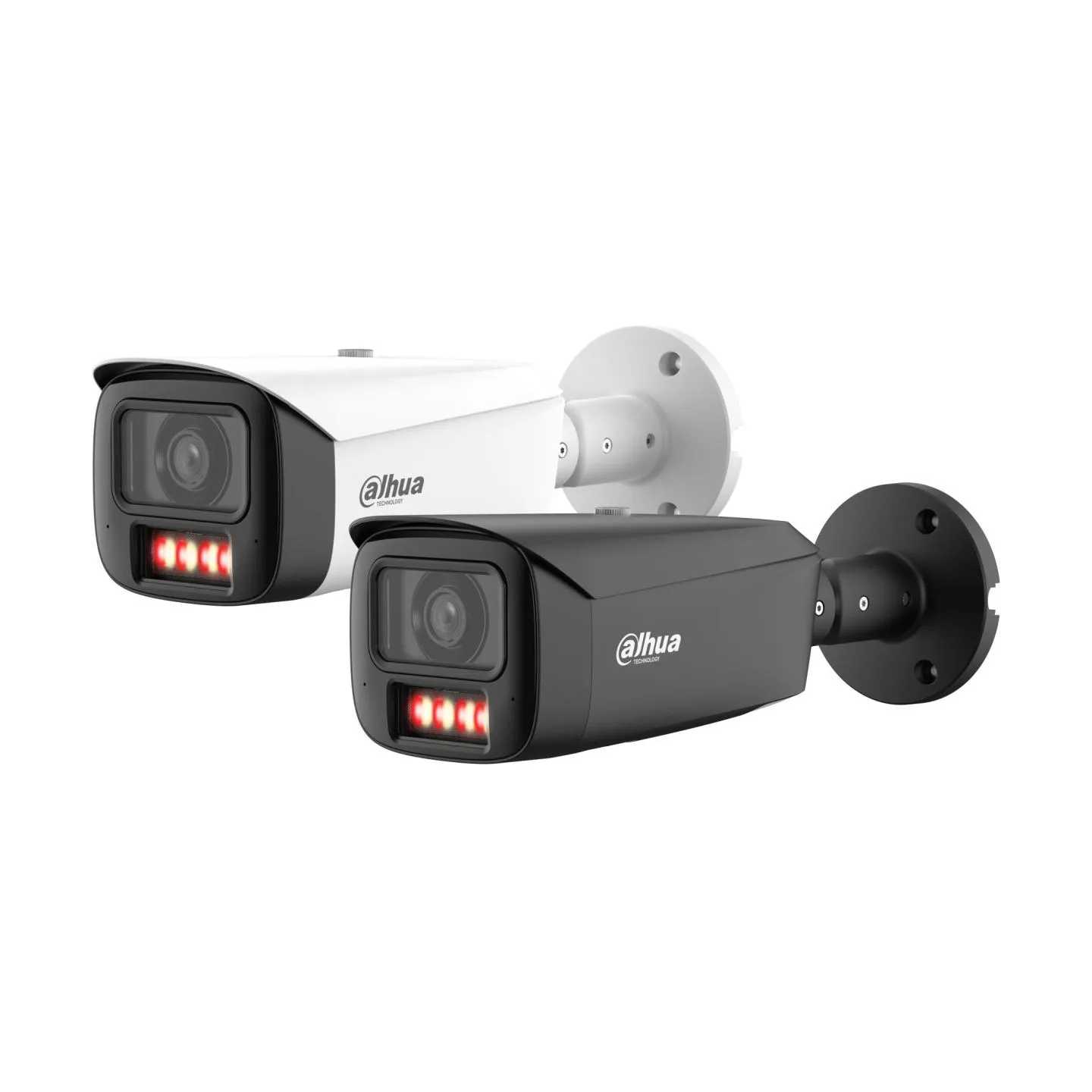

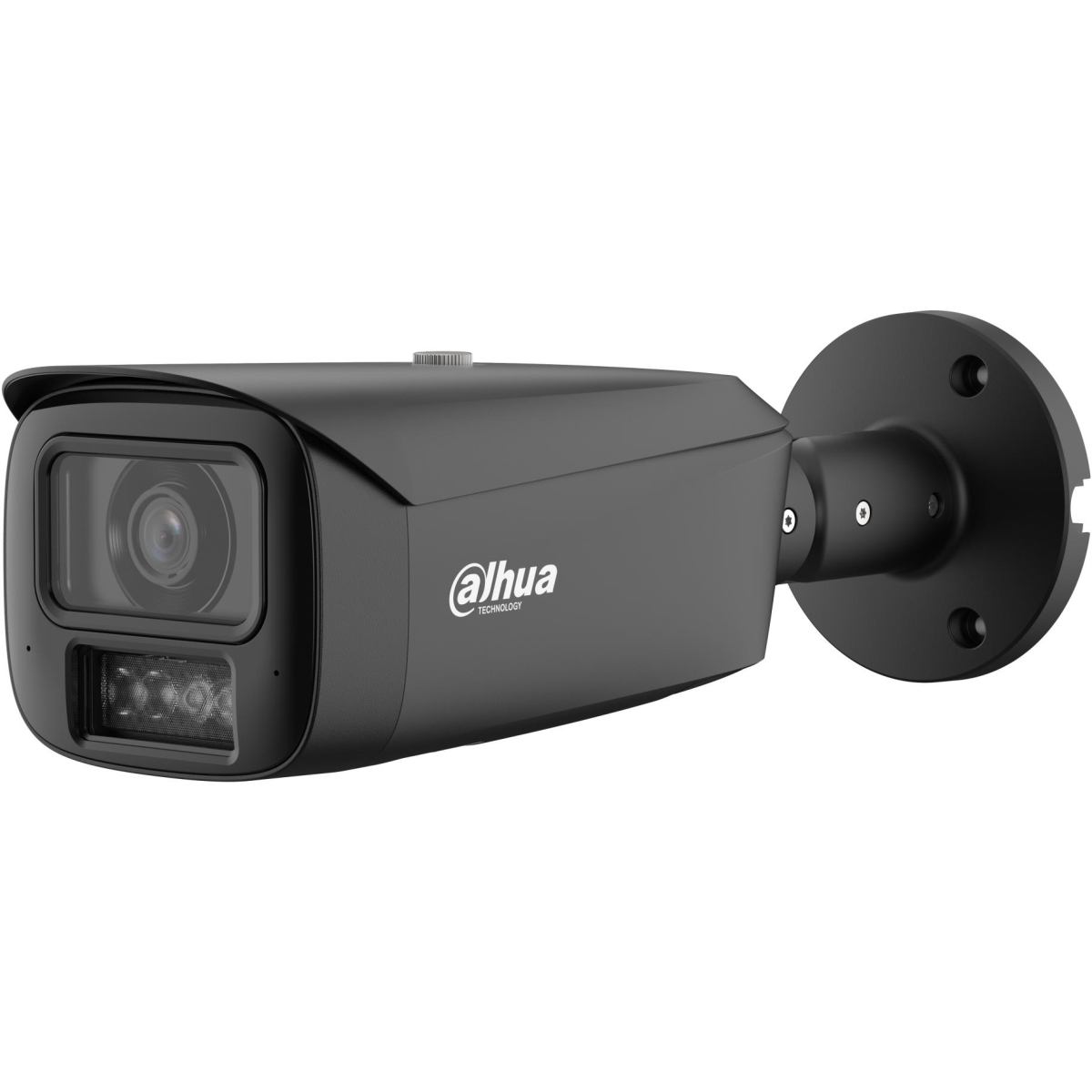

Dahua NET CAMERA 6MP BULLET/HFW5659T1ASEPV0280BPROB DAHUA

Dahua NET CAMERA 6MP BULLET/HFW5659T1ASEPV0280BPROB DAHUA

Write a review

€695.22

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

1/1.8" CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3072 × 2048) @25/30 fps
Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models
With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc
Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation
IP67 and IK10 protection

Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/6MP/IPC-HFW5659T1-ASE-PV-PRO

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.15
Unit Box Width: 0.34
Form factor: Bullet
Housing material: Metal/Plastic
IK code: IK10
International Protection (IP) code: IP67
Mounting type: Ceiling/Wall/Pole
Product colour: Black
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 130 dB
People counting function: Yes
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera tilt control: Yes
Lens viewing angle, diagonal: 131 °
Lens viewing angle, horizontal: 109 °
Lens viewing angle, vertical: 59 °
Minimum illumination: 0.0001 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 90 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/1.8 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 3.2 m
Detect distance: 70.2 m
Fixed focal length: 2.8 mm
Identify distance: 7 m
Maximum aperture number: 1
Observe distance: 28.1 m
Recognize distance: 14 m
LED type: IR
Night vision: Yes
Night vision distance: 80 m
Number of illumination LEDs: 4
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3072 x 2048 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Total megapixels: 6 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video recording: Yes
Video streaming: Yes
Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Built-in speaker(s): Yes
Number of microphones: 2
Signal-to-Noise Ratio (SNR): 56 dB
Bluetooth: No
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3at
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1000 GB
RAM capacity: 2000 MB
ROM capacity: 4000 MB
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1
Alarm input channels: 1
Alarm output channels: 1
Digital watermark: Yes
HTTPS encryption: Yes
Human and vehicle targets classification: Yes
Intelligent Video Surveillance (IVS) system features: Heat map/Intrusion/People counting/Tripwire
Mirror: Yes
Network access storage (NAS): Yes
Video motion detection: Yes
Web browser: Yes
DC output voltage: 12
Power consumption (max): 21.6 W
Power consumption (Power over Ethernet (PoE)): 4.8 W
Power consumption (typical): 4.1 W
Power source type: DC
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Depth: 288.4 mm
Height: 84.7 mm
Length: 288.4 mm
Weight: 1090 g
Width: 94.4 mm
Compliance certificates: CE/Electromagnetic Compatibility (EMC)
Package type: Box
Package weight: 1390 g
Manual: Yes
Number of cameras: 1
Audio input: RCA
Audio output: RCA
Browser supported: IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88
Lens mount interface: M16
Units per Shipping Box: 1
Unit Calculated Volume: 0.00714 cubm
Unit Calculated Weight: 1.51 kg
