CPU: 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 SATA and Type 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA connector 6Gb/s Support for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video output and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz. Support HDMI 1.4. (Graphics specifications may vary depending on CPU support.)Support for up to 3 displays simultaneously.
Sound card
Realtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1 S/PDIF Out Support
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless communication:MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
USB ports at back panel
10
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

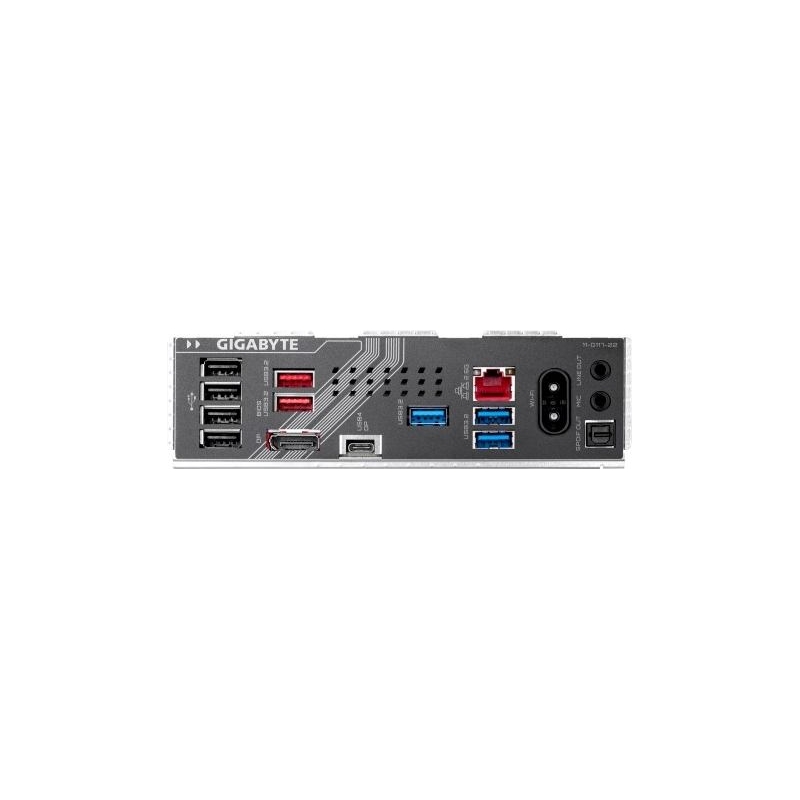

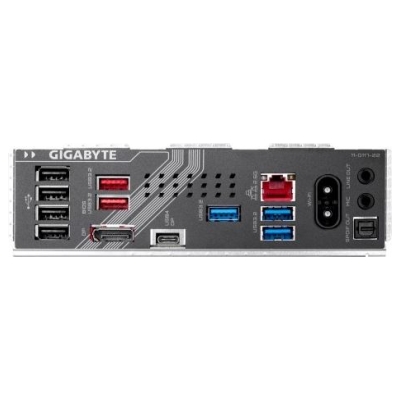

External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x USB4 Type-C
External connectors
1 x DisplayPort
External connectors
2 x SMA
Onboard connectors
1 x Power button
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x HDMI
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x TPM header
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
