Expansion Slot CPU 1 PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) * The PCIEX16 slot can only support a graphics card or NVMe SSD. If only one graphics card is to be installed, it must be installed in the PCIEX16 slot. Chipset 2 x PCI Express x16 slots, supporting PCIe 4.0 and operating at x1 speed (PCIEX1_1, PCIEX1_2) SATA Connectors CPU 1 x M.2 connector (Socket 3, M-key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M-key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 4 x SATA 6 Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ax
Network interface
Bluetooth
Network interface
LAN Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard and data rates up to 2.4 Gbps Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard and data rates up to 2.4 Gbps
USB ports at back panel
9
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

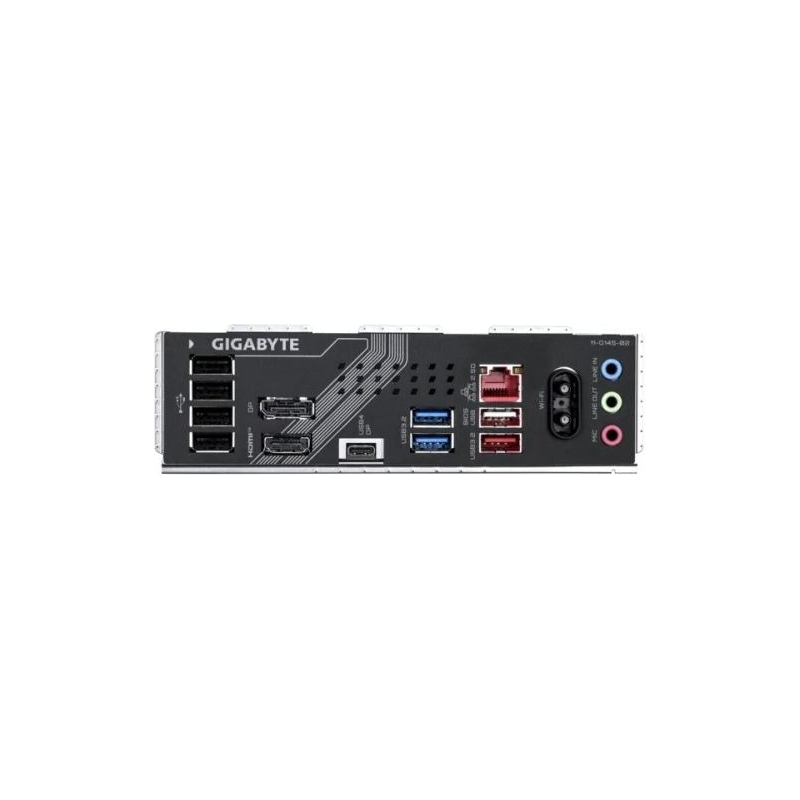

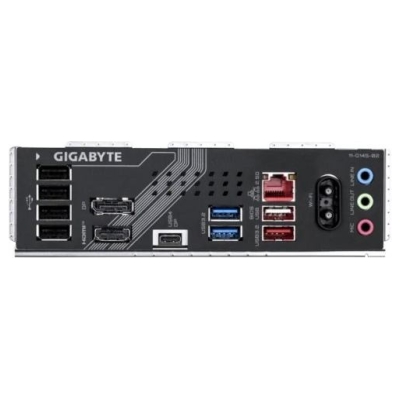

External connectors
2 x SMA
External connectors
1 x USB4 Type-C
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
5 x USB 2.0
External connectors
1 x Line Out
External connectors
2 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x MIC
External connectors
1 x RJ-45
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x S/PDIF Out header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
