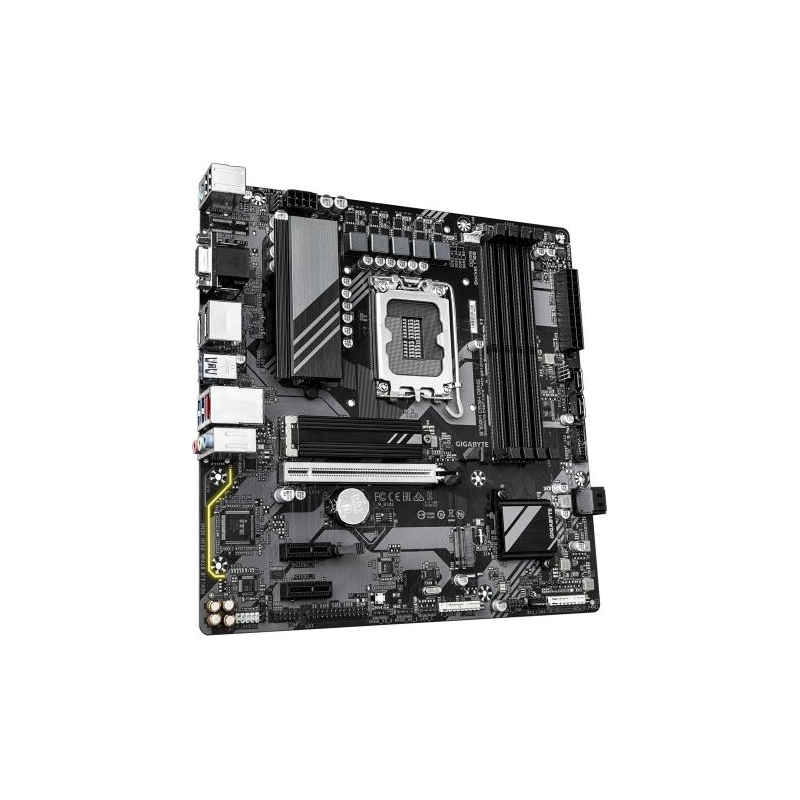

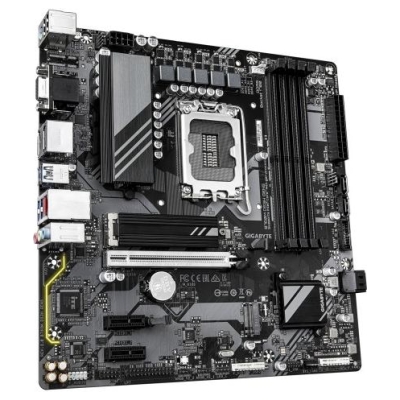

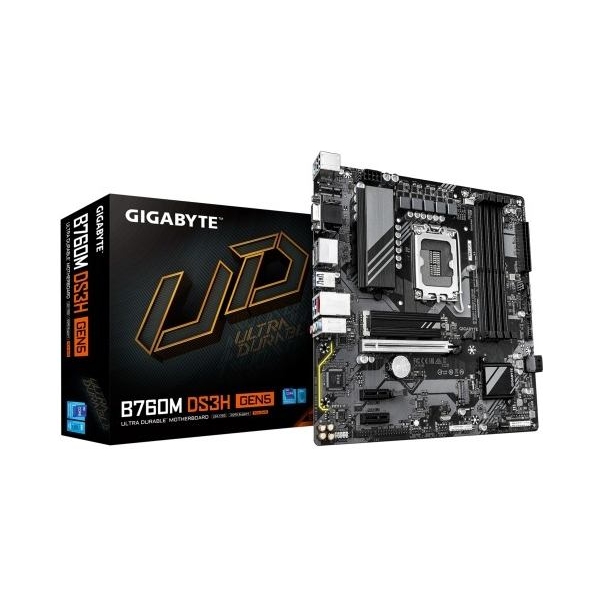

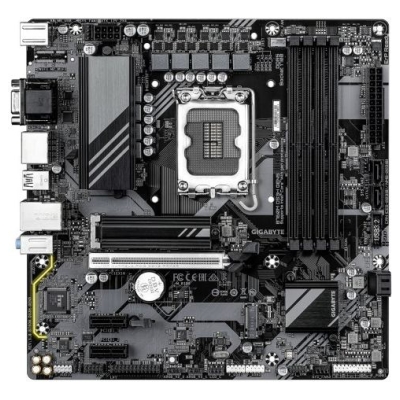

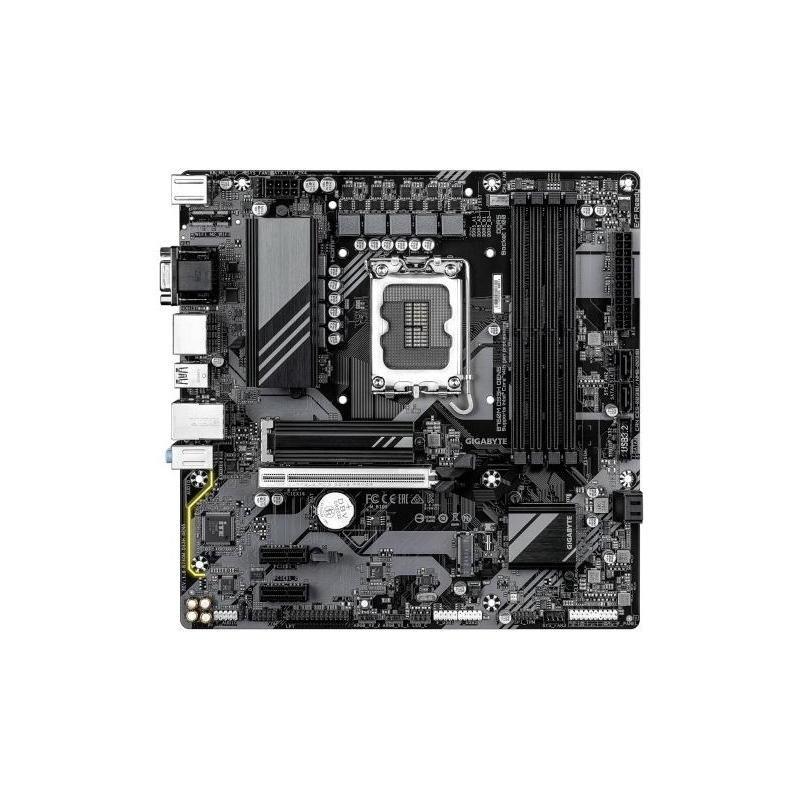

Gigabyte Motherboard B760M DS3H s1700 GEN5 4DDR5 HDMI/DP/DSUB mATX
- Write a review
€132.42
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEB760U12
- Barcode
- 4719331872793
- Model
- B760M DS3H GEN5
- CPU socket
- LGA1700
- Processor family
- Intel Core i7
- Processor family
- Intel Core i9
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5600 MHz
- Max memory size
- 256
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
- Graphics
- Integrated Graphics Processor - Intel HD Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.
- Sound card
- Realtek audio codec High Definition Audio support Audio channels: 2 / 4 / 5.1 / 7.1 S/PDIF Out support
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- Yes

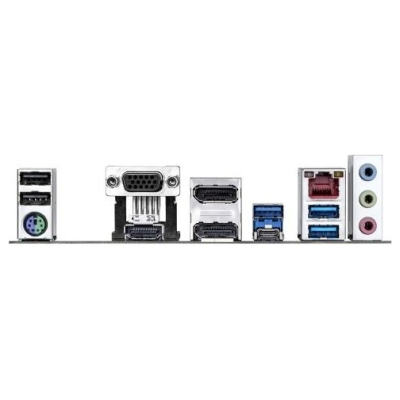

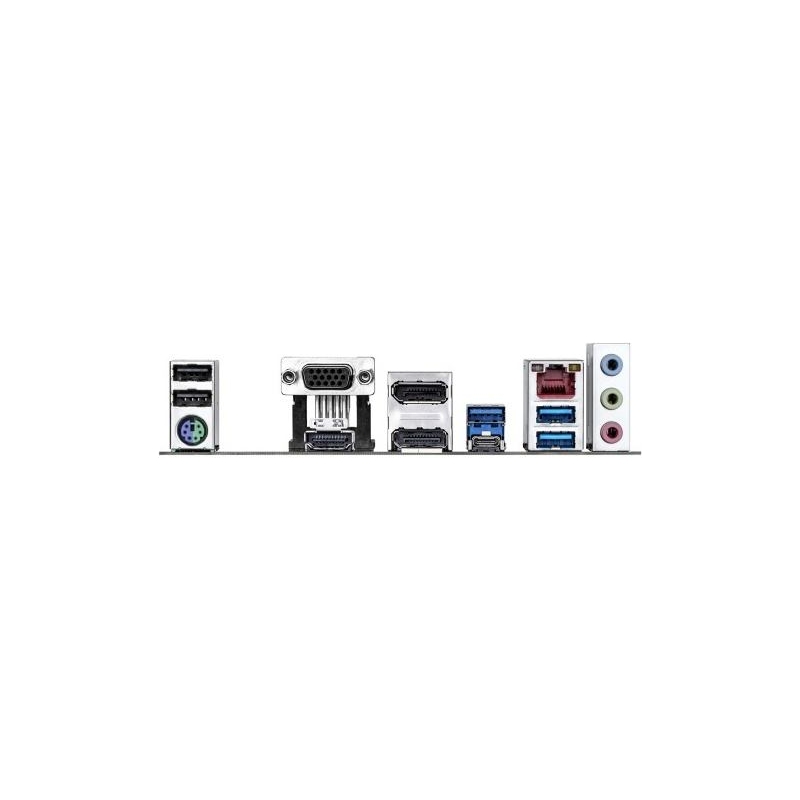

- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x D-Sub
- External connectors
- 2 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 2 x USB 2.0
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Parallel port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 17.4 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM)
- Designation
- CE+WEEE
B760M DS3H GEN5
30 Items
Specific References
- EAN13
- 4719331872793
- MPN
- B760M DS3H GEN5
