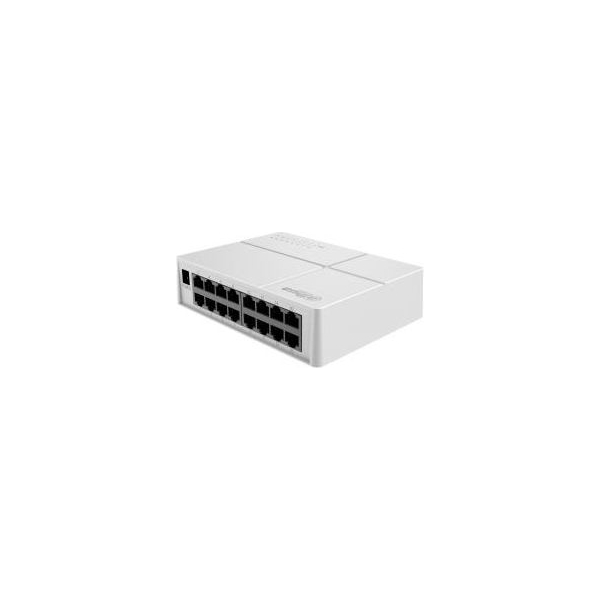

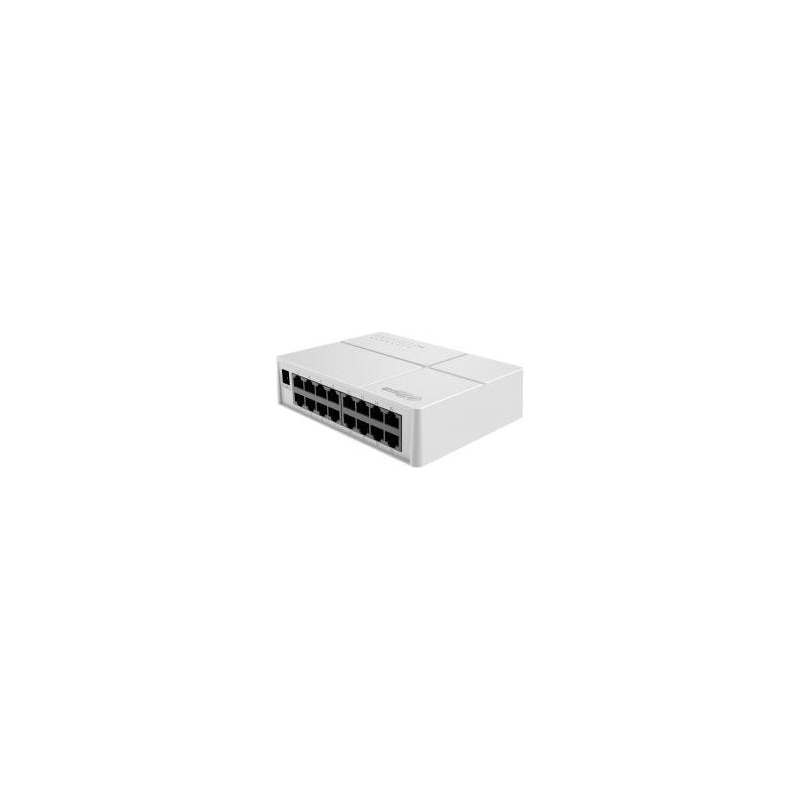

Dahua Switch|DAHUA|16xRJ-45 ports|SF1016L
    Dahua Switch|DAHUA|16xRJ-45 ports|SF1016L

Dahua Switch|DAHUA|16xRJ-45 ports|SF1016L

€28.73
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

  • 16 × RJ-45 10/100 Mbps ports
  • Wide operating temperature ranging from –10 °C to +55 °C
  • Easy to install, and is plug and play
  • Supports wall mount and desktop mount



Manufacturer Website:
https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1016L

Summary
Dahua Technology SF1016L. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3. DC input voltage: 12 V. Form factor: Desktop/Wall-Mounting
Category Code
SWI
CnCode
85176200
Unit Box Height
0.175
Unit Box Length
0.205
Unit Box Width
0.09
Switch layer
L2
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
10G support
No
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3x
Forwarding rate
2.38 Mpps
Jumbo frames
1520
Jumbo frames support
Yes
MAC address table
8 entries
Switching capacity
3.2 Gbit/s
Form factor
Desktop/Wall-Mounting
Product colour
Grey
DC input voltage
12 V
Input current
0.5 A
Power consumption (typical)
1.5 W
Power source
DC
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-40 - 60 °C
Depth
120 mm
Height
42 mm
Weight
300 g
Width
160 mm
Package depth
180 mm
Package height
92 mm
Package weight
600 g
Package width
207 mm
Model
SF1016L
Units per Shipping Box
12
Unit Calculated Volume
0.004615 cubm
Unit Calculated Weight
0.675 kg
SF1016L
6 Items

Specific References

EAN13
6923172568601
MPN
SF1016L
