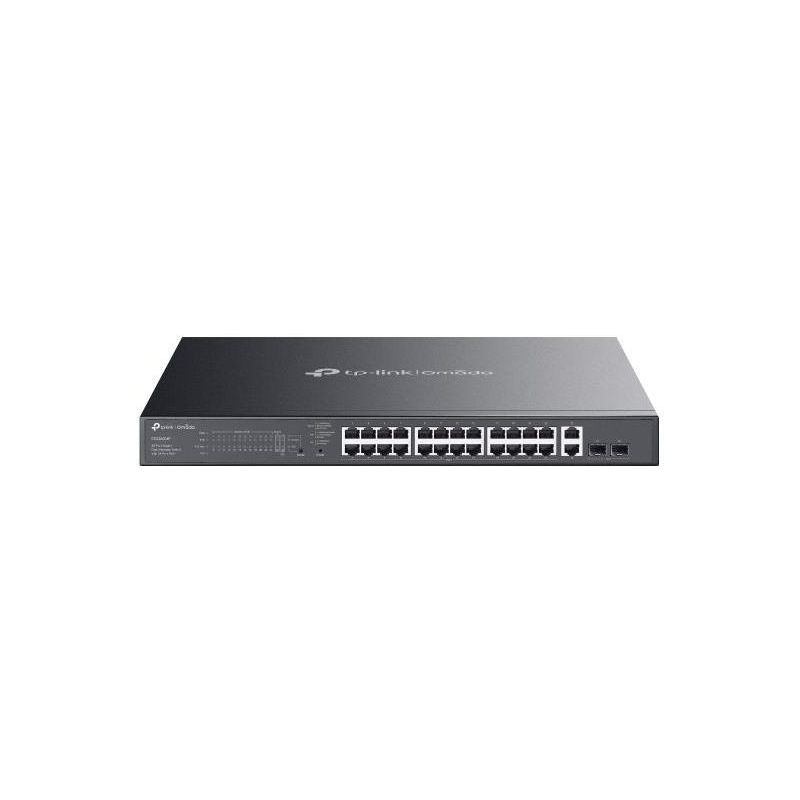

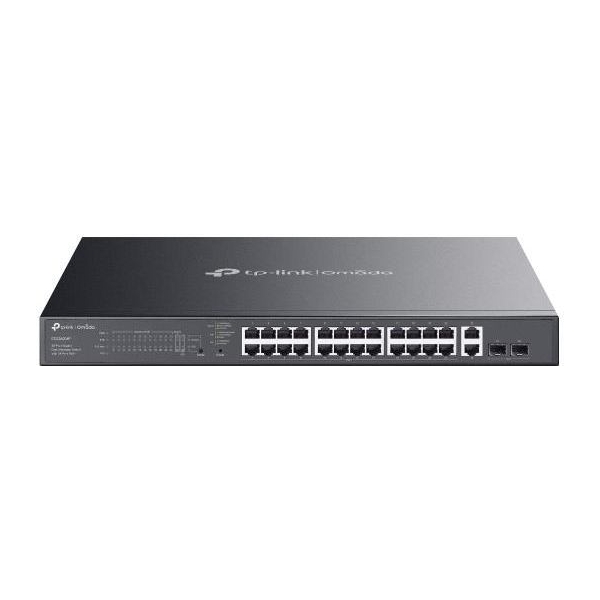

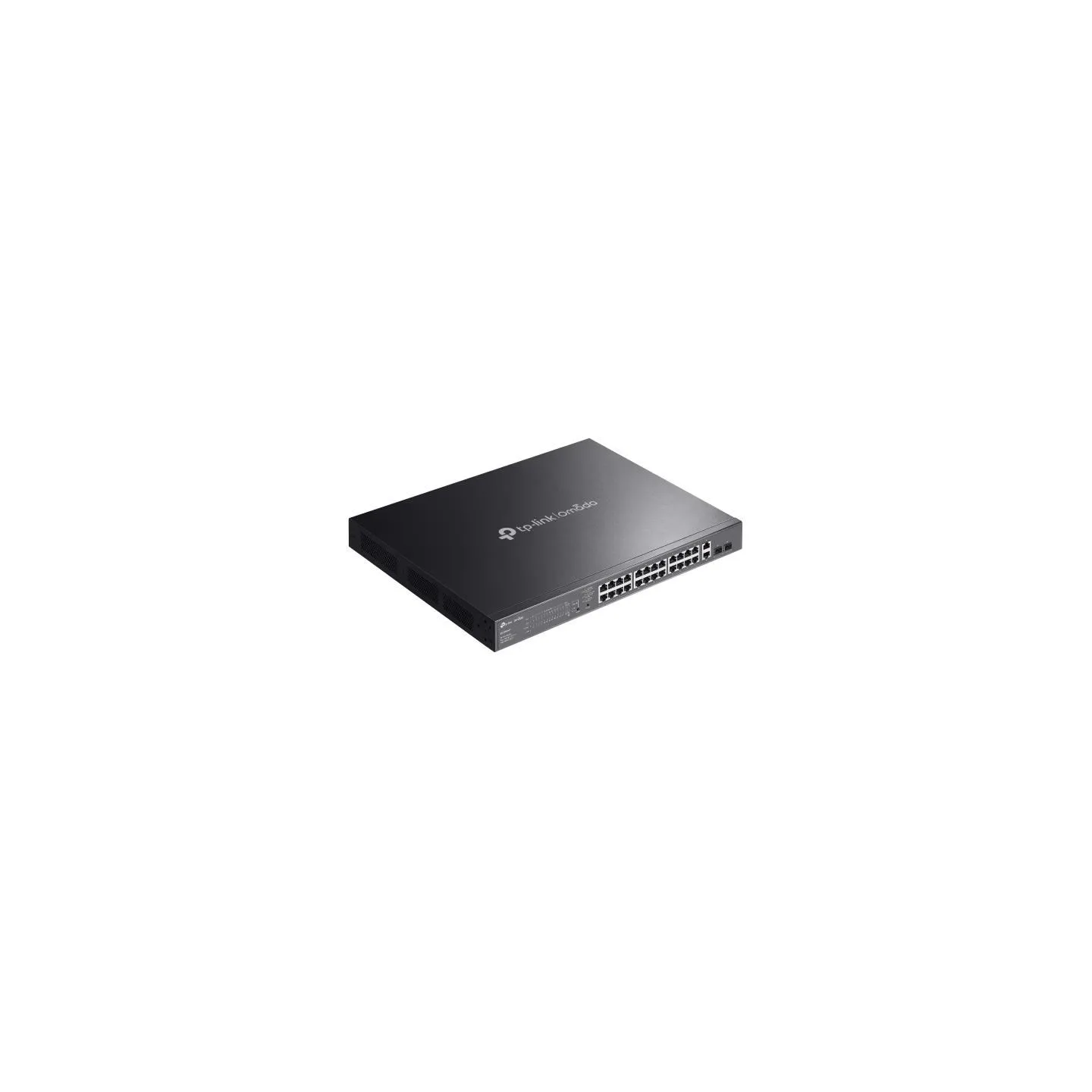

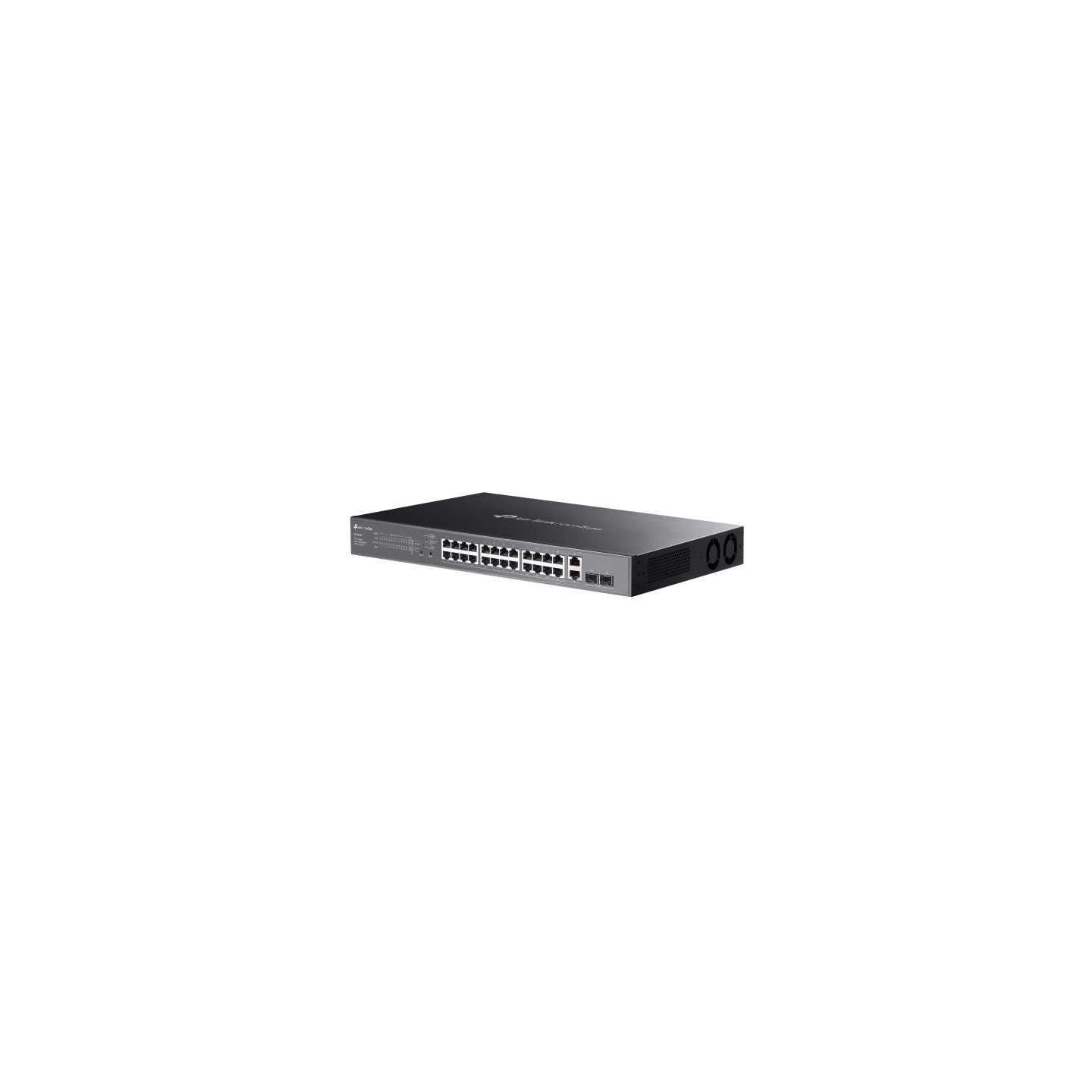

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Manufacturer Website:https://www.omadanetworks.com/en/business-networking/omada-switch-agile/es228gmp/- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.47
- Unit Box Length
- 0.53
- Unit Box Width
- 0.1
- Cloud-managed
- Yes
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2
- Switch type
- Managed
- Unified static configuration
- Yes
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 26
- SFP module slots quantity
- 2
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 1000BASE-T/1000BASE-X/100BASE-X/10BASE-T
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Fast leave
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Number of VLANs
- 32
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN/Port-based VLAN/Tagged VLAN
- VLAN support
- Yes
- Forwarding rate
- 41.66 Mpps
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Packet buffer memory
- 4 MB
- Store-and-forward
- Yes
- Switching capacity
- 56 Gbit/s
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- Multicast support
- Yes
- Housing material
- Metal
- LED indicators
- Yes
- Number of fans
- 2 fan(s)
- Product colour
- Black
- Rack mounting
- Yes
- Fanless
- No
- Firmware upgradeable
- Yes
- Flash memory
- 64 MB
- Mean time between failures (MTBF)
- 224143 h
- Noise level
- 46.2 dB
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 454.8 W
- Power source
- AC
- Power supply included
- Yes
- Surge protection
- Yes
- Surge protection voltage
- 6 kV
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 384 W
- Heat dissipation
- 1546.15 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 330 mm
- Height
- 44 mm
- Width
- 440 mm
- Cables included
- AC
- Manual
- Yes
- Quick start guide
- Yes
- Rack mount kit
- Yes
- Certification
- FCC, CE, ROHS
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Series
- Omada
- Model name
- ES228GMP
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.02491 cubm
- Unit Calculated Weight
- 6.125 kg
