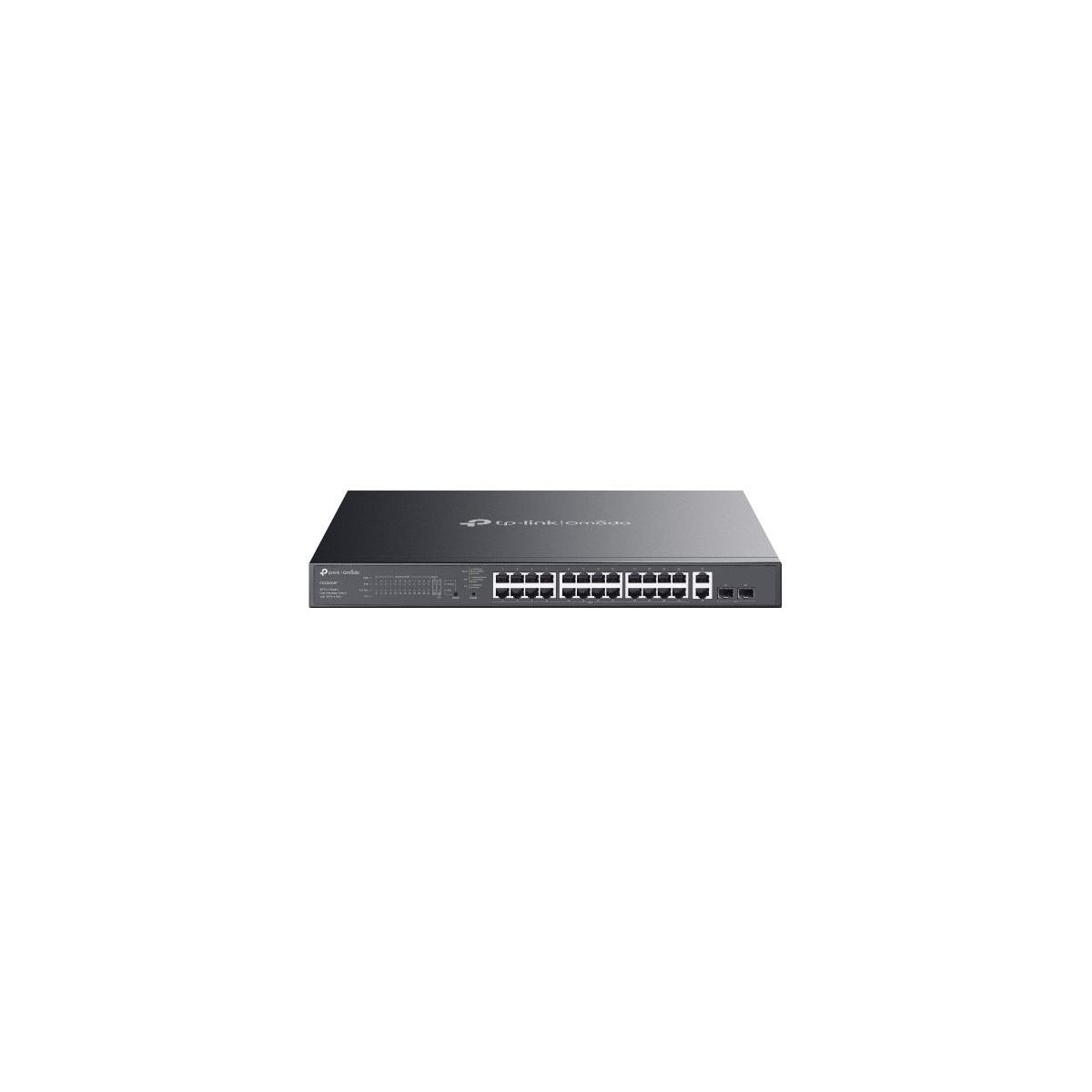

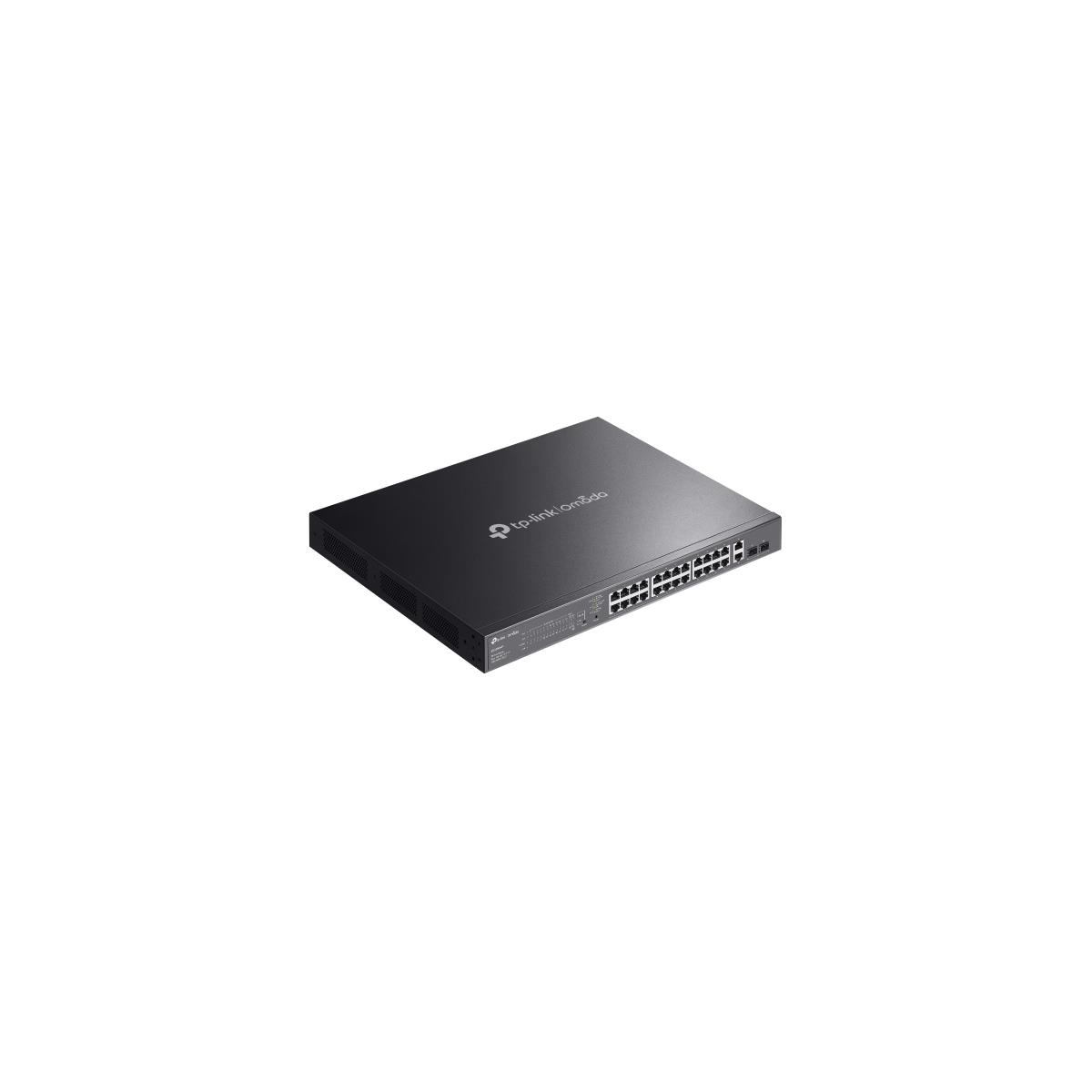

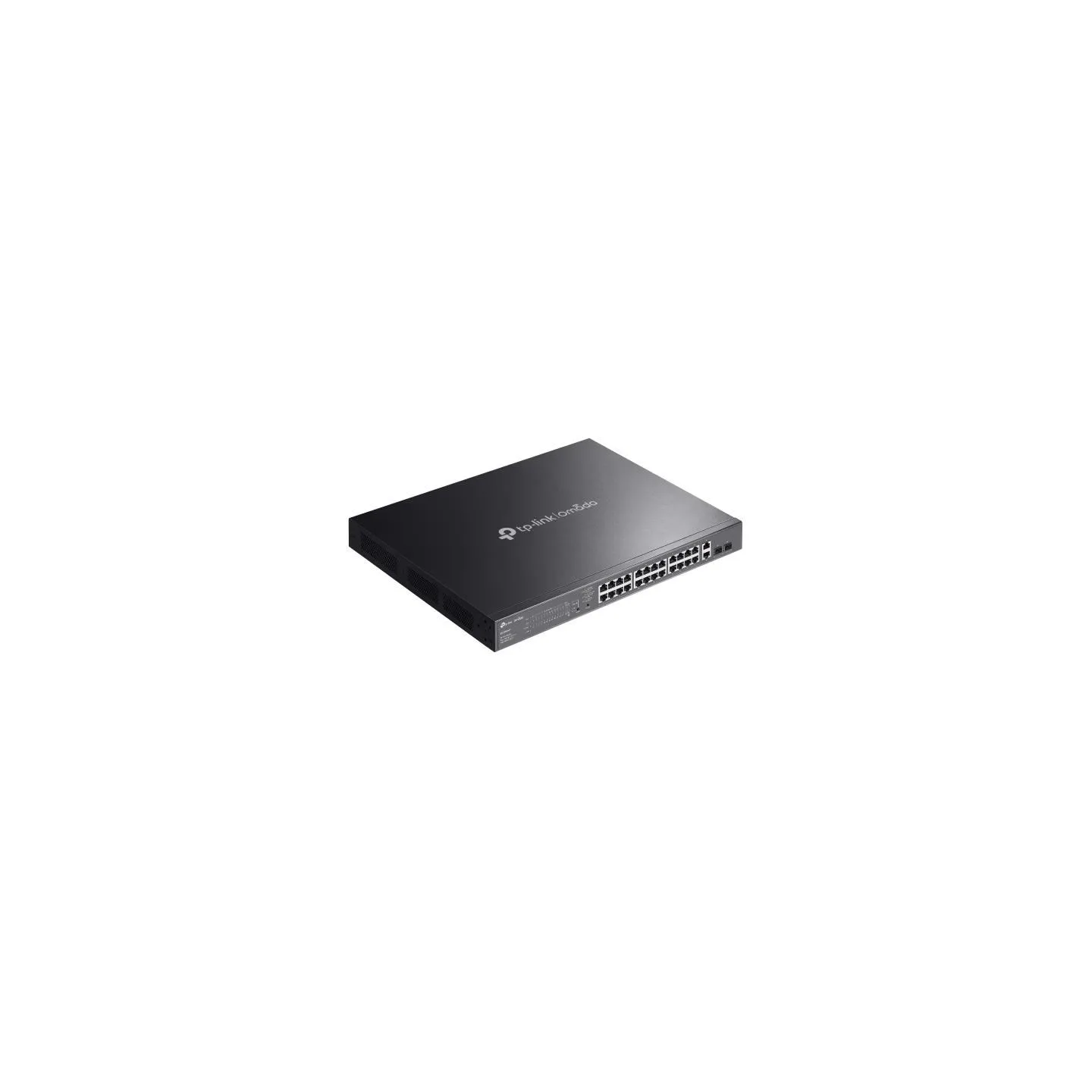

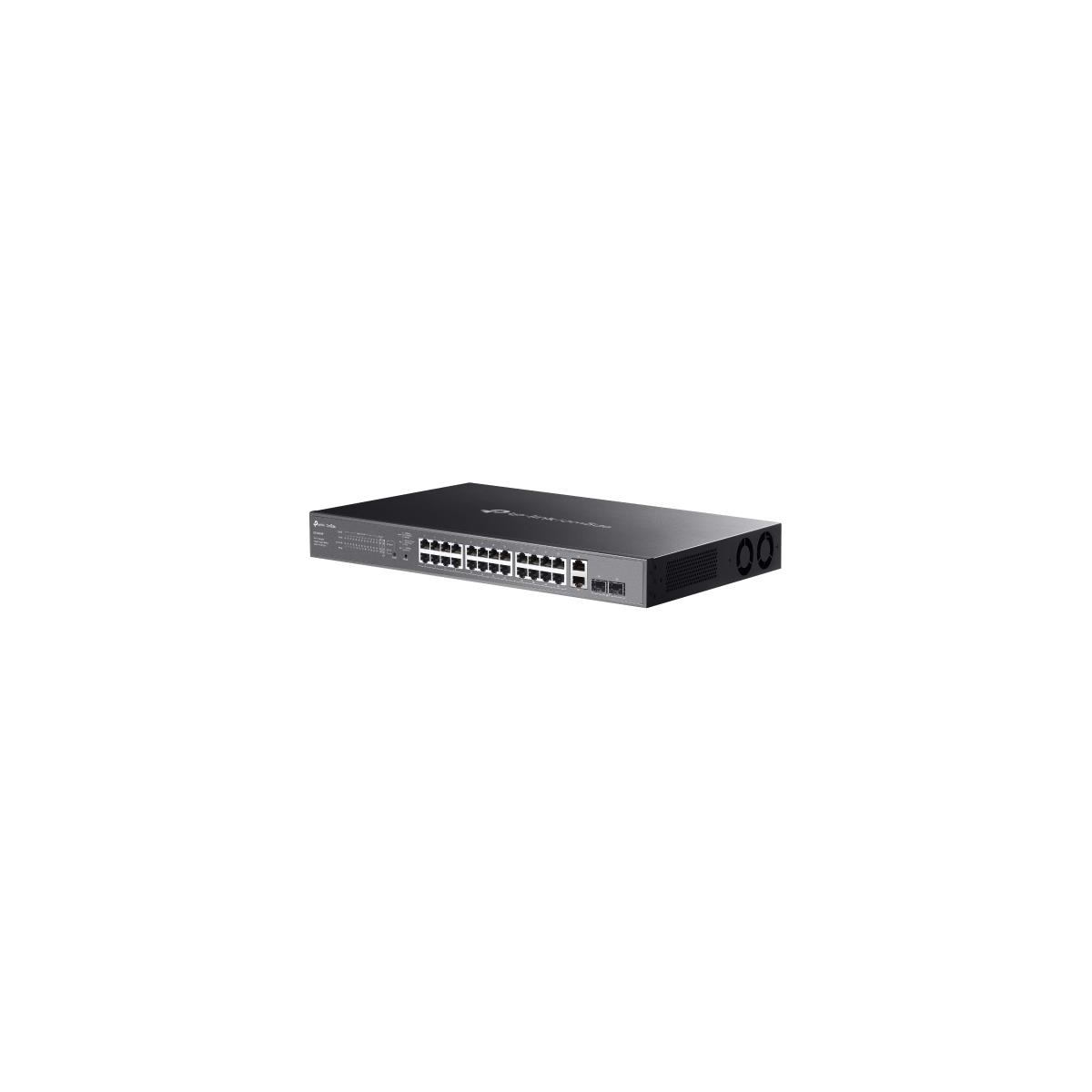

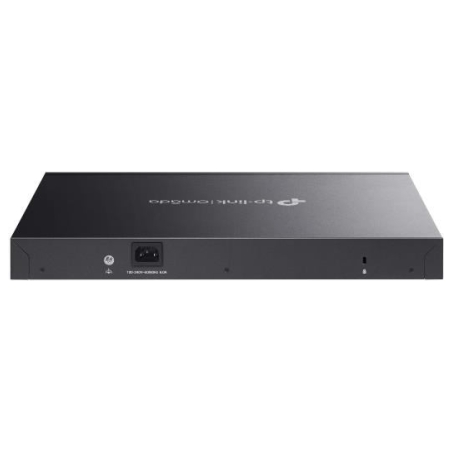

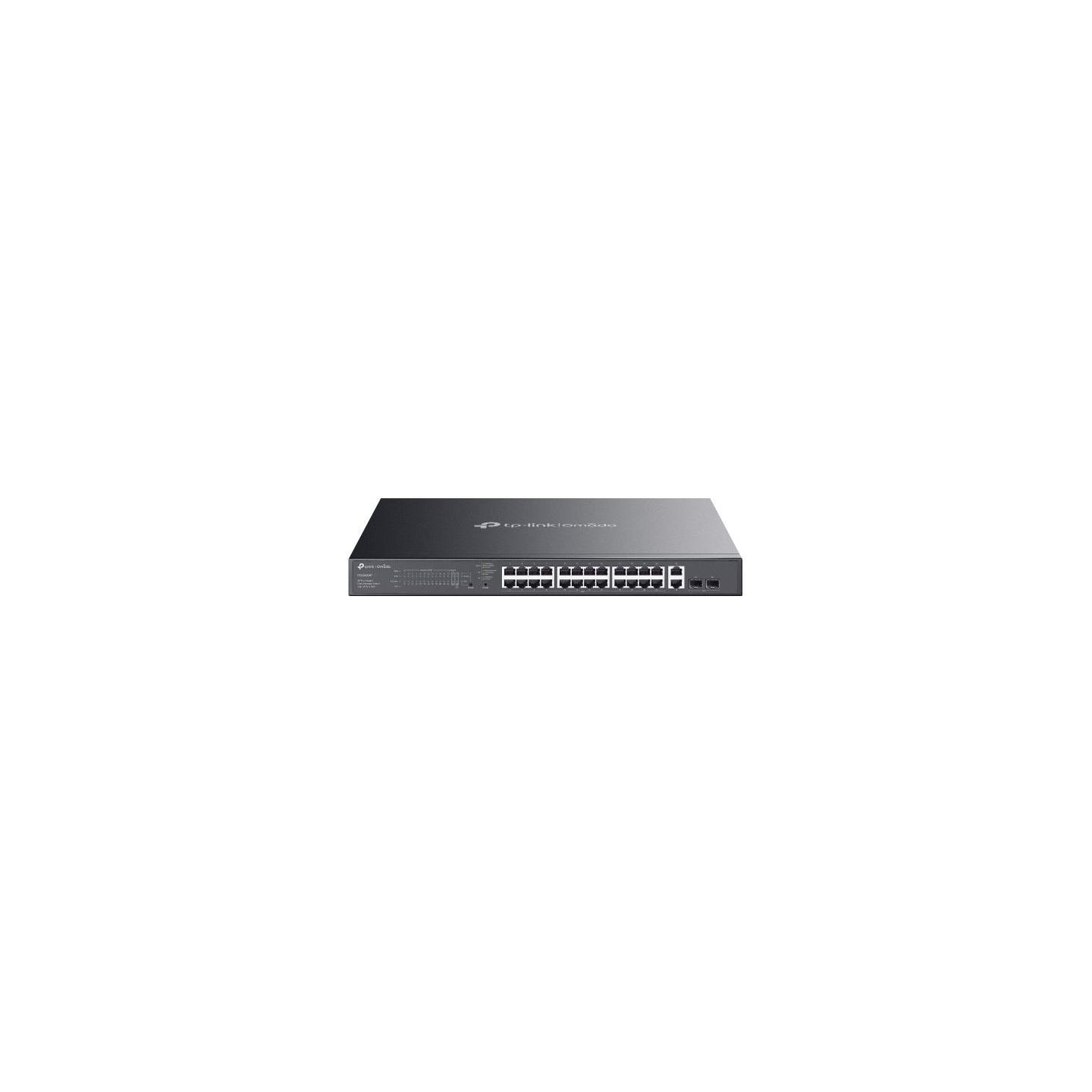

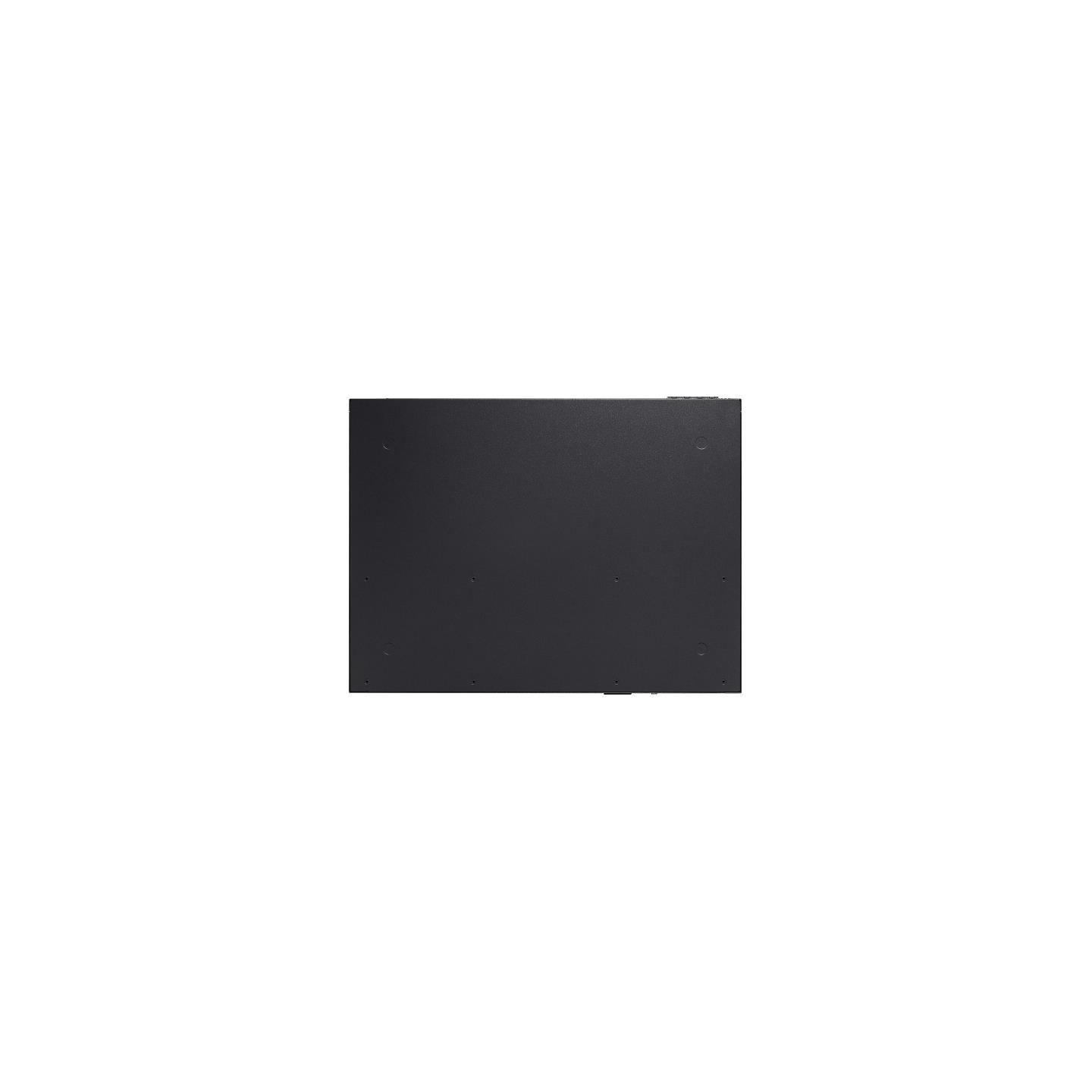

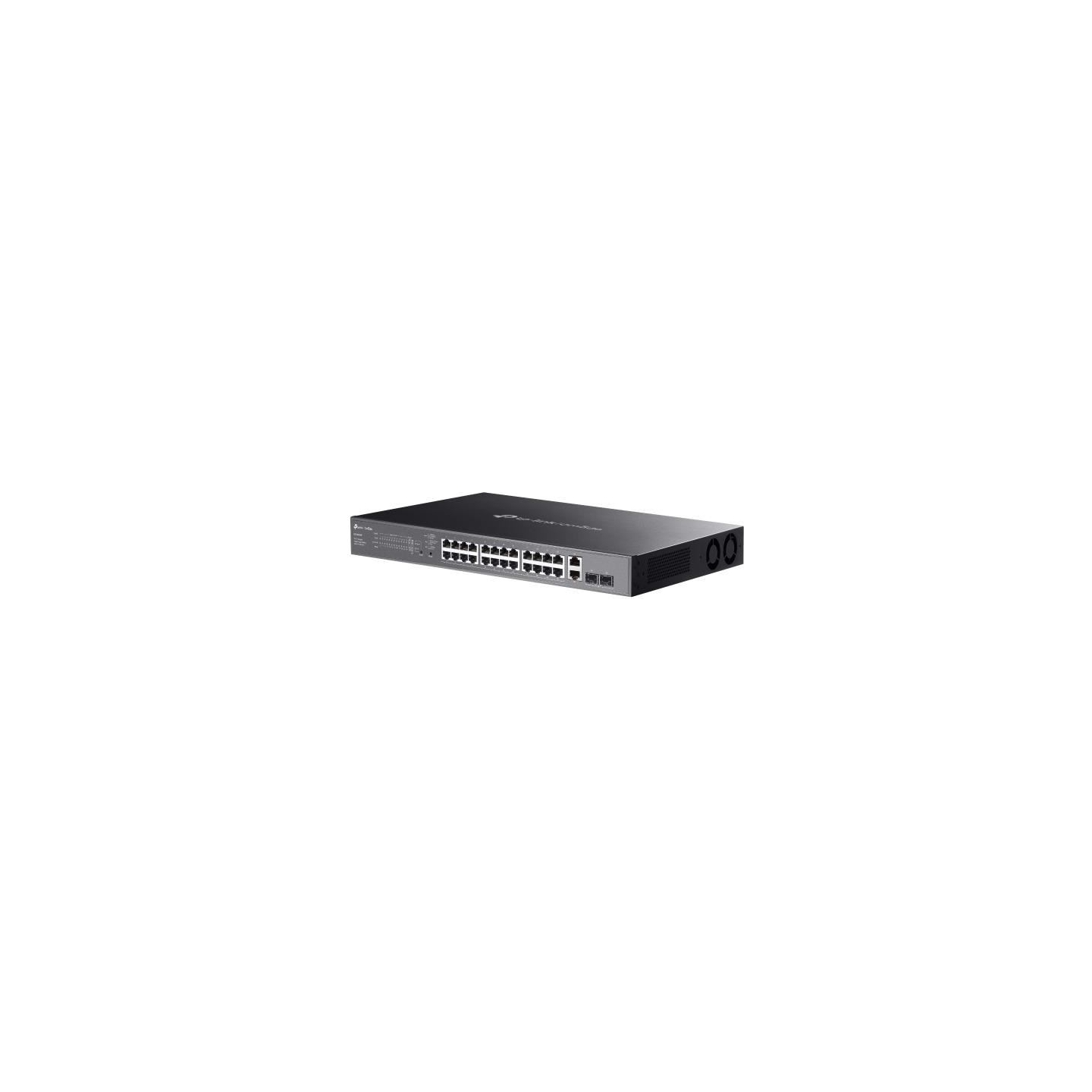

Tp-Link Switch ES228GMP

Name: Tp-Link Switch ES228GMP
Brand: TP-LINK
SKU: ES228GMP
Price: 348.98 EUR
Availability: InStock

SKU ES228GMP Category Switches

€348.98

Tax included

Last items in stock

Share on

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Manufacturer Website:
https://www.omadanetworks.com/en/business-networking/omada-switch-agile/es228gmp/

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.47
Unit Box Length: 0.53
Unit Box Width: 0.1
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Managed
Unified static configuration: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 26
SFP module slots quantity: 2
10G support: No
Auto MDI/MDI-X: Yes
Broadcast storm control: Yes
Copper ethernet cabling technology: 1000BASE-T/1000BASE-X/100BASE-X/10BASE-T
Ethernet LAN data rates: 10,100,1000 Mbit/s
Fast leave: Yes
Flow control support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs: 32
Port mirroring: Yes
Virtual LAN features: MTU VLAN/Port-based VLAN/Tagged VLAN
VLAN support: Yes
Forwarding rate: 41.66 Mpps
Jumbo frames: 15000
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Store-and-forward: Yes
Switching capacity: 56 Gbit/s
DHCP features: DHCP client
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast support: Yes
Housing material: Metal
LED indicators: Yes
Number of fans: 2 fan(s)
Product colour: Black
Rack mounting: Yes
Fanless: No
Firmware upgradeable: Yes
Flash memory: 64 MB
Mean time between failures (MTBF): 224143 h
Noise level: 46.2 dB
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 454.8 W
Power source: AC
Power supply included: Yes
Surge protection: Yes
Surge protection voltage: 6 kV
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 384 W
Heat dissipation: 1546.15 BTU/h
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 45 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): -40 - 70 °C
Depth: 330 mm
Height: 44 mm
Width: 440 mm
Cables included: AC
Manual: Yes
Quick start guide: Yes
Rack mount kit: Yes
Certification: FCC, CE, ROHS
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Series: Omada
Model name: ES228GMP
Units per Shipping Box: 1
Unit Calculated Volume: 0.02491 cubm
Unit Calculated Weight: 6.125 kg
