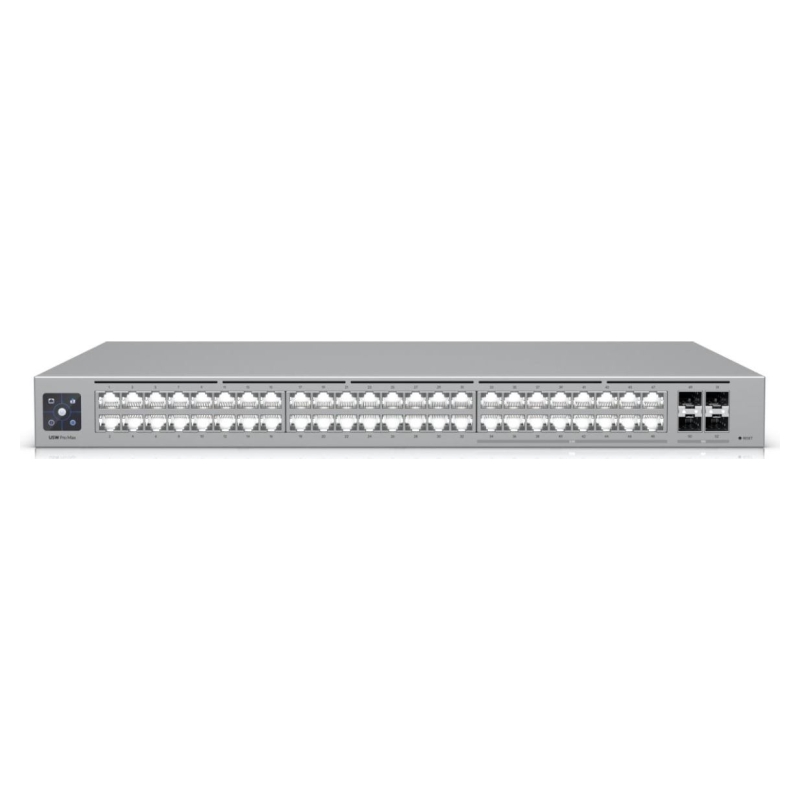

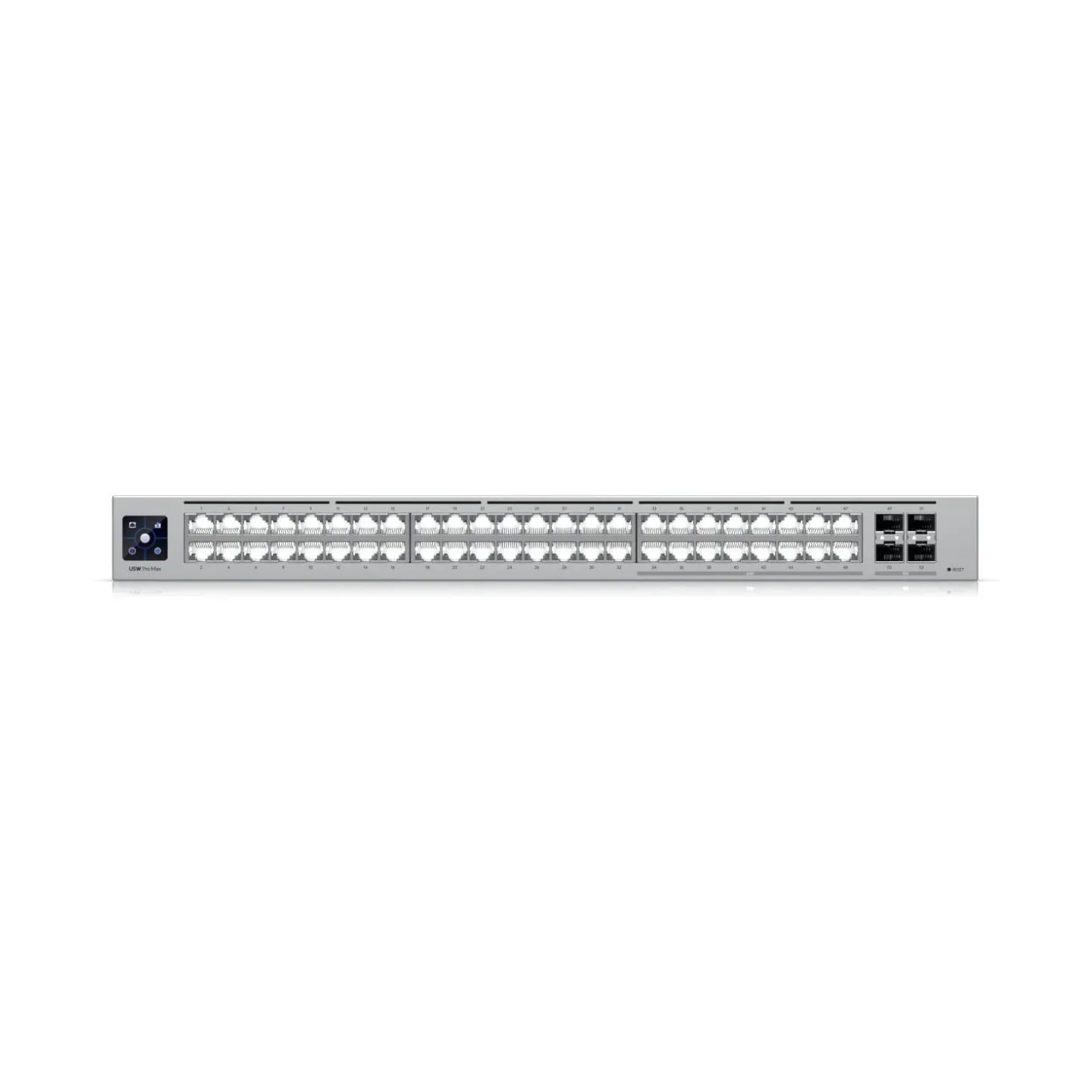

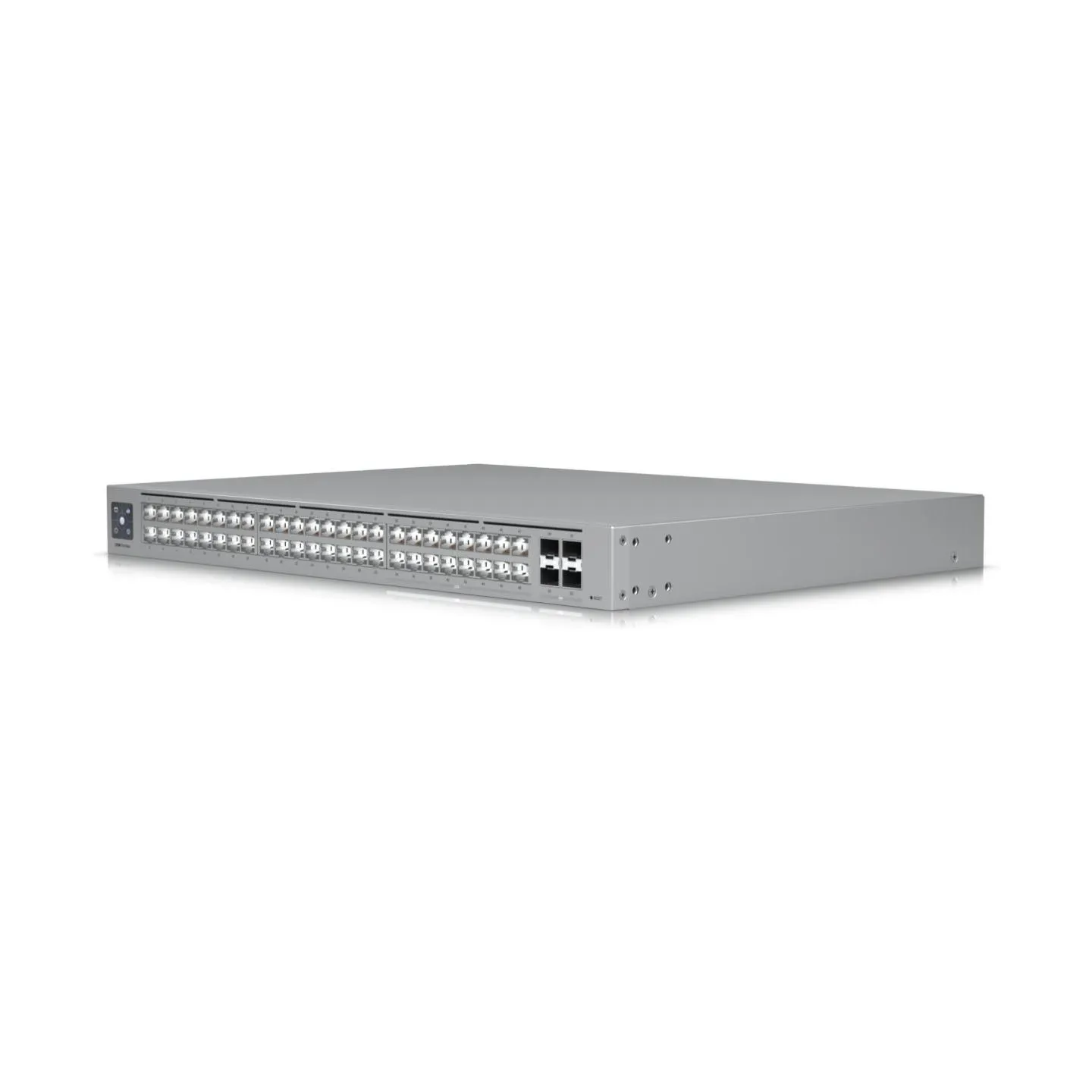

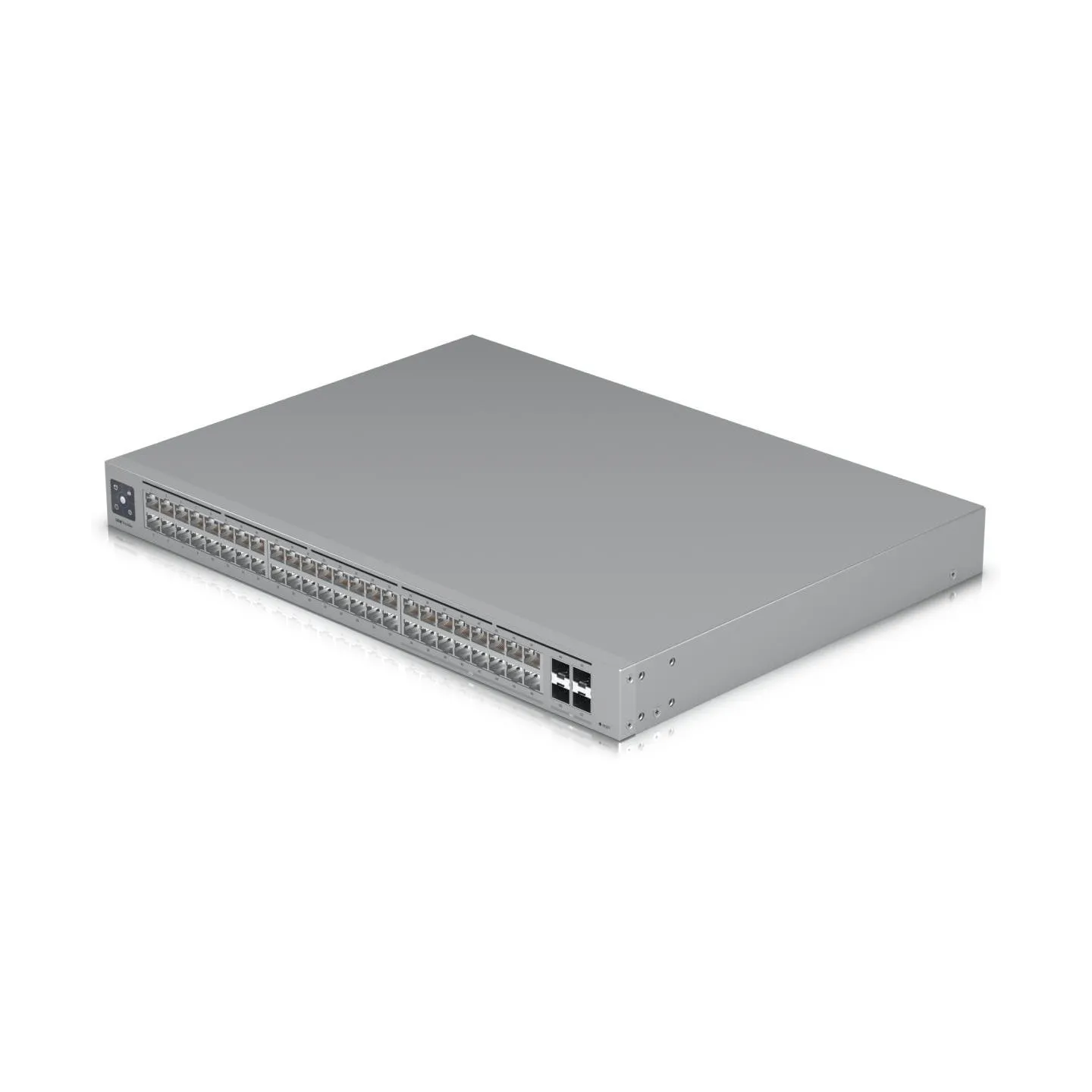

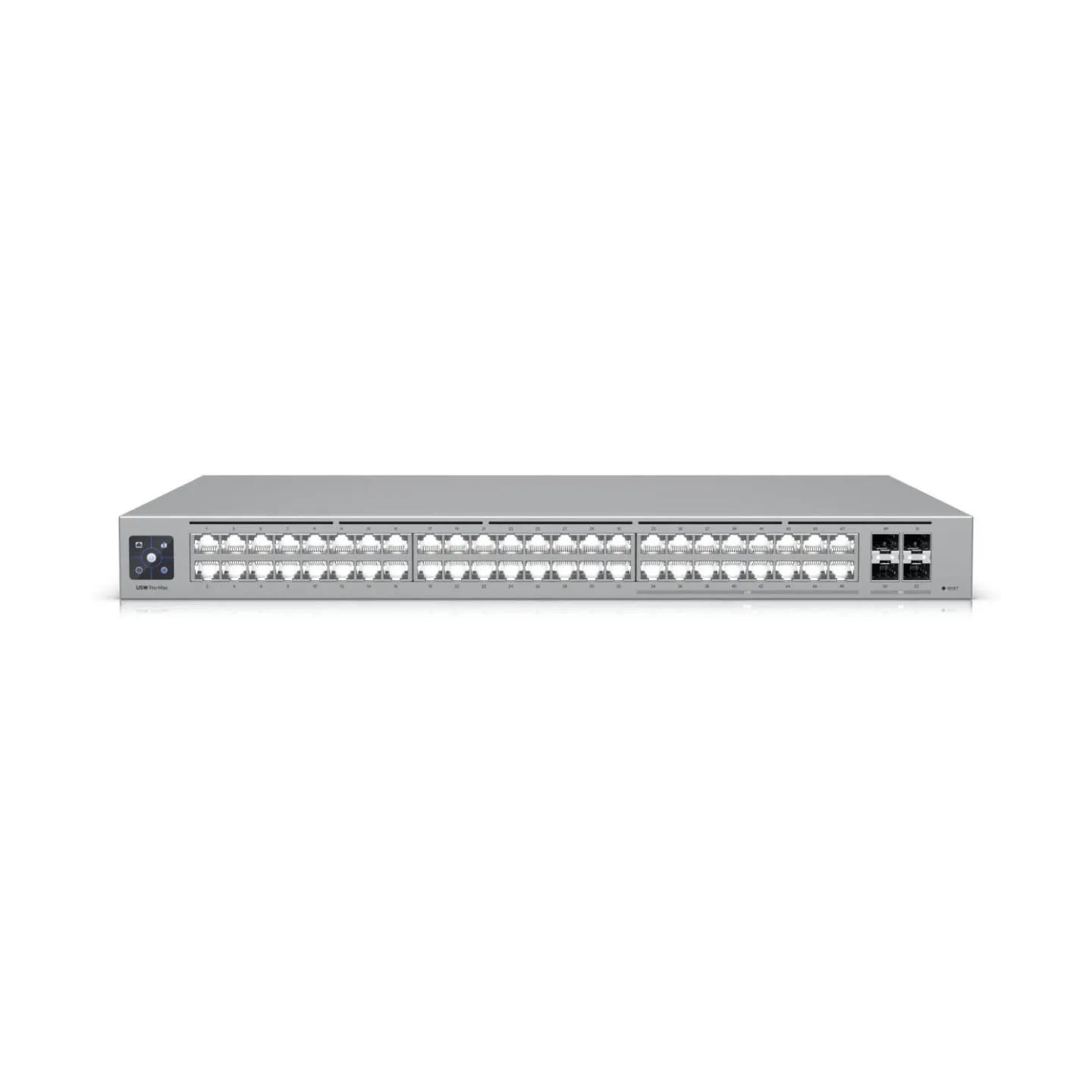

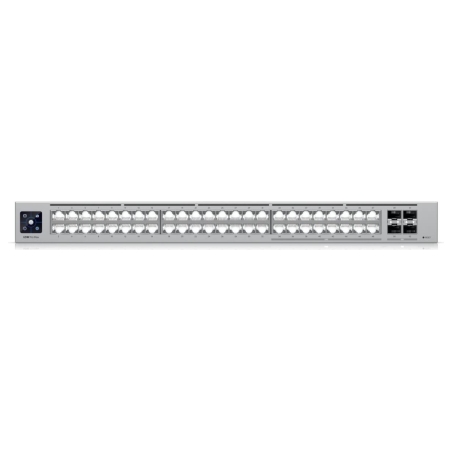

Ubiquiti Switch|UBIQUITI|Pro Max 48|Type L3|USW-PRO-MAX-48

Write a review

€773.04

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

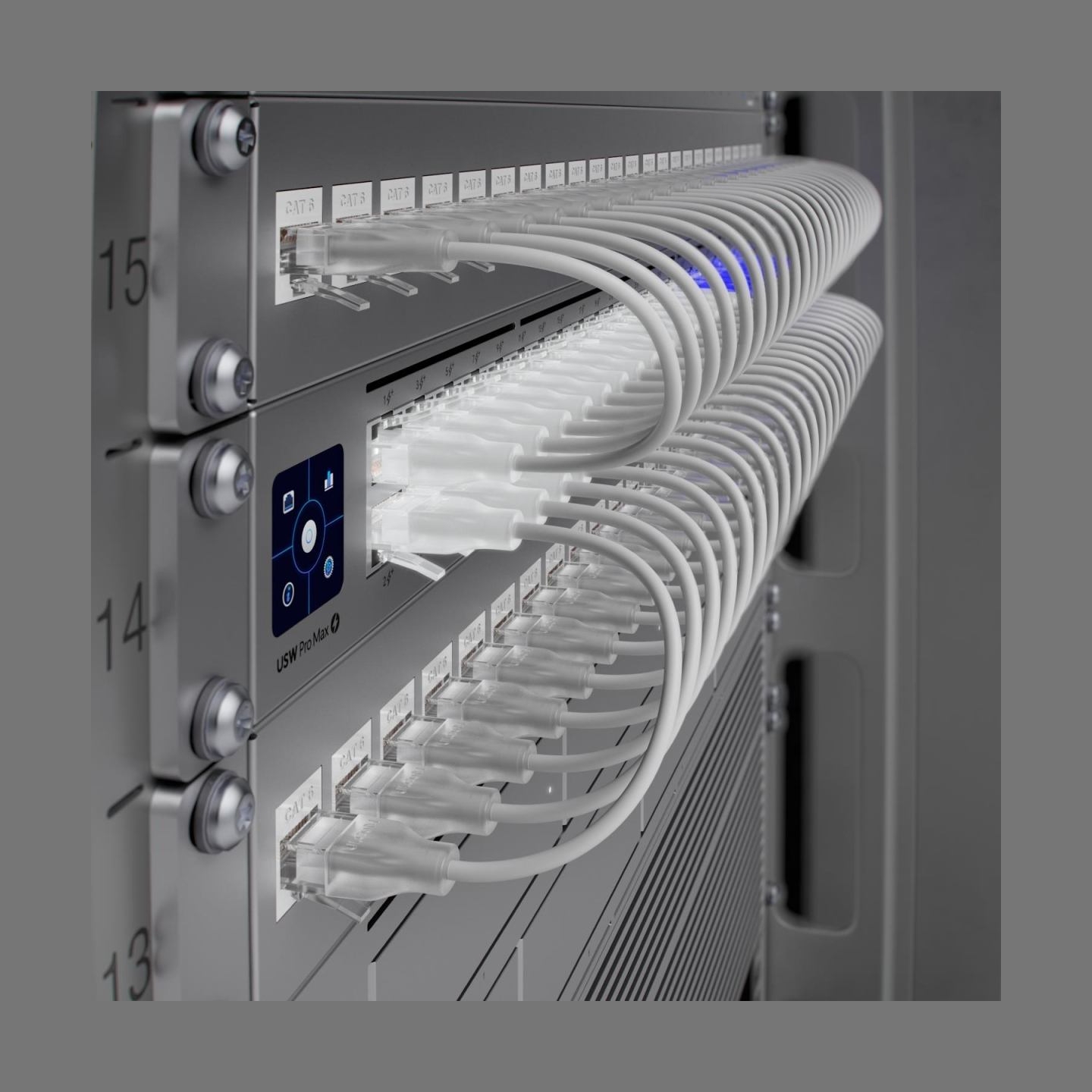

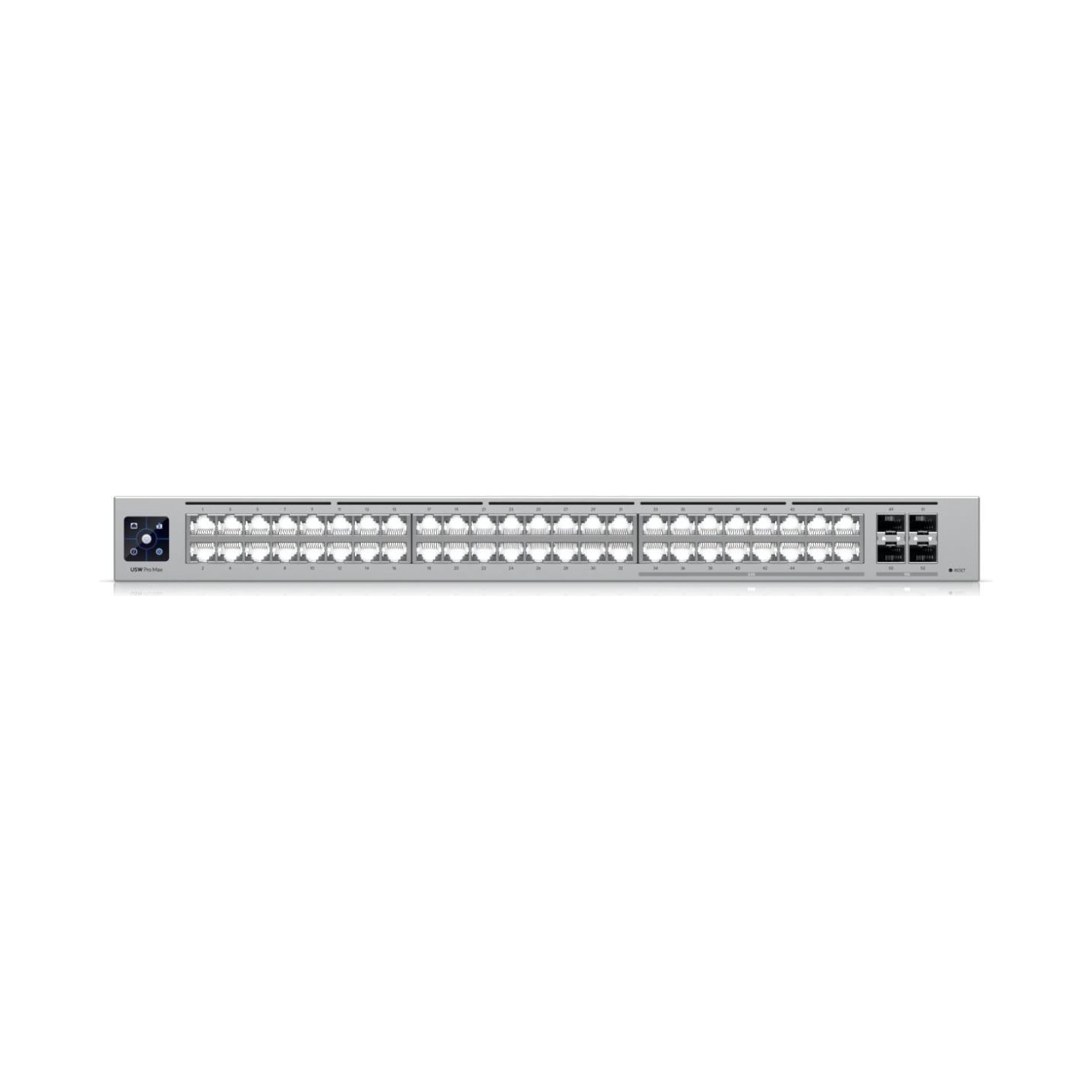

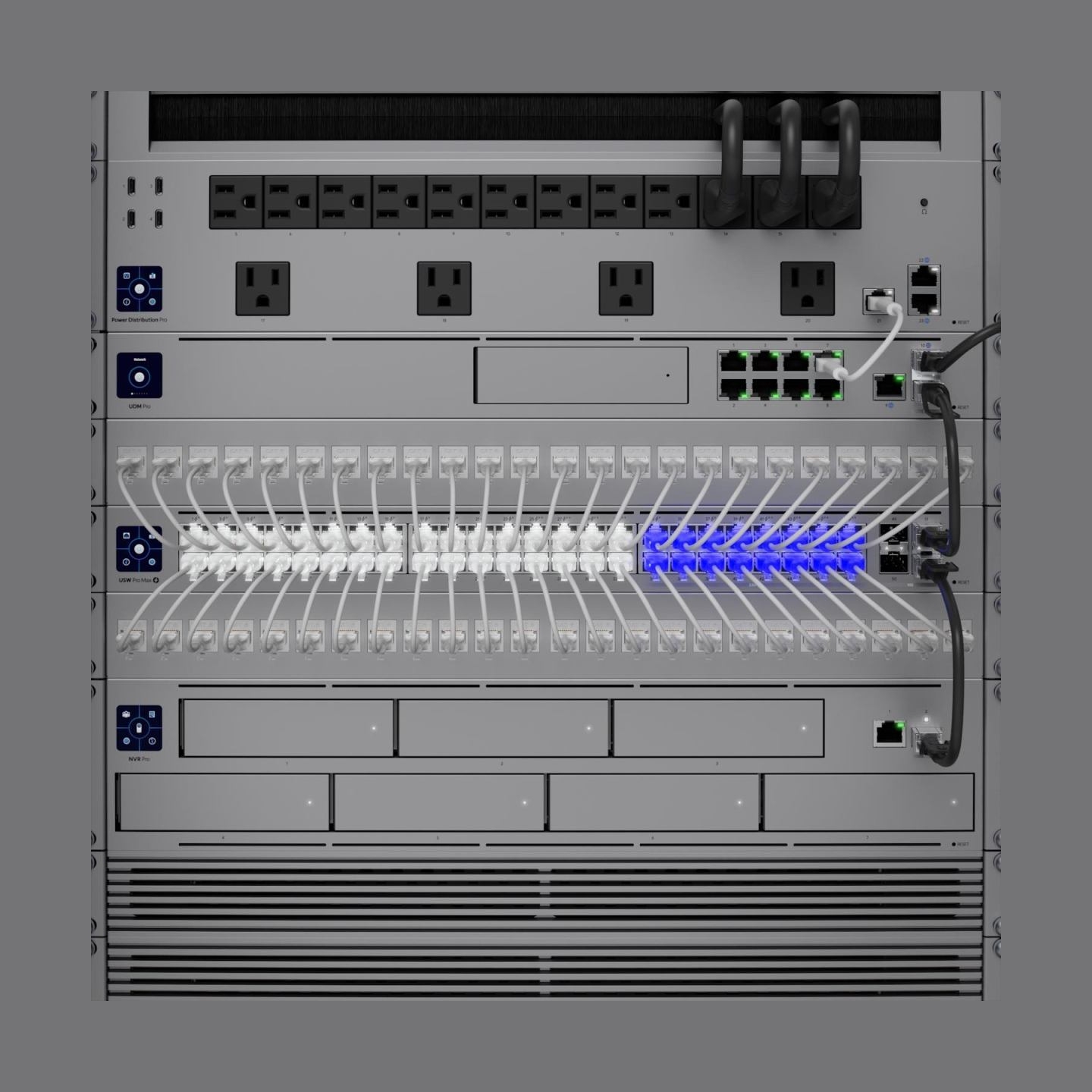

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

(16) 2.5 GbE RJ45 ports
(32) GbE RJ45 ports
(4) 10G SFP+ ports

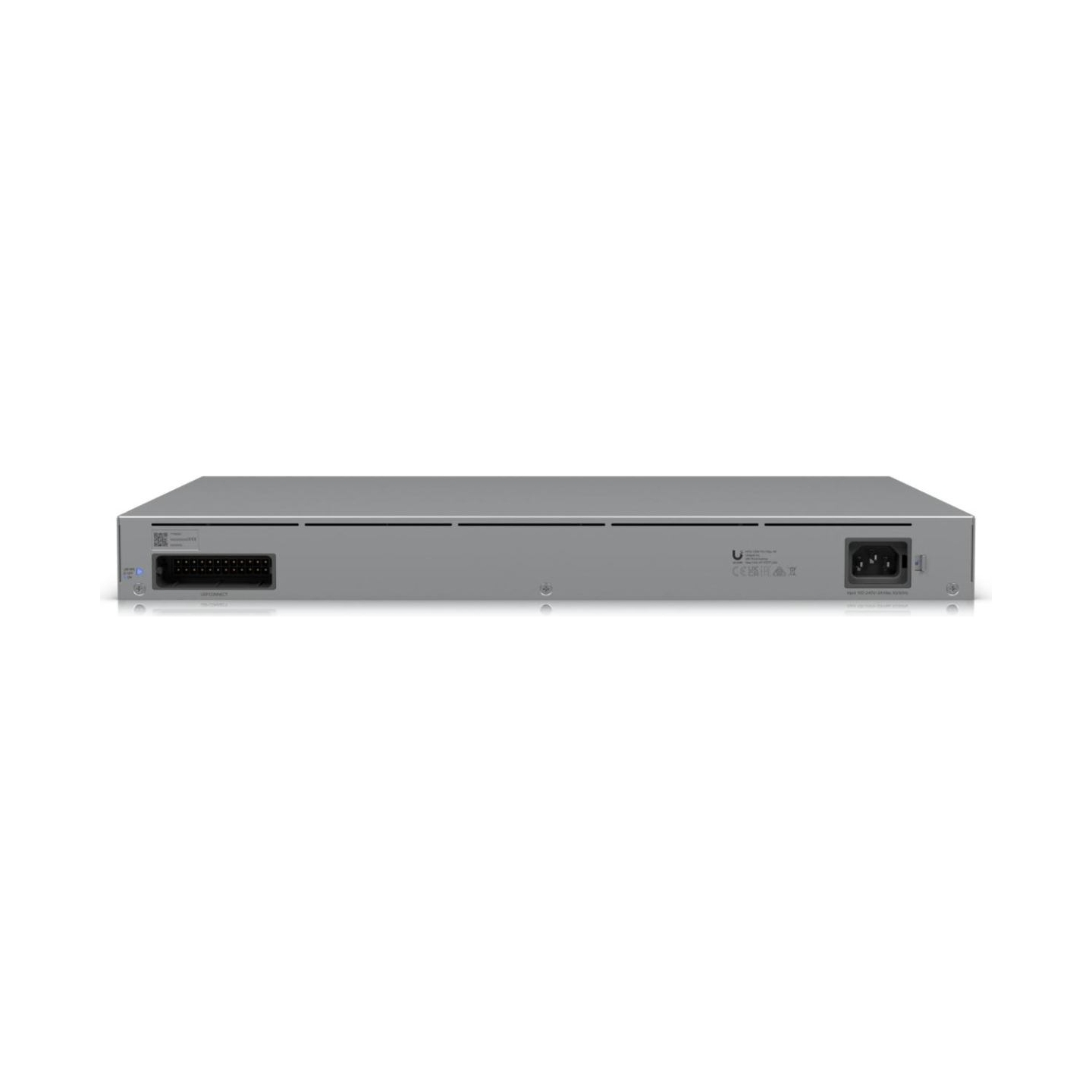

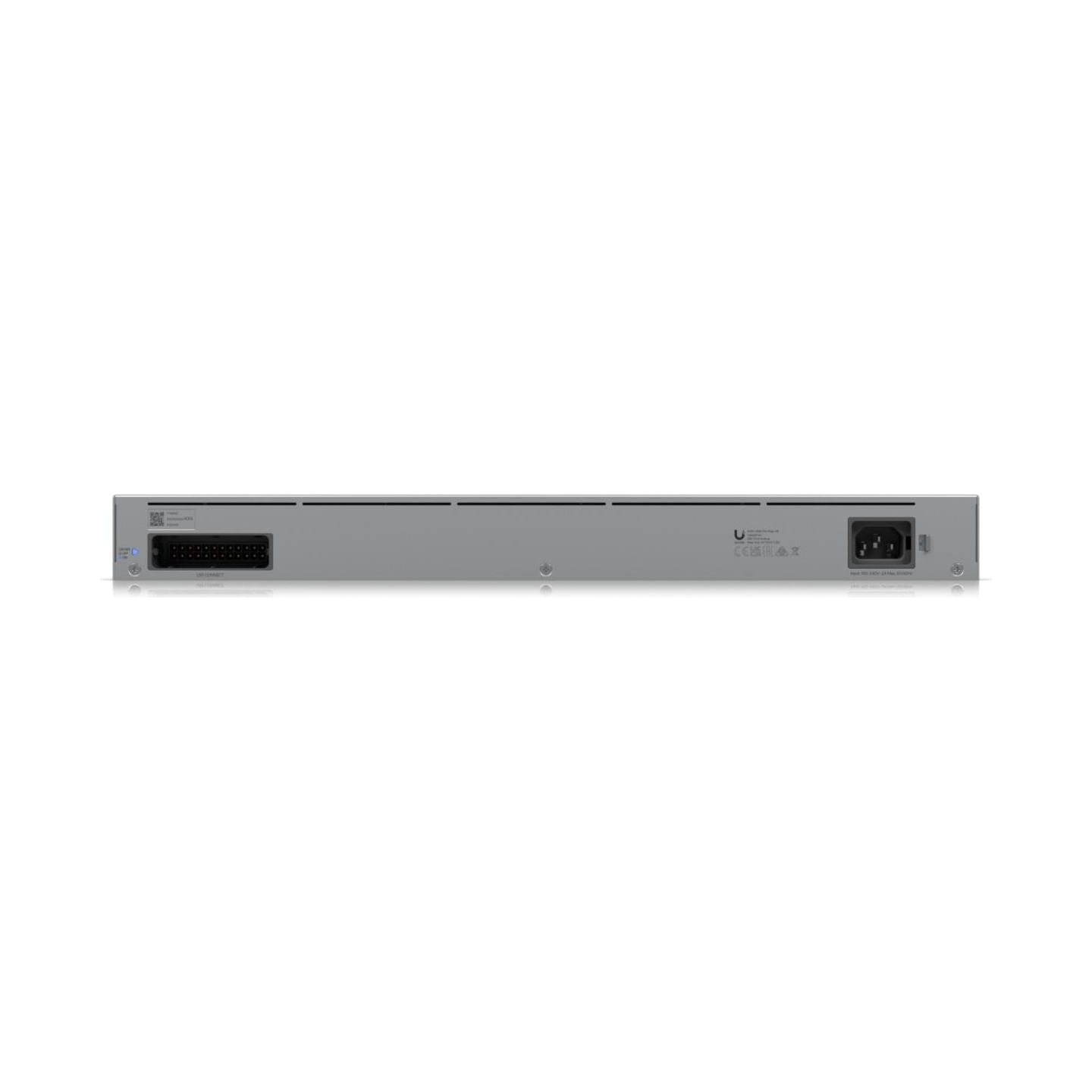

DC power backup ready
Managed with UniFi Network 8.0.24 and later

Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-48

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.46
Unit Box Length: 0.53
Unit Box Width: 0.13
Switch layer: L3
2.5G Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 32
Power connector: AC/DC
SFP+ module slots quantity: 4
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
Networking standards: IEEE 802.1x
Port mirroring: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN
VLAN support: Yes
Forwarding rate: 166.656 Mpps
Jumbo frames support: Yes
Static route: Yes
Switching capacity: 224 Gbit/s
Throughput: 112 Gbit/s
DHCP features: DHCP relay/DHCP snooping
IGMP snooping: Yes
Loop protection: Yes
Display type: LCM
Form factor: 1U
Housing material: SGCC
LED indicators: Link/Network/Speed/Status
Product colour: Grey
Rack mounting: Yes
Reset button: Yes
Stackable: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 100 W
Power source: AC/DC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): No
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 40 °C
Depth: 325 mm
Height: 43.7 mm
Weight: 4800 g
Width: 442.4 mm
Cables included: Power
Mounting brackets included: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model: USW-PRO-MAX-48
Model name: Pro Max 48
Units per Shipping Box: 2
Unit Calculated Volume: 0.03169 cubm
Unit Calculated Weight: 6.58 kg
