Ubiquiti UXG-Lite-EU Gateway UniFi
€134.33

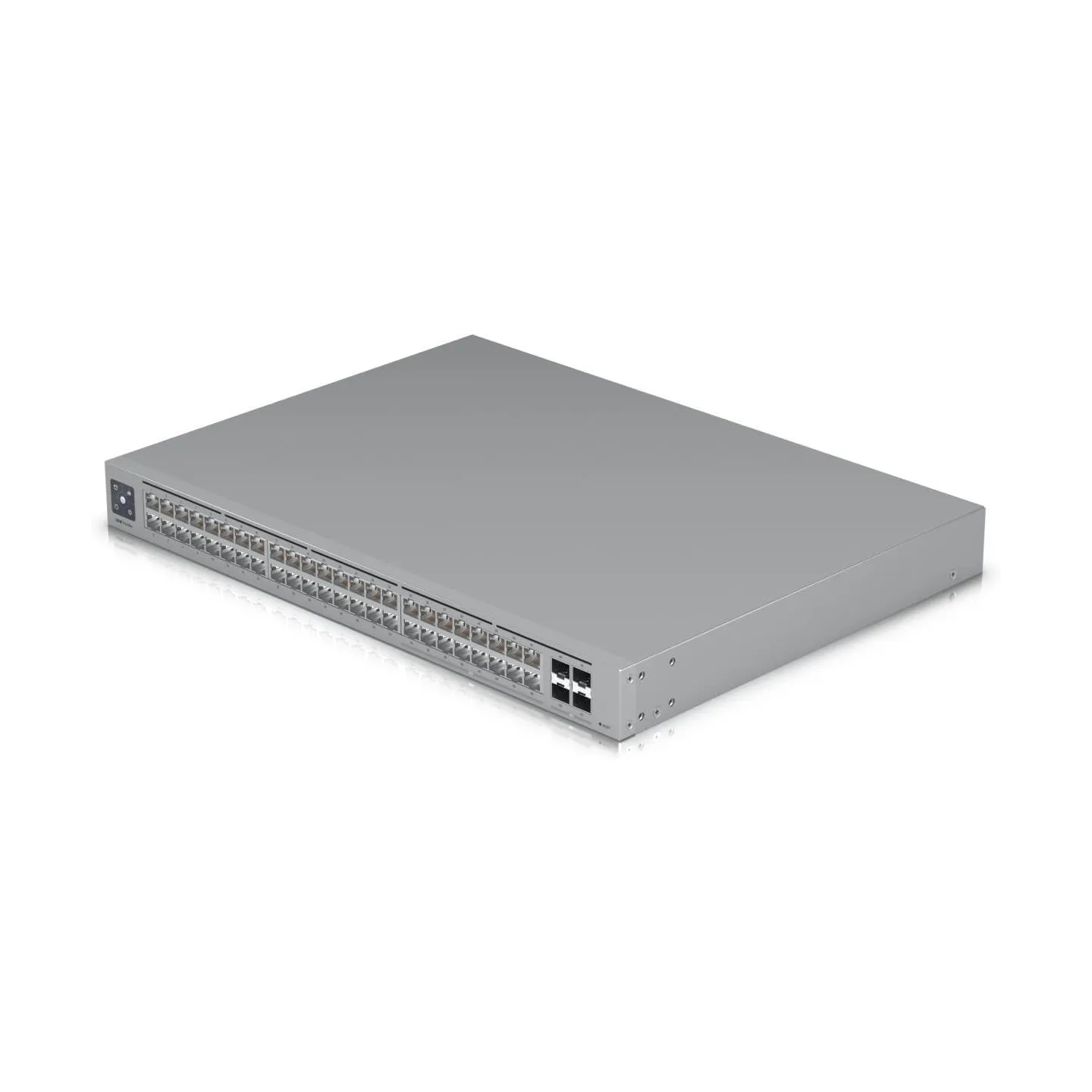

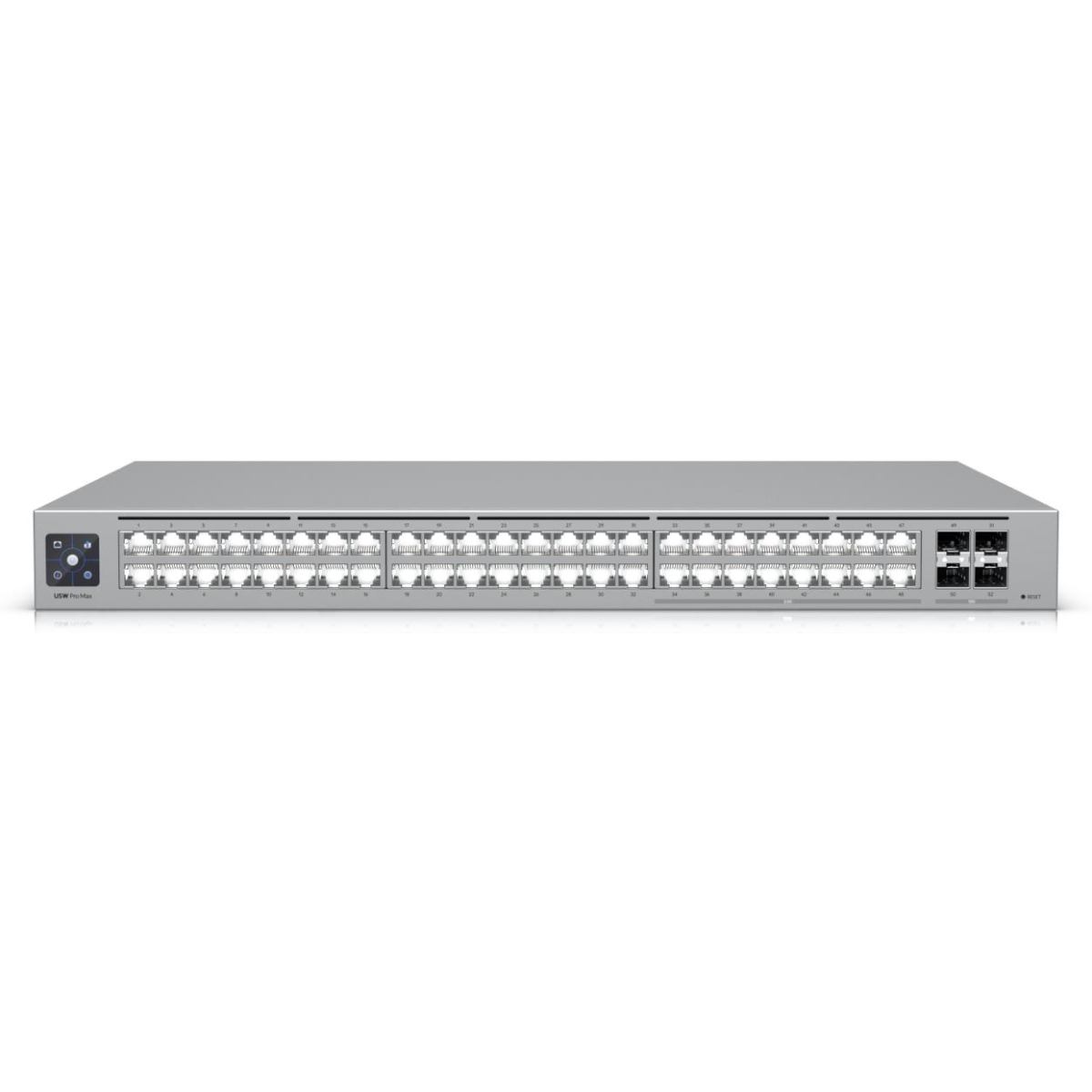

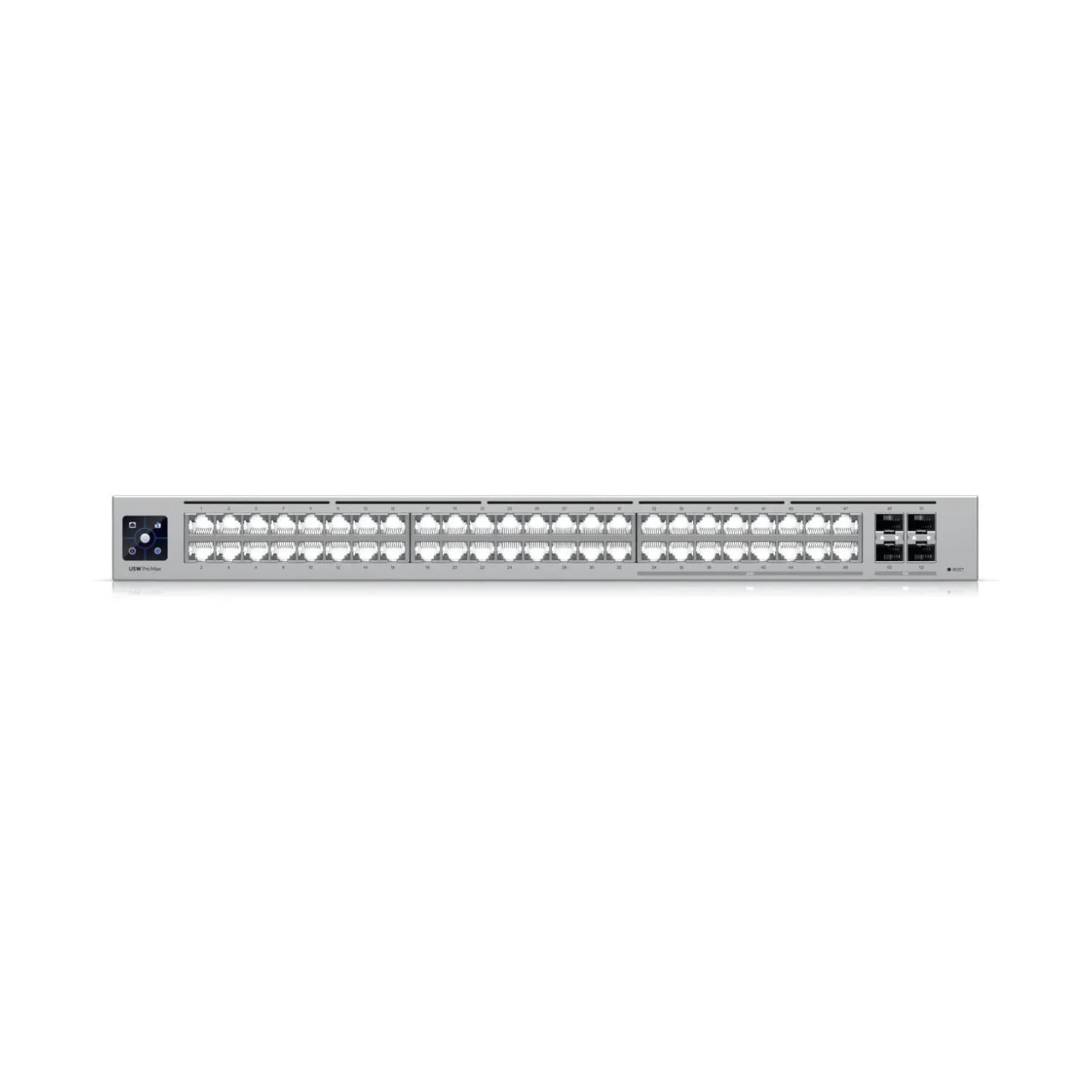

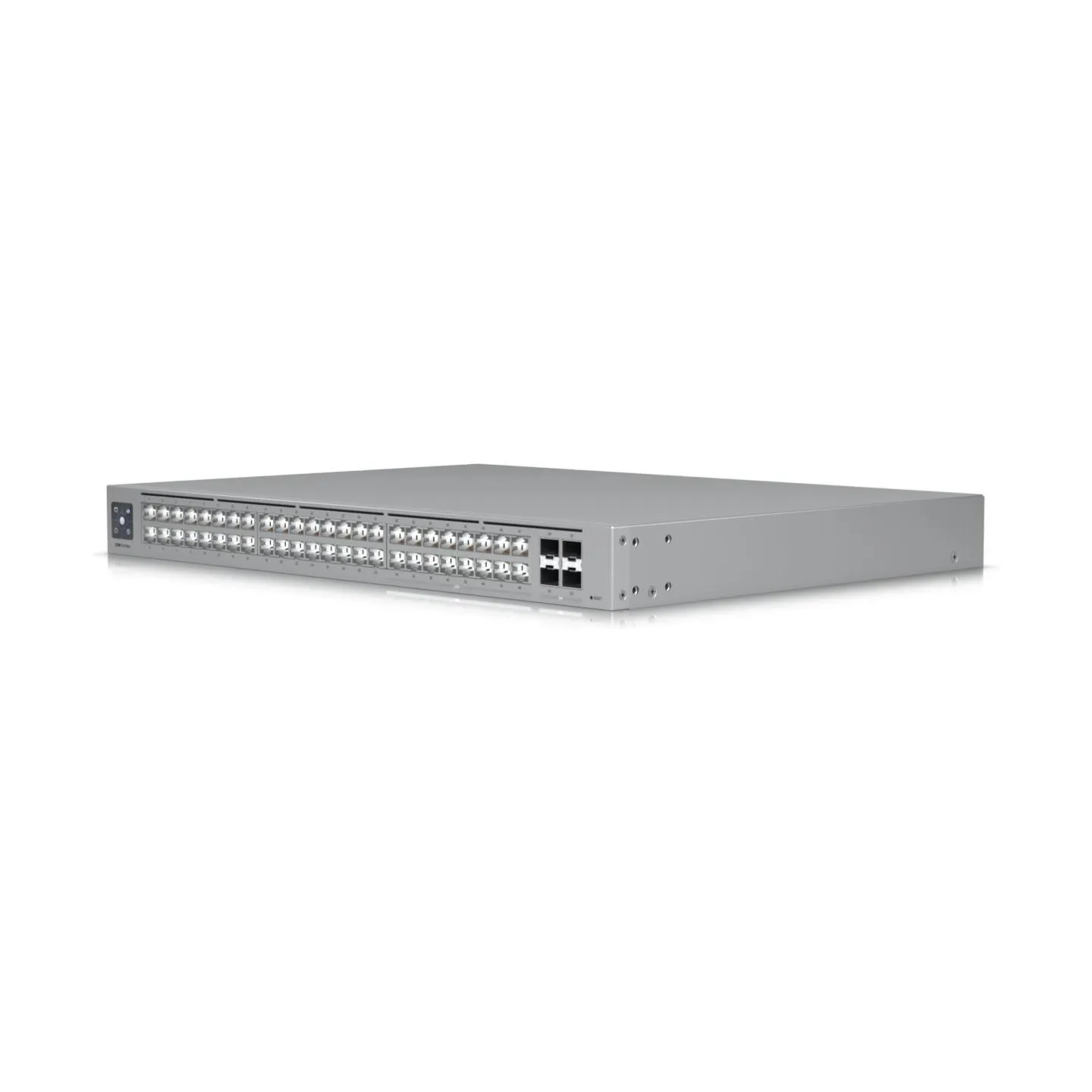

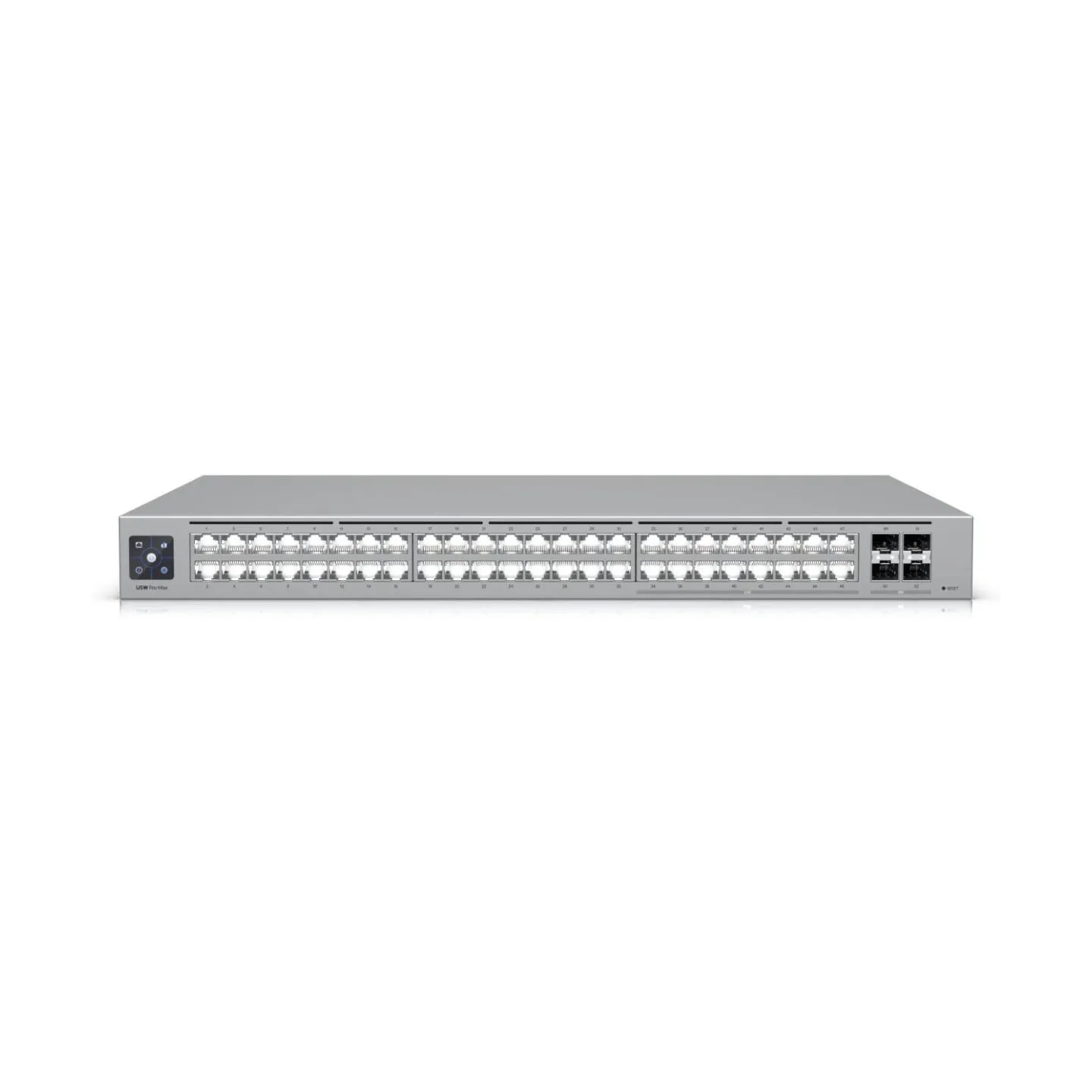

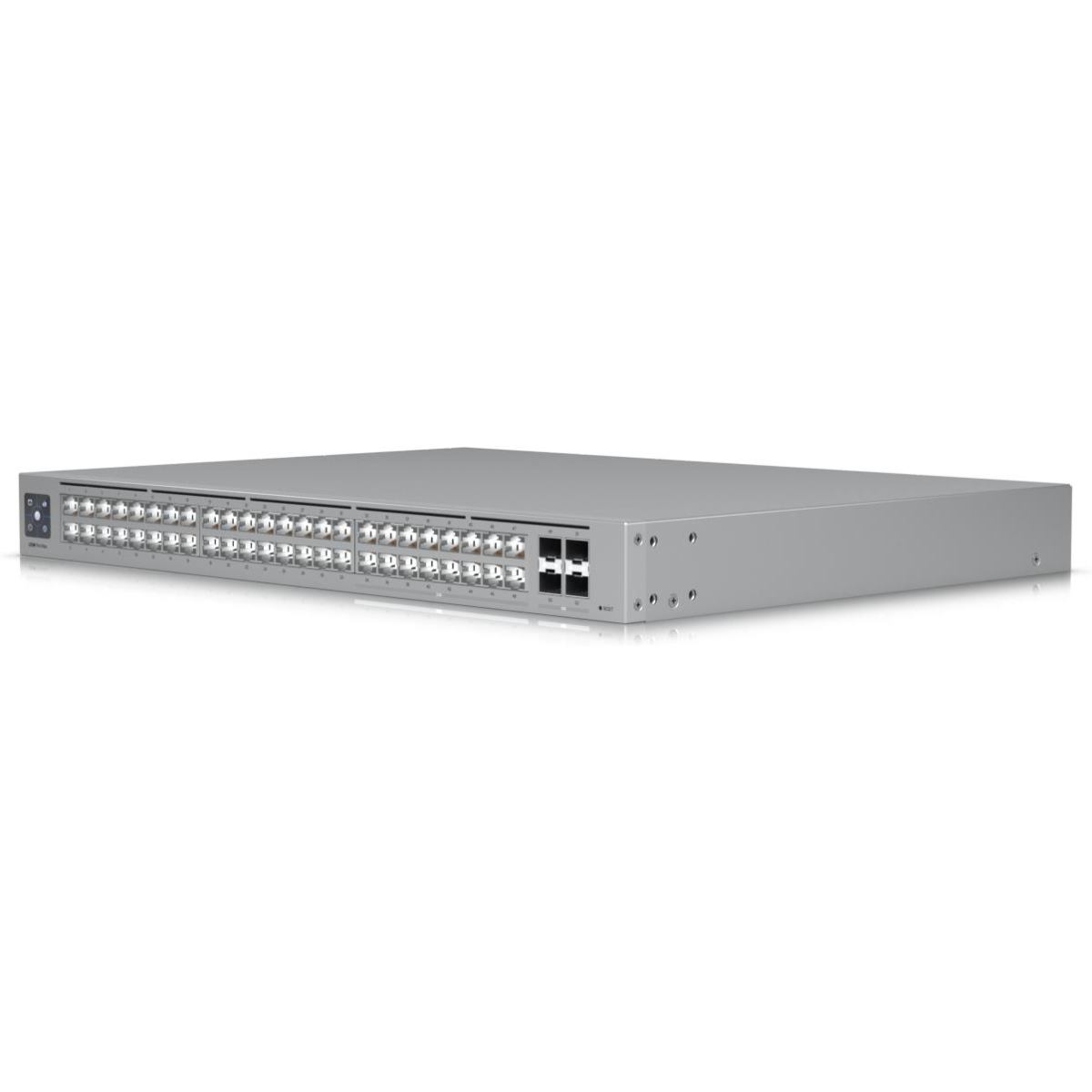

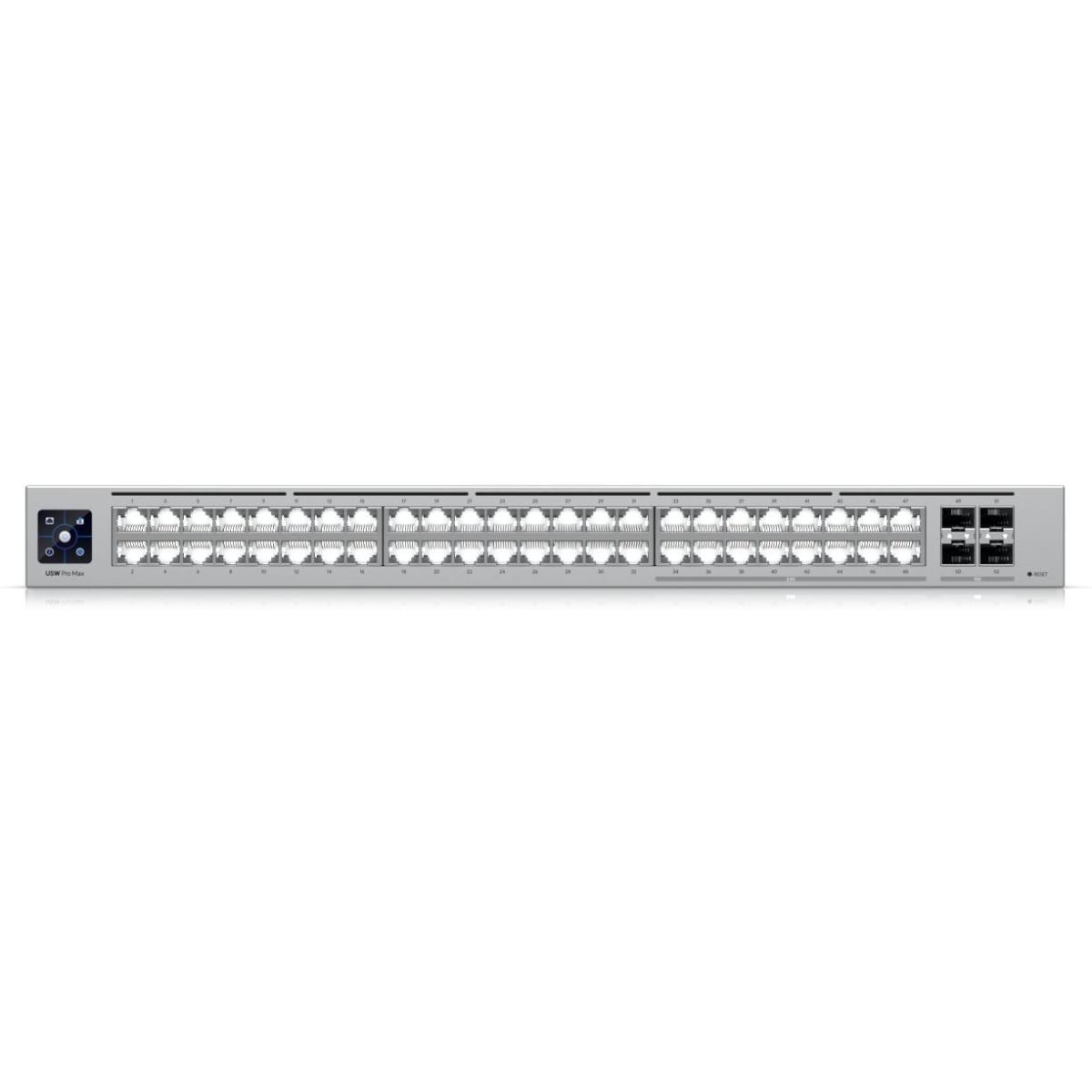

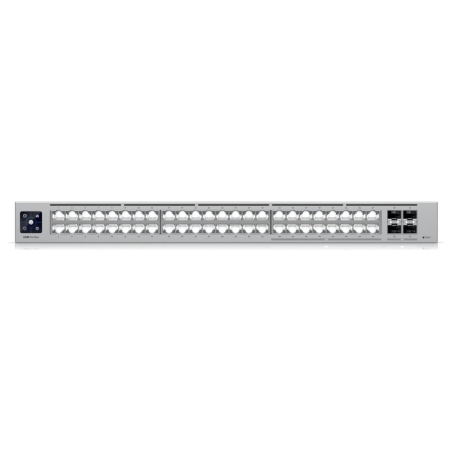

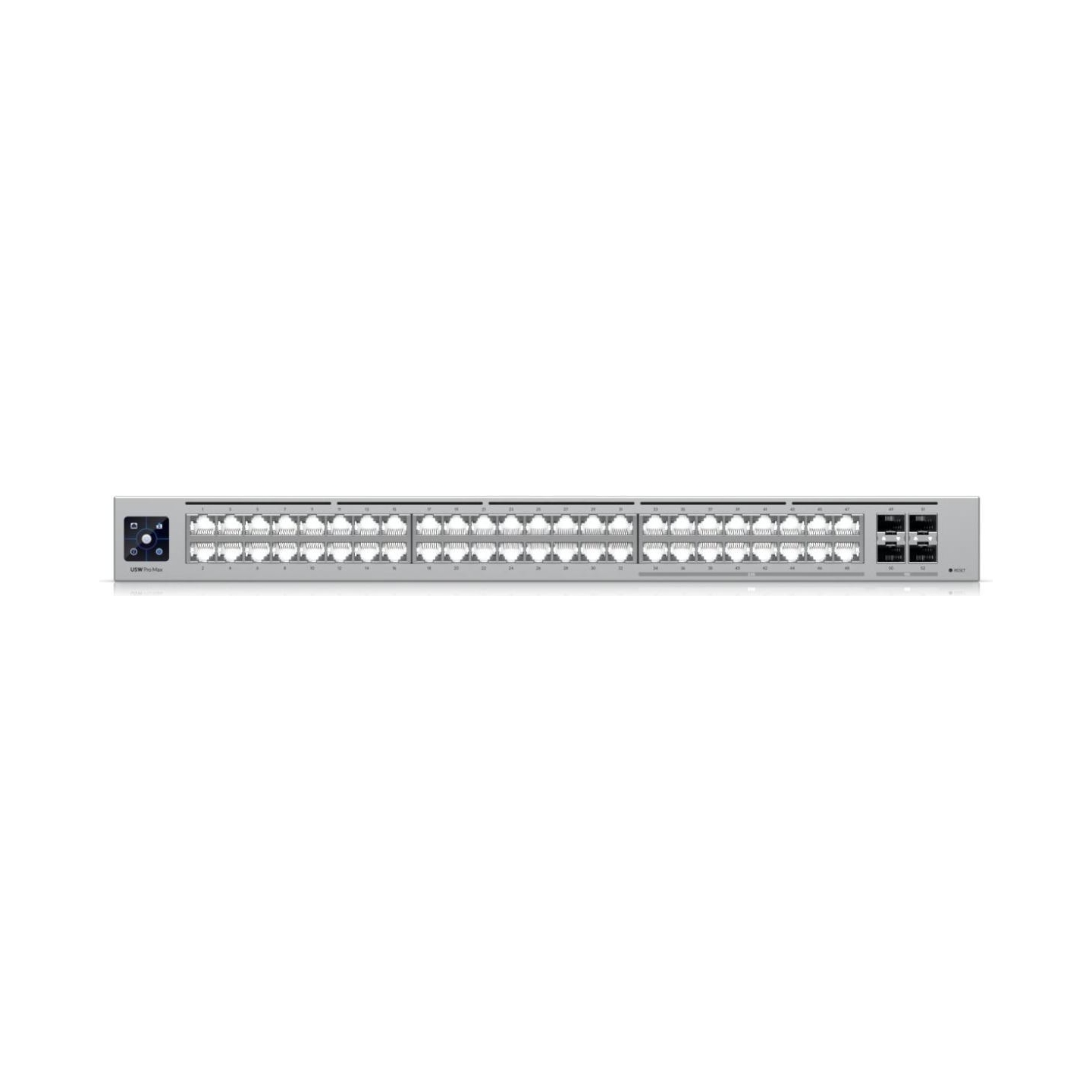

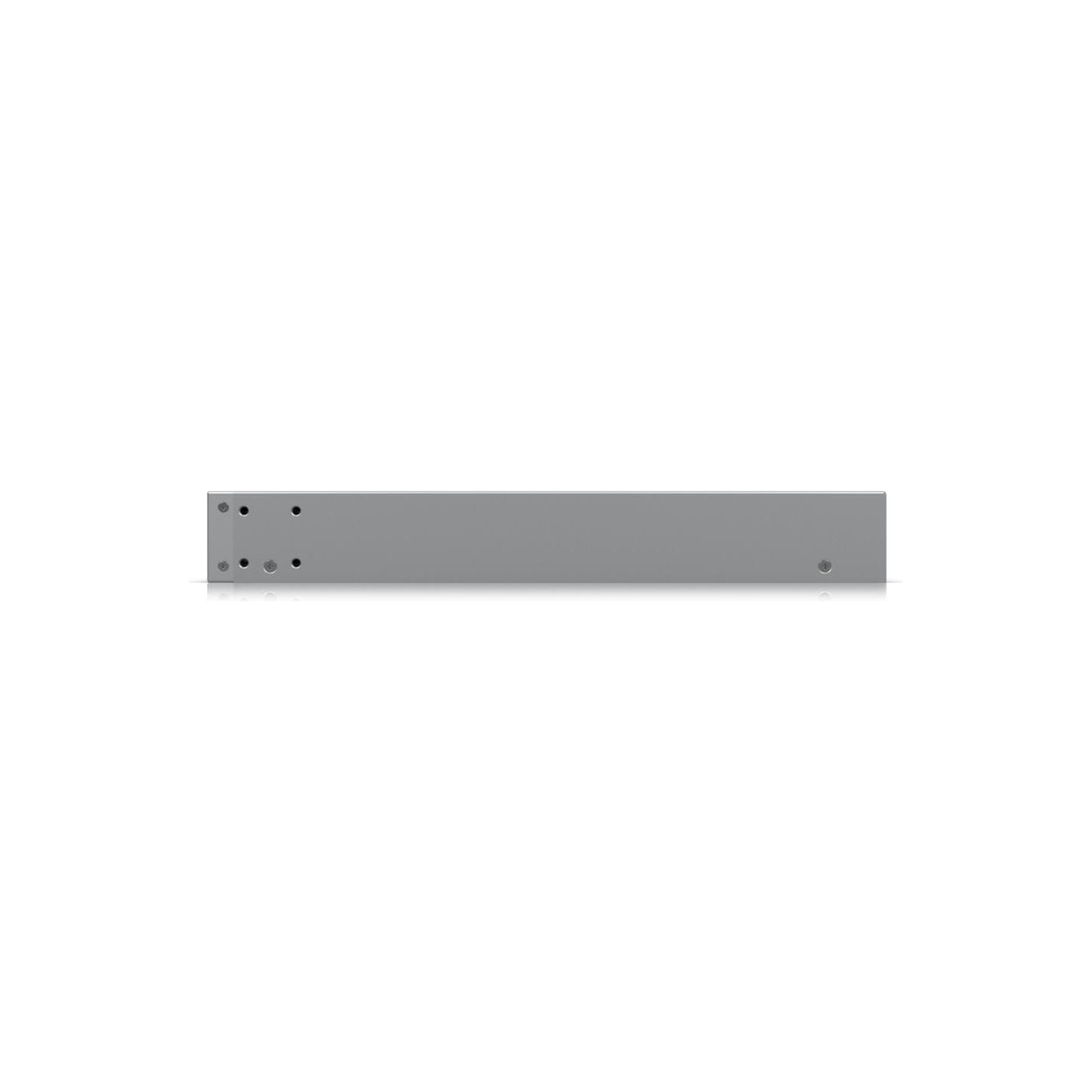

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
- (16) 2.5 GbE RJ45 ports
- (32) GbE RJ45 ports
- (4) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-48
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.46
- Unit Box Length
- 0.53
- Unit Box Width
- 0.13
- Switch layer
- L3
- 2.5G Ethernet (copper) ports quantity
- 16
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- 2.5G Ethernet (100/1000/2500)
- Gigabit Ethernet (copper) ports quantity
- 32
- Power connector
- AC/DC
- SFP+ module slots quantity
- 4
- 10G support
- Yes
- Broadcast storm control
- Yes
- Flow control support
- Yes
- Networking standards
- IEEE 802.1x
- Port mirroring
- Yes
- Rate limiting
- Yes
- Virtual LAN features
- Voice VLAN
- VLAN support
- Yes
- Forwarding rate
- 166.656 Mpps
- Jumbo frames support
- Yes
- Static route
- Yes
- Switching capacity
- 224 Gbit/s
- Throughput
- 112 Gbit/s
- DHCP features
- DHCP relay/DHCP snooping
- IGMP snooping
- Yes
- Loop protection
- Yes
- Display type
- LCM
- Form factor
- 1U
- Housing material
- SGCC
- LED indicators
- Link/Network/Speed/Status
- Product colour
- Grey
- Rack mounting
- Yes
- Reset button
- Yes
- Stackable
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 100 W
- Power source
- AC/DC
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
- Power over Ethernet (PoE)
- No
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Depth
- 325 mm
- Height
- 43.7 mm
- Weight
- 4800 g
- Width
- 442.4 mm
- Cables included
- Power
- Mounting brackets included
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Model
- USW-PRO-MAX-48
- Model name
- Pro Max 48
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.03169 cubm
- Unit Calculated Weight
- 6.58 kg
