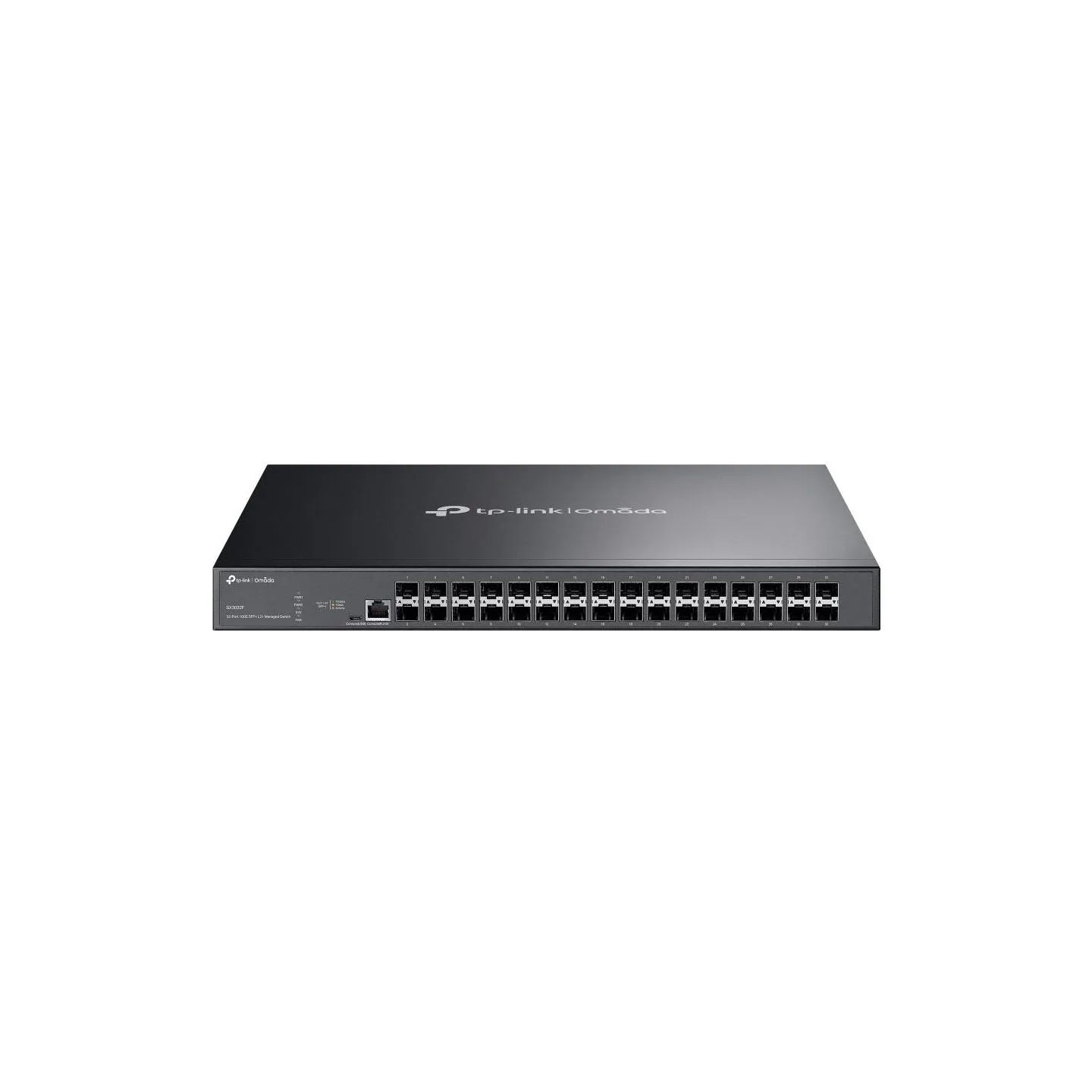

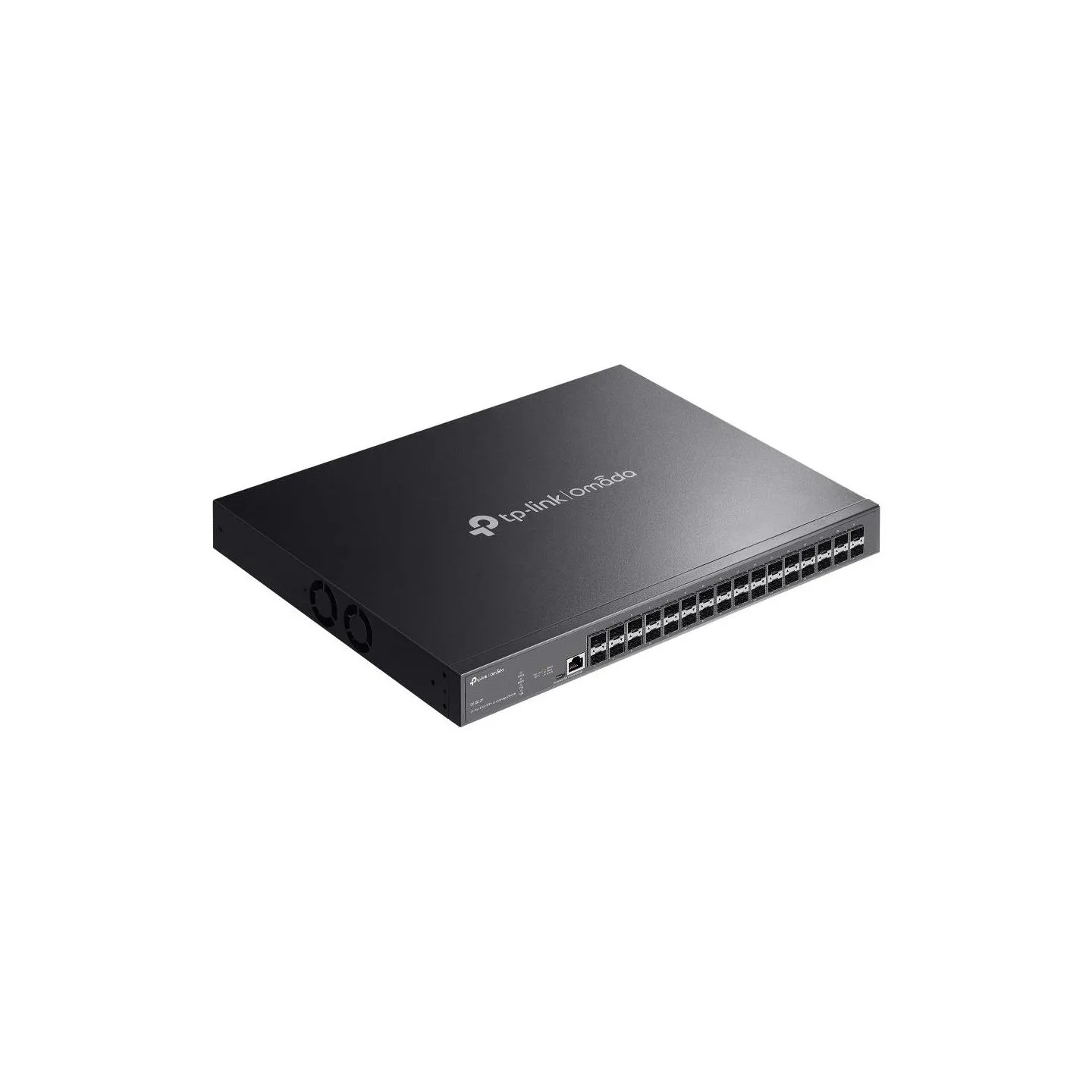

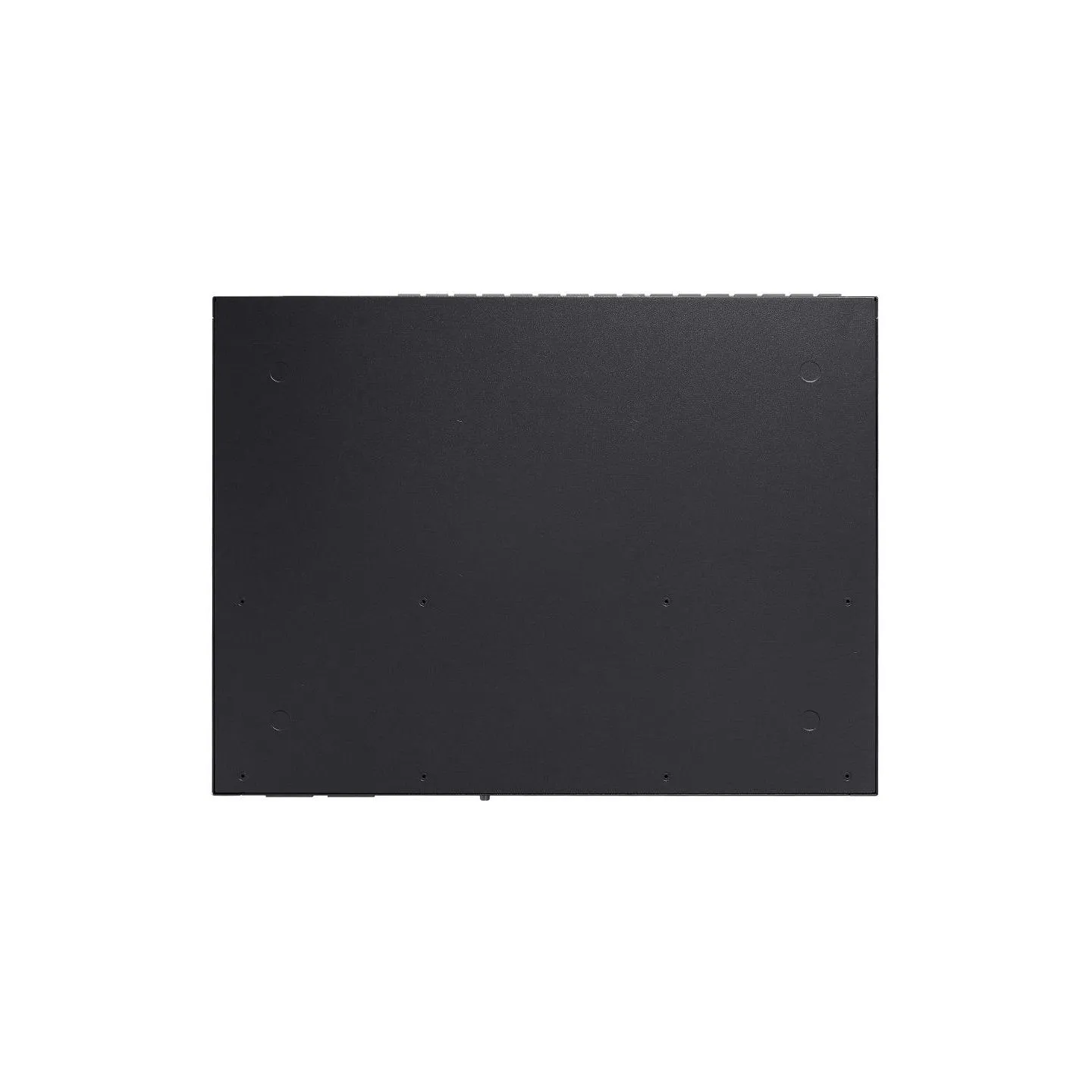

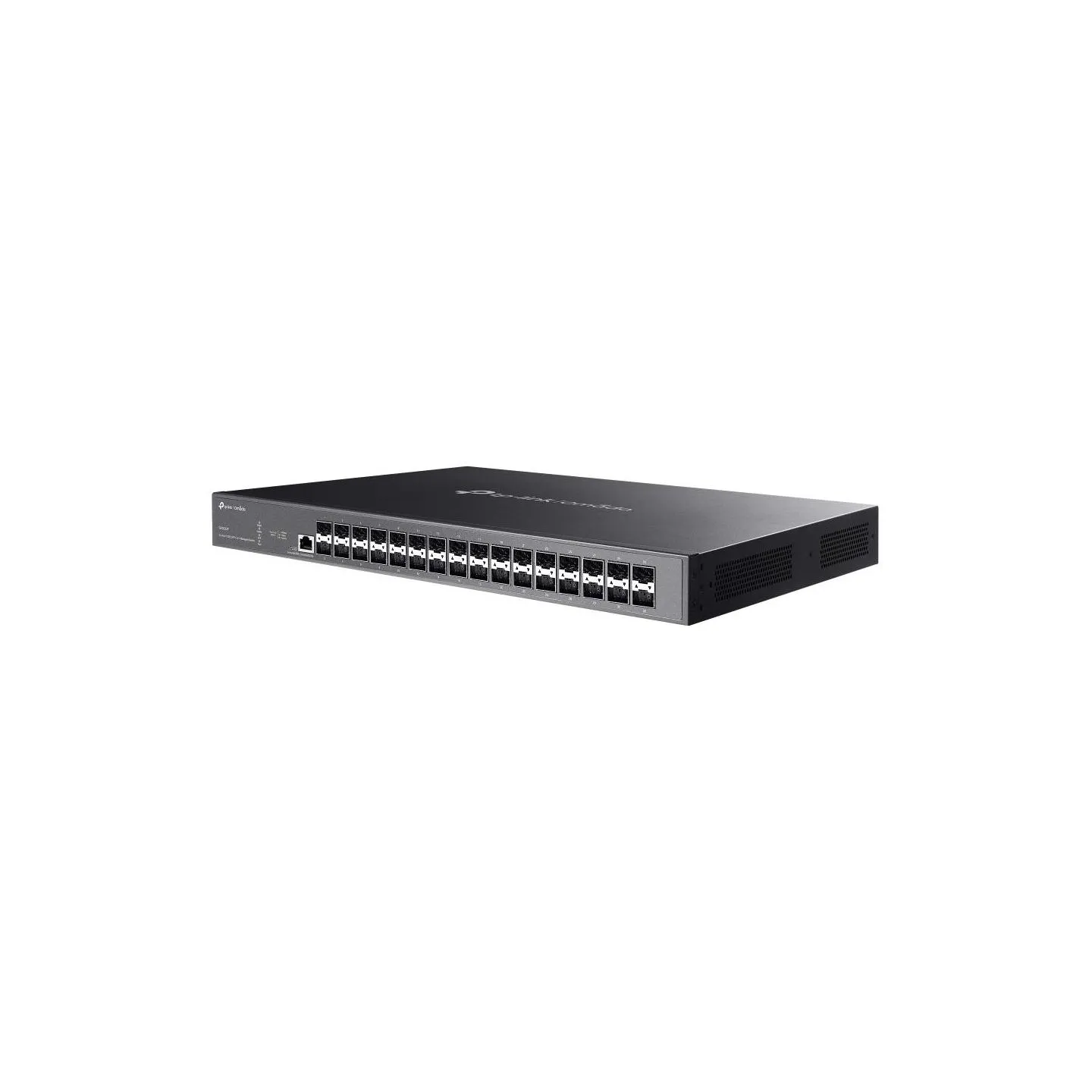

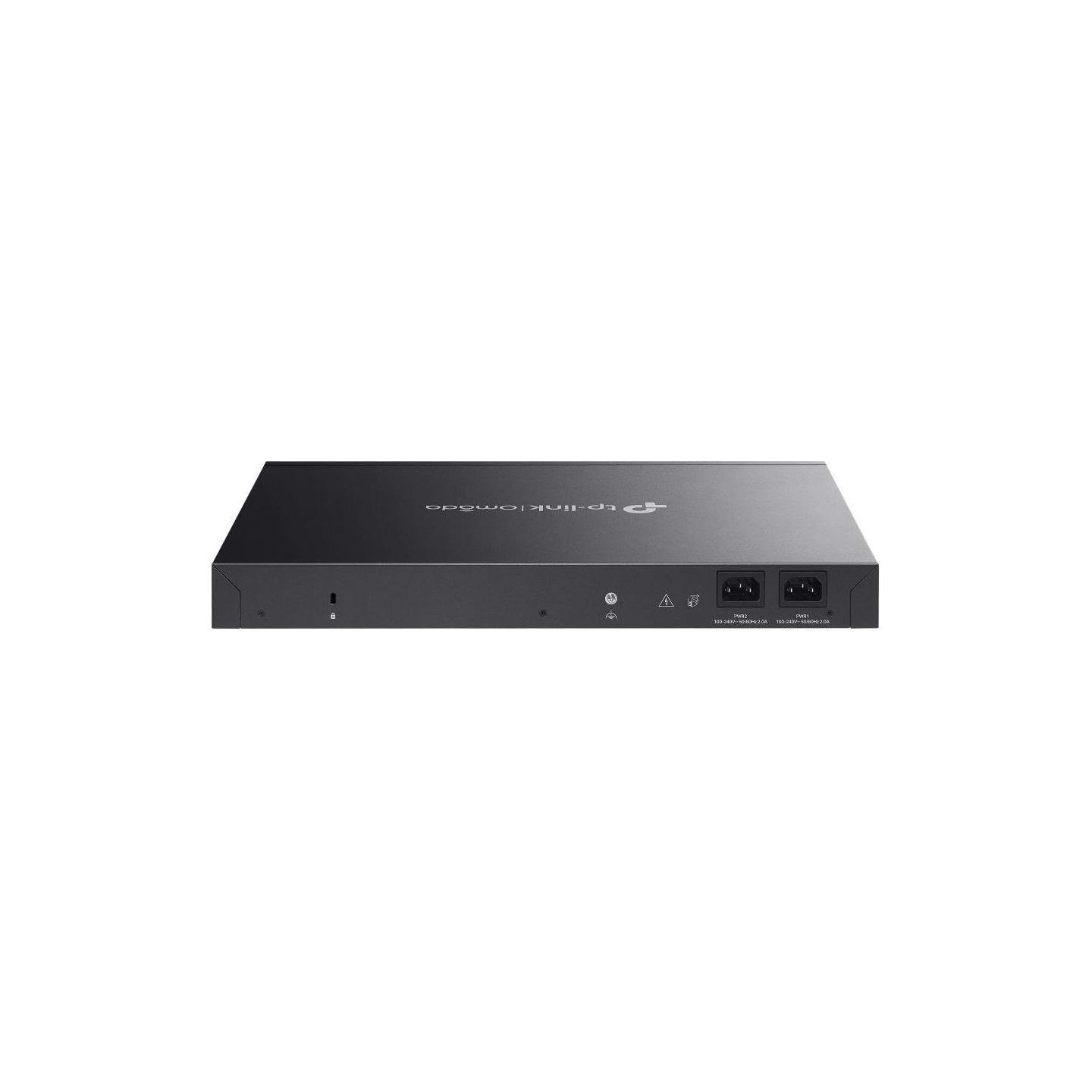

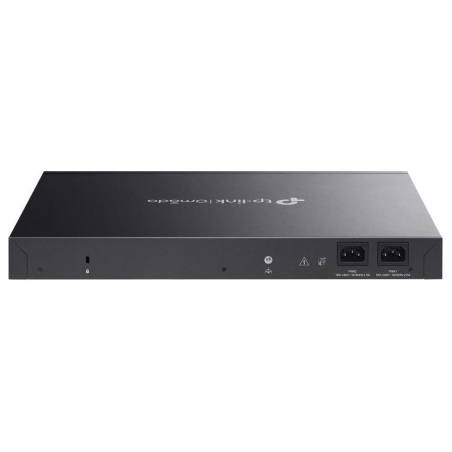

Tp-Link Switch|TP-LINK|SX3032F|32xSFP+|1xConsole|1xRJ45|SX3032F
- Write a review
€1,160.35
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Manufacturer Website:
https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.1
- Unit Box Length
- 0.47
- Unit Box Width
- 0.53
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC26
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2+
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- Console port
- RJ-45/Micro-USB
- Installed SFP+ modules quantity
- 32
- Broadcast storm control
- Yes
- Flow control support
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ah/IEEE 802.3x
- Number of VLANs
- 30
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Protocol-based VLAN/SSID-based VLAN assignment/Tagged VLAN/VLAN mapping/Voice VLAN
- VLAN support
- Yes
- Forwarding rate
- 240 Mpps
- Jumbo frames
- 9
- Jumbo frames support
- Yes
- MAC address table
- 32000 entries
- Number of IP interfaces
- 128
- Number of queues
- 8
- Number of static routes
- 128
- Packet buffer memory
- 24 MB
- Static route
- Yes
- Switching capacity
- 640 Gbit/s
- Access Control List (ACL)
- Yes
- Authentication
- MAC-based authentication,Port-based authentication
- Authentication type
- AAA,TACACS+
- DHCP features
- DHCP relay/DHCP server/DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Loop protection
- Yes
- Password protection
- Yes
- Queue scheduling algorithms
- Priority queuing (PQ)/SP/Weighted Round Robin (WRR)
- SSH/SSL support
- Yes
- Static port security
- Yes
- Multicast Listener Discovery (MLD) snooping
- Yes
- Multicast support
- Yes
- Number of multicast groups filtered
- 4000
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IP Source Guard (IPSG)
- Yes
- IPv4 & IPv6 features
- Dual stack IPv4/IPv6/ICMPv6/IPv6 TFTP
- Number of fans
- 2 fan(s)
- Product colour
- Black
- Rack mounting
- Yes
- Redundant fans support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 49.4 W
- Power source
- AC
- Power supply included
- Yes
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- 40 - 70 °C
- Depth
- 330 mm
- Height
- 44 mm
- Width
- 440 mm
- Cables included
- Power
- Quick start guide
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Model
- Omada
- Series
- SX3032F
- Model name
- Omada 32-Port 10GE SFP+ L2+ Managed Switch
- Units per Shipping Box
- 3
- Unit Calculated Volume
- 0.030576 cubm
- Unit Calculated Weight
- 6.65 kg
SX3032F
2 Items
Specific References
- EAN13
- 4895252504477
- MPN
- SX3032F
