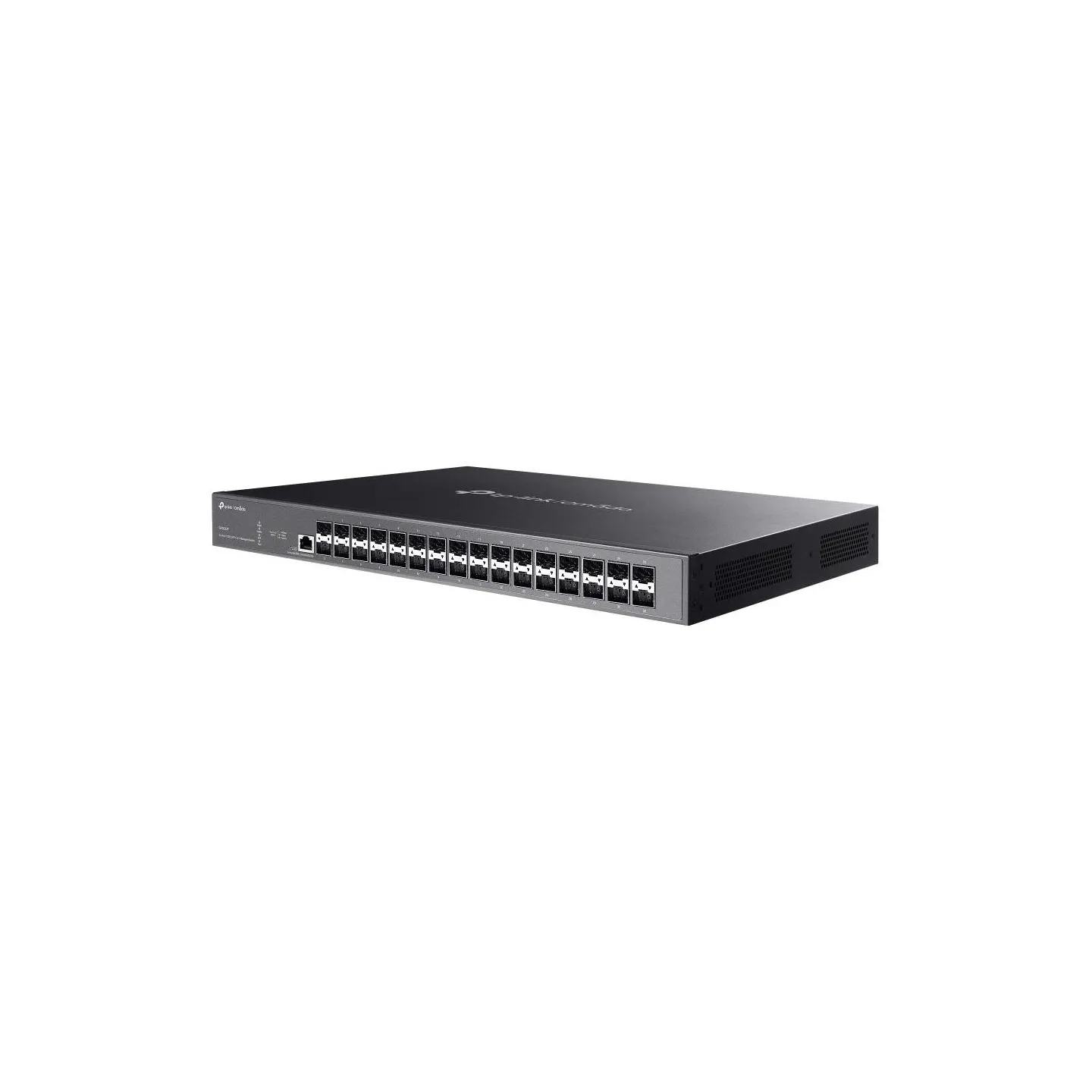

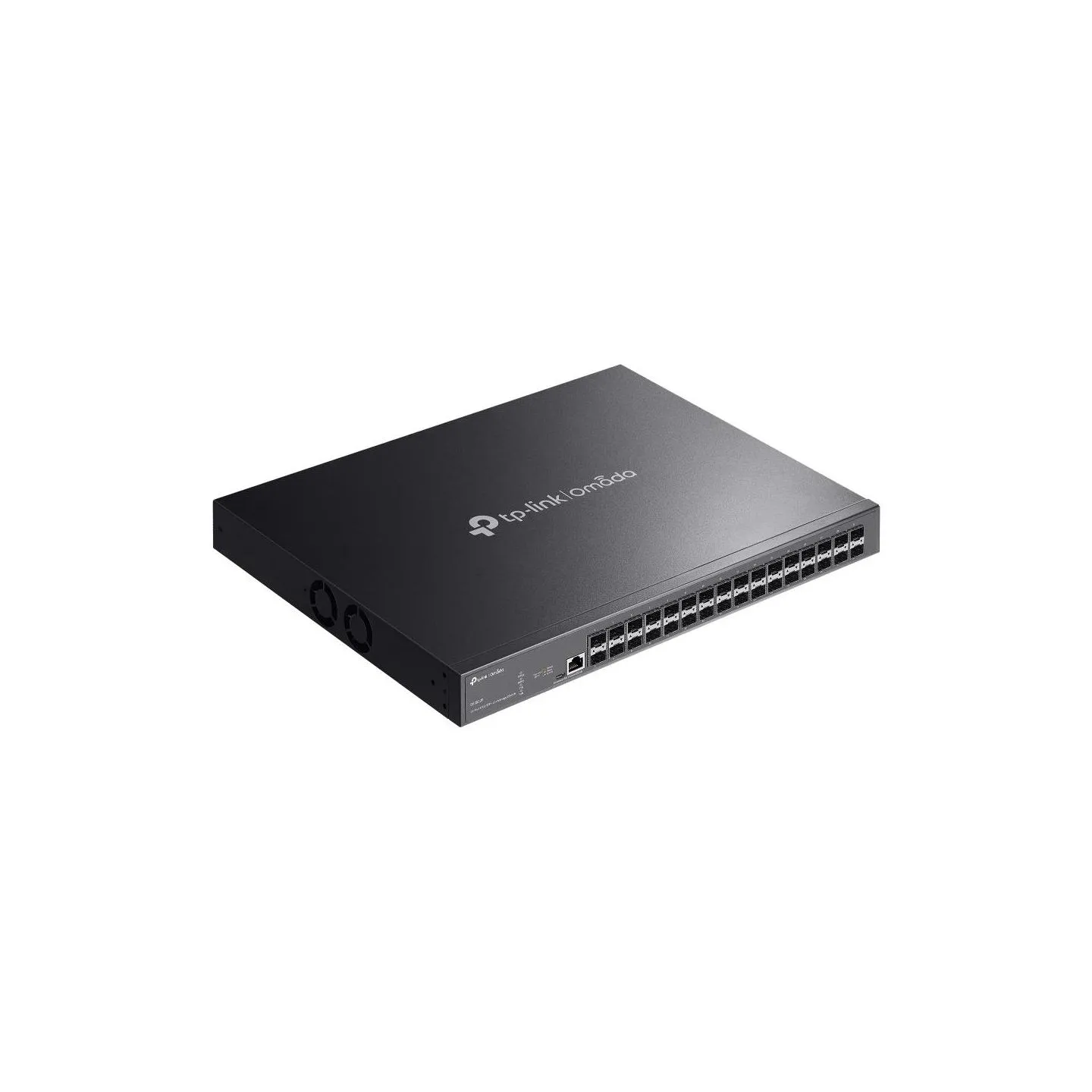

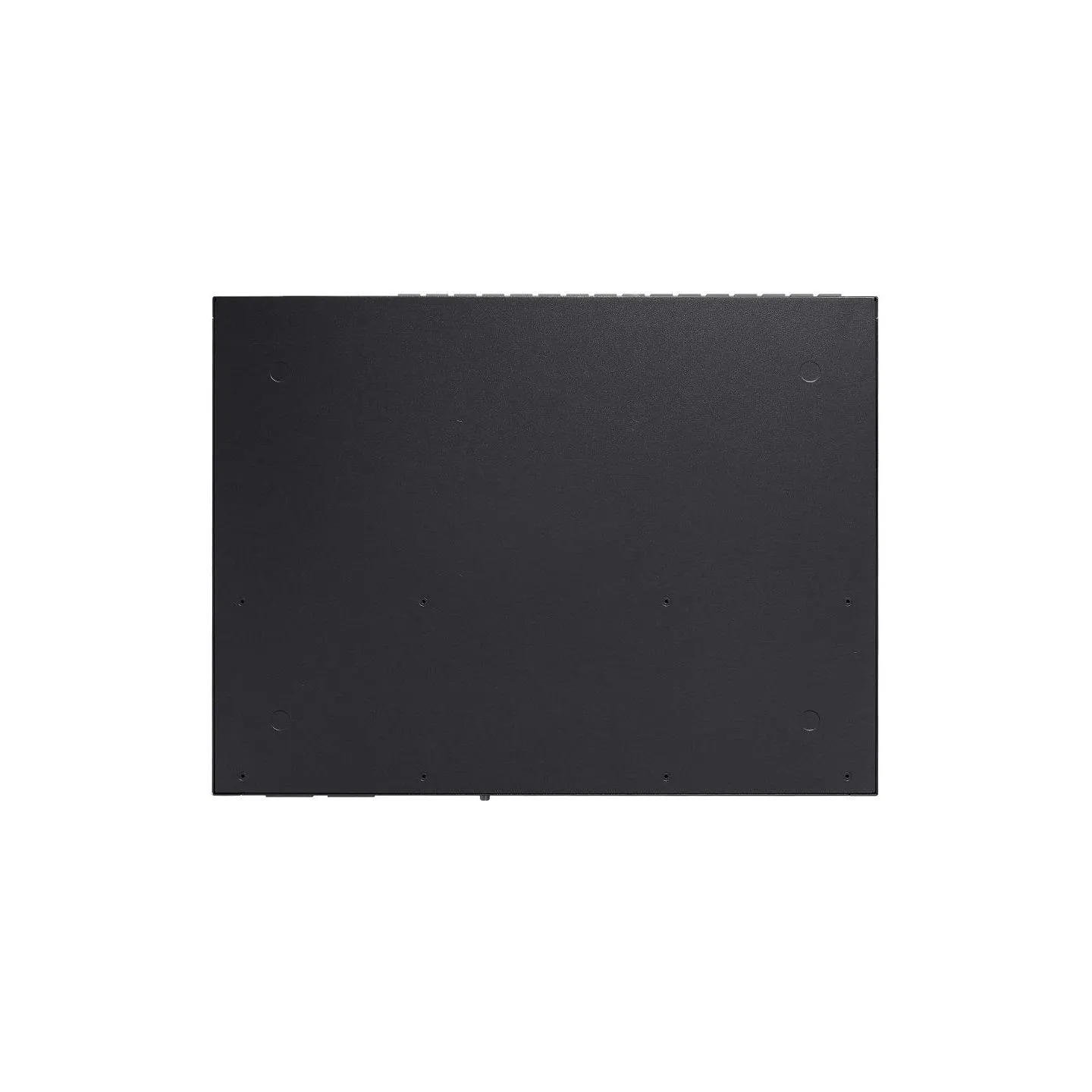

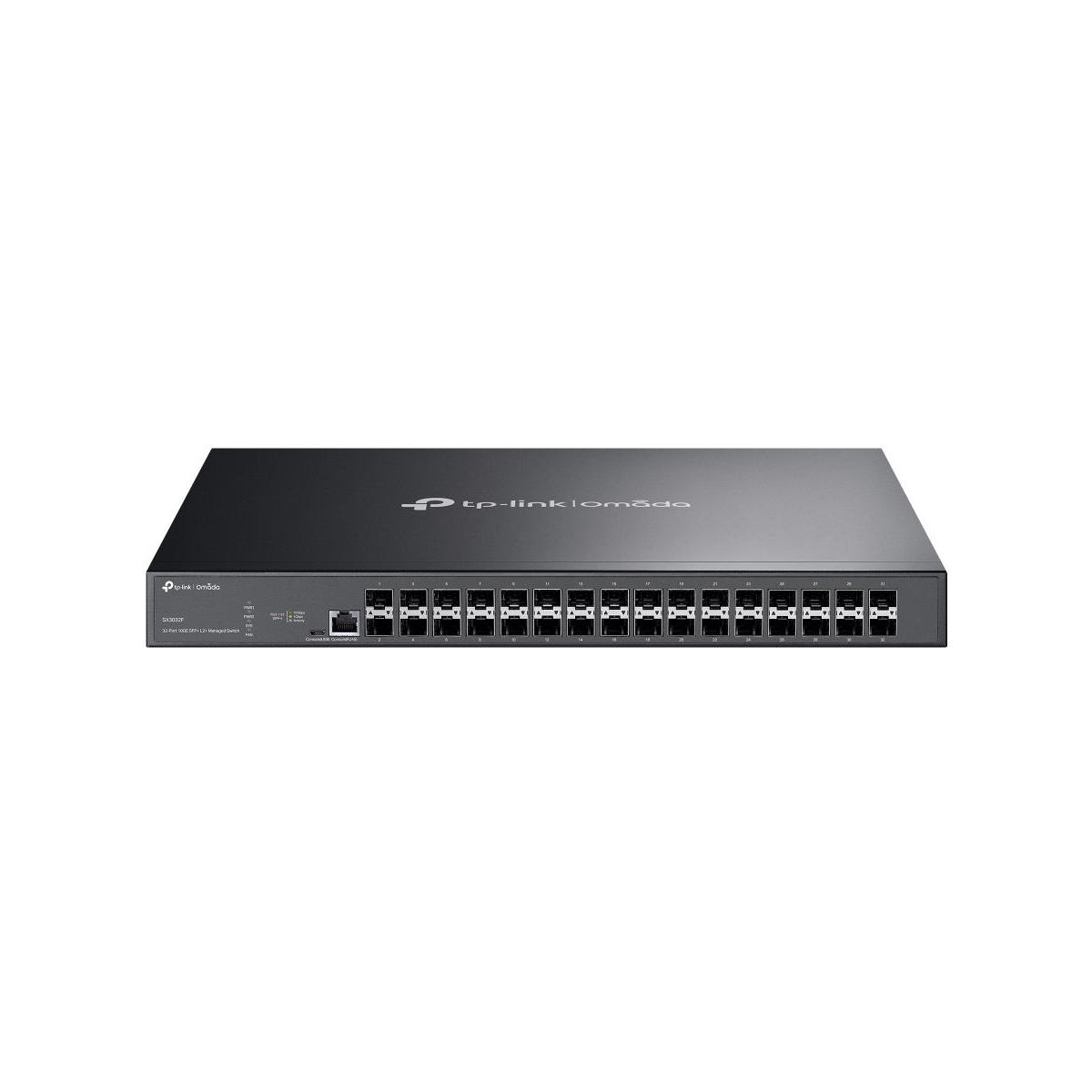

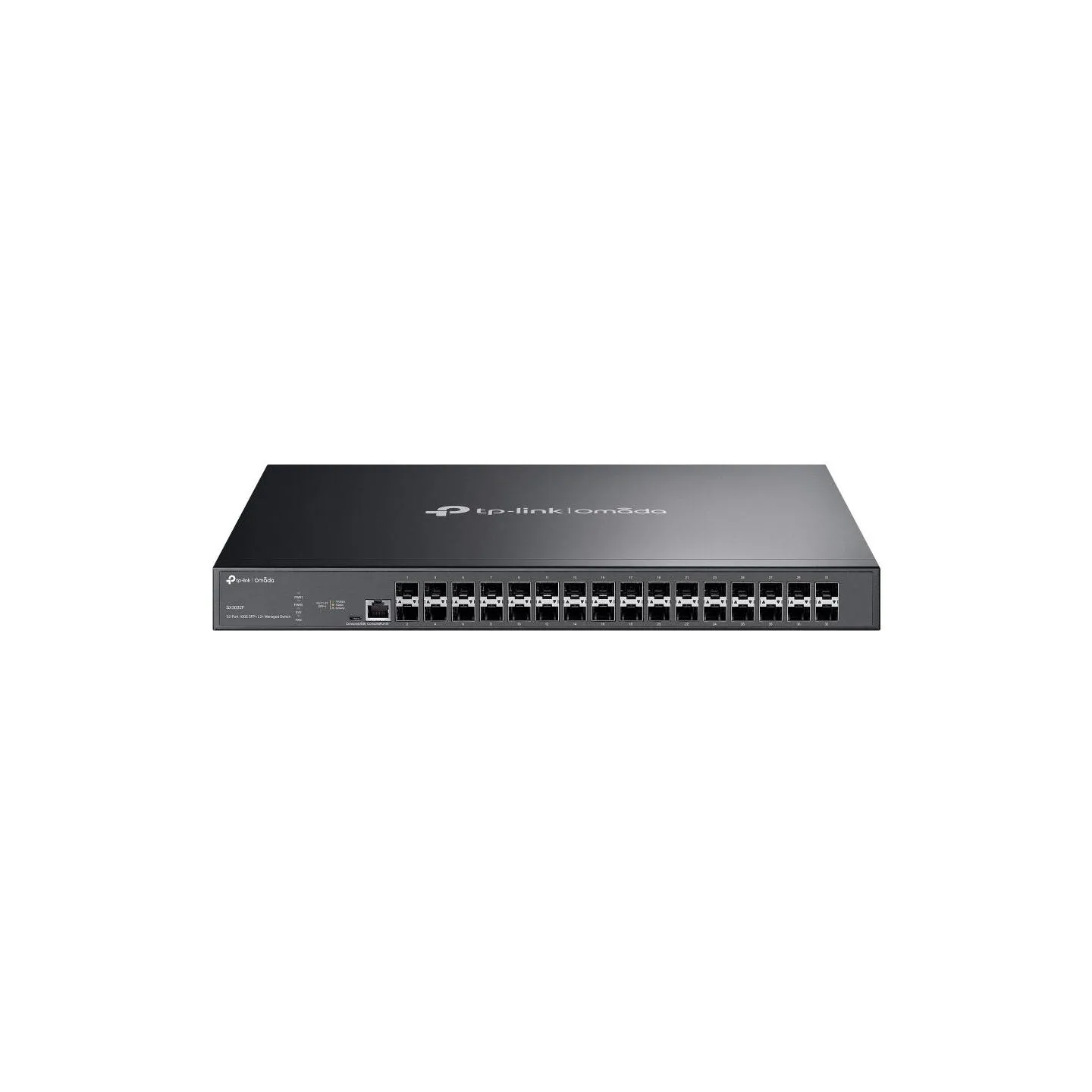

Tp-Link Switch SX3032F 32xSFP+

Name: Tp-Link Switch SX3032F 32xSFP+
Brand: TP-LINK
SKU: SX3032F
Price: 986.47 EUR
Availability: InStock

SKU SX3032F Category Switches

€986.47

Tax included

Share on

Omada 32-Port 10GE SFP+ L2+ Managed Switch

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

32× 10 Gbps SFP+ slots
640 Gbps switching capacity
Two internal fixed power supply modules back each other up
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Manufacturer Website:
https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.1
Unit Box Length: 0.47
Unit Box Width: 0.53
ARP inspection: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
MIB support: MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC26
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 1
Console port: RJ-45/Micro-USB
Installed SFP+ modules quantity: 32
Broadcast storm control: Yes
Flow control support: Yes
IPv4 routes: 48
IPv6 routes: 48
Link aggregation: Yes
Networking standards: IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ah/IEEE 802.3x
Number of VLANs: 30
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Virtual LAN features: Protocol-based VLAN/SSID-based VLAN assignment/Tagged VLAN/VLAN mapping/Voice VLAN
VLAN support: Yes
Forwarding rate: 240 Mpps
Jumbo frames: 9
Jumbo frames support: Yes
MAC address table: 32000 entries
Number of IP interfaces: 128
Number of queues: 8
Number of static routes: 128
Packet buffer memory: 24 MB
Static route: Yes
Switching capacity: 640 Gbit/s
Access Control List (ACL): Yes
Authentication: MAC-based authentication,Port-based authentication
Authentication type: AAA,TACACS+
DHCP features: DHCP relay/DHCP server/DHCPv6 snooping
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Loop protection: Yes
Password protection: Yes
Queue scheduling algorithms: Priority queuing (PQ)/SP/Weighted Round Robin (WRR)
SSH/SSL support: Yes
Static port security: Yes
Multicast Listener Discovery (MLD) snooping: Yes
Multicast support: Yes
Number of multicast groups filtered: 4000
GARP VLAN Registration Protocol (GVRP): Yes
IP Source Guard (IPSG): Yes
IPv4 & IPv6 features: Dual stack IPv4/IPv6/ICMPv6/IPv6 TFTP
Number of fans: 2 fan(s)
Product colour: Black
Rack mounting: Yes
Redundant fans support: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 49.4 W
Power source: AC
Power supply included: Yes
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): -5 - 45 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): 40 - 70 °C
Depth: 330 mm
Height: 44 mm
Width: 440 mm
Cables included: Power
Quick start guide: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Model: Omada
Series: SX3032F
Model name: Omada 32-Port 10GE SFP+ L2+ Managed Switch
Units per Shipping Box: 3
Unit Calculated Volume: 0.030576 cubm
Unit Calculated Weight: 6.65 kg
