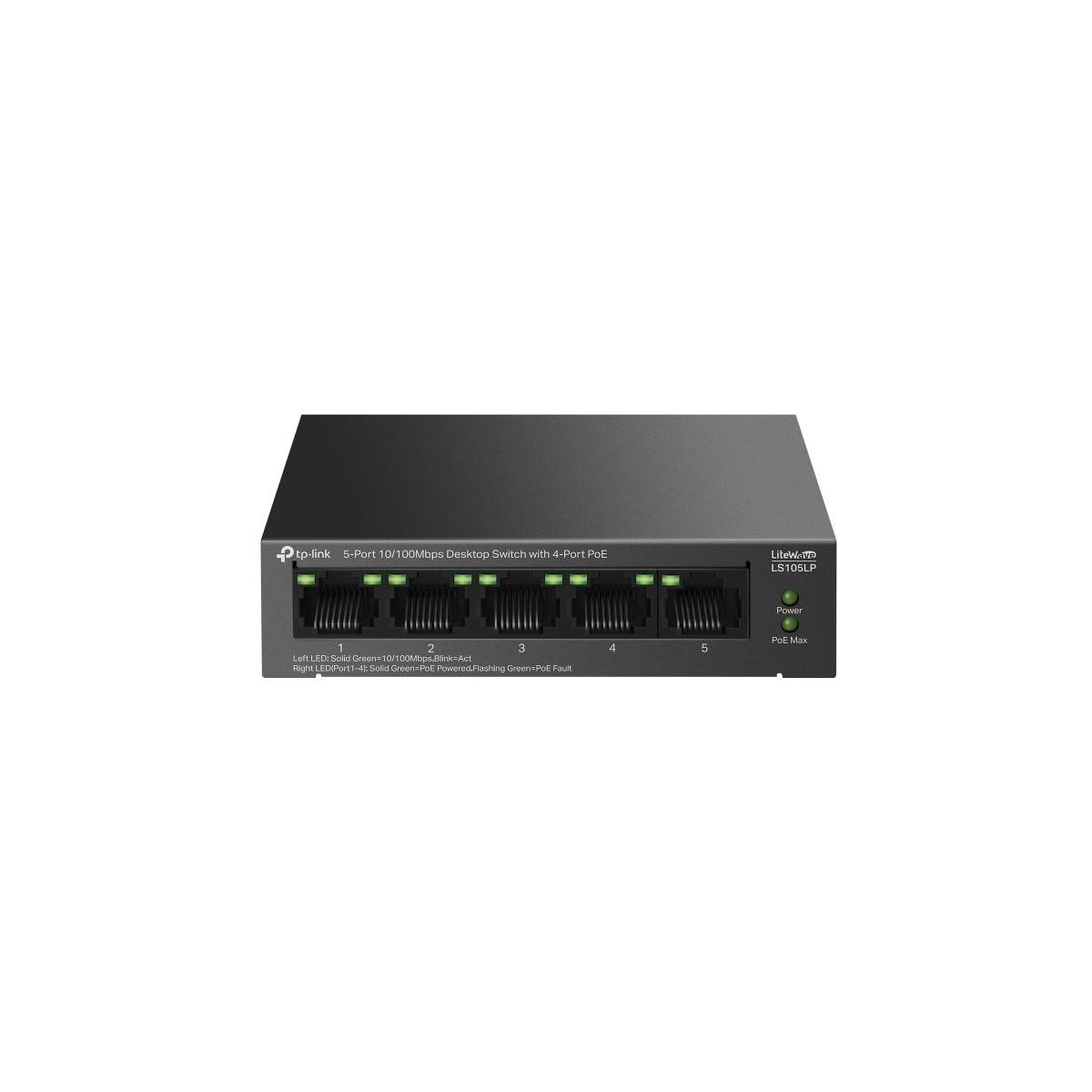

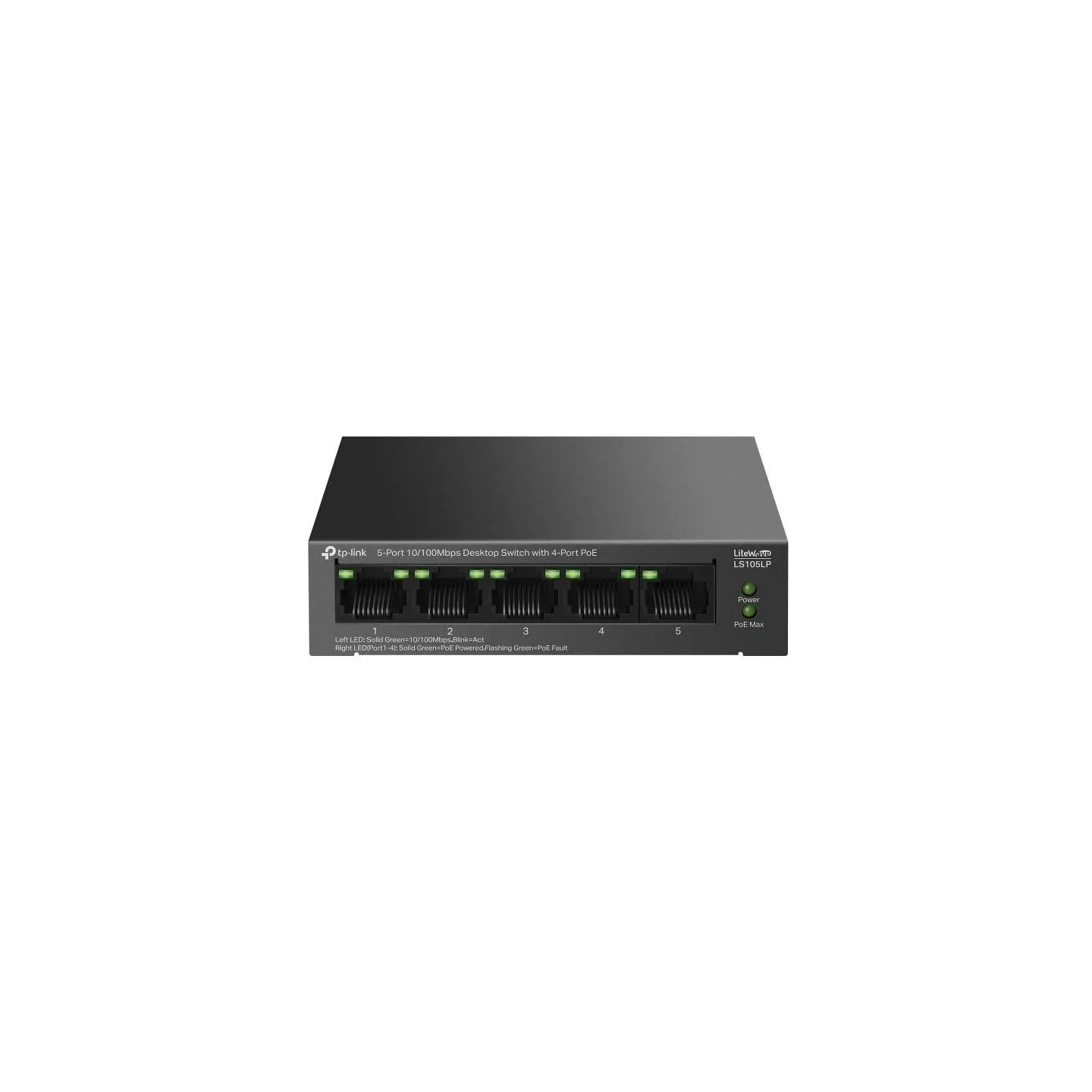

Tp-Link Switch|TP-LINK|LS105LP|PoE ports 4|LS105LP
- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Manufacturer Website:
https://www.tp-link.com/za/business-networking/soho-switch-poe/ls105lp/#overview
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.14
- Unit Box Length
- 0.095
- Unit Box Width
- 0.16
- Quality of Service (QoS) support
- Yes
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e
- Copper ethernet cabling technology
- 100BASE-TX/10BASE-T
- Flow control support
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Forwarding rate
- 0.744 Mpps
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Store-and-forward
- Yes
- Switching capacity
- 1 Gbit/s
- LED indicators
- Yes
- Number of fans
- 0 fan(s)
- Product colour
- Black
- Wall mountable
- Yes
- Fanless
- Yes
- AC input frequency
- 50 Hz
- AC input voltage
- 220 V
- DC input voltage
- 53.5 V
- Input current
- 0.81 A
- Power consumption (max)
- 46.45 W
- Power source
- DC/PoE
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 15.4 W
- Heat dissipation
- 157.93 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 98 mm
- Height
- 25 mm
- Width
- 100 mm
- User guide
- Yes
- Package type
- Box
- Certification
- CE, FCC, RoHS
- Model name
- LS105LP
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.002128 cubm
- Unit Calculated Weight
- 0.49 kg
