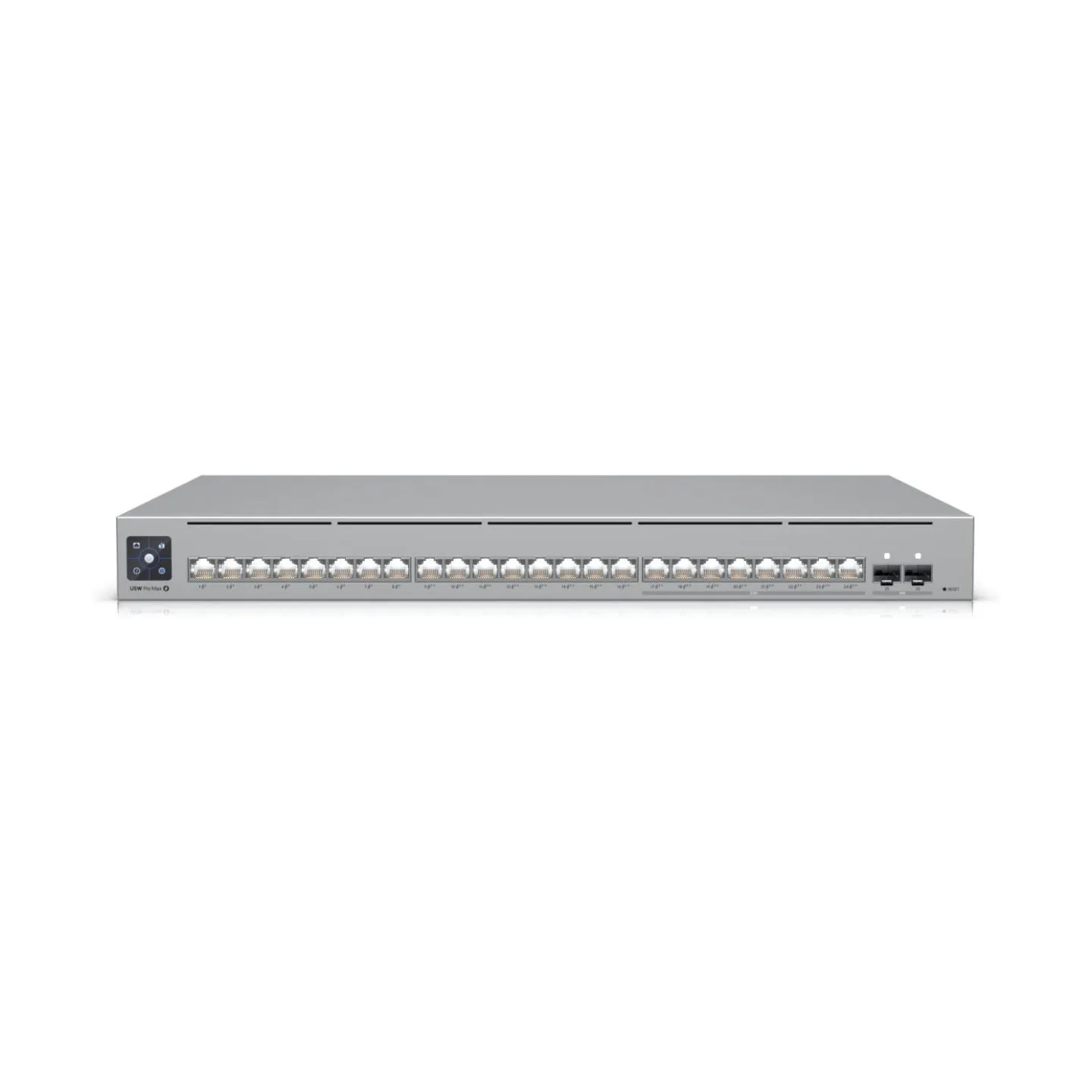

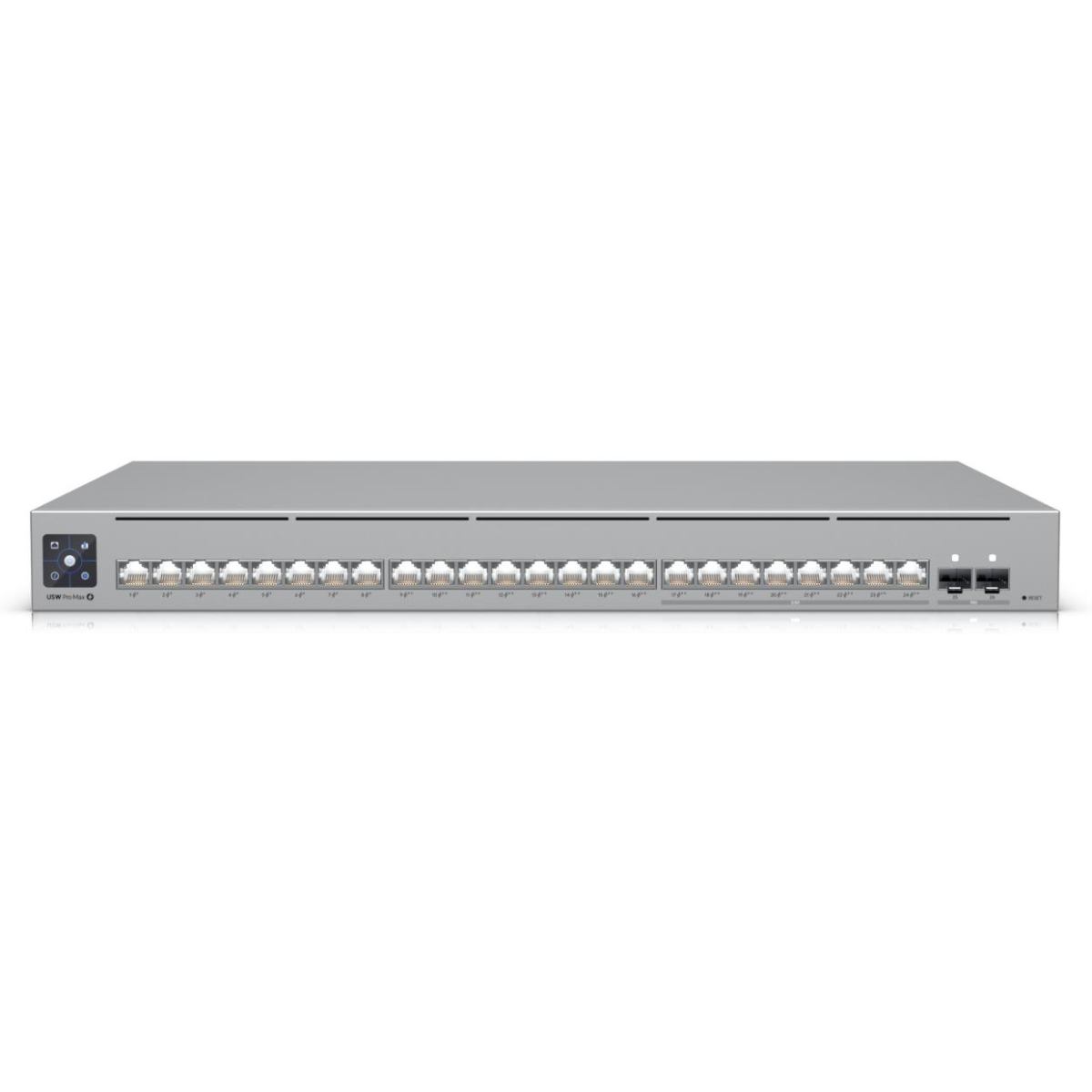

Ubiquiti Switch|UBIQUITI|Pro Max 24 PoE|Type L3|400 Watts|USW-PRO-MAX-24-POE
Price:
€1,023.29
Tax included
Product Comments module (productcomments) must be installed!
Share on
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (8) 2.5 GbE PoE++ ports
- (16) GbE ports including (8) PoE+ and (8) PoE++
- (2) 10G SFP+ ports
- DC power backup ready
- 400W total PoE availability
- Managed with UniFi Network 8.0.24 and later
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/collections/unifi-switching-pro-max/products/usw-pro-max-24-poe
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.435
- Unit Box Length
- 0.52
- Unit Box Width
- 0.12
- Switch layer
- L3
- Switch type
- Managed
- 2.5G Ethernet (copper) ports quantity
- 8
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 16
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 2
- 10G support
- No
- VLAN support
- Yes
- Switching capacity
- 112 Gbit/s
- Throughput
- 56 Gbit/s
- Housing material
- Steel
- LED indicators
- System
- Product colour
- Grey
- Rack mounting
- Yes
- Reset button
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 50 W
- Power source
- AC/DC
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 400 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Depth
- 325 mm
- Height
- 43.7 mm
- Weight
- 5100 g
- Width
- 442.4 mm
- Manual
- Yes
- Certification
- CE, FCC, IC
- Model
- USW-Pro-Max-24-PoE
- Model name
- Pro Max 24 PoE
- Units per Shipping Box
- 2
- Unit Calculated Volume
- 0.03247 cubm
- Unit Calculated Weight
- 6.72 kg
