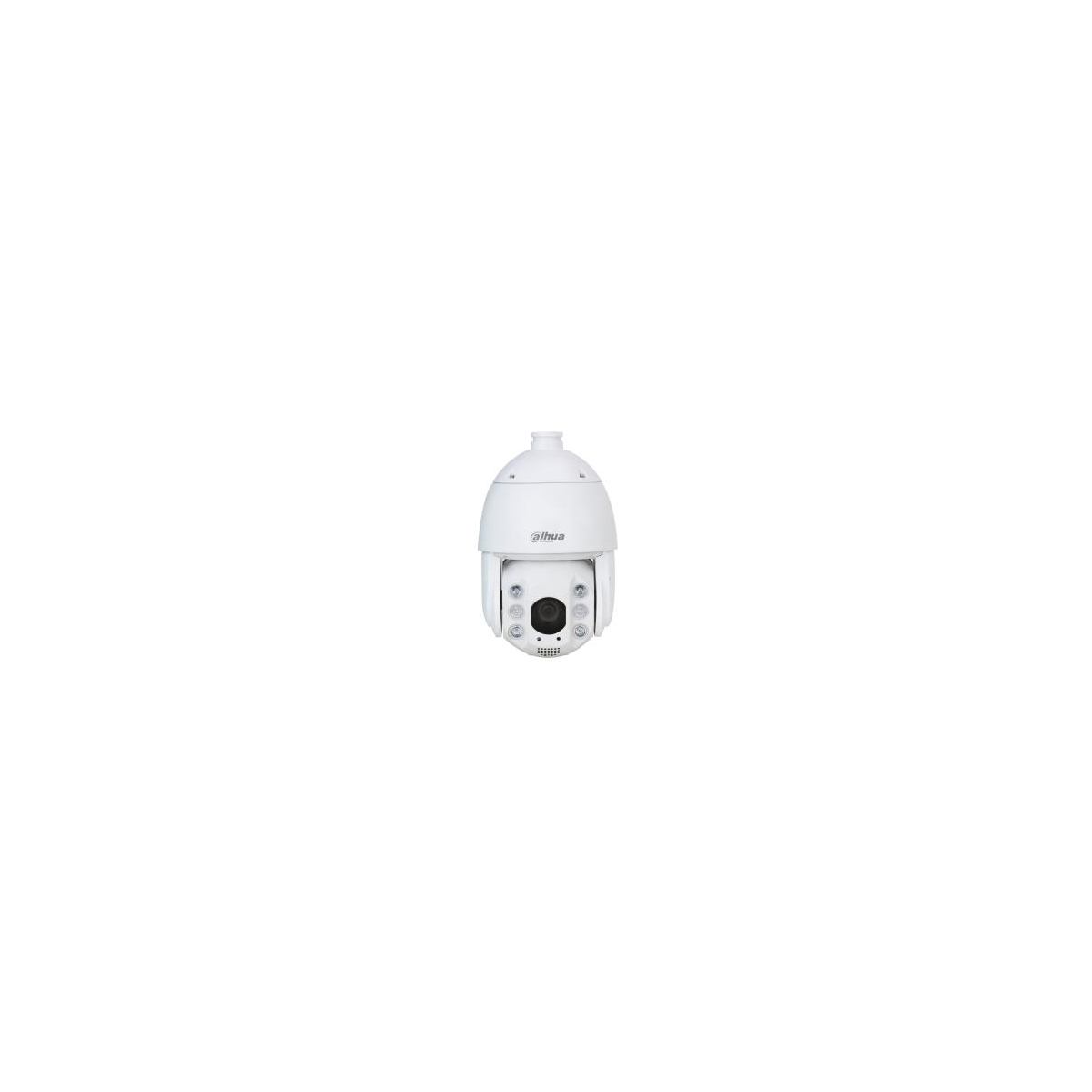

Dahua NET CAMERA 8MP PTZ DOME/SD6C3825GA-HNR-A-PV1 DAHUA
Dahua NET CAMERA 8MP PTZ DOME/SD6C3825GA-HNR-A-PV1 DAHUA

Dahua NET CAMERA 8MP PTZ DOME/SD6C3825GA-HNR-A-PV1 DAHUA

SKU SD6C3825GA-HNR-A-PV1 Category IP Cameras
Price: €1,411.68
Tax included
Last items in stock
Add to Cart
Share on

  • 1/1.8" 8Megapixel STARVIS™ CMOS
  • 25× optical zoom
  • Starlight technology
  • Max. 25/30 fps@8M
  • IR distance up to 150 m
  • Auto-tracking 3.0
  • Perimeter protection
  • Face detection
  • SMD 4.0
  • Full-color illuminator; red and blue warning light
  • IP66
  • PoE (802.3at)



Manufacturer Website:
https://www.dahuasecurity.com/products/All-Products/Discontinued-Products/PTZ-Cameras/SD6C3825GA-HNR-A-PV1

Category Code
FNC
CnCode
85258900
Unit Box Height
0.45
Unit Box Length
0.265
Unit Box Width
0.26
Form factor
Dome
International Protection (IP) code
IP66
Mounting type
Ceiling/wall
Product colour
White
Auto patrol mode
Yes
Auto-tracking
Yes
Certification
CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
Connectivity technology
Wired
Day/night mode
Yes
Placement supported
Outdoor
PTZ control
Yes
PTZ modes
5 Pattern/5 Scan/8 Tour/Preset point
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Camera shutter speed
1/1 - 1/30000 s
Camera shutter type
Electronic
Lens viewing angle, diagonal
66.6 - 4 °
Lens viewing angle, horizontal
61.6 - 3.6 °
Lens viewing angle, vertical
35.7 - 2 °
Minimum illumination
0.0001 lx
Number of Privacy masking areas
24
White balance
Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Number of sensors
1
Optical sensor size
1/1.8 "
Sensor type
CMOS
Auto focus
Yes
Closest focusing distance
2 m
Digital zoom
16 x
Focal length range
5.4 - 135 mm
Focus
Manual
Maximum aperture number
1.6
Minimum aperture number
4
Number of lenses
1
Optical zoom
25 x
Zoom capability
Yes
Night vision
Yes
Back Light Compensation (BLC)
Yes
Bit rate control
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate
30 fps
Gain control type
Auto/Manual
Highlight Compensation (HLC)
Yes
Image stabilizer
Yes
Maximum resolution
3840 x 2160 pixels
Noise reduction
Yes
Noise reduction technology
2D noise reduction,3D noise reduction
Region of Interest (ROI) encoding
Yes
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels
8 MP
Video compression formats
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming
Yes
Bit rate range
51 - 12288 Kbit/s
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Streaming method
Multicast/Unicast
Supported network protocols
FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;R TP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP; UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Wi-Fi
No
Built-in HDD
No
RAM capacity
1024 MB
ROM capacity
4096 MB
Alarm input channels
1
Alarm output channels
1
Video motion detection
Yes
Cloud-managed
Yes
Power consumption (max)
23 W
Power consumption (typical)
13 W
Power source type
DC,PoE
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
-40 - 70 °C
Depth
202 mm
Height
325.3 mm
Weight
4600 g
Width
202 mm
Package weight
7130 g
Number of cameras
1
Model
SD6C3825GA-HNR-A-PV1
Units per Shipping Box
1
Unit Calculated Volume
0.03101 cubm
Unit Calculated Weight
6.8 kg
Category IP Cameras Brand DAHUA EAN13 6923172570475 In stock 1 Item
