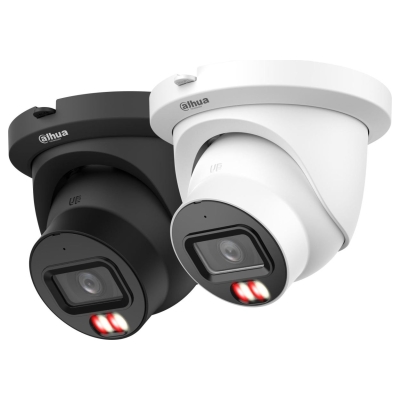

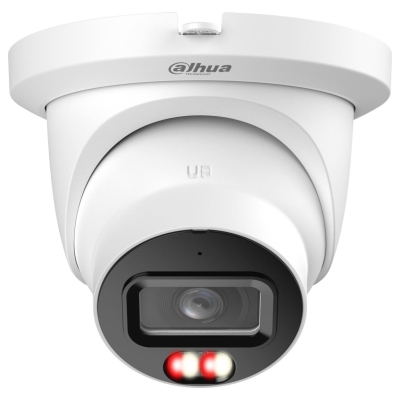

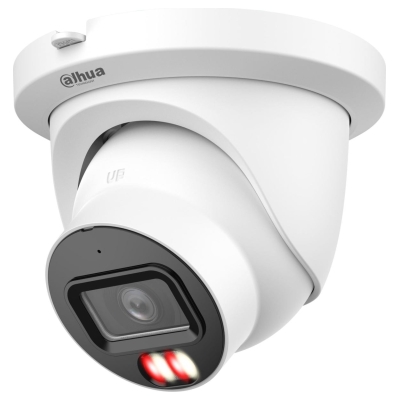

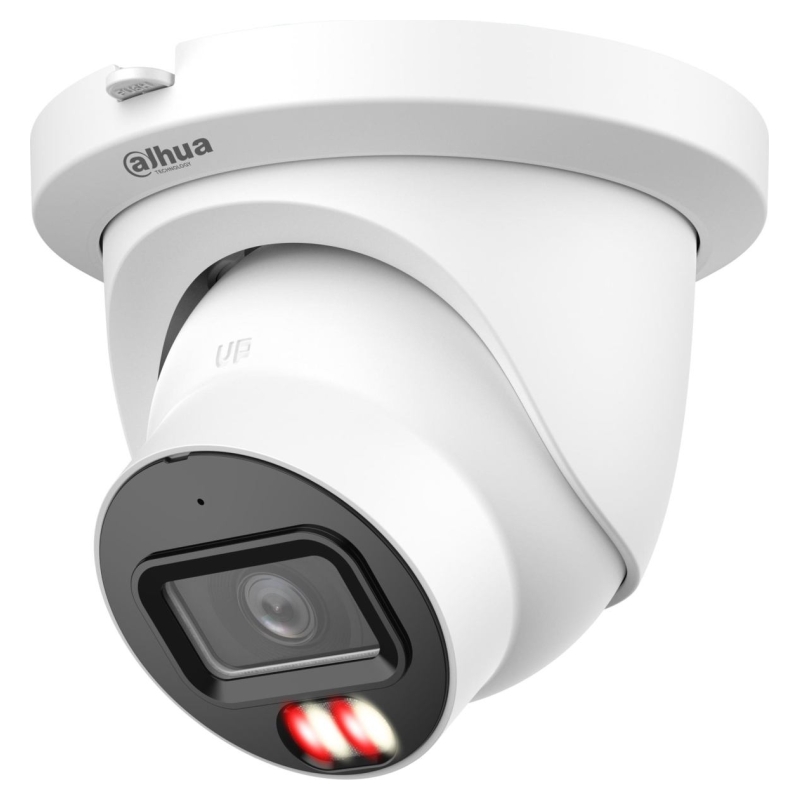

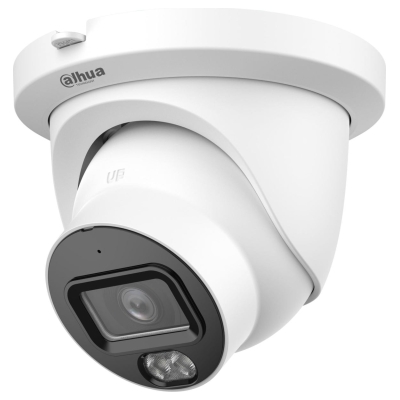

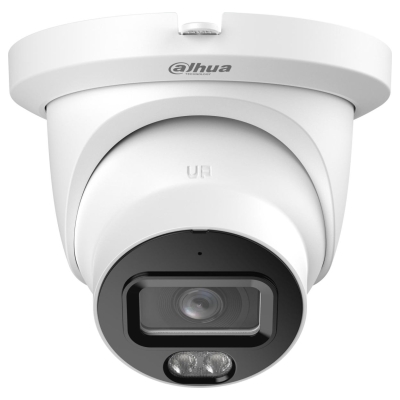

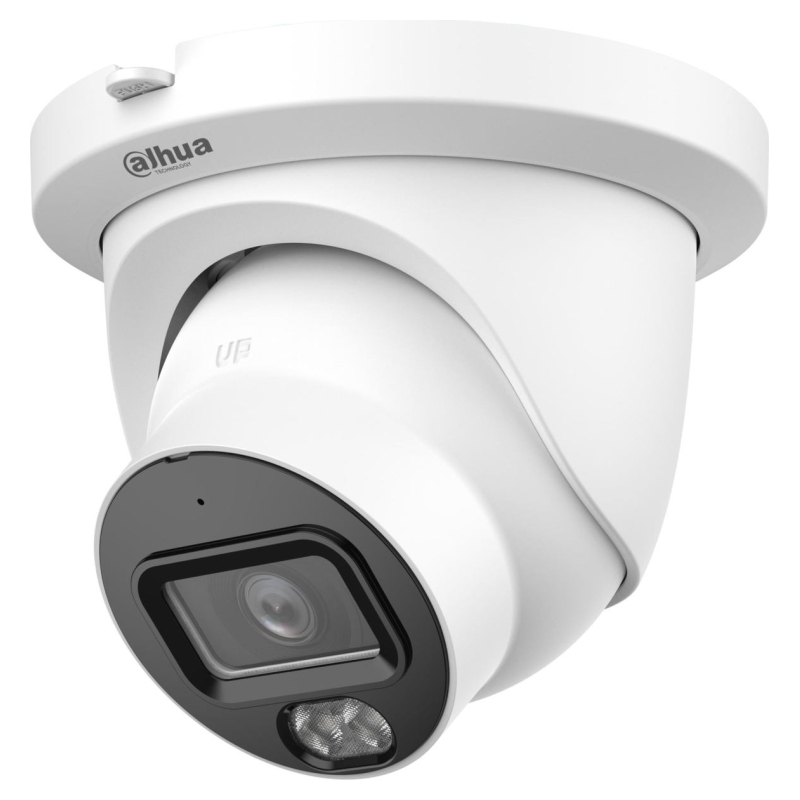

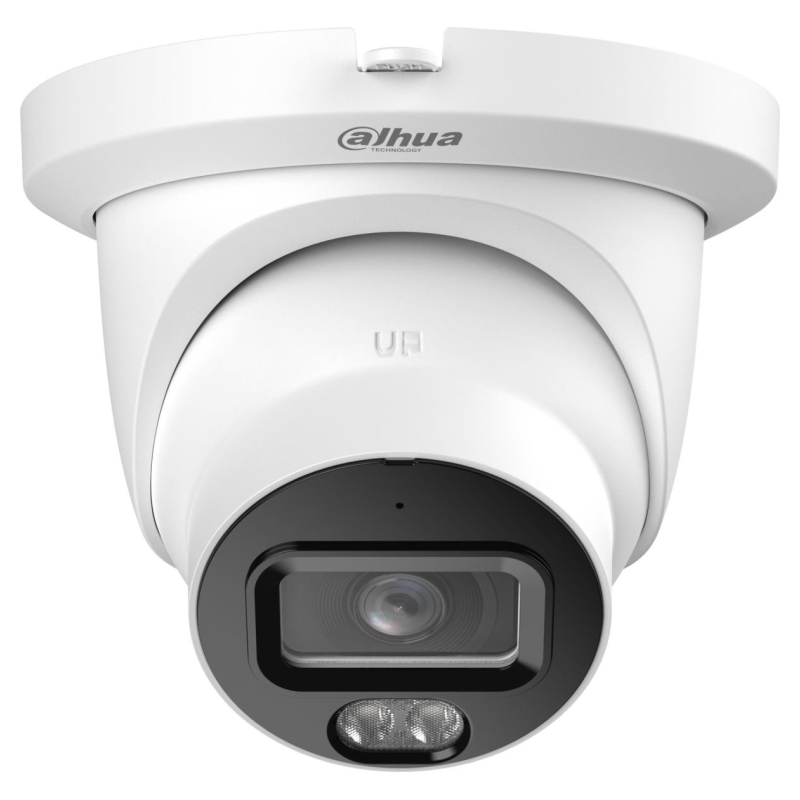

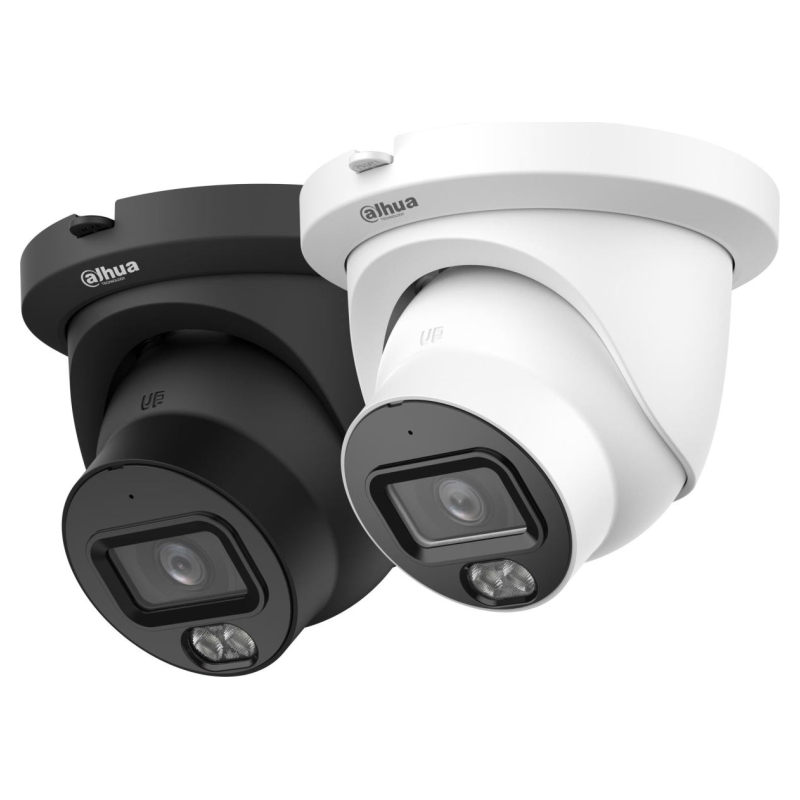

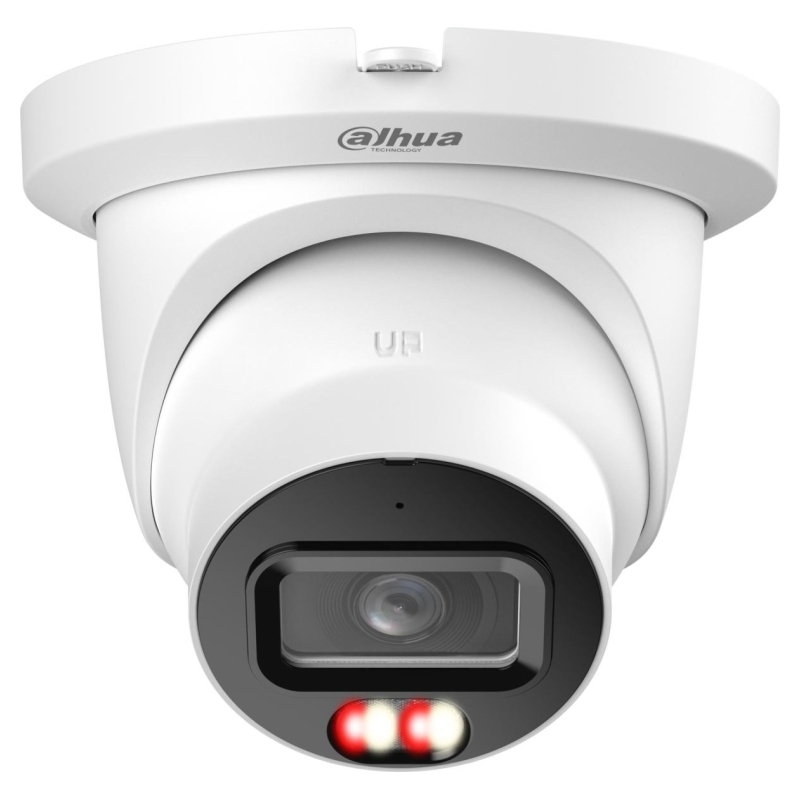

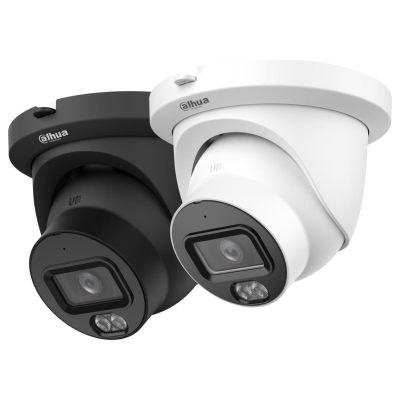

Dahua NET CAMERA 5MP EYEBALL/HDW5559TM-ASE-IL-0360B DAHUA

Dahua NET CAMERA 5MP EYEBALL/HDW5559TM-ASE-IL-0360B DAHUA

Write a review

€308.99

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2960 × 1668) @25/30 fps.
Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
12 VDC/PoE power supply; ePoE
IP67 protection.

Manufacturer Website:
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDW5559TM-ASE-IL

Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.14
Unit Box Width: 0.15
Form factor: Turret
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Ceiling
Product colour: White
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 56 dB
People counting function: Yes
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 360 °
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/100000 s
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, diagonal: 127.1 °
Lens viewing angle, horizontal: 108.4 °
Lens viewing angle, vertical: 60 °
Minimum illumination: 0.0005 lx
Pan range: 0 - 360 °
Tilt angle range: 0 - 80 °
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optical sensor size: 1/2.7 "
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 3.2 m
Detect distance: 124 m
Fixed focus: Yes
Focal length range: 6 - 2.8 mm
Identify distance: 12.4 m
Maximum aperture number: 1.6
Observe distance: 49.6 m
Recognize distance: 24.8 m
LED type: IR/White
Night vision: Yes
Night vision distance: 50 m
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2960 x 1668 pixels
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Total megapixels: 5 MP
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Video streaming: Yes
Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Built-in microphone: Yes
Bluetooth: No
Ethernet LAN: Yes
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1000 GB
RAM capacity: 2000 MB
ROM capacity: 4000 MB
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
Digital watermark: Yes
HTTPS encryption: Yes
Human and vehicle targets classification: Yes
Intelligent Video Surveillance (IVS) system features: Face detection/Heat map/Human detection/Intrusion/People counting/Tripwire
Mirror: Yes
Network access storage (NAS): Yes
Video motion detection: Yes
Cloud-managed: No
DC output voltage: 12
Power consumption (max): 13.3 W
Power consumption (Power over Ethernet (PoE)): 6.3 W
Power consumption (typical): 4.2 W
Power source type: DC,PoE
Operating relative humidity (H-H): 0 - 95 %
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Mobile operating systems supported: Android/iOS
Diameter: 122 mm
Height: 105.5 mm
Weight: 530 g
Compliance certificates: CE/Electromagnetic Compatibility (EMC)
Package type: Box
Package weight: 710 g
Manual: Yes
Number of cameras: 1
Audio input: RCA
Audio output: RCA
Browser supported: IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88
Lens mount interface: M12
Number of video streams: 4
Units per Shipping Box: 1
Unit Calculated Volume: 0.00294 cubm
Unit Calculated Weight: 0.78 kg
