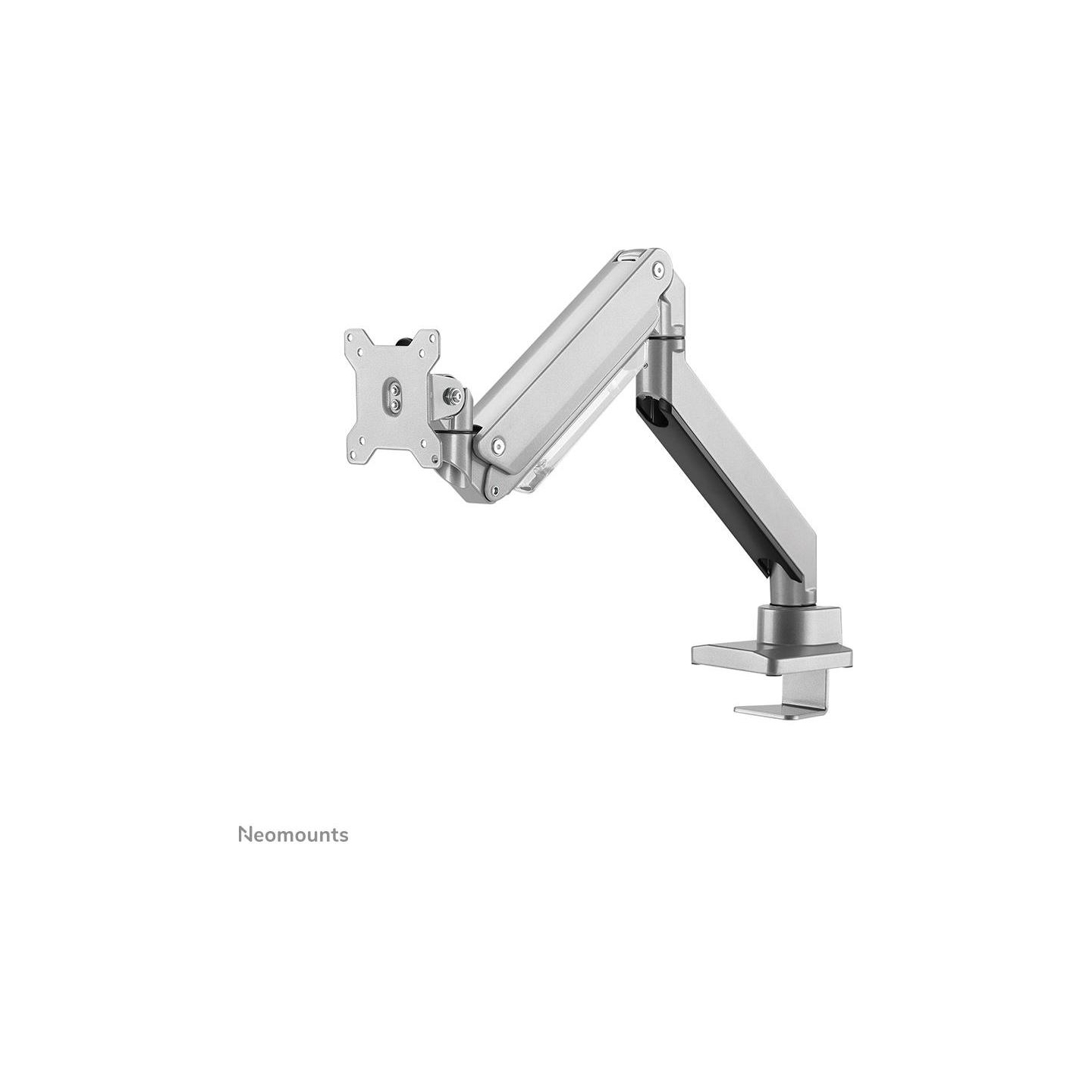

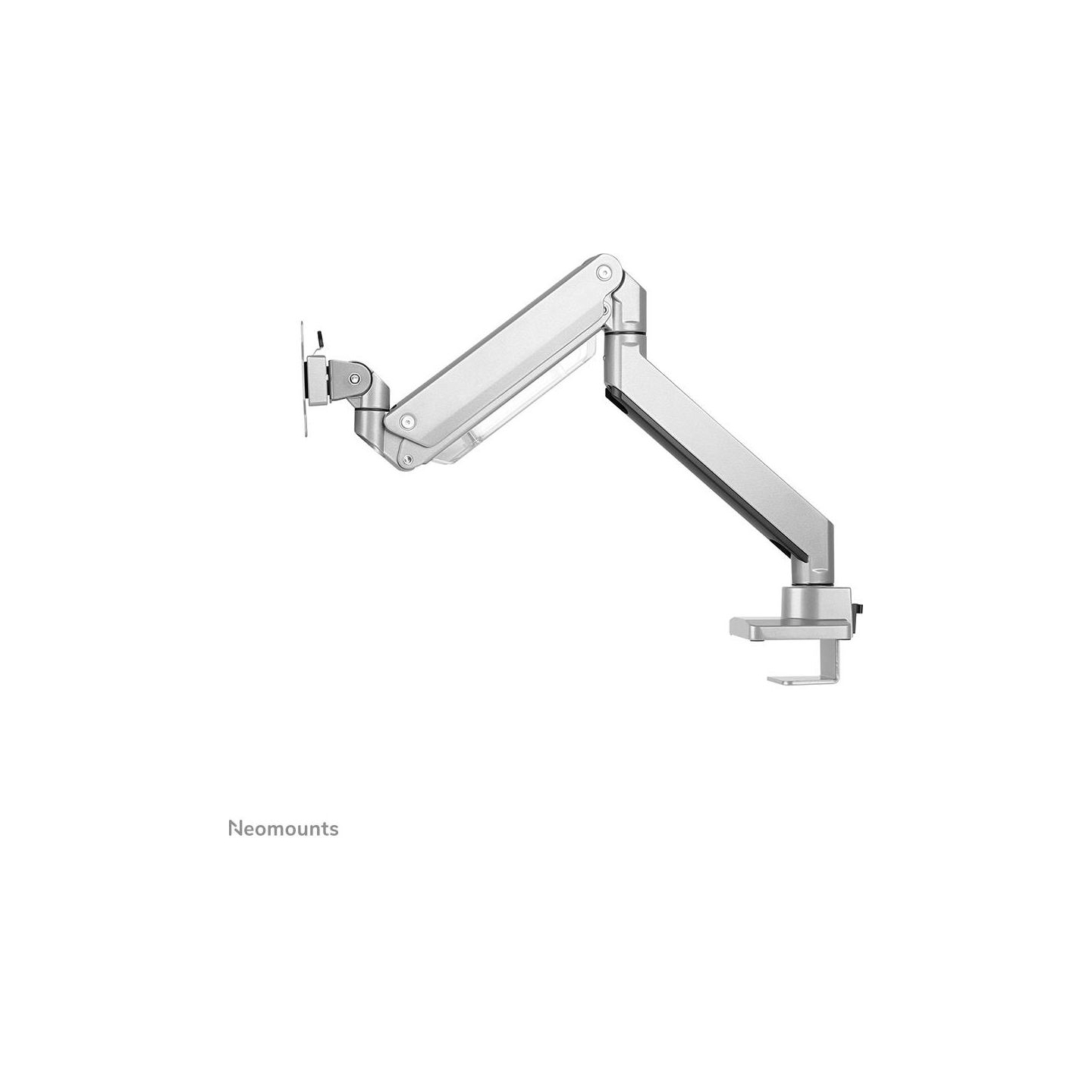

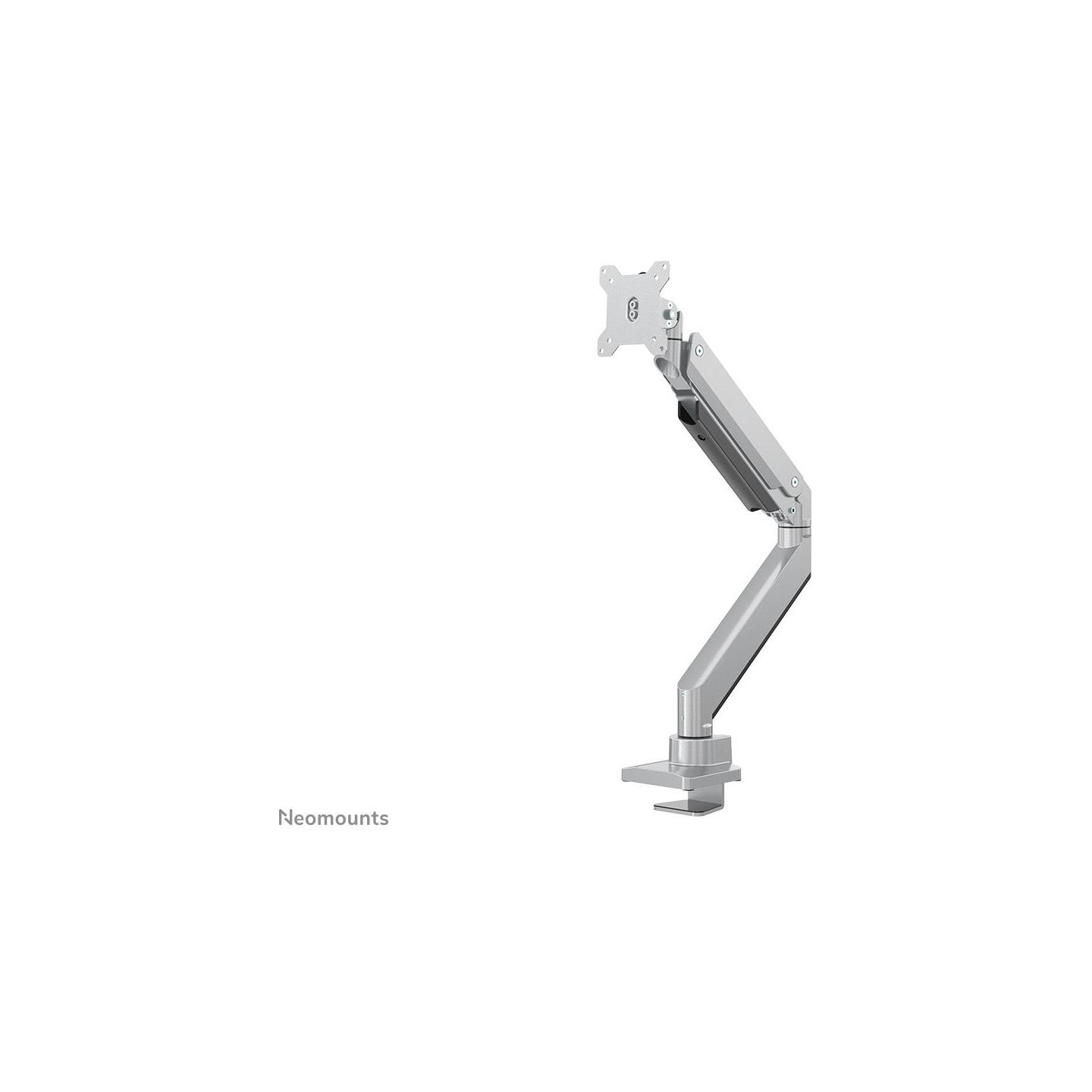

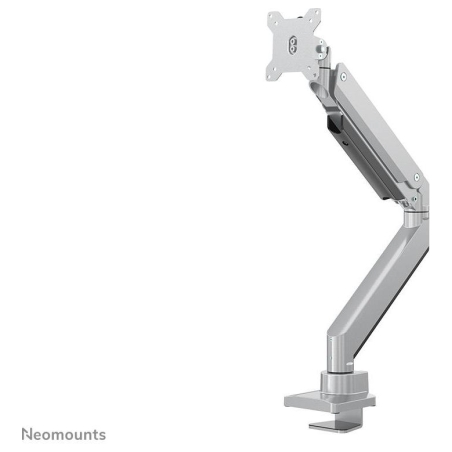

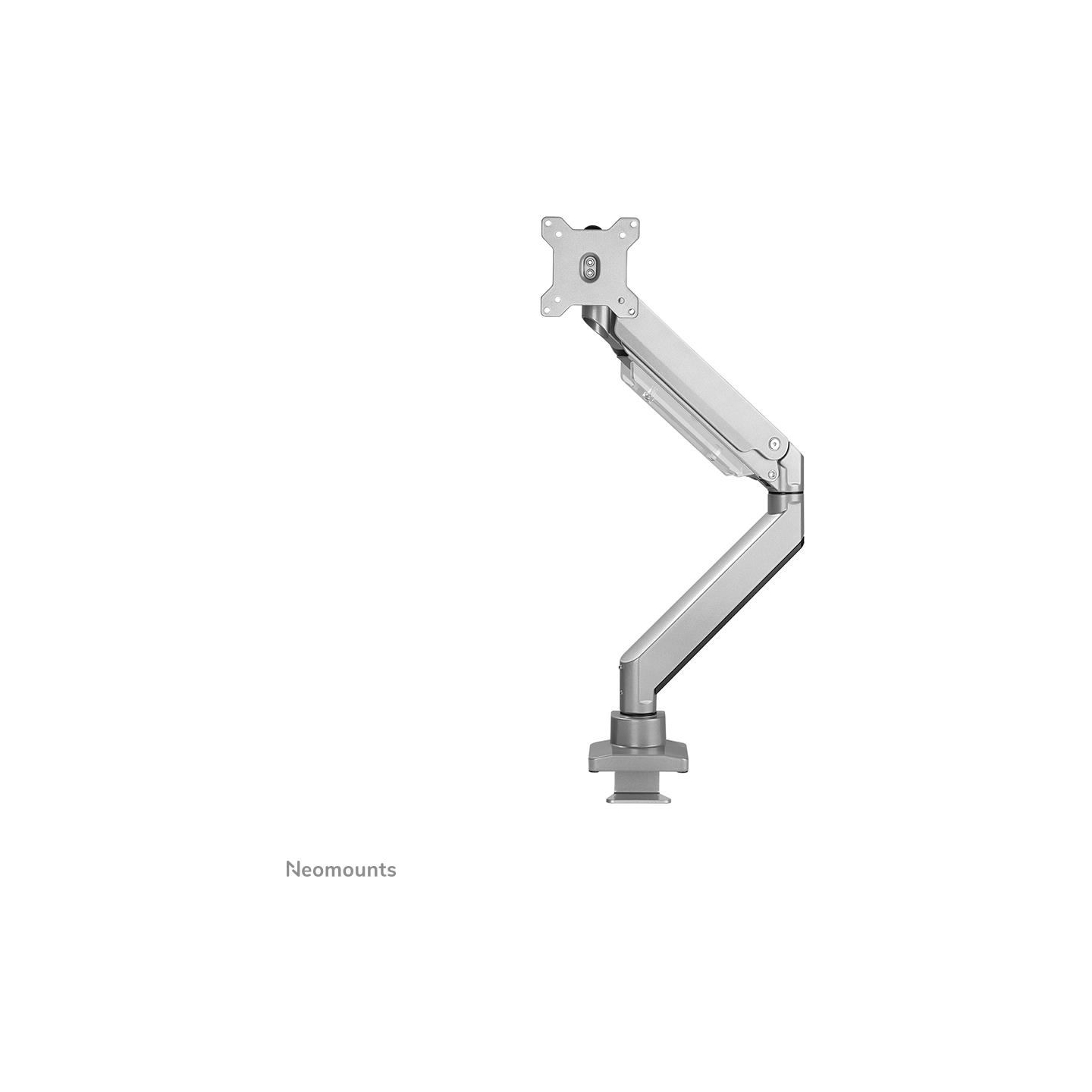

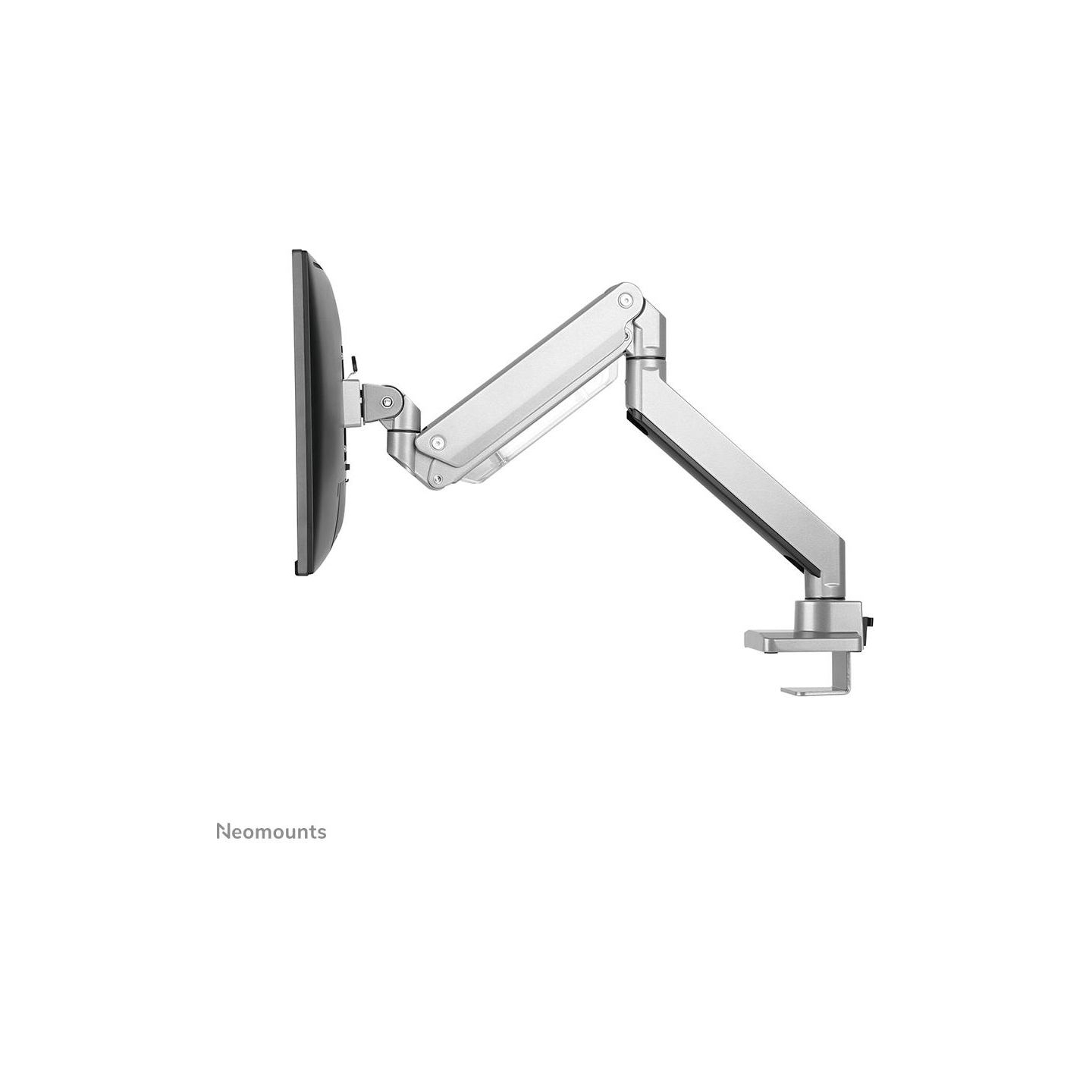

Neomounts MONITOR ACC DESK MOUNT 10-49"/NM-D775SILVERPLUS NEOMOUNTS

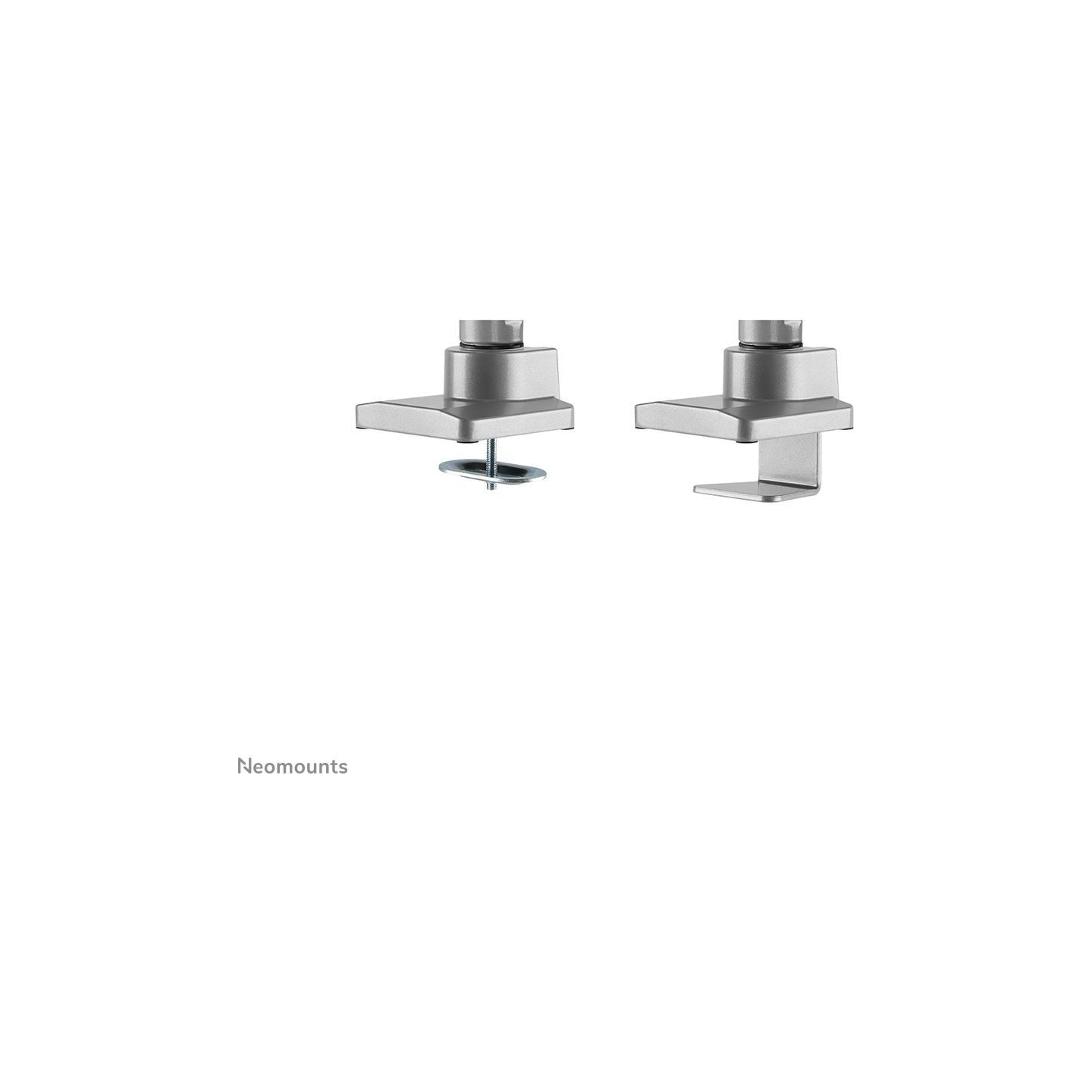

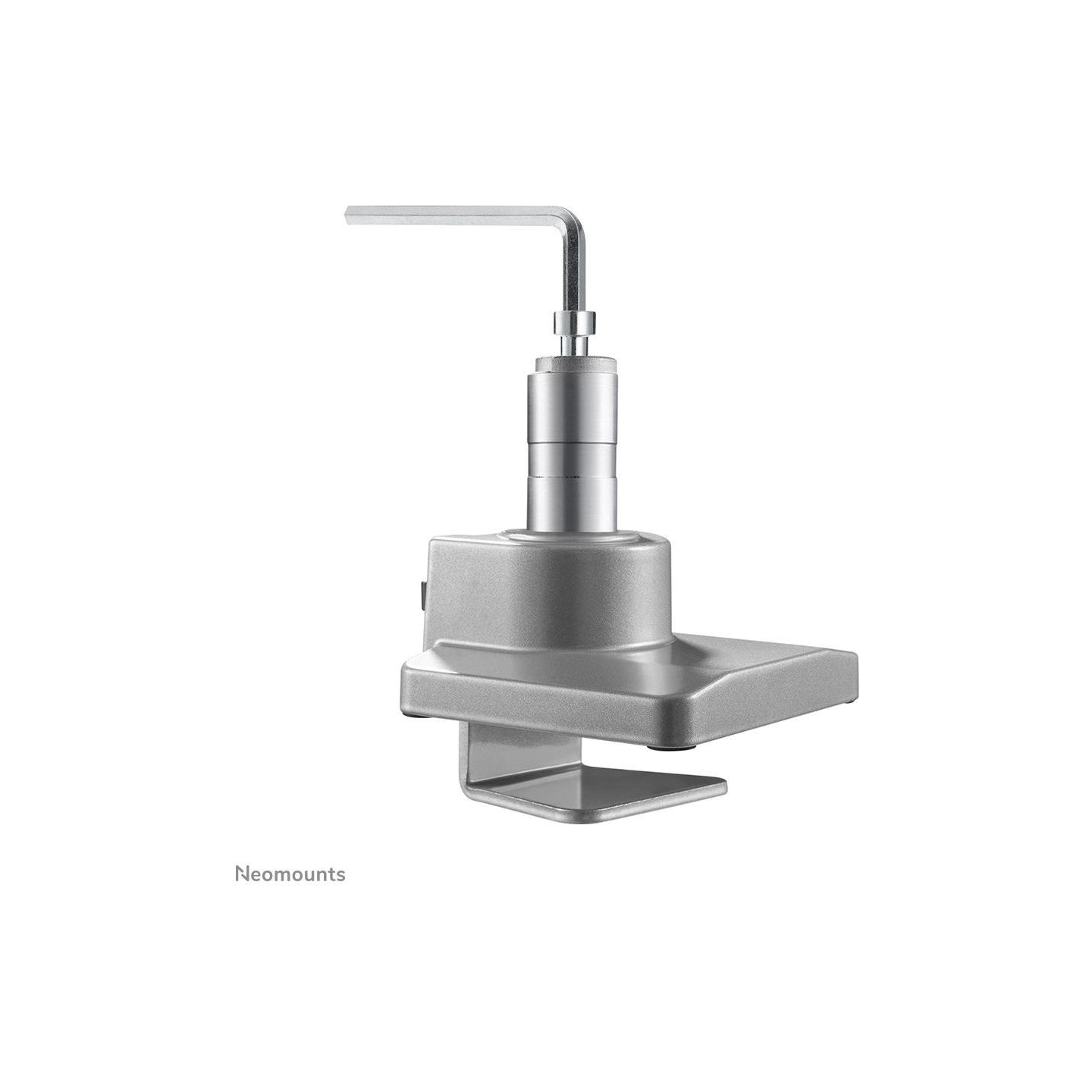

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

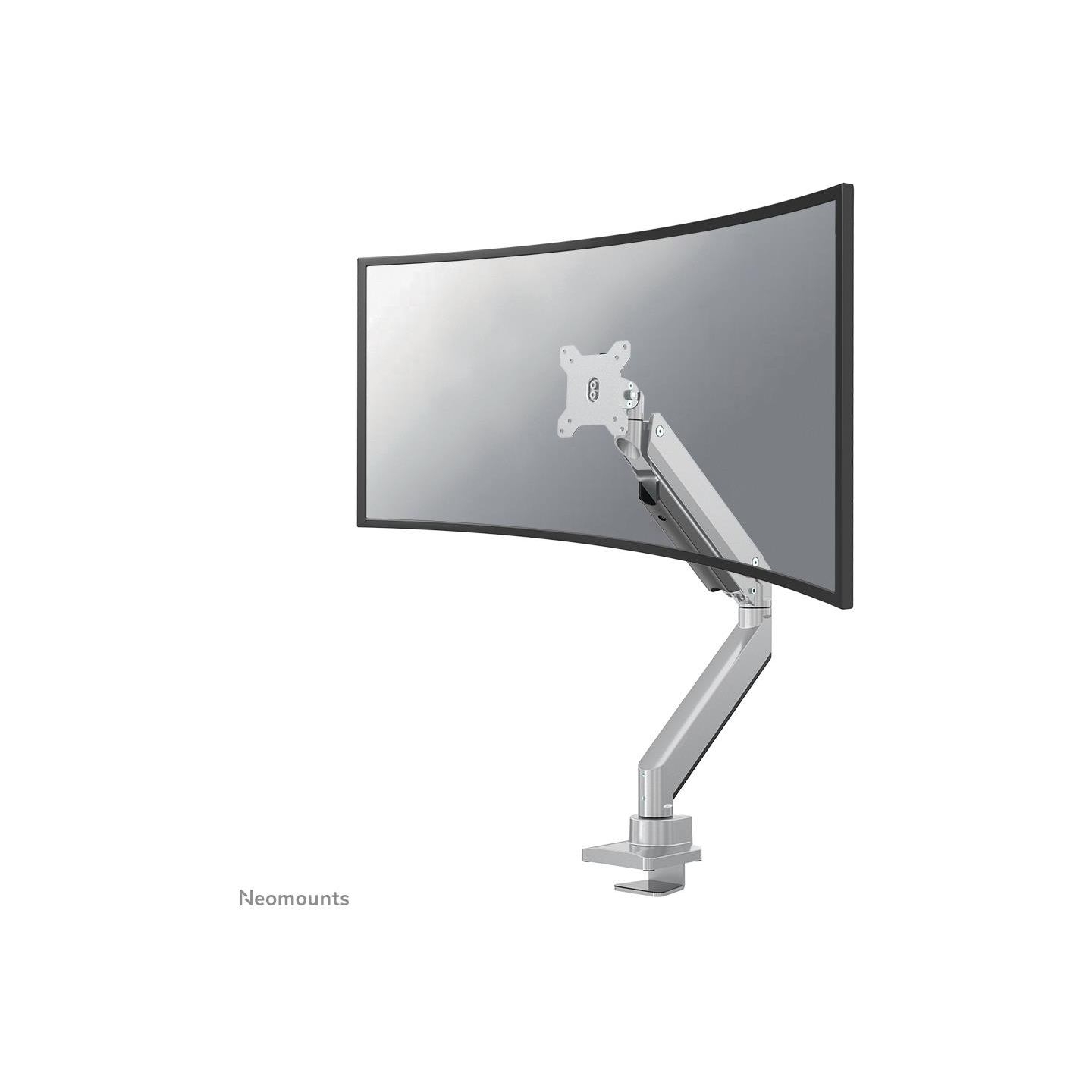

The NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.
A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775SILVERPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.
Manufacturer Website:
https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D775SILVERPLUS
- Category Code
- MAS
- CnCode
- 83021000
- Unit Box Height
- 0.125
- Unit Box Length
- 0.555
- Unit Box Width
- 0.245
- Desk thickness (max)
- 45 mm
- Desk thickness (min)
- 10 mm
- Maximum screen size
- 49 "
- Maximum VESA mount
- 100 x 100 mm
- Maximum weight capacity
- 18 kg
- Maximum weight capacity (per curved/ultra-wide display)
- 14 kg
- Maximum weight capacity (per display)
- 18 kg
- Minimum screen size
- 10 "
- Minimum VESA mount
- 75 x 75 mm
- Mounting
- Clamp/Grommet
- Mounting type
- Desk
- Number of displays supported
- 1
- Panel mounting interface
- 100 x 100/75 x 75 mm
- Adjustable depth
- Yes
- Angle of rotation
- 180 °
- Cable management
- Yes
- Depth adjustment range
- 0 - 630 mm
- Height adjustment
- Yes
- Height adjustment range
- 270 - 600 mm
- Height adjustment type
- Gas spring
- Rotating
- Yes
- Swivel angle
- 360 °
- Swivel angle range
- 0 - 360 °
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- -45 - 45 °
- Housing material
- Steel
- Product colour
- Silver
- Depth
- 630 mm
- Height
- 600 mm
- Weight
- 3910 g
- Package depth
- 123 mm
- Package height
- 555 mm
- Package net weight
- 5200 g
- Package weight
- 5200 g
- Package width
- 240 mm
- Minimum weight
- 1 kg
- Country of origin
- China
- Harmonized System (HS) code
- 7326909890
- Master (outer) case gross weight
- 5200 g
- Master (outer) case height
- 575 mm
- Master (outer) case length
- 265 mm
- Master (outer) case net weight
- 4600 g
- Master (outer) case width
- 500 mm
- Products per master (outer) case
- 4 pc(s)
- Products per pallet (EU)
- 72 pc(s)
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.017 cubm
- Unit Calculated Weight
- 4.95 kg
