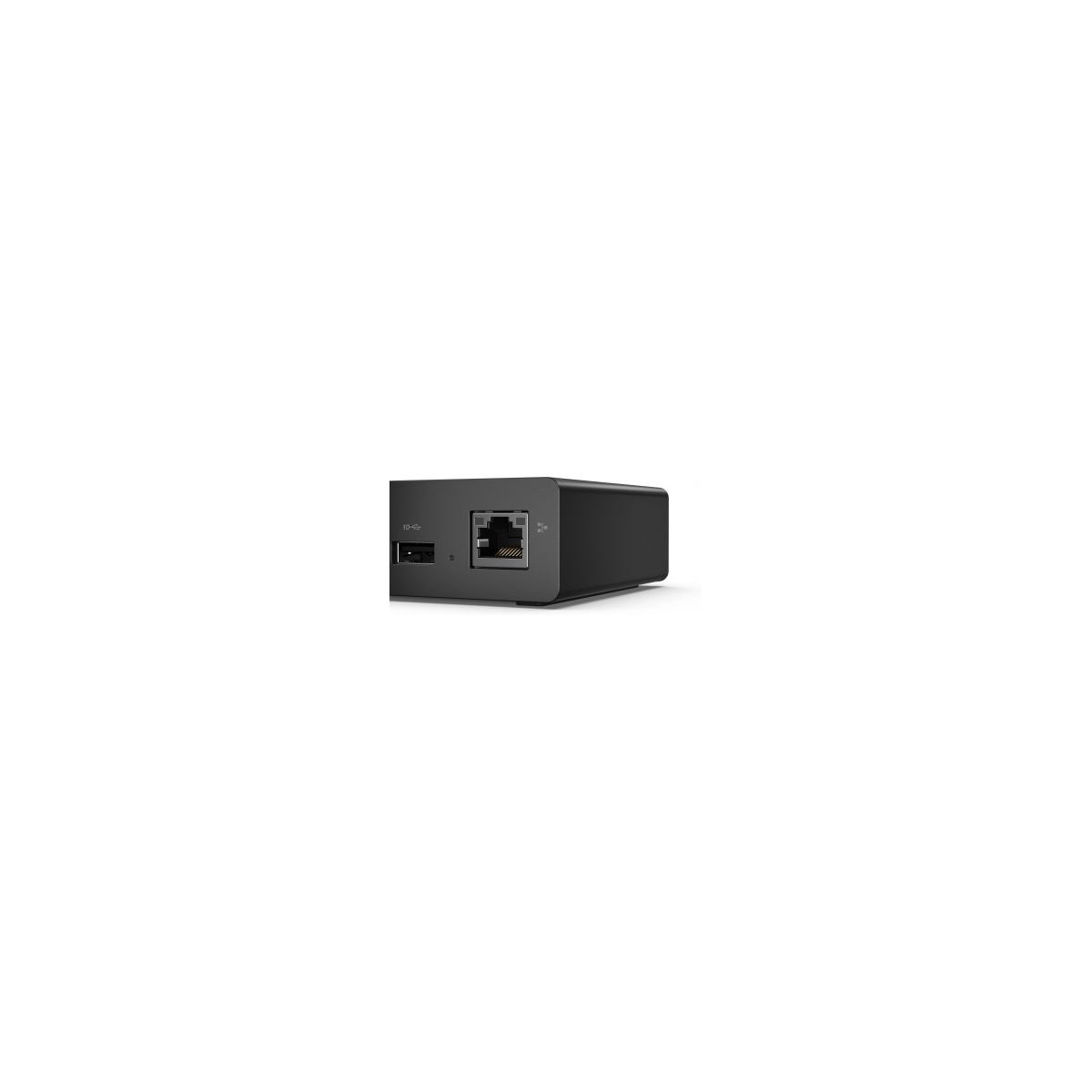

Lenovo ThinkPad USB4 Dock 5000 100W (EU)

Lenovo ThinkPad USB4 Dock 5500 represents the latest generation of docking solutions. The dock’s USB4 technology quadruples performance compared to the USB-C 3.2 Gen 2 standard. A 40 Gbps speed ensures you can connect, for example, one 8K@60Hz display or two 4K@144Hz displays to the dock. Declutter your workspace: with a single USB-C cable you can easily connect everything essential—displays, network, peripherals—and deliver power (max 65 W) to the host device. The product is made of 90% recycled material and ships in plastic-free packaging.

Top features

• Display ports: 2x DP 1.4, 1x HDMI 2.1, 1x USB-C 3.2 Gen2 (Full-Function DP 1.4)
• Other ports: USB4 (Connect to PC), 2x USB-A 3.2 Gen2 (1x AOU, 12 W), 2x USB-A 3.2 Gen2 (4.5W), 1x USB-C 3.2 Gen2 (AOU, 7.5 W),1 Gbps RJ45
• 100W Slim Tip power adapter with 65W charging power
• Support for four external displays
• Maximum resolution with four displays: 3840x2160@60Hz
• Maximum resolution with two displays: 3840x2160@144Hz
• Maximum resolution with one display: 8K@60Hz
• Cable lock: NanoSaver and MicroSaver
• Certain functionalities (PXE boot, WoL, MAC address pass-through, dual power button) may not work with devices other than ThinkPad devices
• In the box: Dock, 1 m USB4 cable (integrated), 1OOW Slim Tip power adapter, power cord
• Dimensions: 218x80x31.5 mm
• Three year warranty

Note! The real resolution will depend on your PC and Monitor capability. For details, see here
