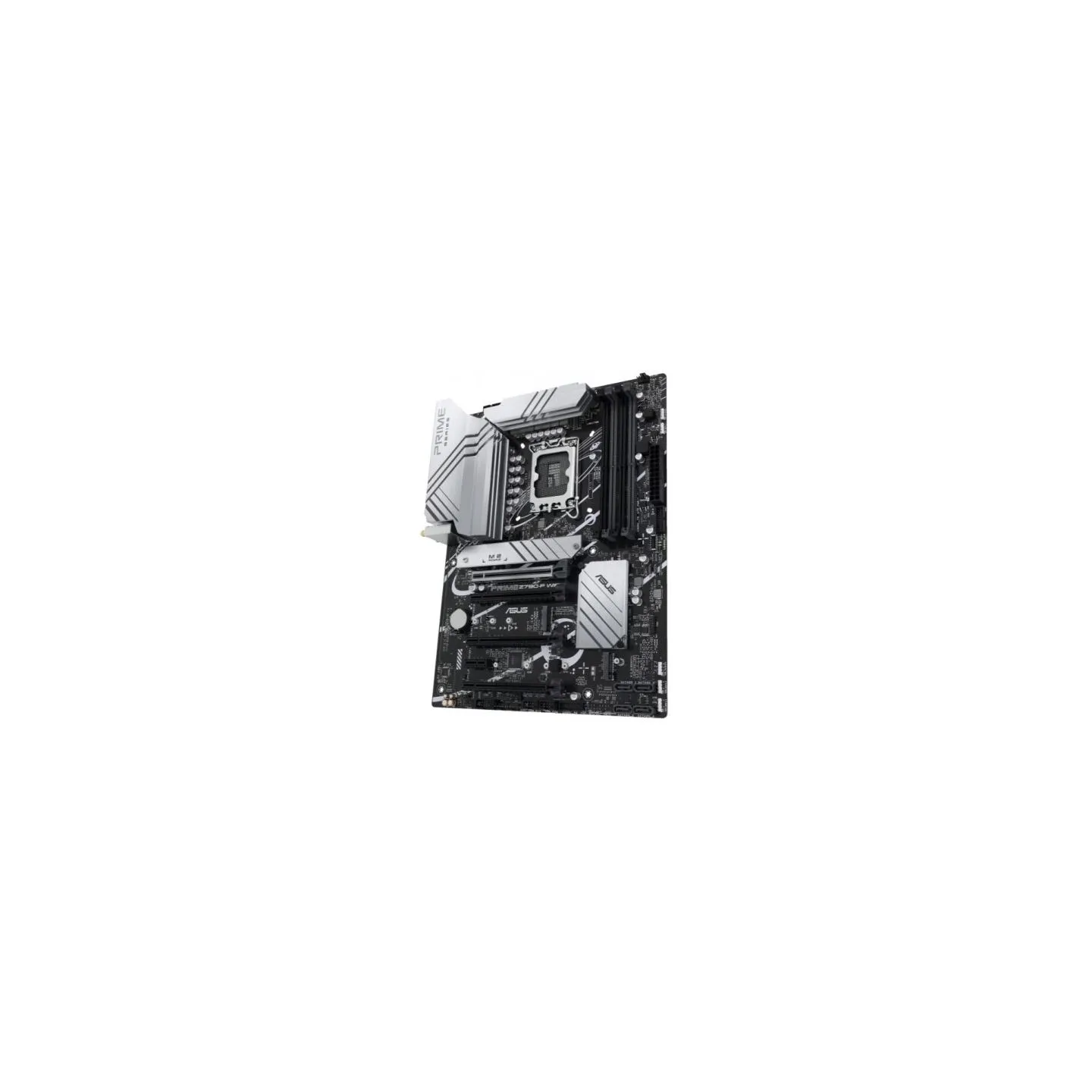

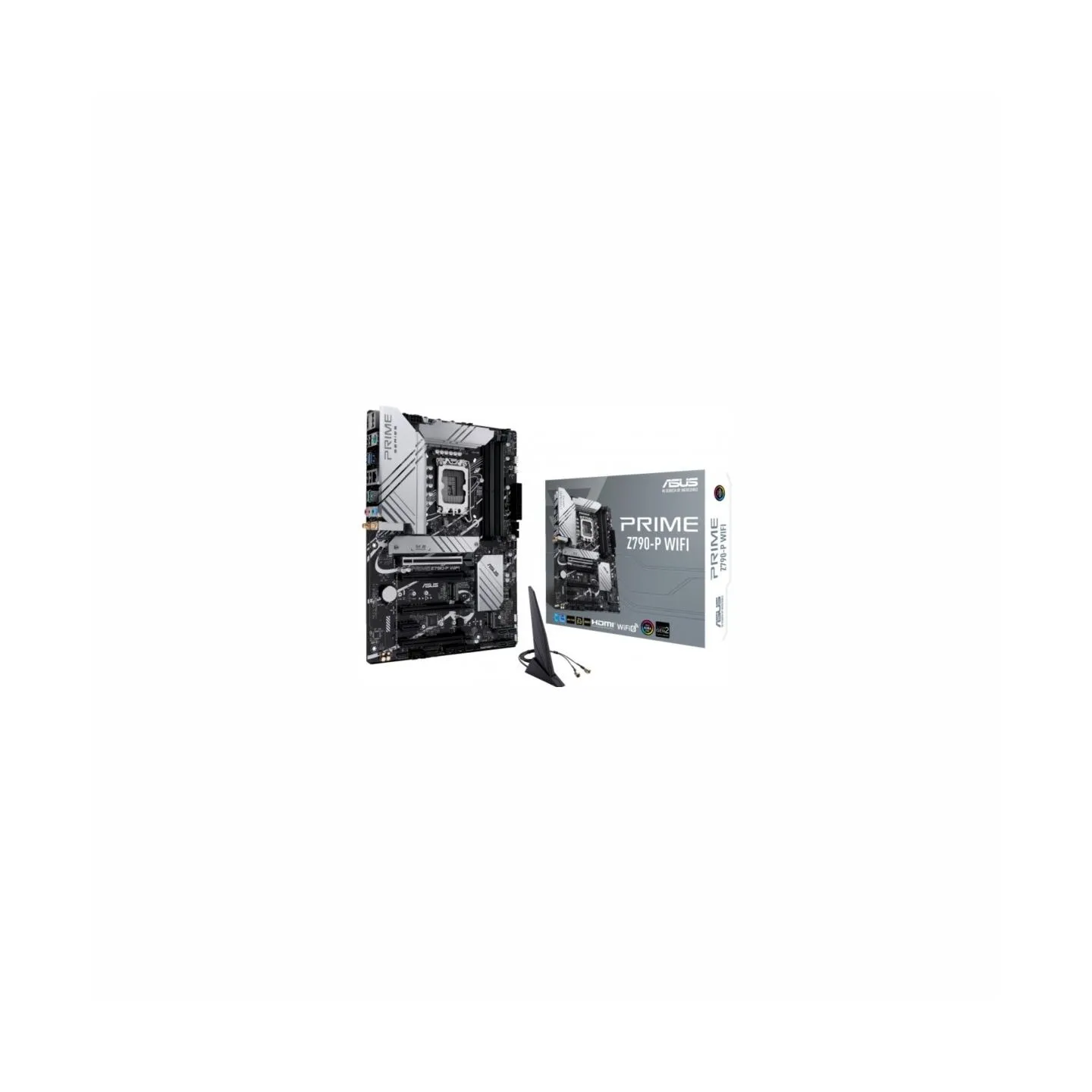

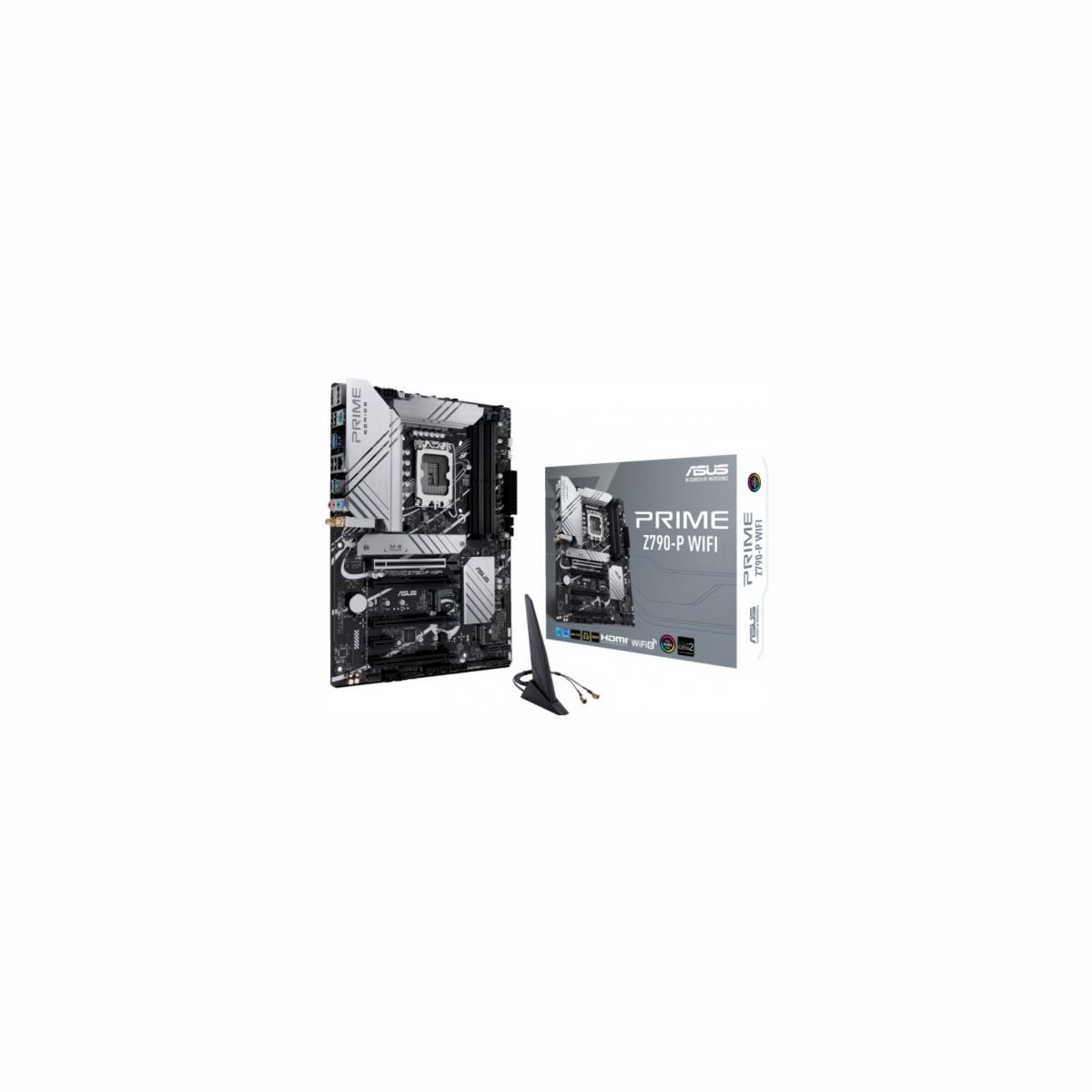

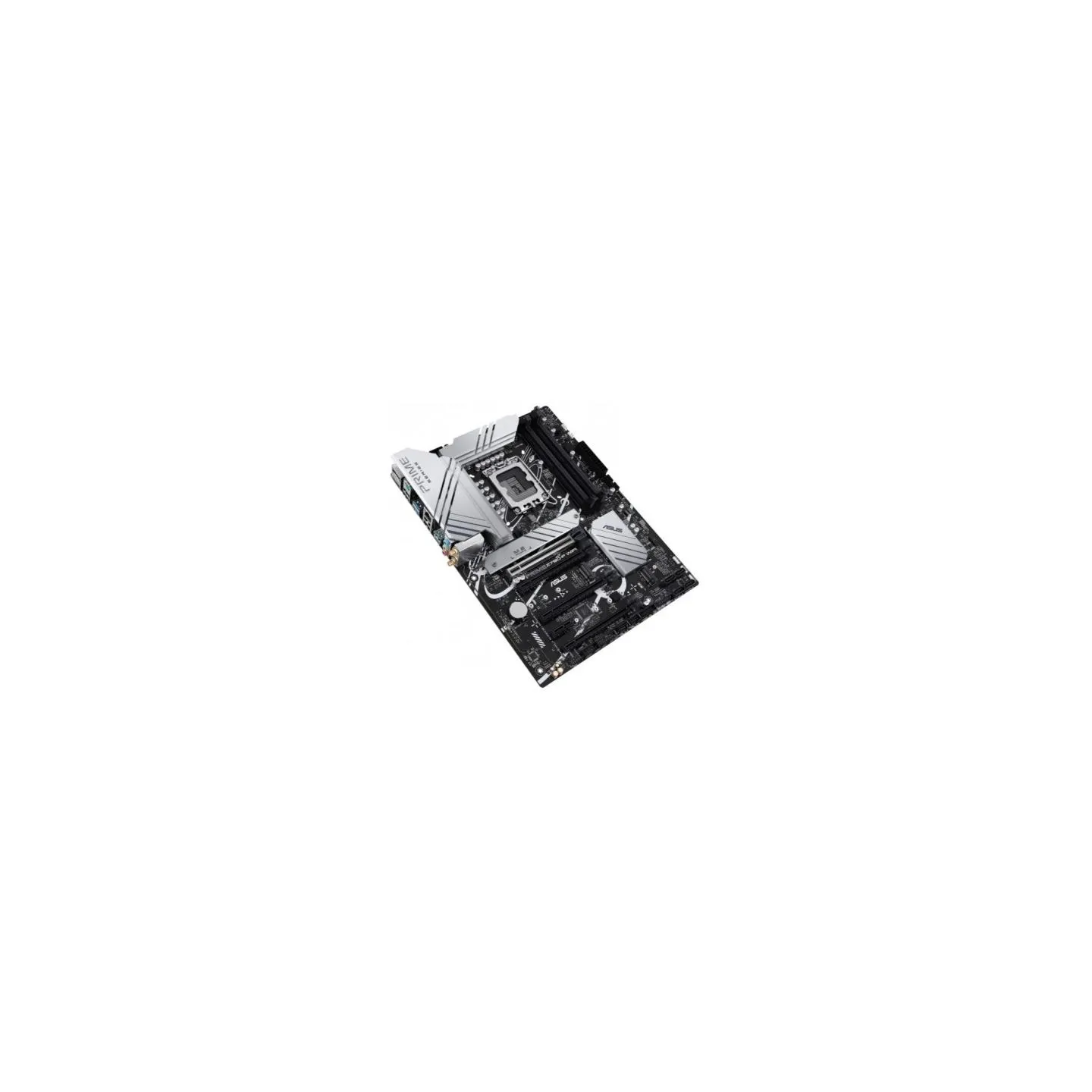

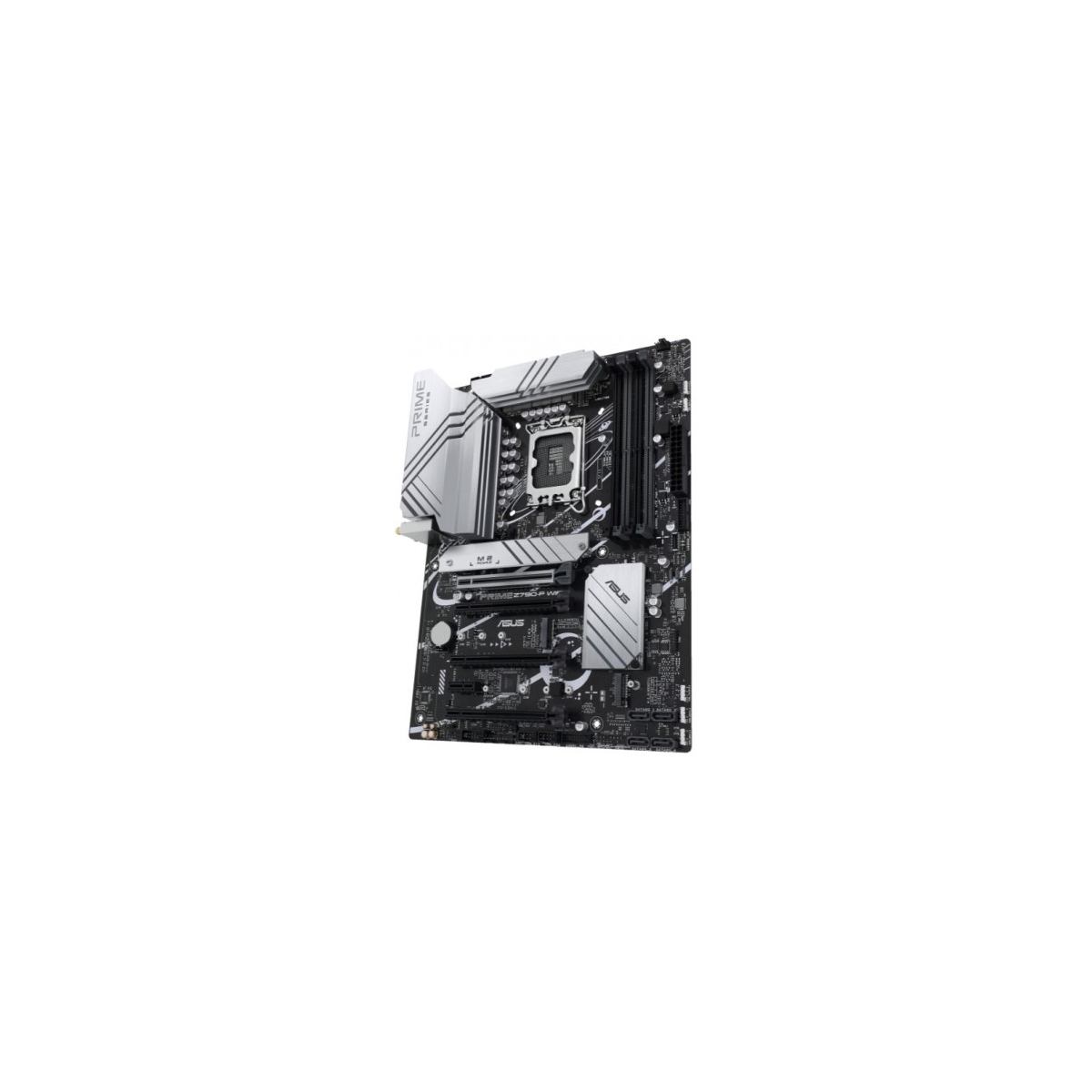

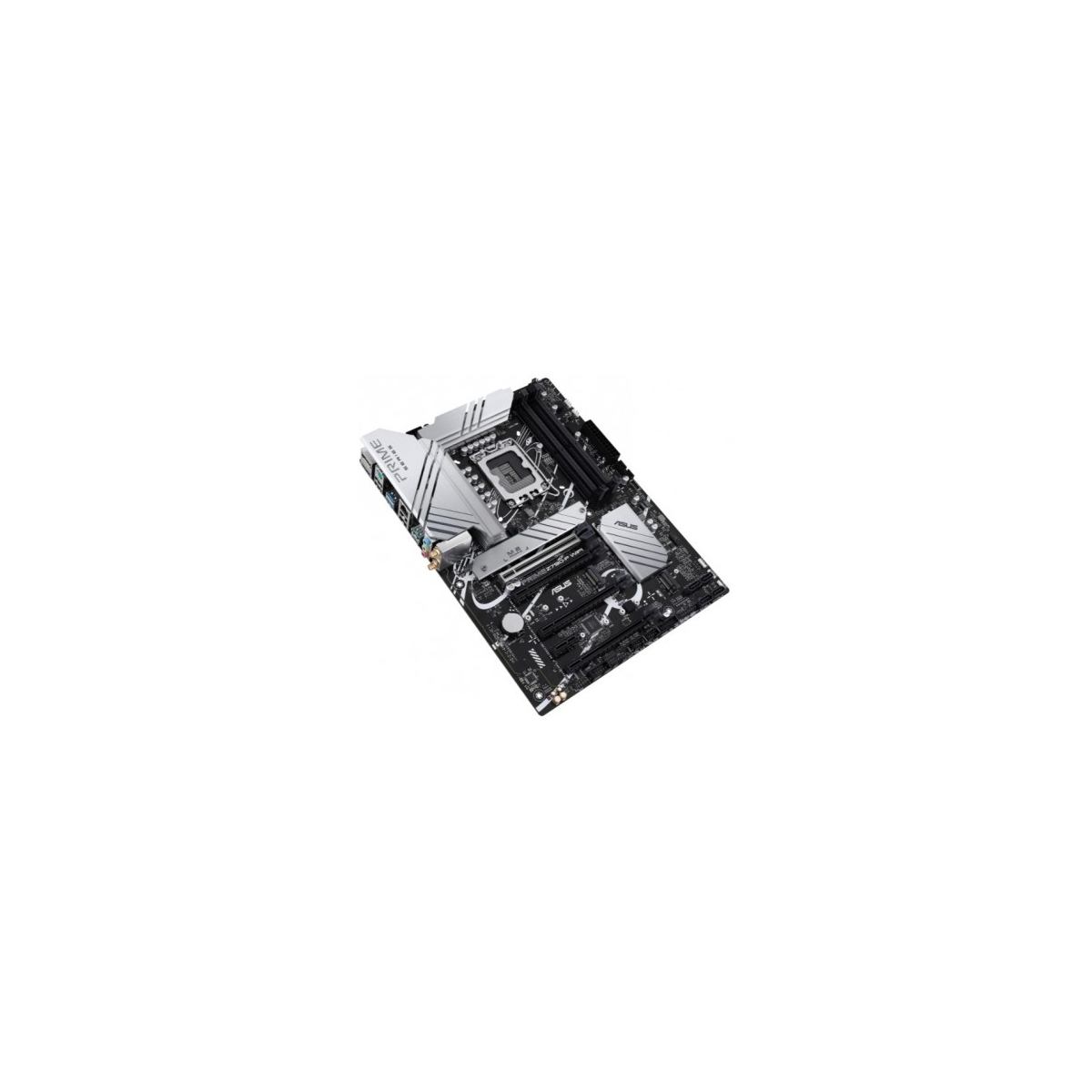

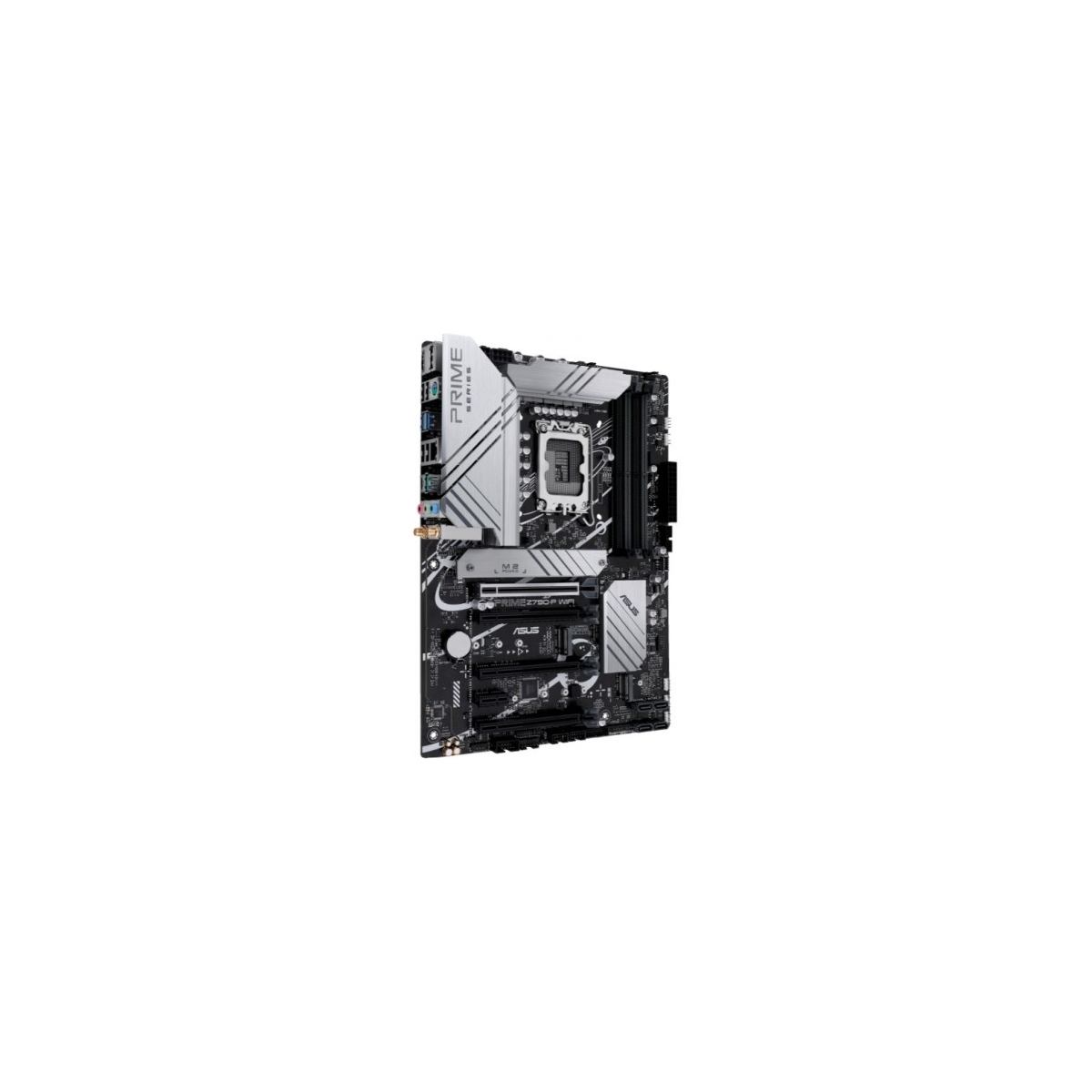

Asus Motherboard PRIME Z790-P WIFI s1700 4DDR5 HDMI/DP ATX
Price:
€262.13
Tax included
Share on
- SKU
- KBASUIIEZ790A08
- Barcode
- 4711081937227
- Model
- PRIME Z790-P WIFI
- CPU socket
- LGA1700
- Processor family
- Intel Pentium
- Processor family
- Intel Celeron
- Processor family
- Intel Core
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z790 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5400 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6800 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 2 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Supports a total of 4 x M. 2 slots and 4 x SATA 6Gb/s* ports 13th and 12th generation Intel processors M. 2_1 slot (M key), type 2242/2260/2280/22,110 (supports PCIe 4. 0 x4 mode) Intel Z790 chipset Slot M. 2_2 (Key M), type 2242/2260/2280 (supports PCIe 4. 0 x4) Slot M. 2_3 (Key M), type 2242/2260/2280/22,110 (supports PCIe 4. 0 x4) Slot M. 2_4 (Key M), type 2242/2260/2280 (supports PCIe 4. 0 x4 and SATA modes) 4 SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1. 5. 10 and SATA RAID 0/1. 5. 10.
- Graphics
- 1 x DisplayPort** 1 x HDMI*** connector **Supports up to 8K@60Hz as defined by DisplayPort 1. 4. ***Supports 4K@60Hz as defined in HDMI 2. 1.
- Sound card
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- ASUS LANGuard Wi-Fi 6E 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3* *Regulations for 6E 6GHz Wi-Fi may vary by country. **Bluetooth version may vary, please refer to the latest specifications on the Wi-Fi module manufacturer's website.
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 2 x USB 3.1 Type-C
- External connectors
- 2 x USB 3.1
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x Line Out
- External connectors
- 1 x Line In
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x HDMI
- External connectors
- 1 x DisplayPort
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x Clear CMOS button
- Onboard connectors
- 1 x USB 3.0 header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
