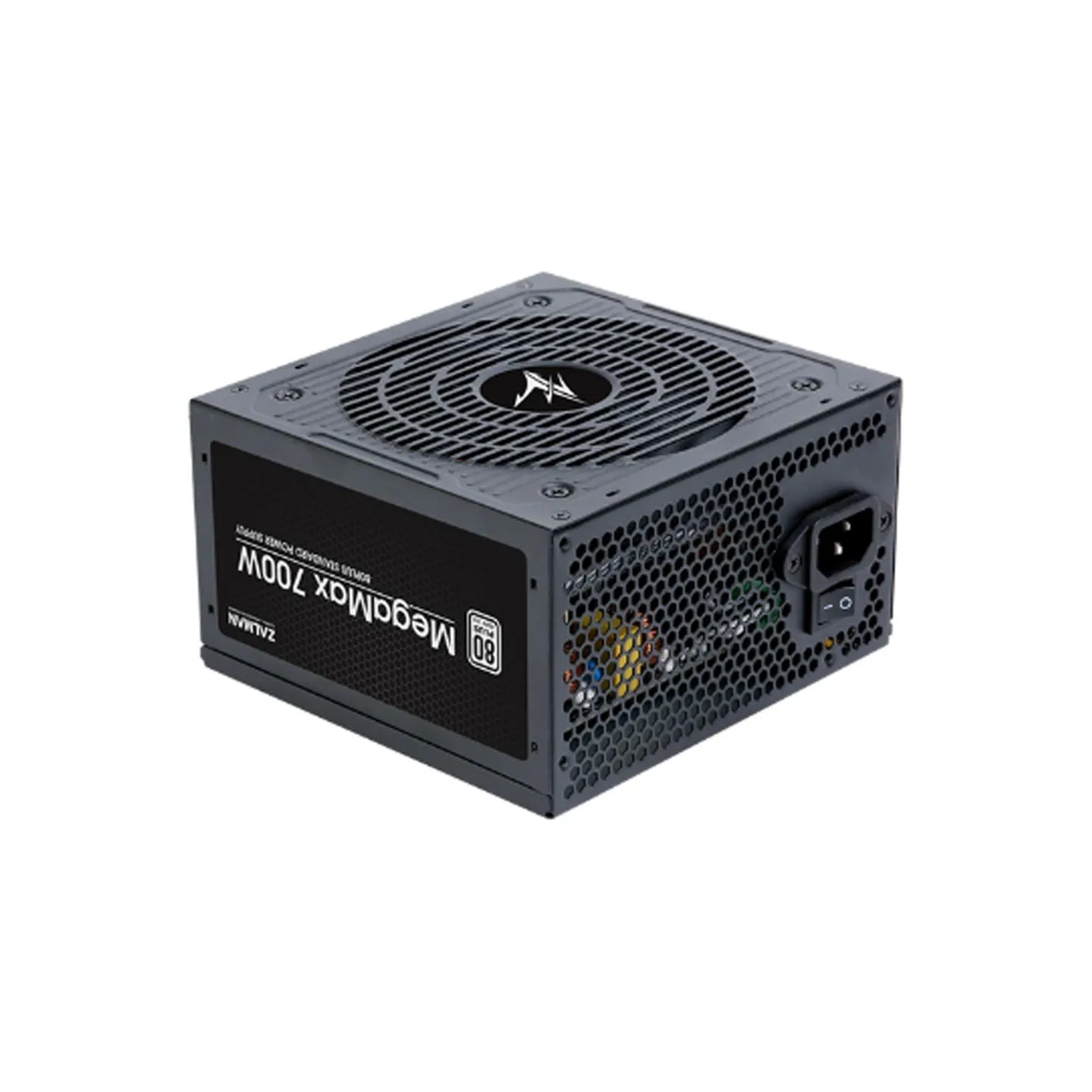

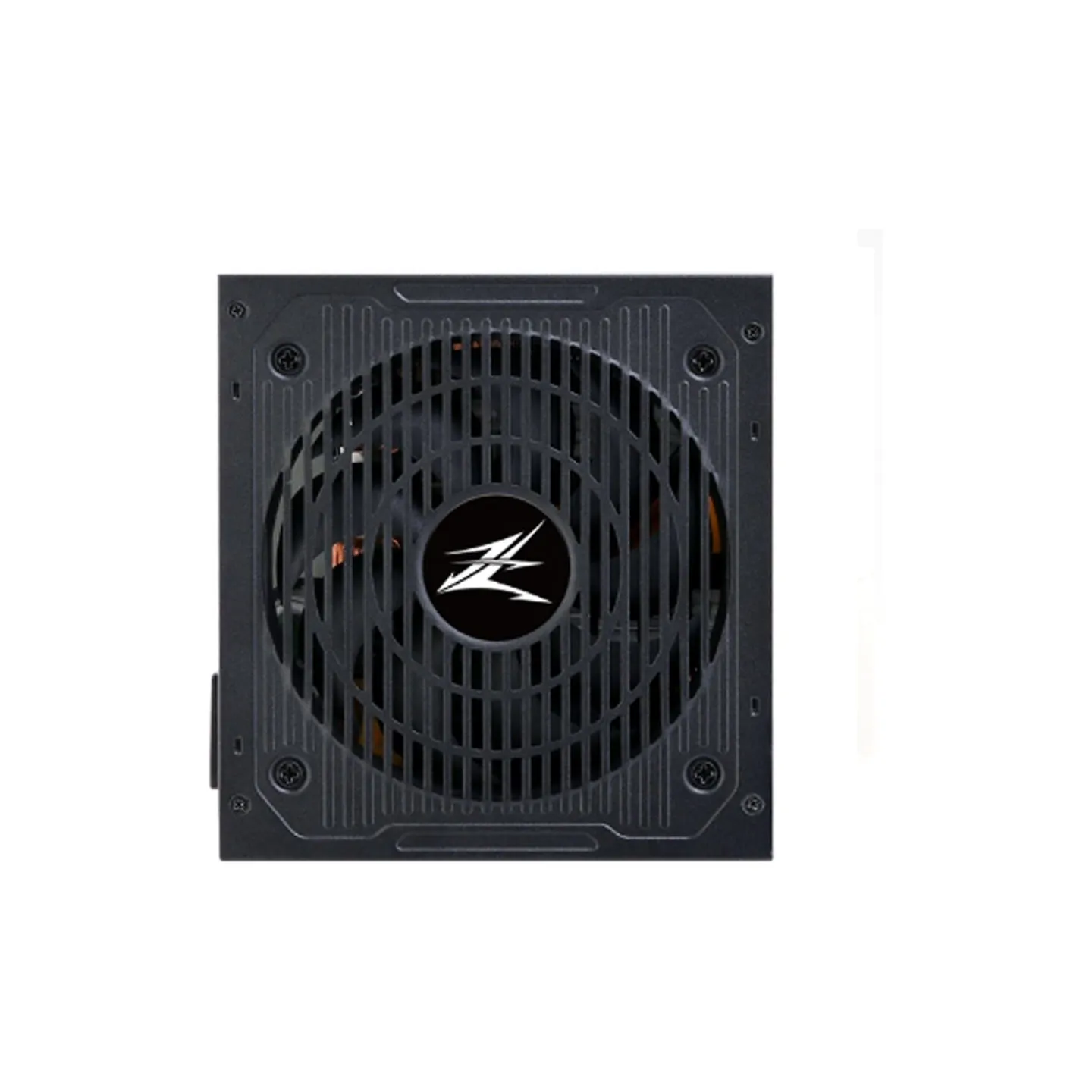

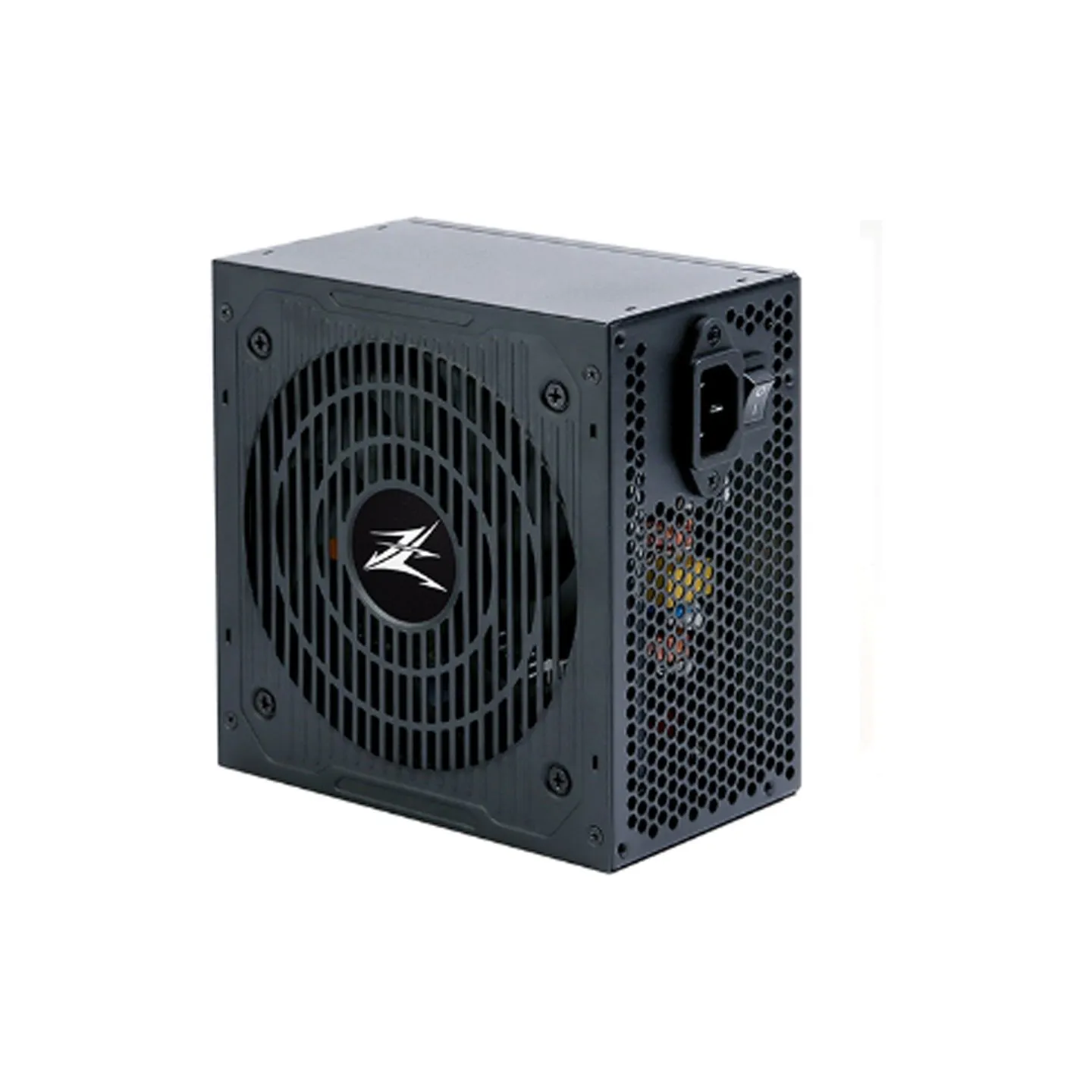

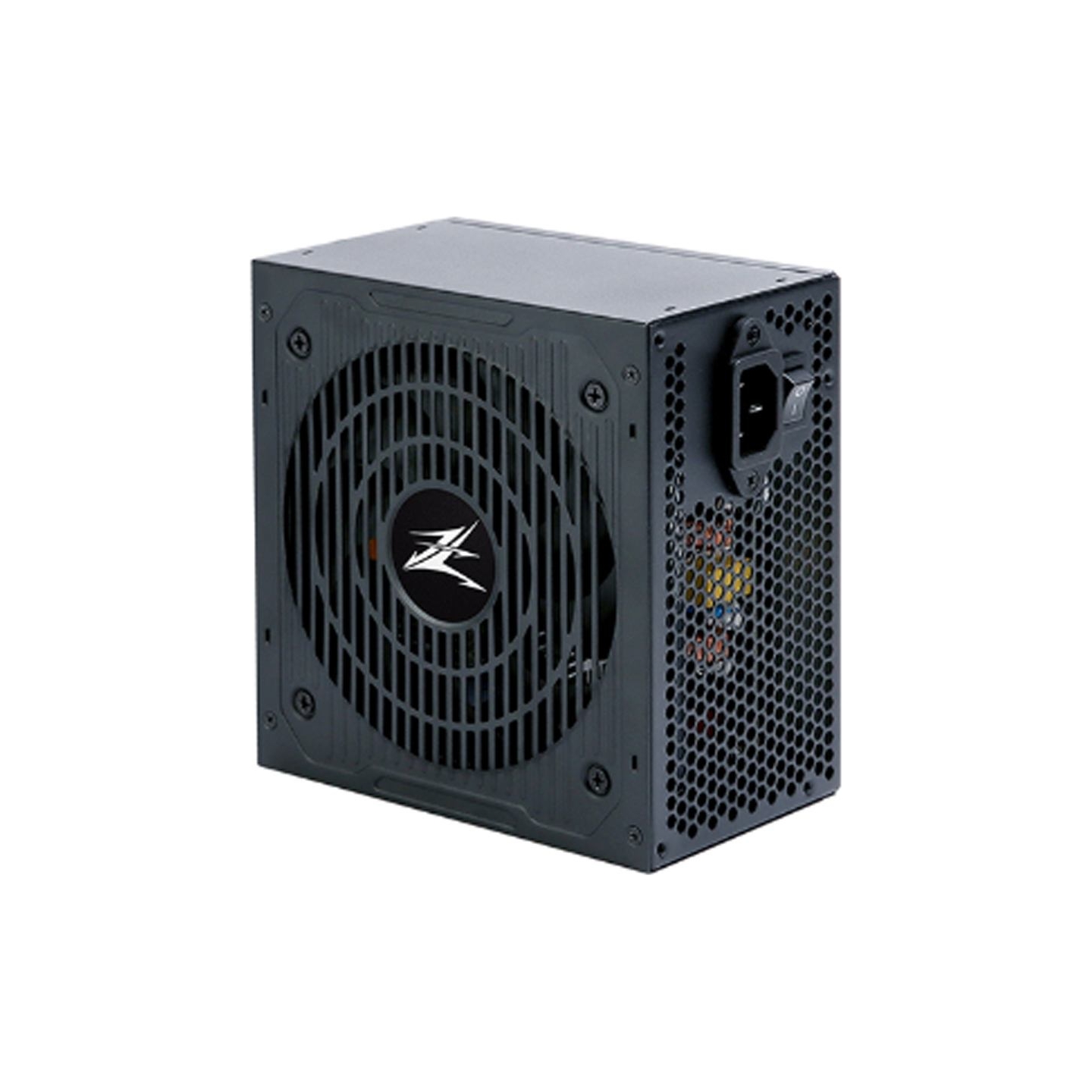

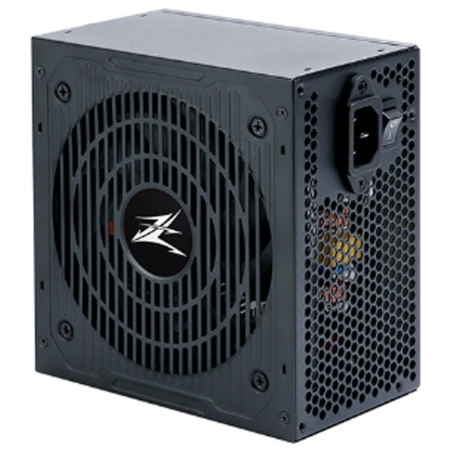

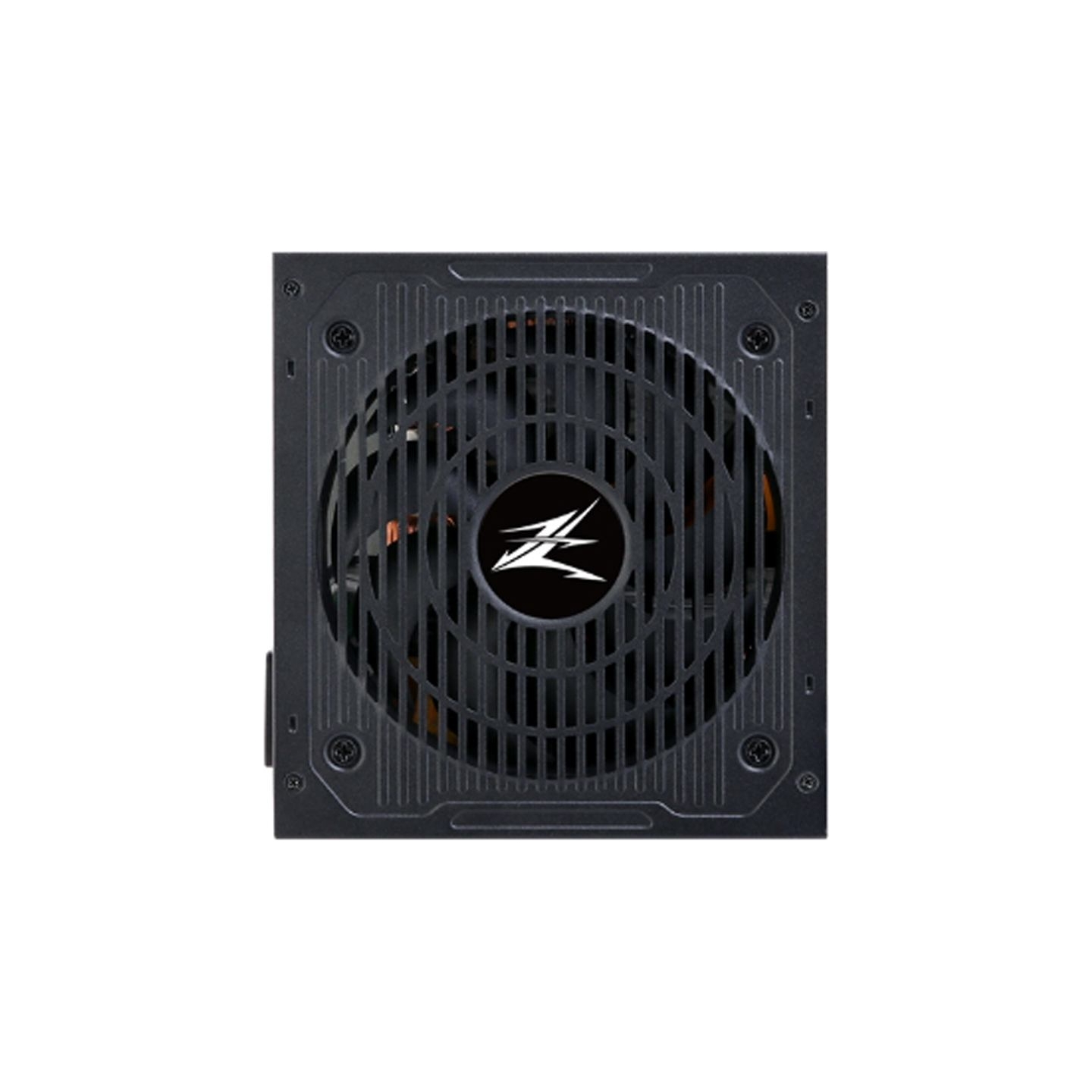

Zalman ZM700-TXII MegaMax 700W,80Plus
Price:
€53.43
Tax included
Product Comments module (productcomments) must be installed!
Share on
Efficient 80Plus power supply
| Power | |
|---|---|
| Total power: | 700 W |
| AC input voltage: | 200 - 240 V |
| AC input frequency: | 50/60 Hz |
| Input current: | 6 A |
| Power factor: | 99 |
| Max output current (+3.3V): | 22 A |
| Combined power (+12V): | 630 W |
| Max output current (+5V): | 22 A |
| Max output current (-12V): | 0.5 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+5Vsb): | 15 W |
| Combined power (-12V): | 6 W |
| Max output current (+12V): | 52.5 A |
| Max output current (+5Vsb): | 3 A |
| Efficiency: | 87% |
| Power protection features: | Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Number of SATA power connectors: | 3 |
| CPU P4 connector (4-pin): | 1 |
| Peripheral (Molex) power connectors (4-pin): | 4 |
| PCI Express power connectors (6+2 pin): | 2 |
| Floppy drive power connector: | 1 |
| Cabling type: | Non-Modular |
| Motherboard power connector: | 20+4 pin ATX |
| EPS power connector (8-pin): | Y |
| ATX power connector (20+4 pin): | Y |
| Performance | |
| ATX version: | 2.31 |
| 80 PLUS certification: | 80 PLUS |
| Mean time between failures (MTBF): | 100000 h |
| Certification: | KC, CE, CB, RoHS, EAC |
| Purpose: | PC |
| Bearing technology: | FDB |
| Power supply unit (PSU) form factor: | ATX |
| Design | |
| Colour of product: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| On/off switch: | Y |
| Fan speed: | 2500 - 2500 RPM |
| Tehniskās detaļas | |
| Sustainability certificates: | RoHS |
| Operational conditions | |
| Operating temperature (T-T): | 10 - 45 °C |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 140 mm |
| Weight: | 1.79 kg |
| Height: | 86 mm |
