All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
- 200+ connected devices
- Powered using PoE+
- 2.5 GbE uplink

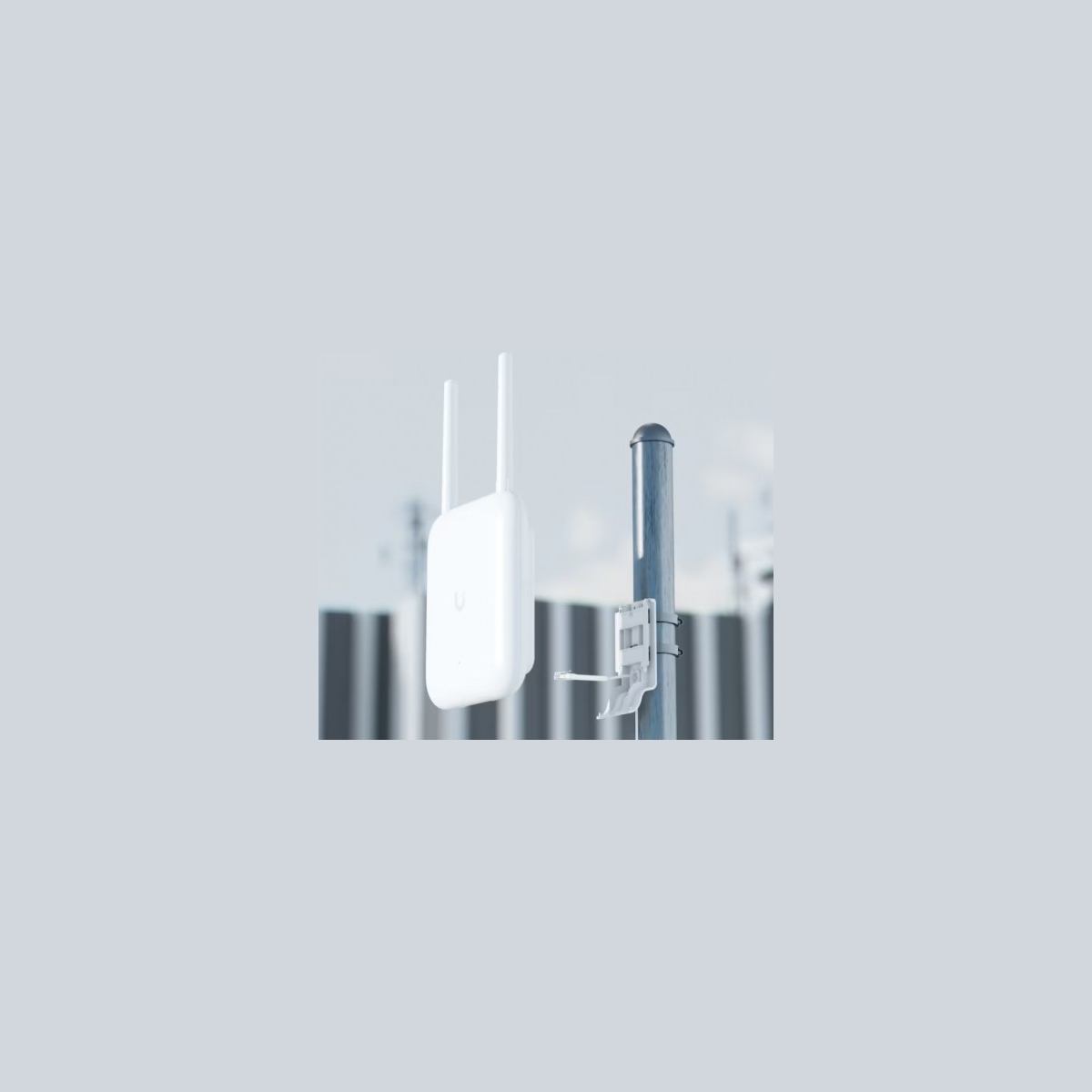

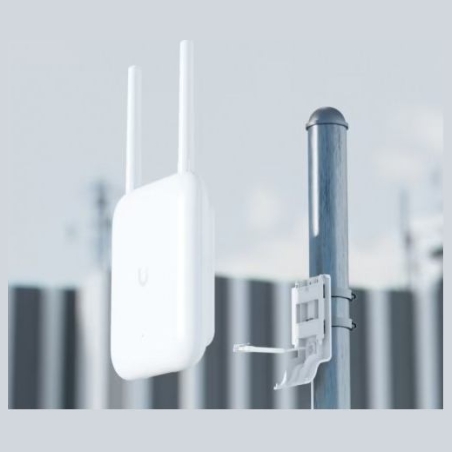

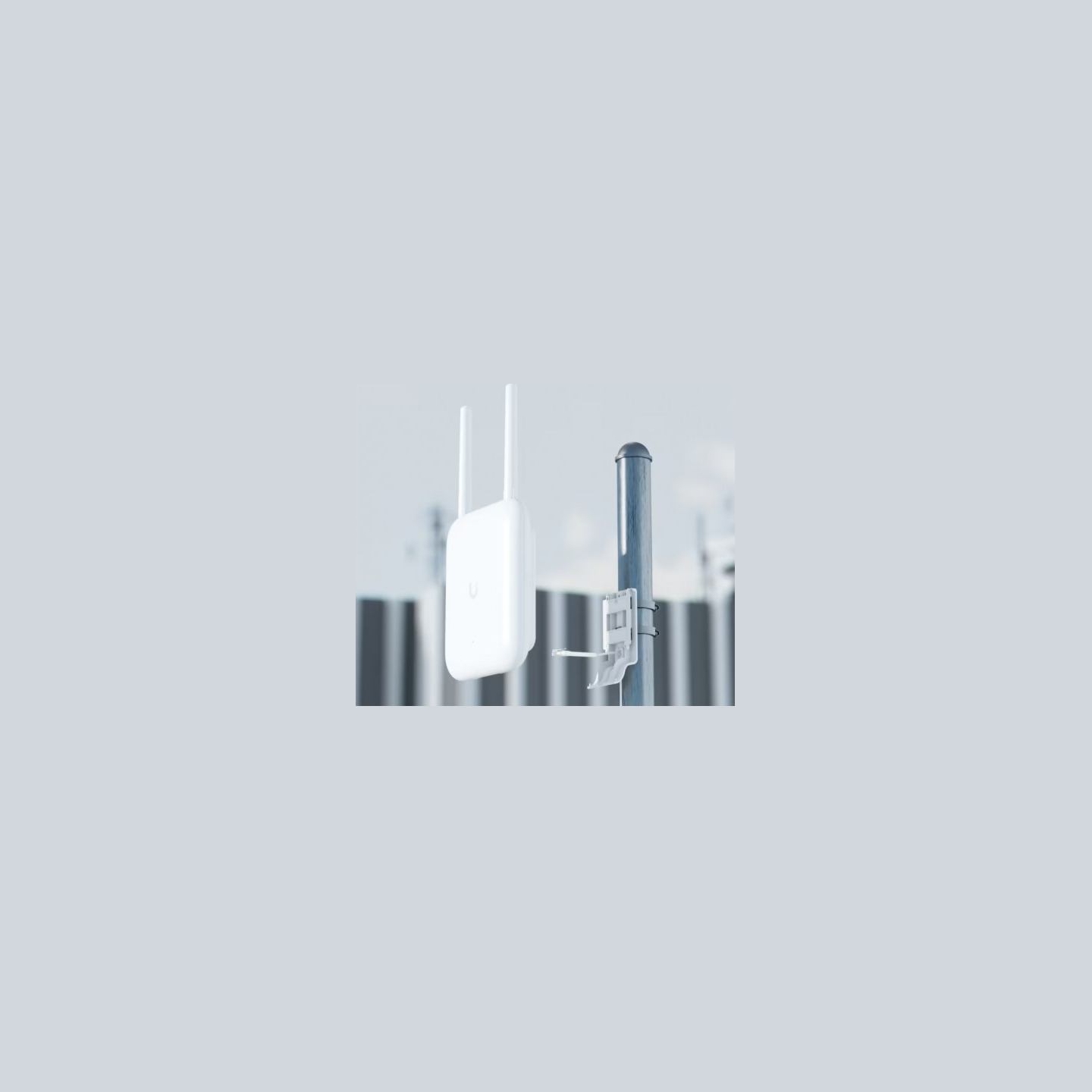

- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/u7-outdoor
- Category Code
- WAP
- CnCode
- 85176200
- Unit Box Height
- 0.23
- Unit Box Length
- 0.27
- Unit Box Width
- 0.1
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Ethernet LAN data rates
- 2500 Mbit/s
- Frequency band
- 2.4 - 5 GHz
- Maximum data transfer rate
- 4300 Mbit/s
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Spatial streams
- 4
- Throughput data rate
- 4324 Mbit/s
- VLAN support
- Yes
- Security algorithms
- PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
- Ethernet LAN (RJ-45) ports
- 1
- DC voltage range
- 44 - 57 V
- Power consumption (max)
- 19 W
- Power over Ethernet (PoE)
- Yes
- Housing material
- Aluminium,Polycarbonate (PC)
- International Protection (IP) code
- IPX6
- LED indicators
- Yes
- Placement
- Ceiling,Pole,Wall
- Product colour
- White
- Recommended usage
- Outdoor
- Reset button
- Yes
- Antenna connector type
- RP-SMA
- Antenna direction type
- Omni-directional
- Antenna features
- Detachable antenna
- Antenna gain level (max)
- 12.5 dBi
- Antenna type
- External
- Antennas quantity
- 2
- Number of connectors
- 2
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Depth
- 54.5 mm
- Height
- 208 mm
- Weight
- 1200 g
- Width
- 170 mm
- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Sustainability compliance
- Yes
- Model
- U7-Outdoor
- Model name
- U7 Outdoor
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.008457 cubm
- Unit Calculated Weight
- 1.92 kg
