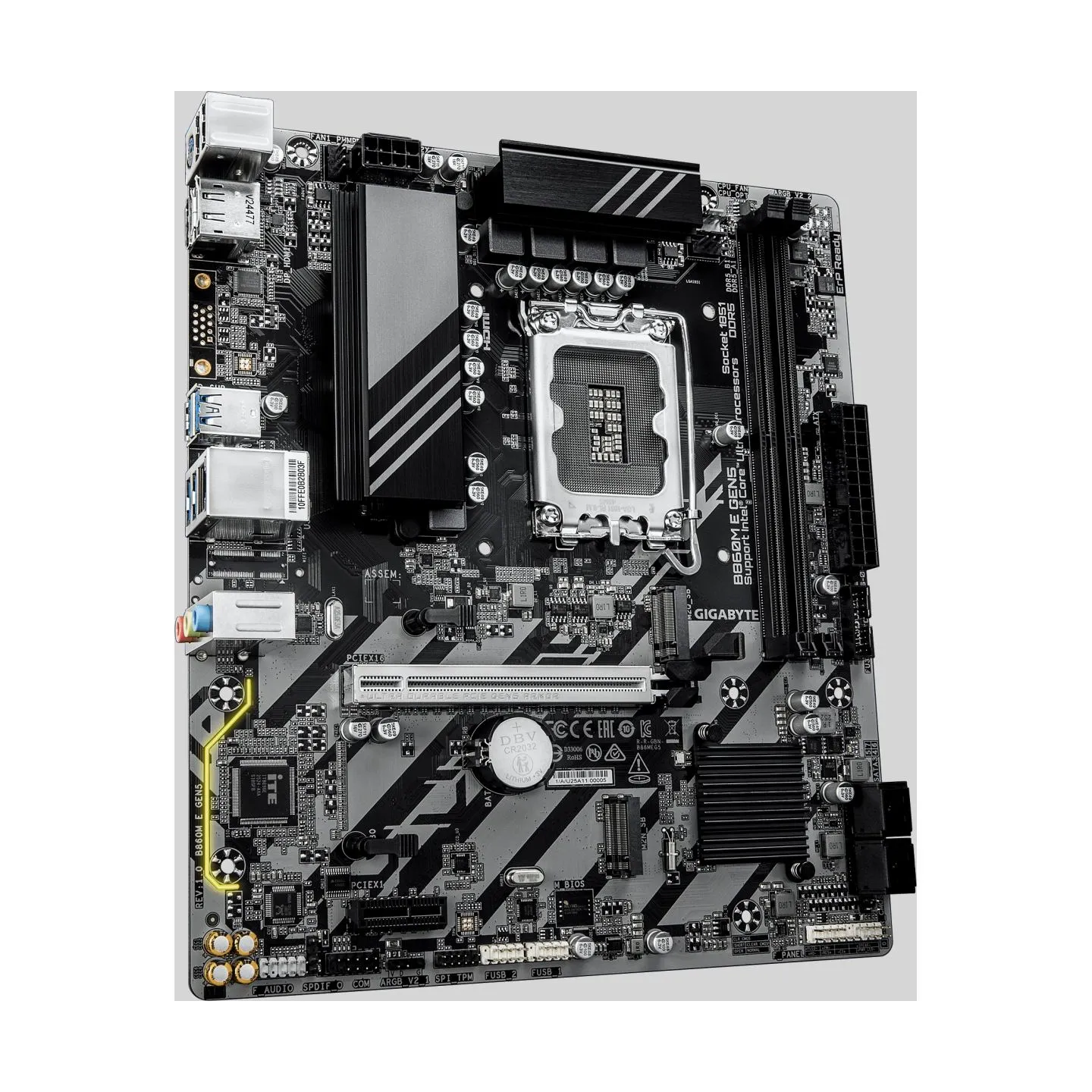

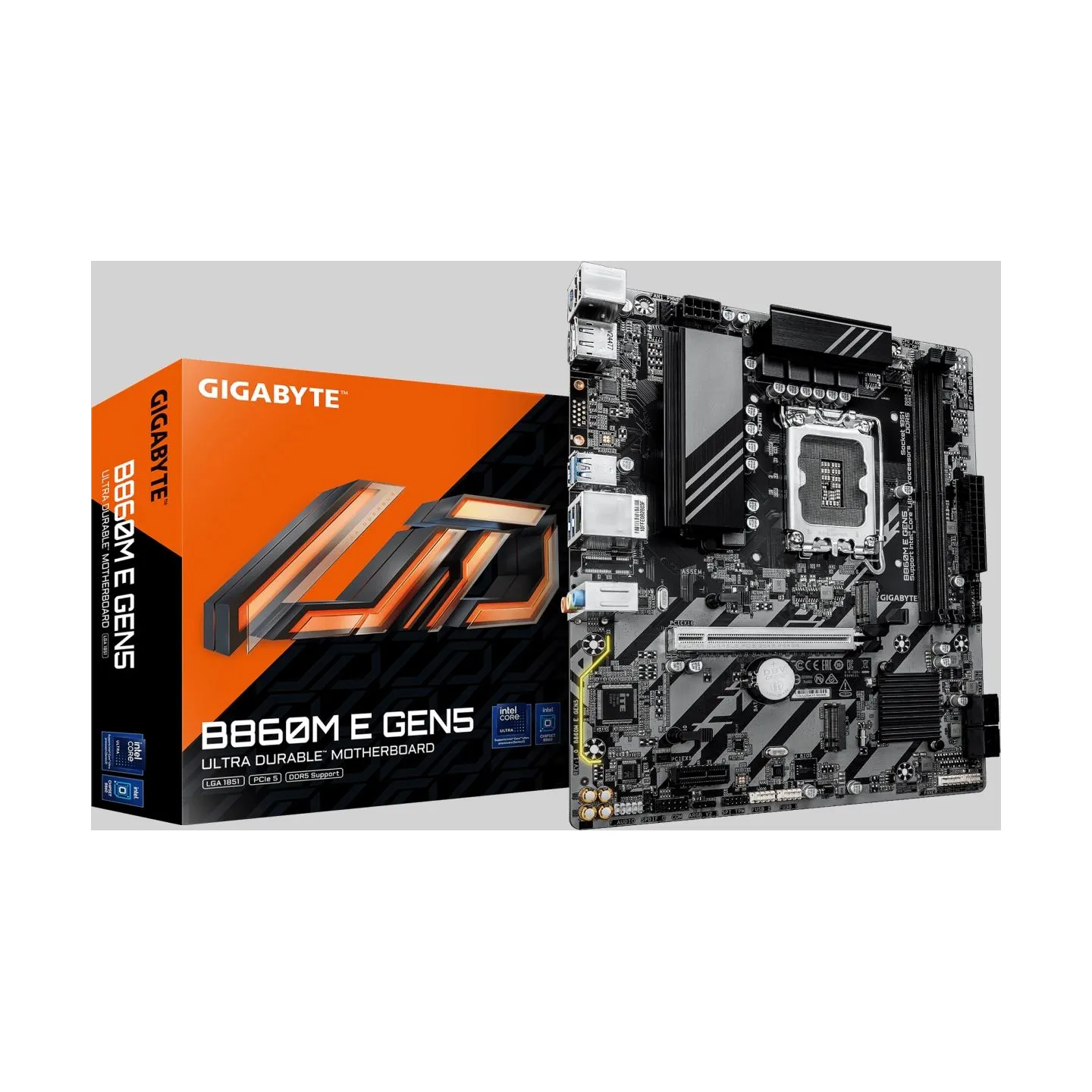

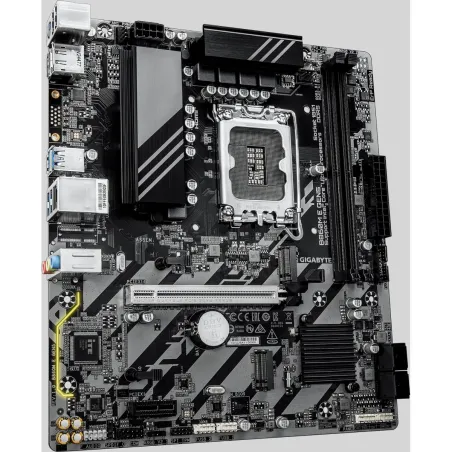

Gigabyte B860M E GEN5 LGA1851

Name: Gigabyte B860M E GEN5 LGA1851
Brand: GIGABYTE
SKU: B860M E GEN5
Price: 114.83 EUR
Availability: InStock

SKU B860M E GEN5 Category Mainboards

€114.83

Tax included

Share on

GIGABYTE B860M E GEN5 Motherboard - Intel Core Ultra Series CPUs, 4+1+2 Phases VRM, up to 8800MHz DDR5 (O.C.), 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Manufacturer Website:
https://www.gigabyte.com/

Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.055
Unit Box Length: 0.265
Unit Box Width: 0.27
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Product colour: Dark brown
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Component for: PC
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0/1/10/5
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
HDCP version: 2.3
DirectX version: 12.0
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 2
Serial port headers: 1
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Wi-Fi: No
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Package width: 265 mm
Number of battery cells: 1
Package depth: 265 mm
Package height: 54 mm
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Package weight: 988 g
Battery type: CR2032
Width: 244 mm
Depth: 215 mm
Height: 35 mm
Batteries included: Yes
Screws included: Yes
Bundled software: Norton®Internet Security (OEM version)
Weight: 910 g
Warranty period: 3 year(s)
Unit Calculated Weight: 0.97 kg
Unit Calculated Volume: 0.004794 cubm
Units per Shipping Box: 10
Shipping Box Weight: 10 kg
Unit Width: 27 cm
Shipping Box Height: 28.5 cm
Unit Depth: 26.5 cm
Shipping Box Depth: 58 cm
Unit Height: 5.5 cm
Shipping Box Width: 29 cm
Bullet Points: <ul><li>PCIe Gen5 Performance</li><li>Supports Intel Core Ultra processors (Series 2)</li><li>Hybrid 4+1+2 phases VRM solution</li><li>D5 Bionic Corsa for Infinite Memory Performance</li><li>AI Perfdrive: Provides optimal and customized BIOS preset profile for users</li><li>EZ-Latch: PCIe5.0 x16 Slot with Quick Release Design</li><li>Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors</li><li>Fast Networking: GbE LAN</li><li>Extended Connectivity: HDMI, DisplayPort</li></ul>
Name: MB B860 S1851 MATX/B860M E GEN5 GIGABYTE
