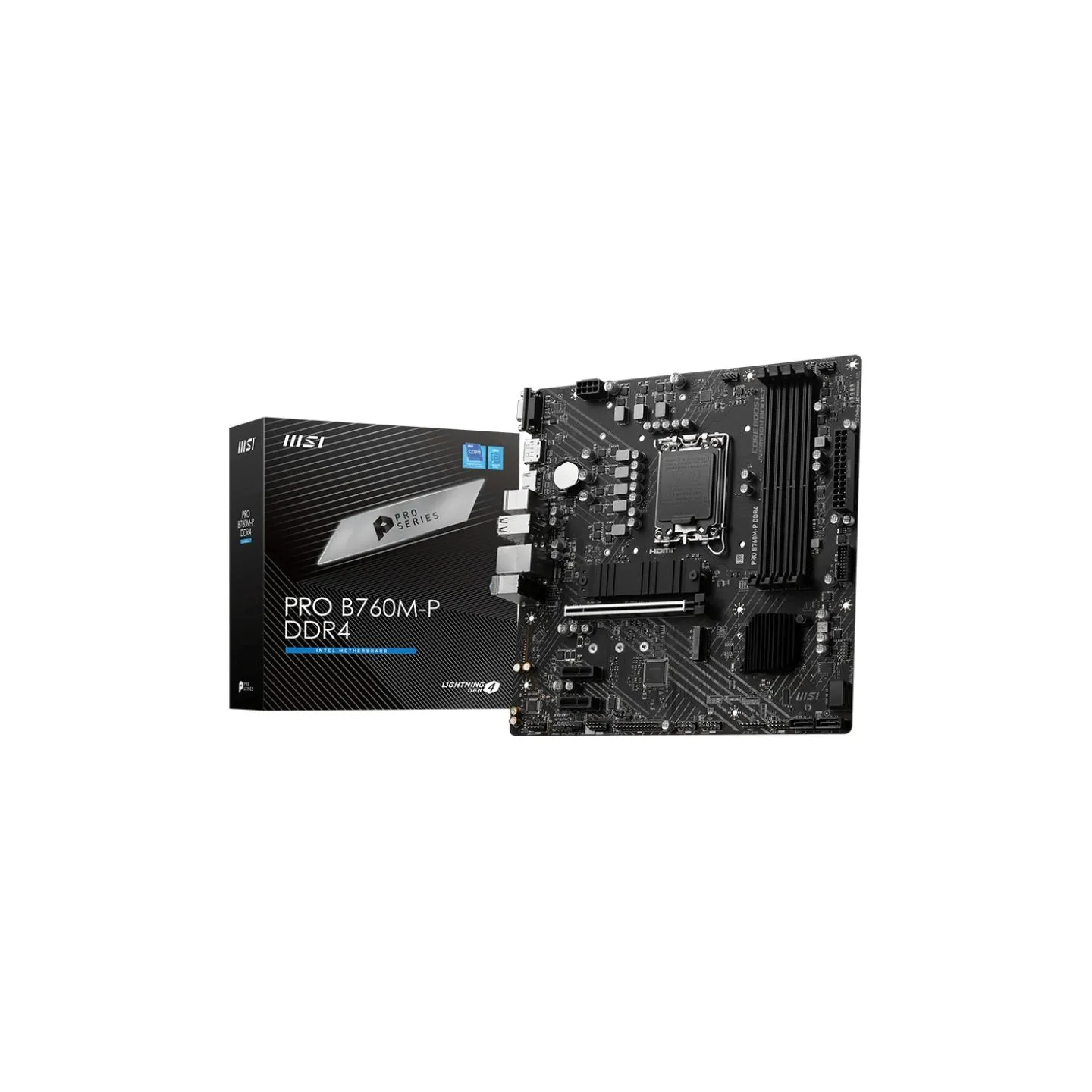

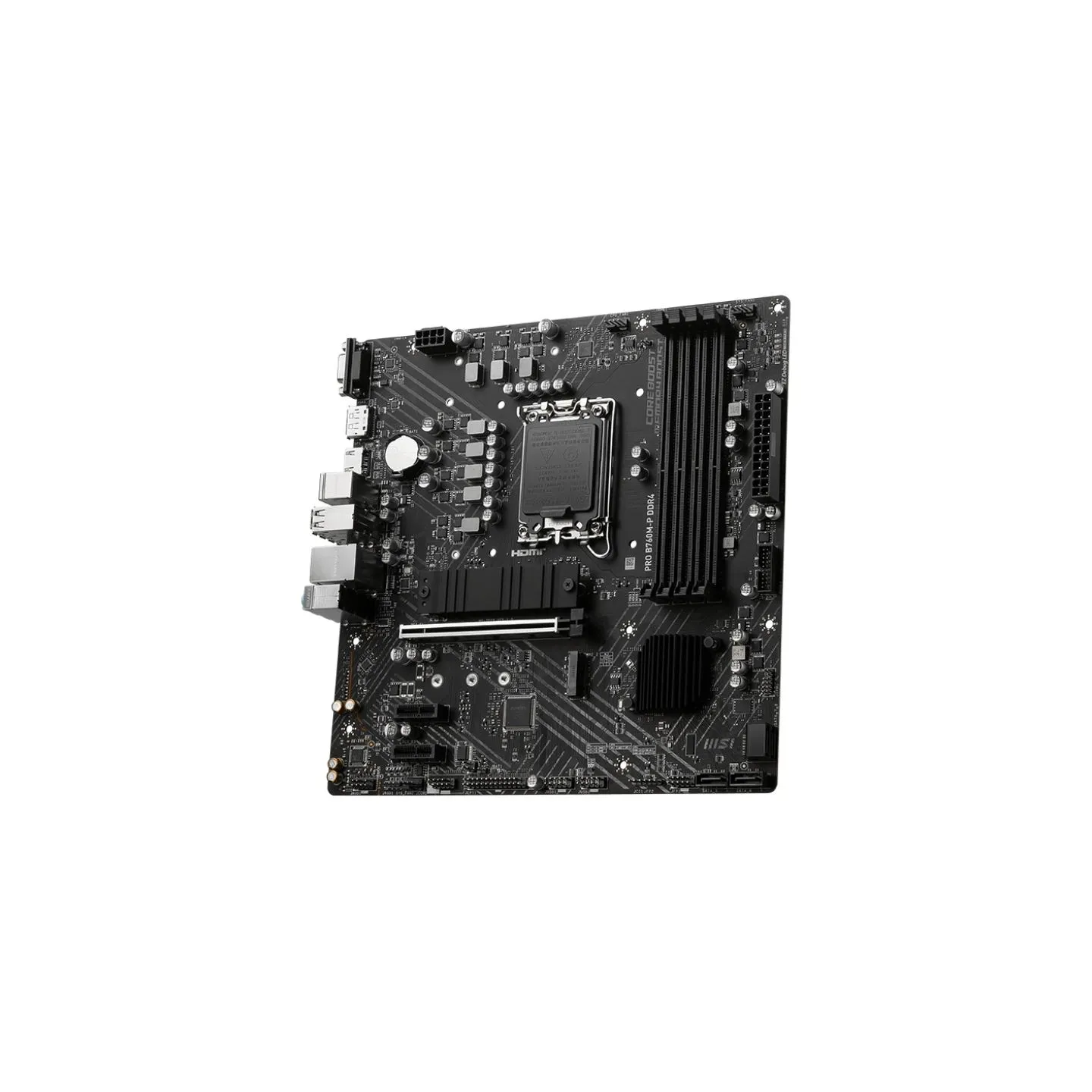

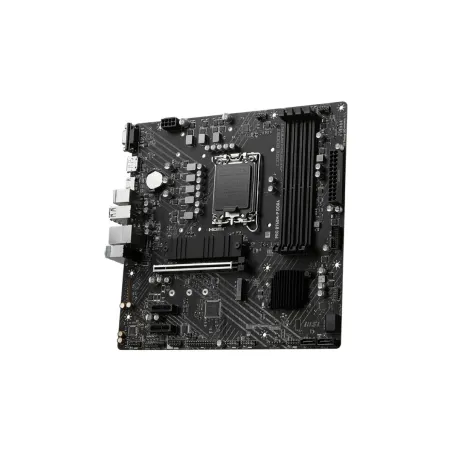

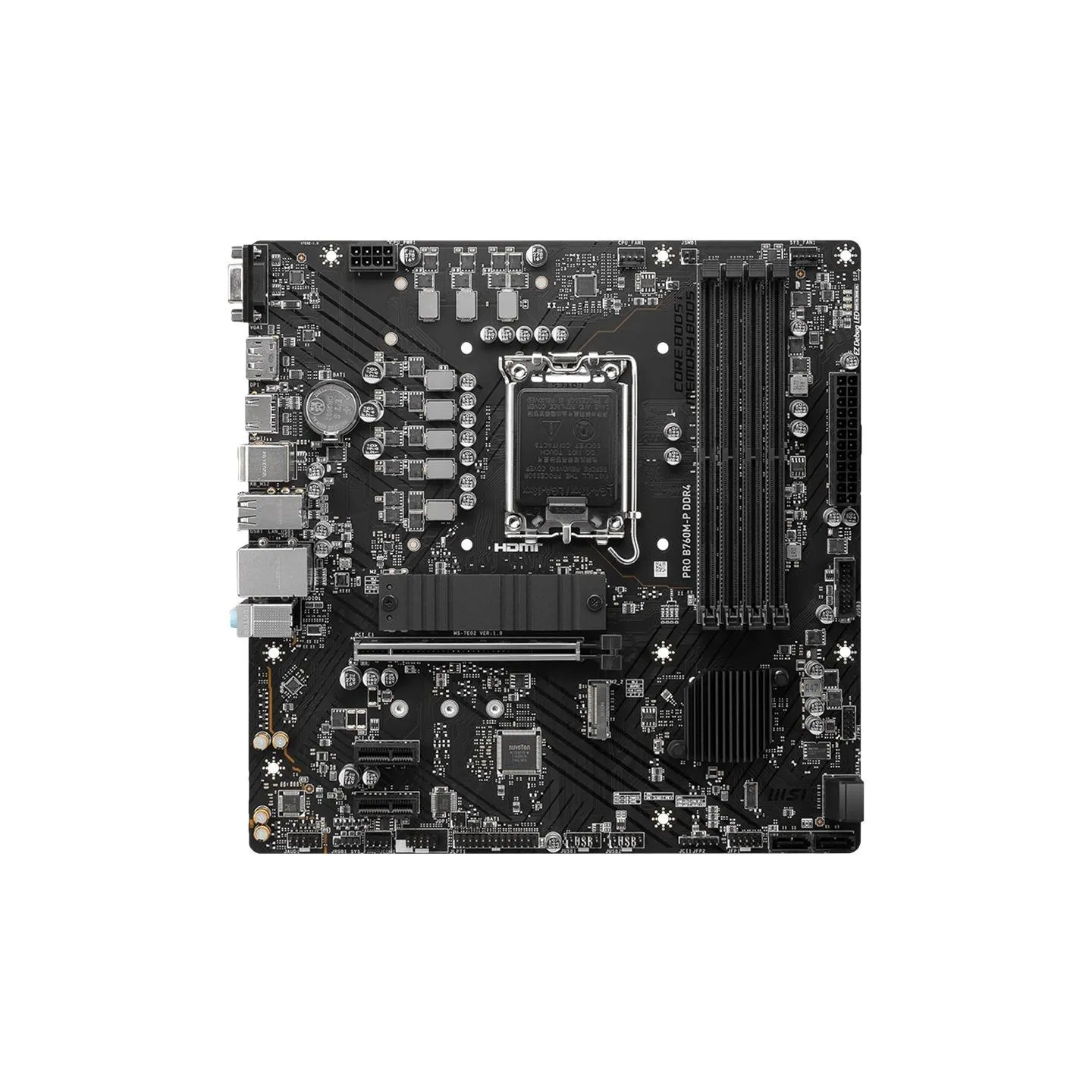

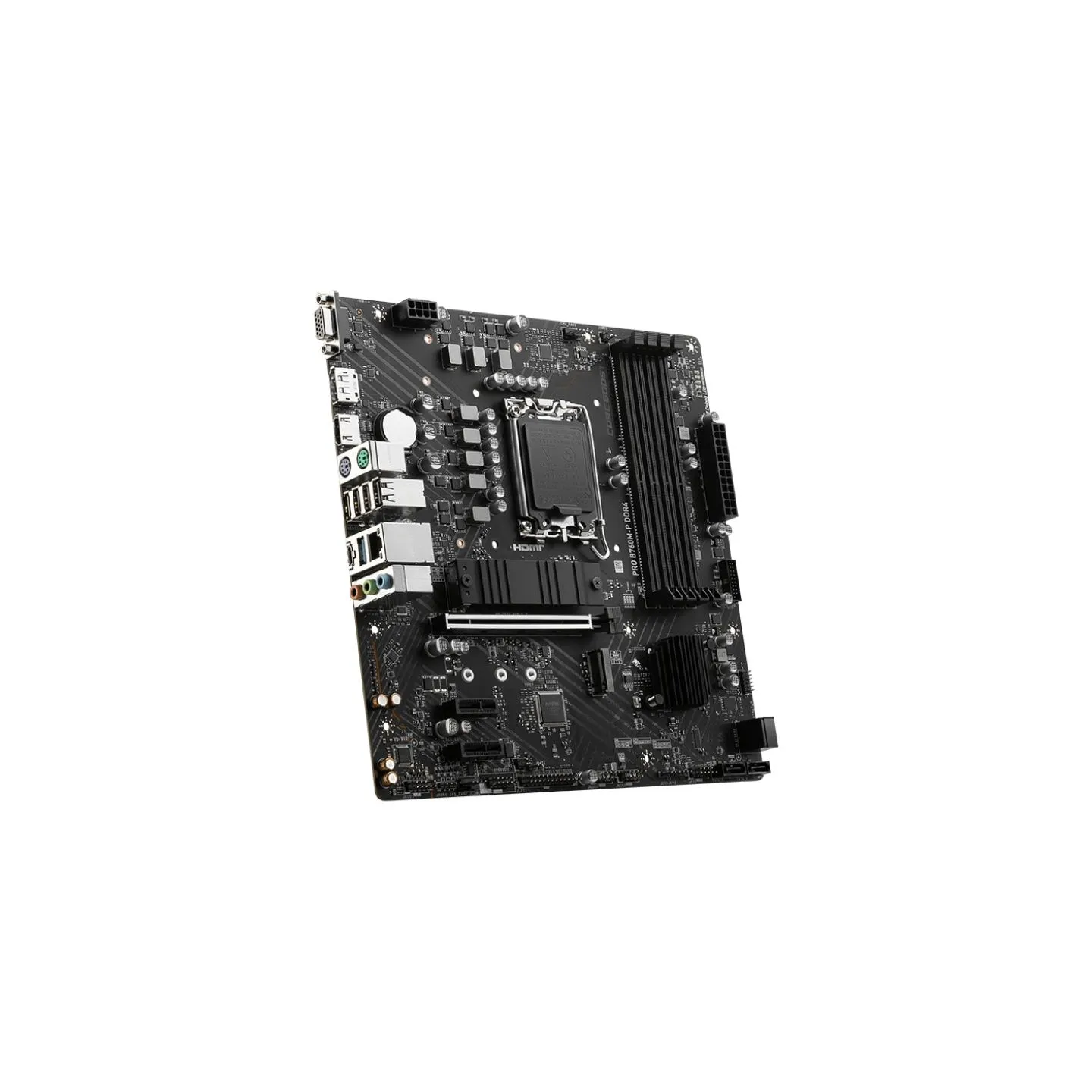

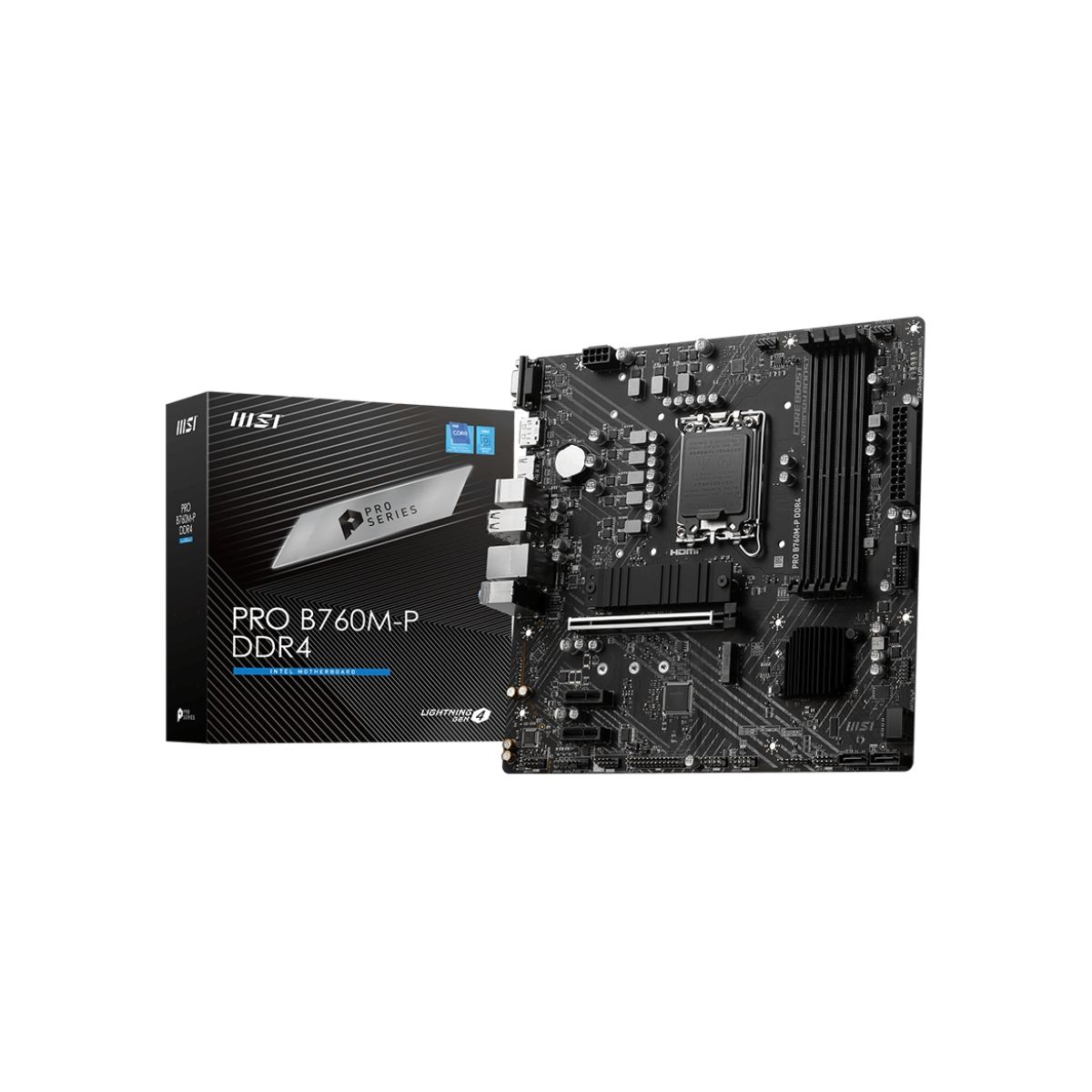

MSI Motherboard PRO B760M-P DDR4 s1700 4DDR4 DP/HDMI 2M.2 mATX
Price:
€109.40
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBMSIIIEB760U02
- Barcode
- 4711377030991
- Model
- PRO B760M-P DDR4
- CPU socket
- LGA1700
- Processor family
- Intel Core i3
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Processor family
- Intel Core i9
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3800 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4200 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 2133 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe 4.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 2 x M.2 M.2_1 (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_2 (from chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA5 will be unavailable when M.2 SATA SSD is installed in M2_2 slot.
- Graphics
- HDMI DisplayPort VGA Support HDMI 1.4, max resolution 4K 30Hz Support DP 1.4, max resolution 4K 60Hz VGA support, max resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek RTL8111H Gigabit LAN
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes

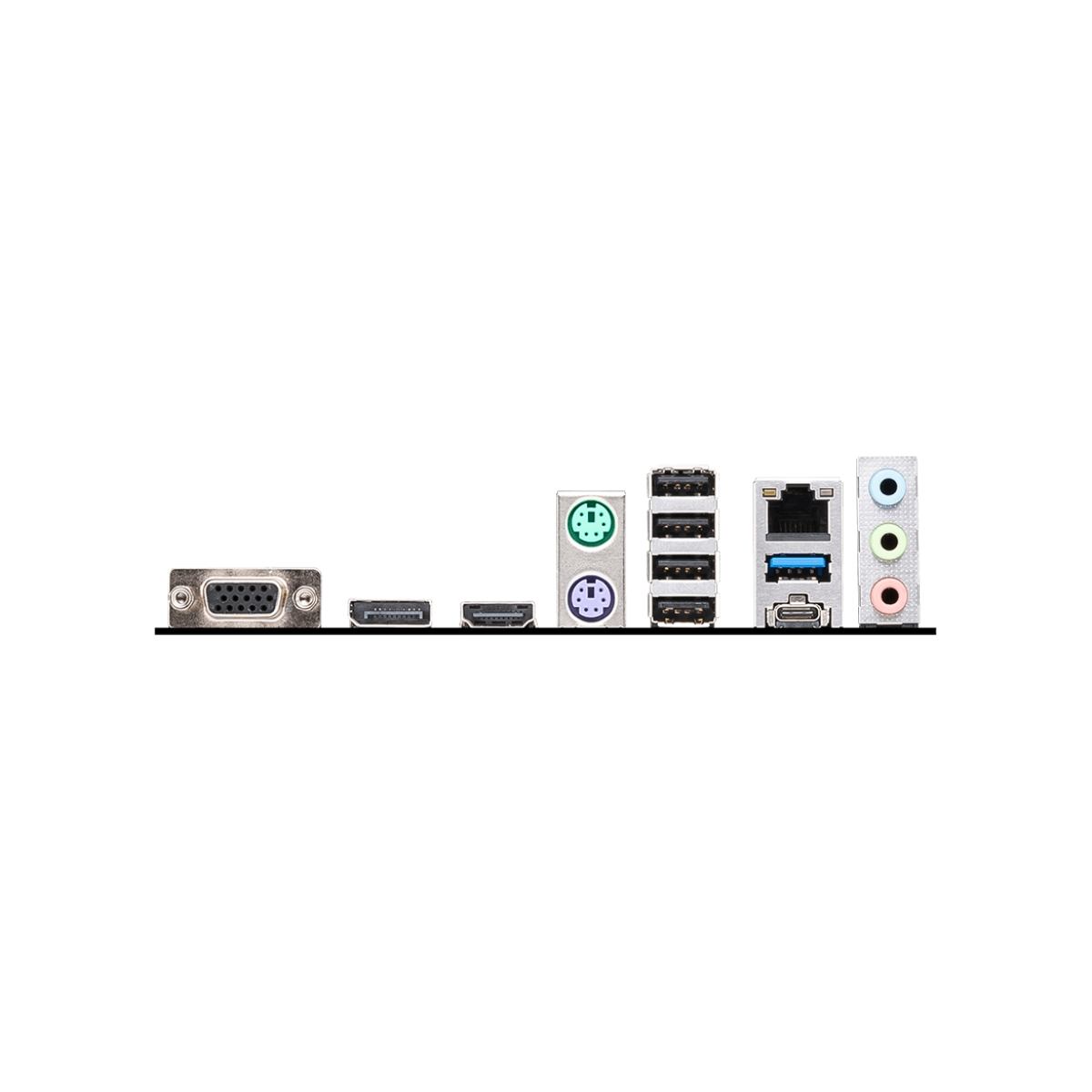

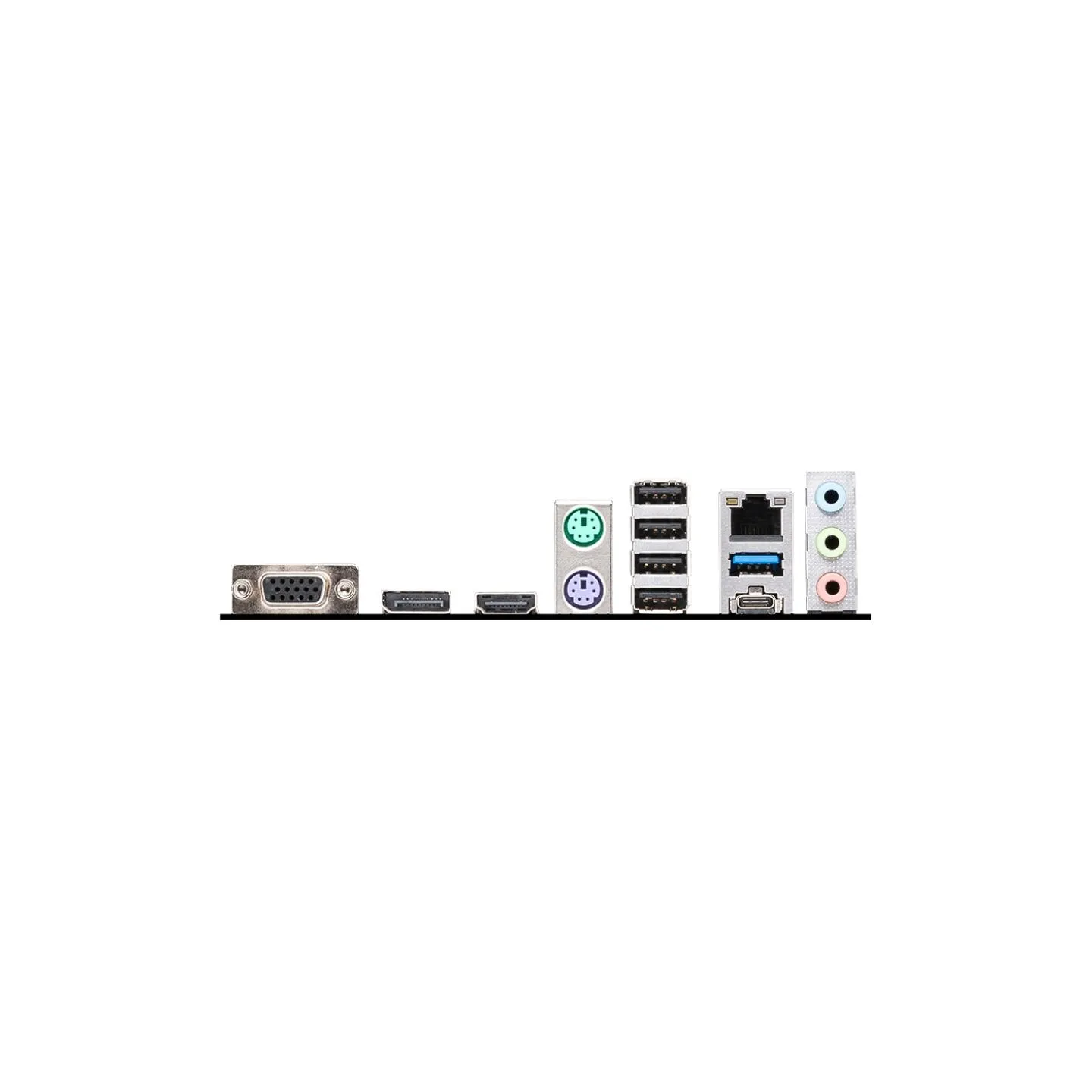

- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x MIC
- External connectors
- 1 x PS/2 Keyboard
- External connectors
- 1 x D-Sub
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x USB 3.0
- External connectors
- 1 x PS/2 Mouse
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Printer Port (JLPT)
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x RGB LED strip header
- Form factor
- micro ATX
- Dimensions
- 243.84 x 243.84 mm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Designation
- CE+WEEE
