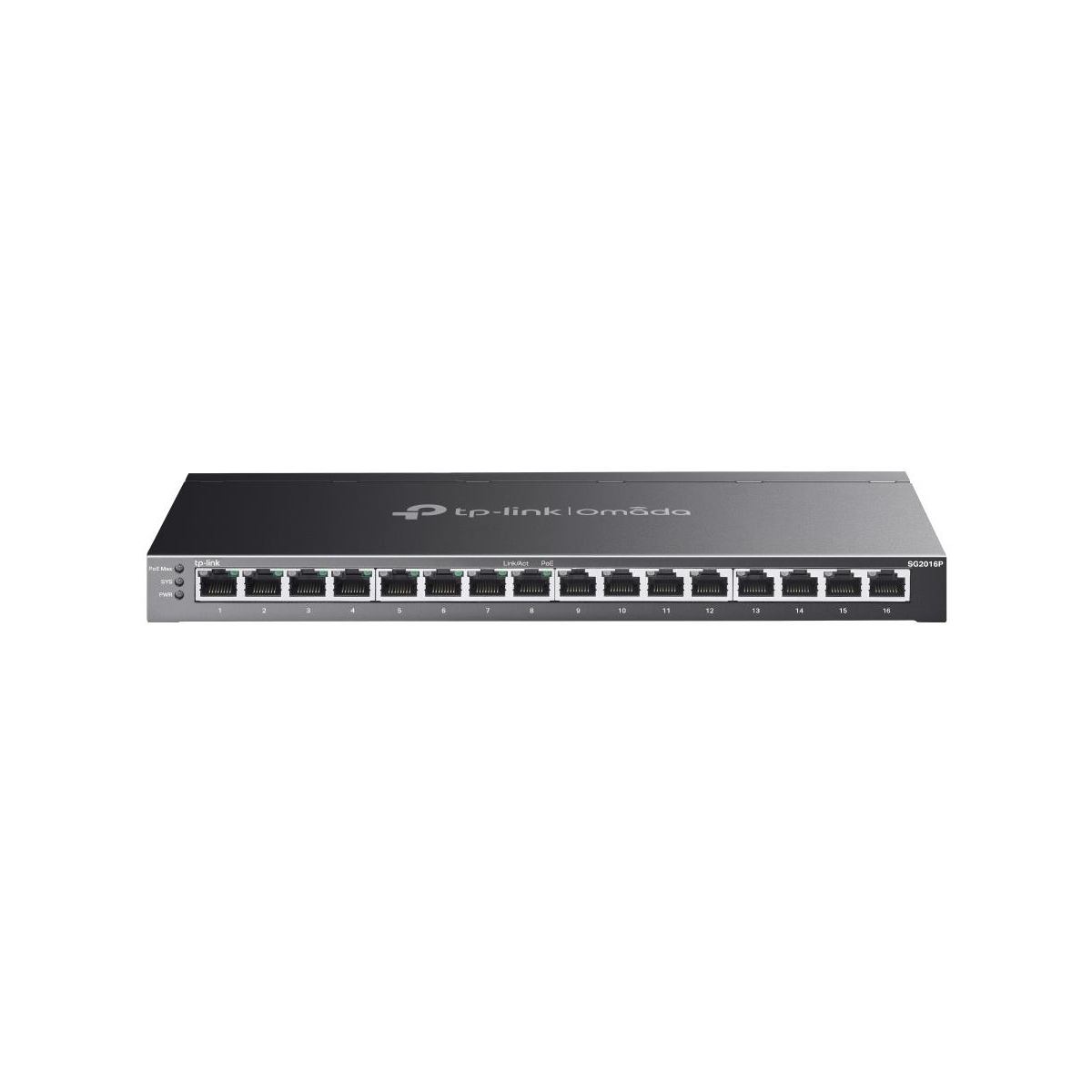

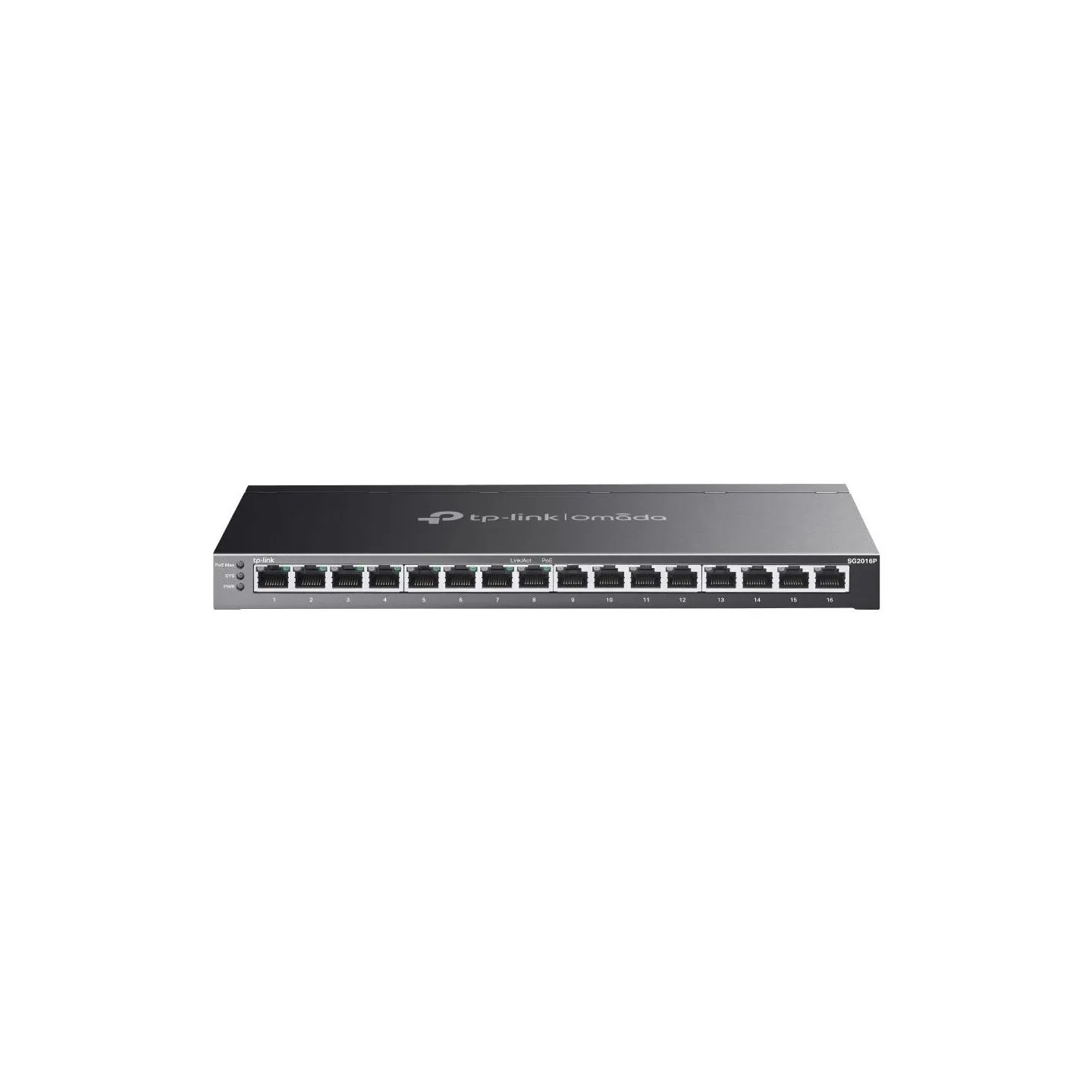

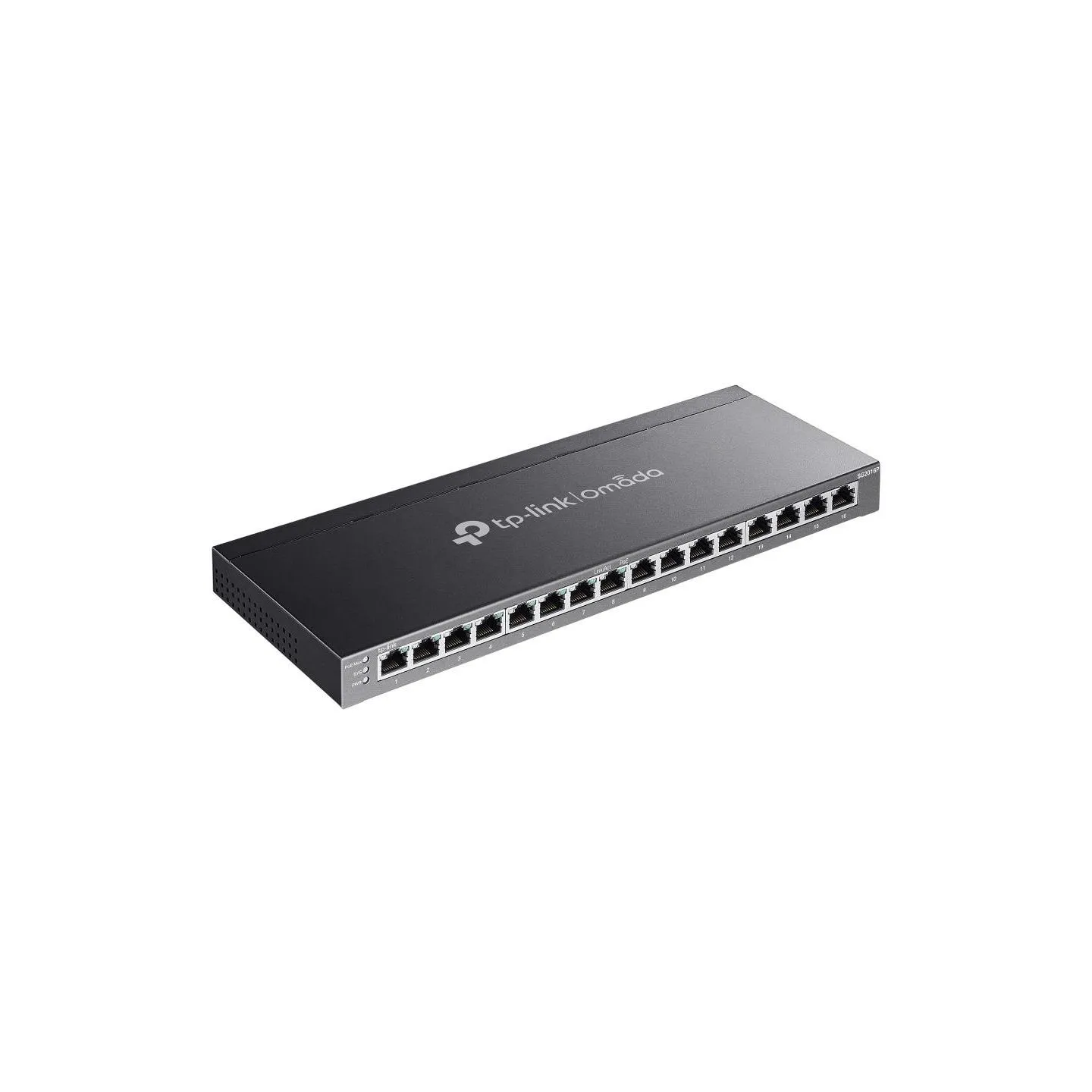

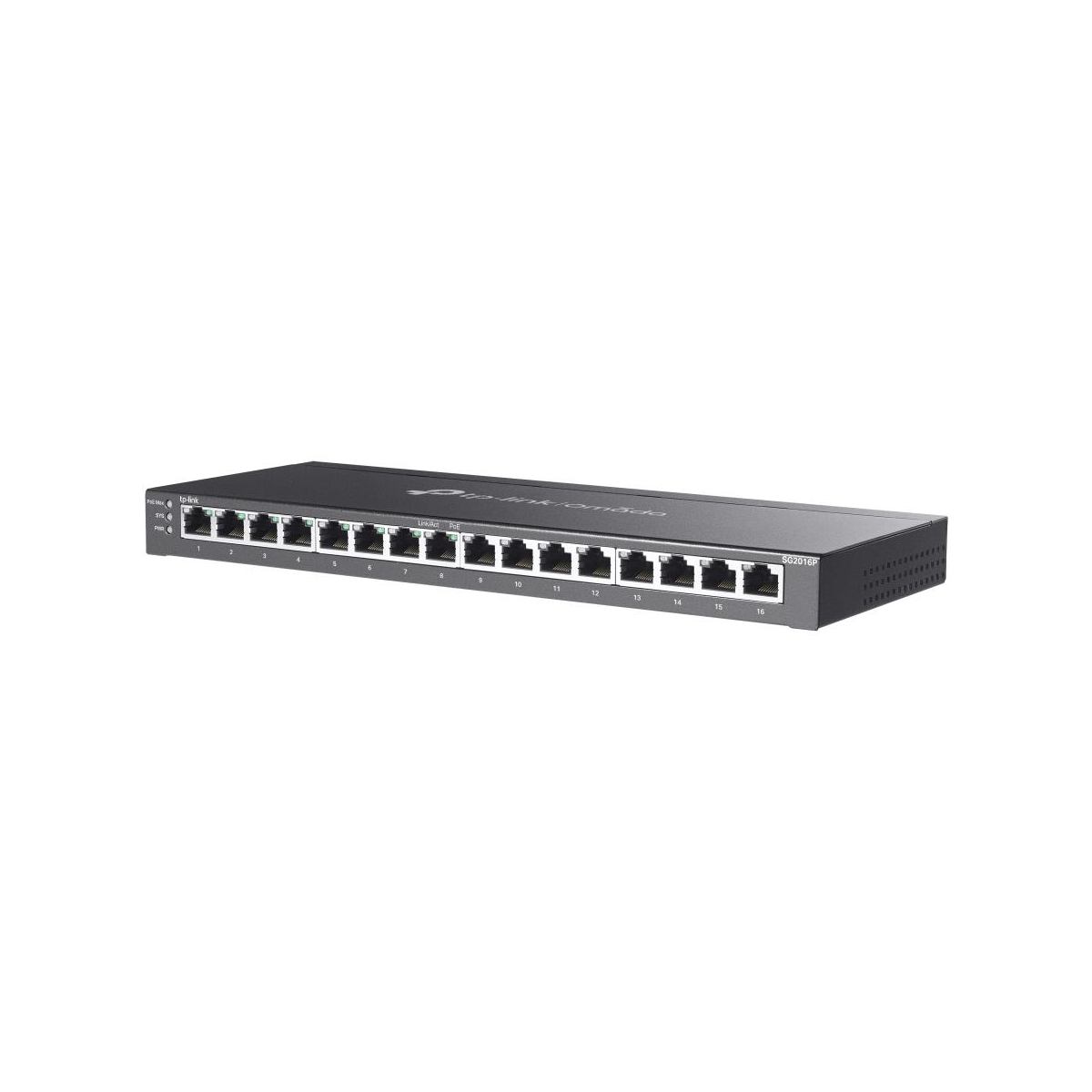

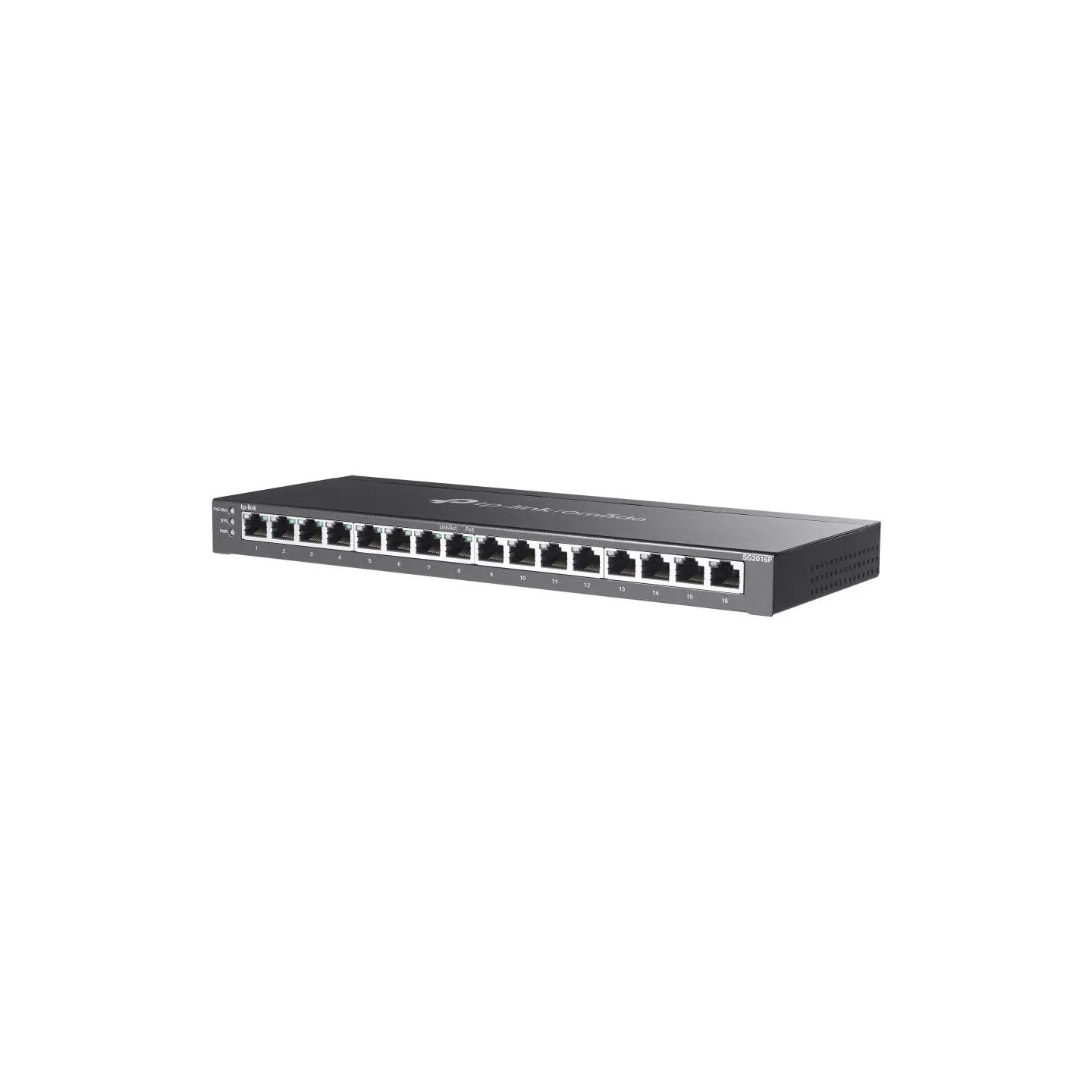

Tp-Link Switch|TP-LINK|Omada|TL-SG2016P|16x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 8|120 Watts|TL-SG2016P
Price:
€248.65
Tax included
Last items in stock
Share on
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
- 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
- 120 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation

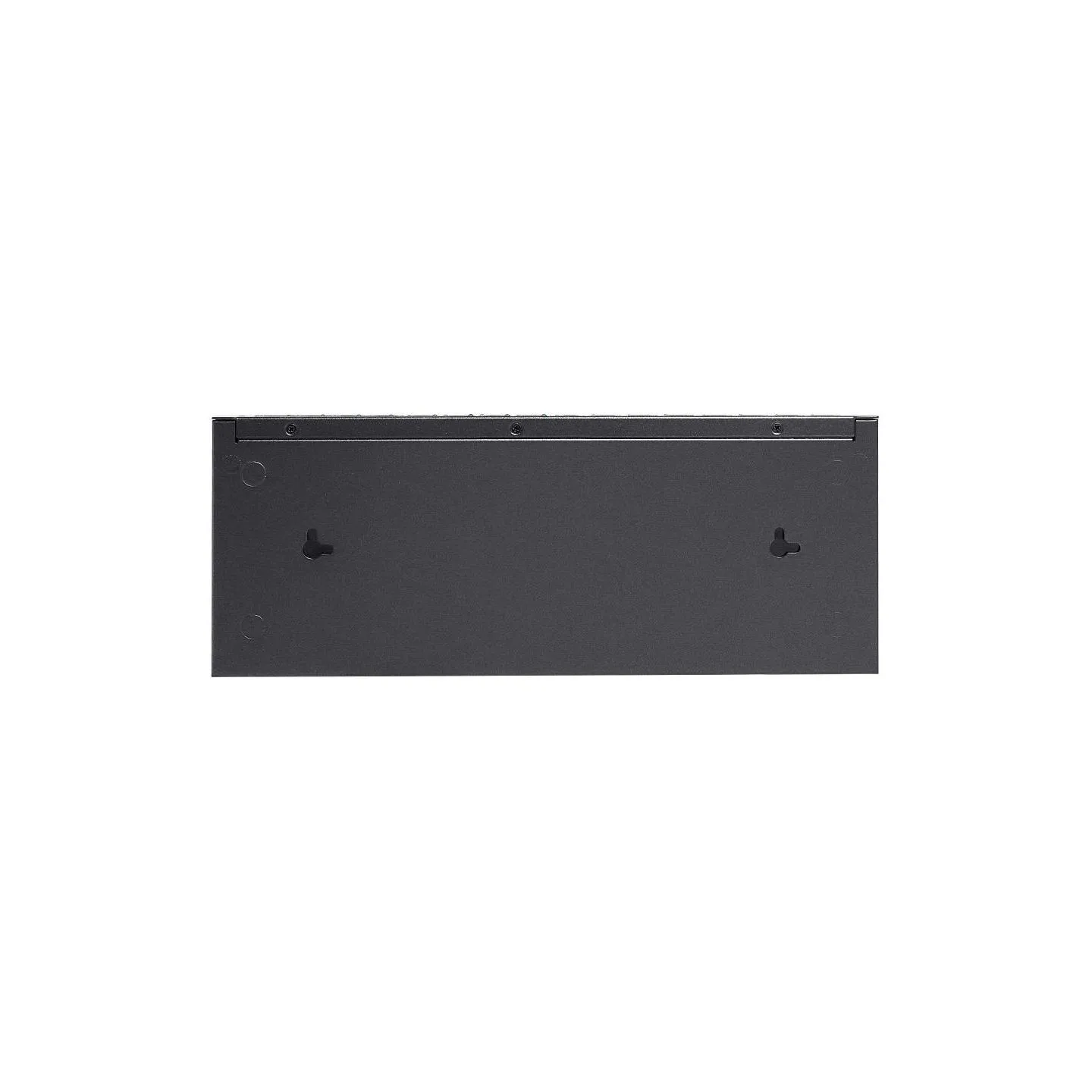

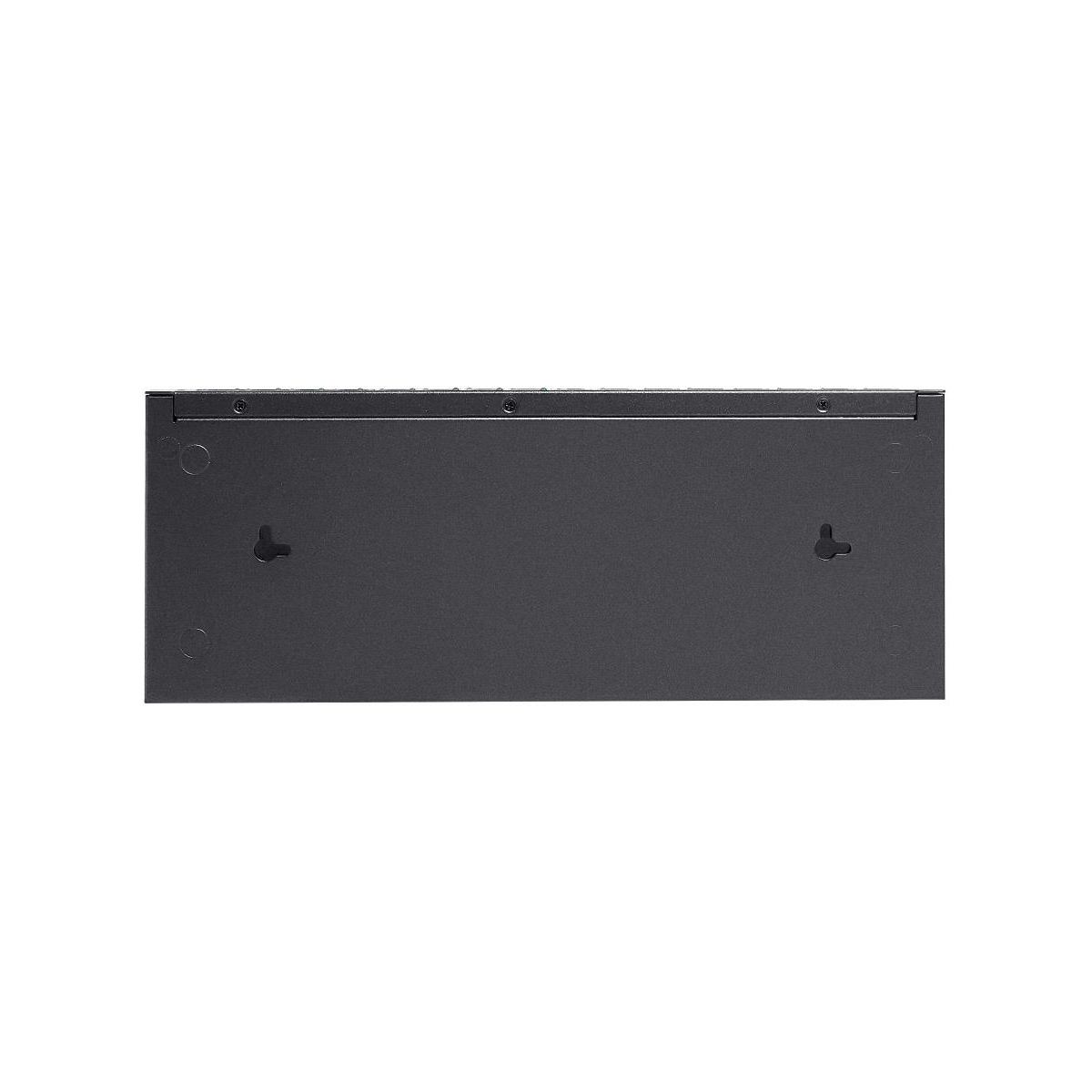

- Durable metal casing and desktop/wall mounting design
Manufacturer Website:
https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2016p/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.07
- Unit Box Length
- 0.44
- Unit Box Width
- 0.23
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
- Quality of Service (QoS) support
- Yes
- Switch layer
- L2/L2+
- Switch type
- Managed
- System event log
- Yes
- Web-based management
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)

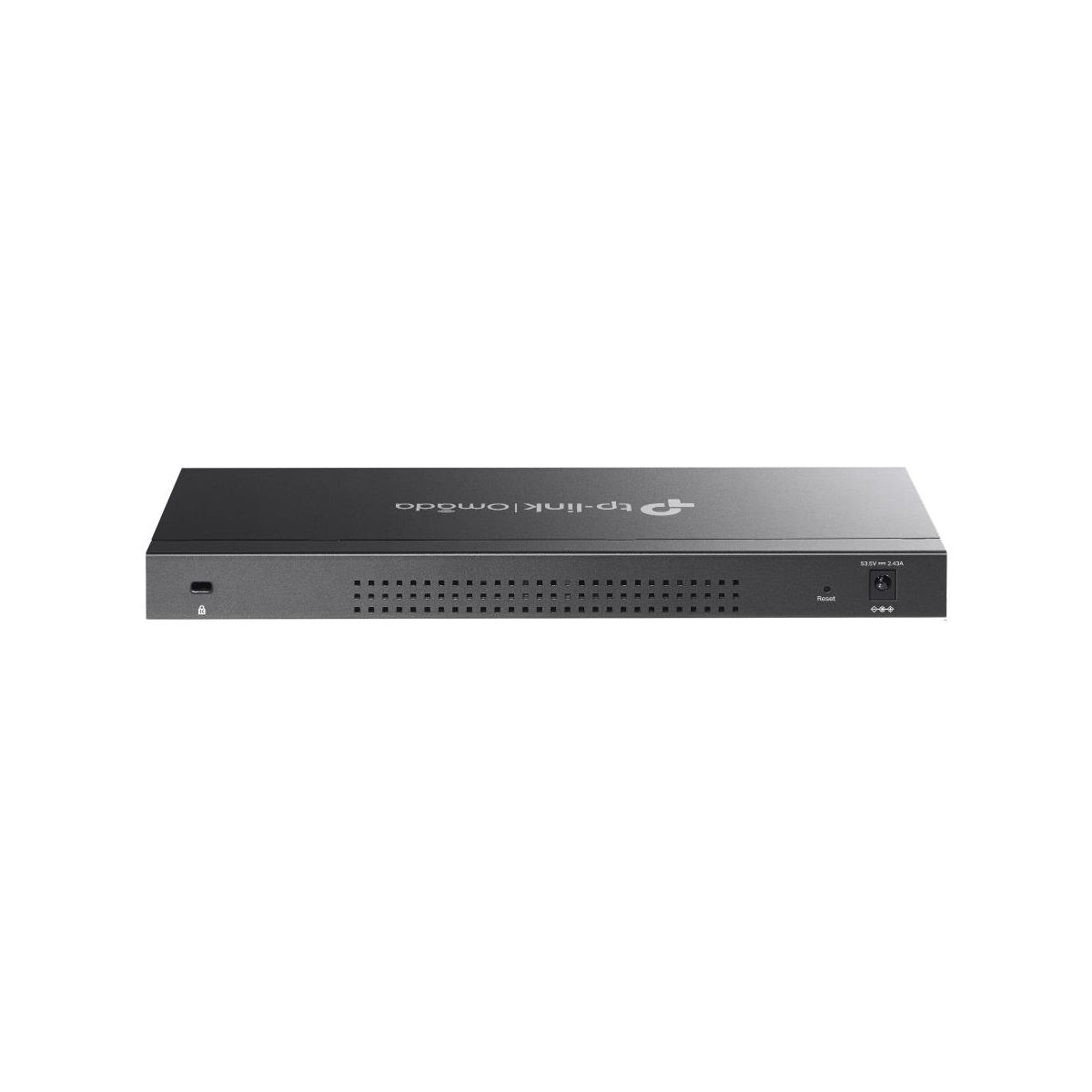

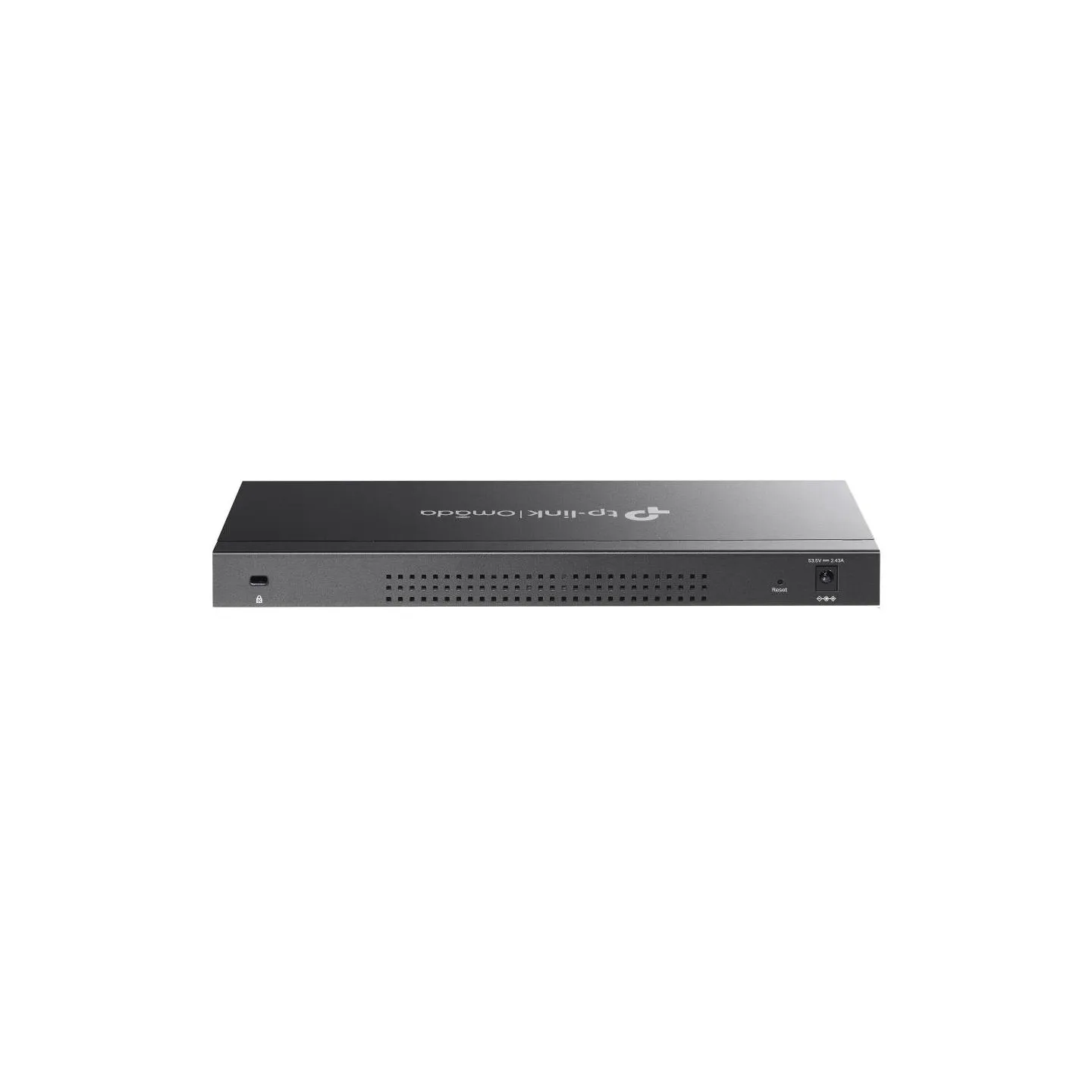

- Power connector
- DC-in jack
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Flow control support
- Yes
- Link aggregation
- Yes
- Networking standards
- IEEE 802.11w/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- Multicast VLAN/Tagged VLAN/Voice VLAN
- VLAN support
- Yes
- Forwarding rate
- 23.81 Mpps
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Number of queues
- 8
- Packet buffer memory
- 4.1 MB
- Switching capacity
- 32 Gbit/s
- Access Control List (ACL)
- Yes
- Authentication
- Guest VLAN,MAC-based authentication,Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP relay/DHCP snooping/DHCPv6 client/DHCPv6 snooping
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- MAC address entries
- Dynamic MAC address entries/Static MAC address entries
- MAC address filtering
- Yes
- Queue scheduling algorithms
- SP/Weighted Round Robin (WRR)
- Security algorithms
- EAP-MD5/HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSL/TLS
- SSH/SSL support
- Yes
- Multicast Listener Discovery (MLD) snooping
- MLD v1, MLD v2
- Multicast support
- Yes
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 & IPv6 features
- Dual stack IPv4/IPv6
- Supported network protocols
- ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
- LED indicators
- PoE/Power/System
- Product colour
- Black
- Rack mounting
- Yes
- Fanless
- Yes
- Firmware upgradeable
- Yes
- DC input voltage
- 53.5 V
- Power consumption (max)
- 146.5 W
- Power source
- DC/PoE
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 120 W
- Heat dissipation
- 499.98 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 111.7 mm
- Height
- 25.4 mm
- Width
- 286 mm
- Cables included
- AC
- Manual
- Yes
- Certification
- CE, FCC, RoHS
- Series
- Omada
- Model name
- TL-SG2016P
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.007084 cubm
- Unit Calculated Weight
- 2 kg
