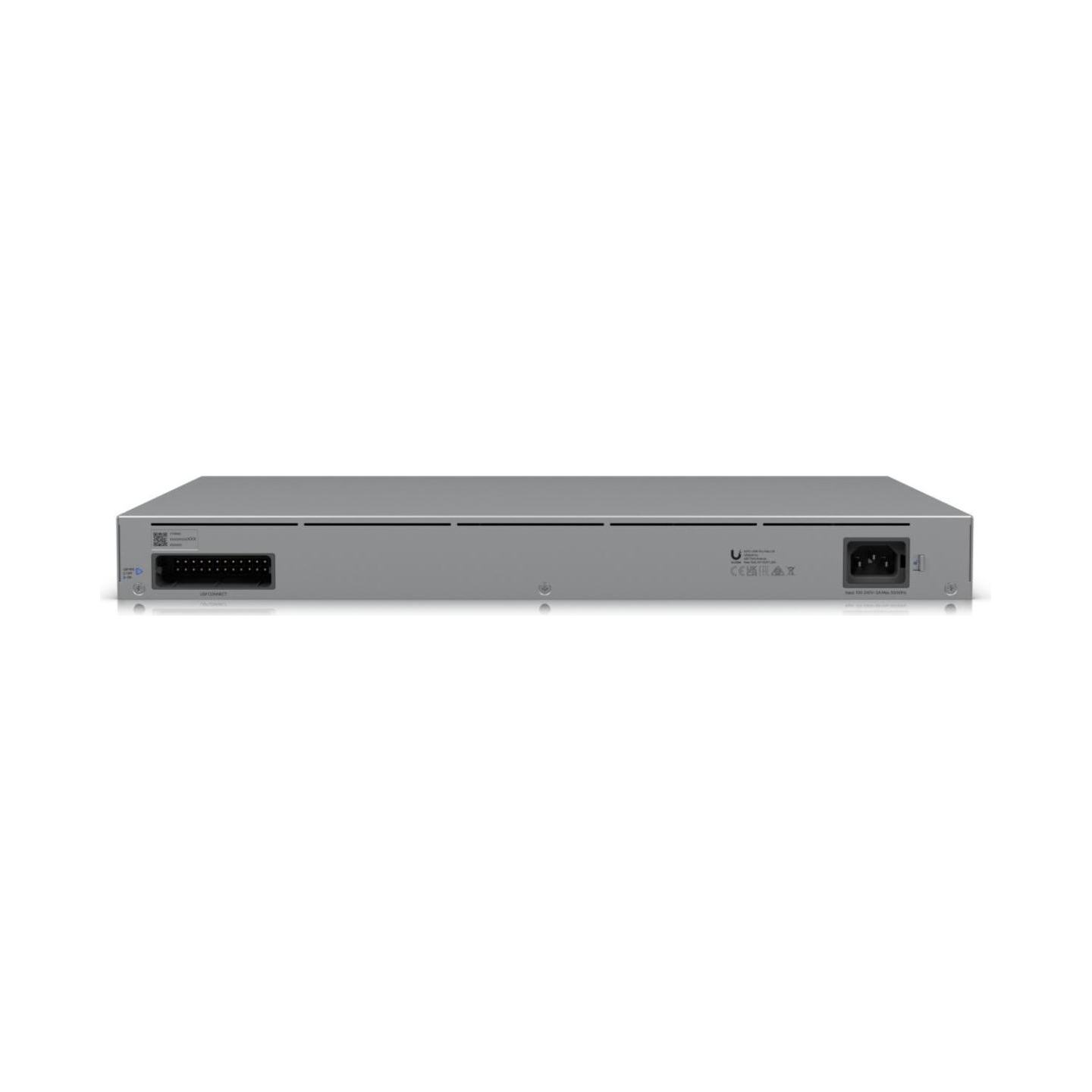

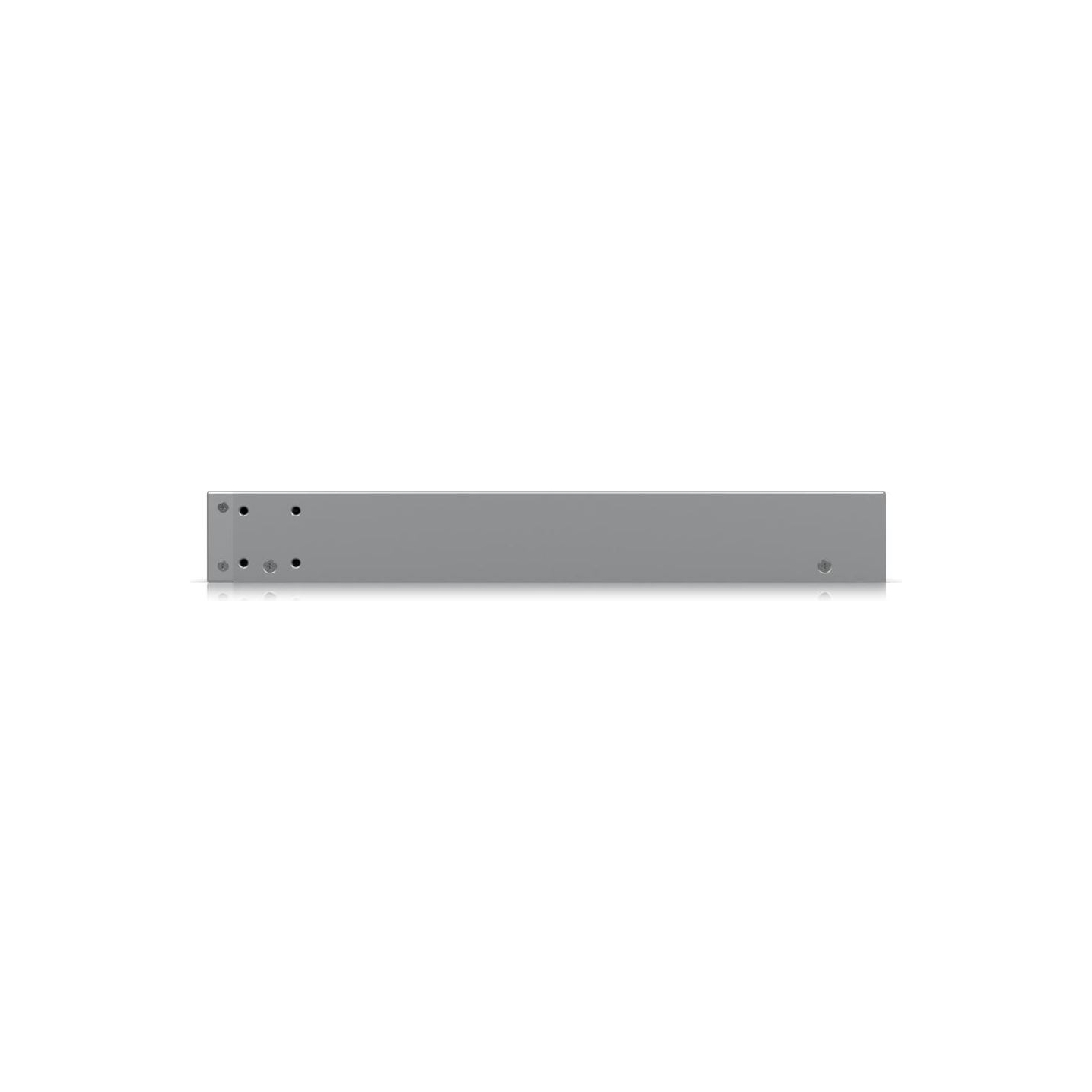

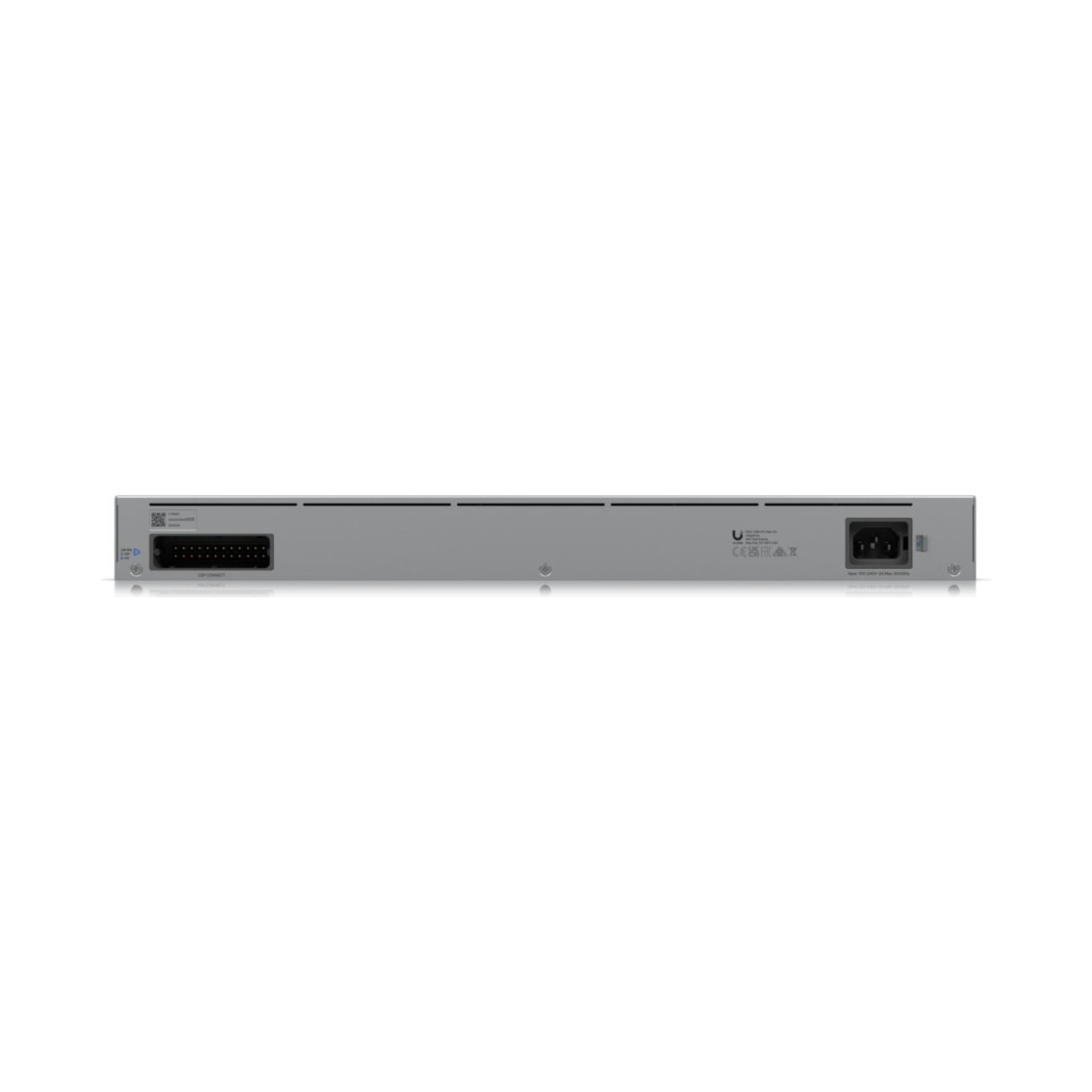

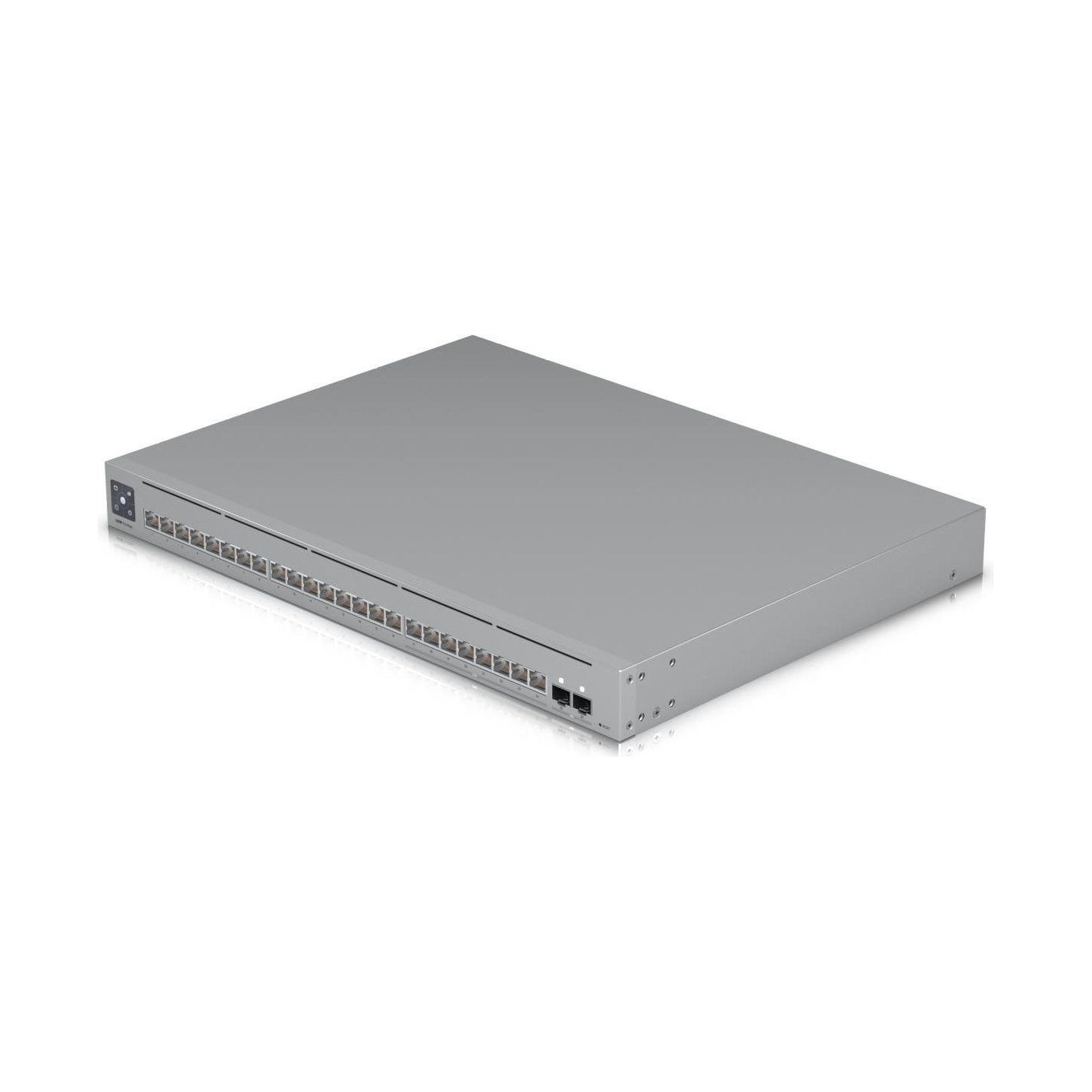

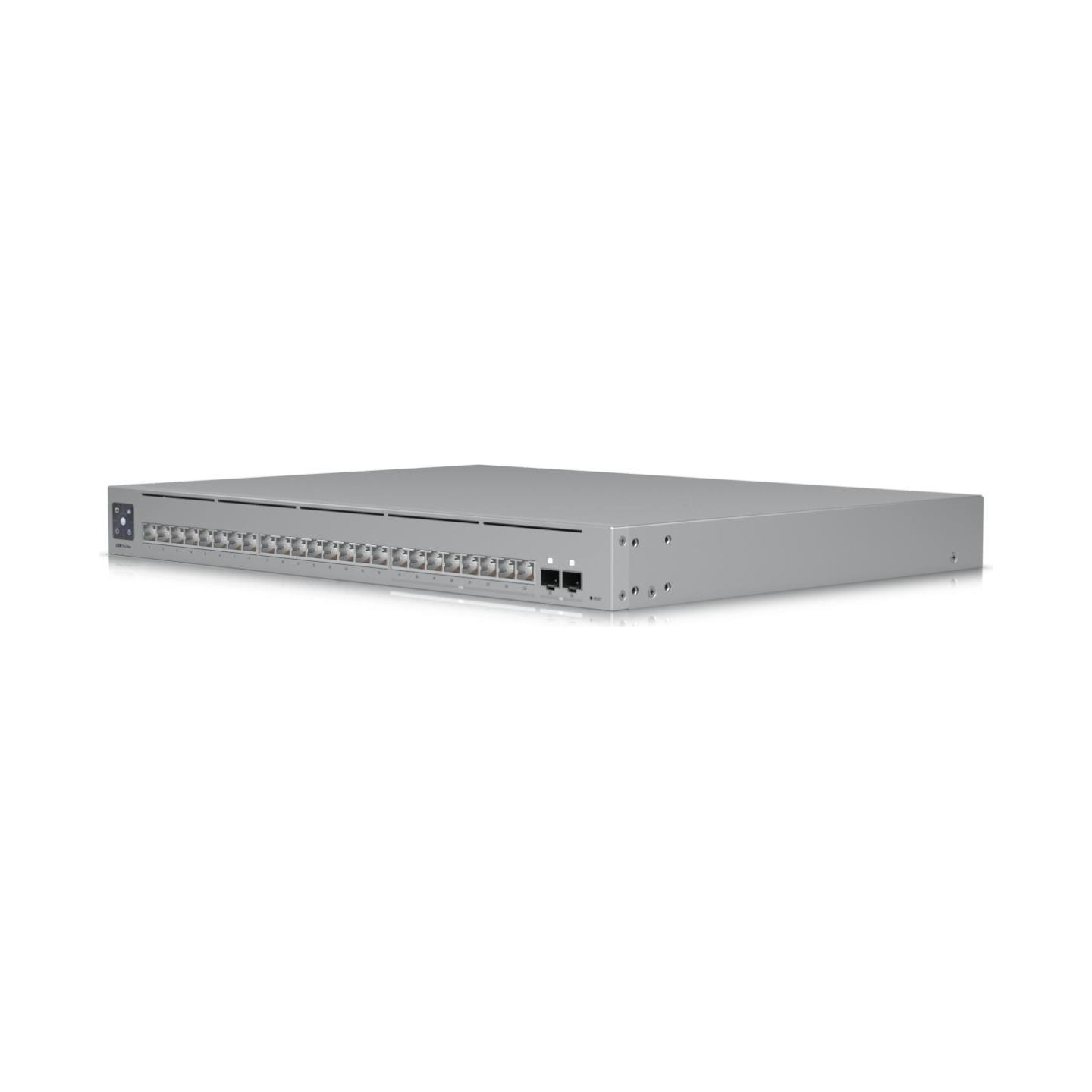

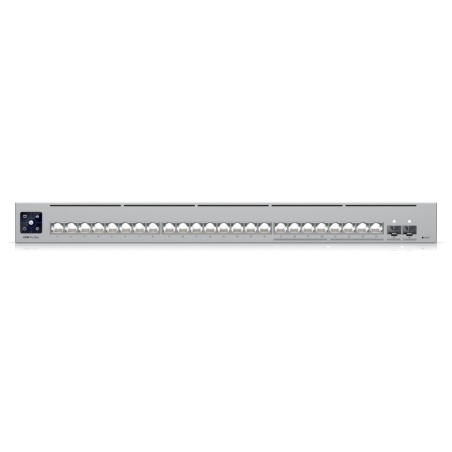

Ubiquiti USW-PRO-MAX-24

Name: Ubiquiti USW-PRO-MAX-24
Brand: UBIQUITI
SKU: USW-PRO-MAX-24
Price: 556.99 EUR
Availability: InStock

SKU USW-PRO-MAX-24 Category Switches

€556.99

Tax included

Share on

Ubiquiti Pro Max 24 (USW-PRO-MAX-24)
Switch layer L3
24xBasic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
2xSFP+ module slots quantity
Yes
Port mirroring Yes
Switching capacity 112 Gbit/s
Throughput 56 Gbit/s
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Power source AC/DC
Power supply included Yes
Width 442.4 mm
Depth 325 mm
Height 43.7 mm
Weight 4300 g

Manufacturer Website:
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-24

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.43
Unit Box Length: 0.52
Unit Box Width: 0.12
Switch layer: L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 16
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 2
Power connector: AC/DC
Networking standards: IEEE 802.1x
10G support: Yes
Port mirroring: Yes
Broadcast storm control: Yes
Flow control support: Yes
Rate limiting: Yes
VLAN support: Yes
Virtual LAN features: Voice VLAN
Switching capacity: 112 Gbit/s
Throughput: 56 Gbit/s
Static route: Yes
Jumbo frames support: Yes
DHCP features: DHCP relay/DHCP snooping
IGMP snooping: Yes
Loop protection: Yes
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Reset button: Yes
LED indicators: Link/Network/Speed/Status
Display type: LCM
Power source: AC/DC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 50 W
Power over Ethernet (PoE): No
Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90 %
Width: 442.4 mm
Depth: 325 mm
Height: 43.7 mm
Weight: 4300 g
Cables included: Power
Rack mount kit: Yes
Sustainability certificates: CE/Federal Communications Commission (FCC)
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Unit Calculated Weight: 5.85 kg
Product Net Weight: 4.2 kg
Unit Calculated Volume: 0.03225 cubm
Units per Shipping Box: 2
Shipping Box Weight: 11.7 kg
Unit Width: 12 cm
Shipping Box Height: 45.5 cm
Unit Depth: 52 cm
Shipping Box Depth: 53.5 cm
Unit Height: 43 cm
Shipping Box Width: 26.5 cm
Name: NET SWITCH 24PORT 2.5GBE/USW-PRO-MAX-24 UBIQUITI
Model: USW-Pro-Max-24
Model name: Ubiquiti Pro Max 24 (USW-PRO-MAX-24)
