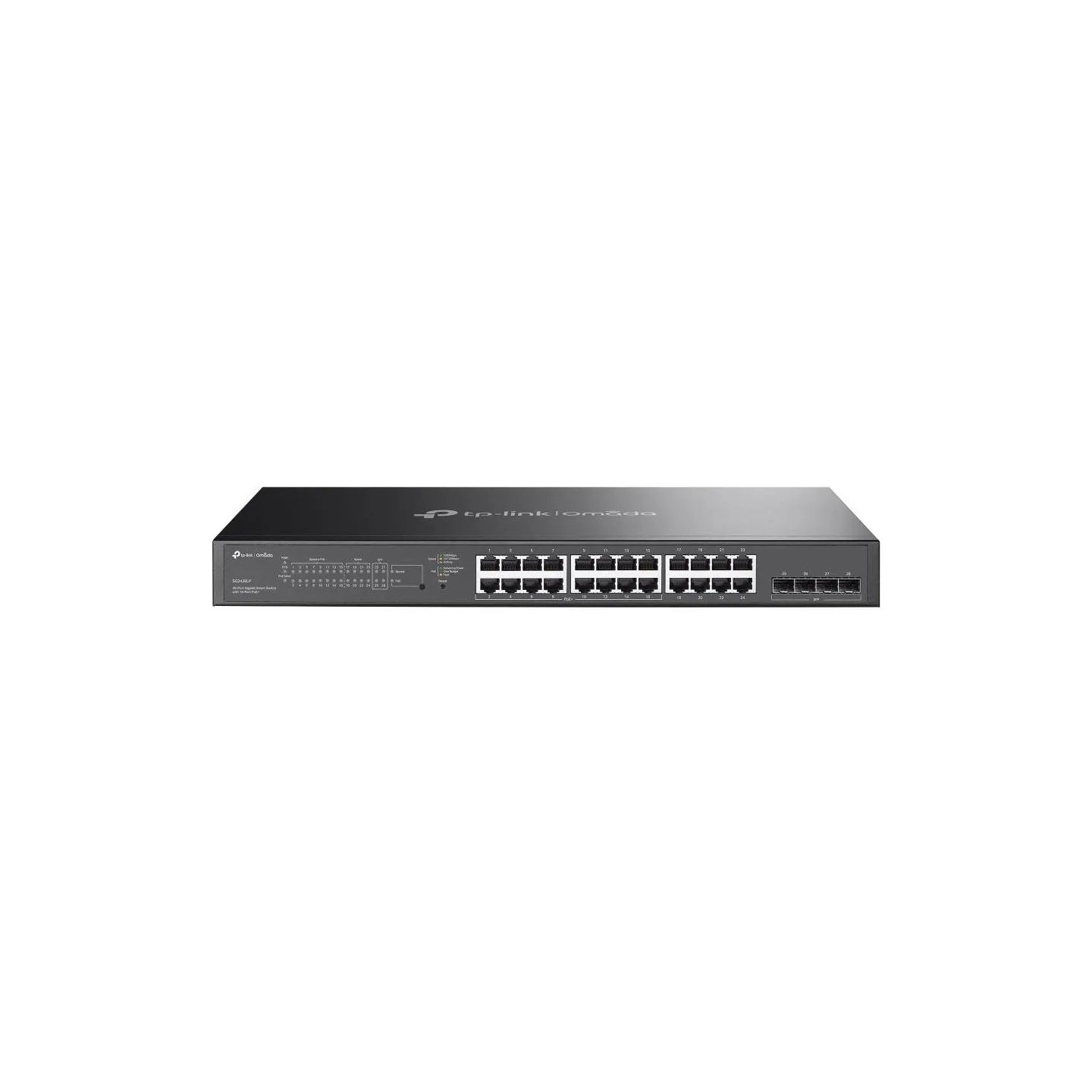

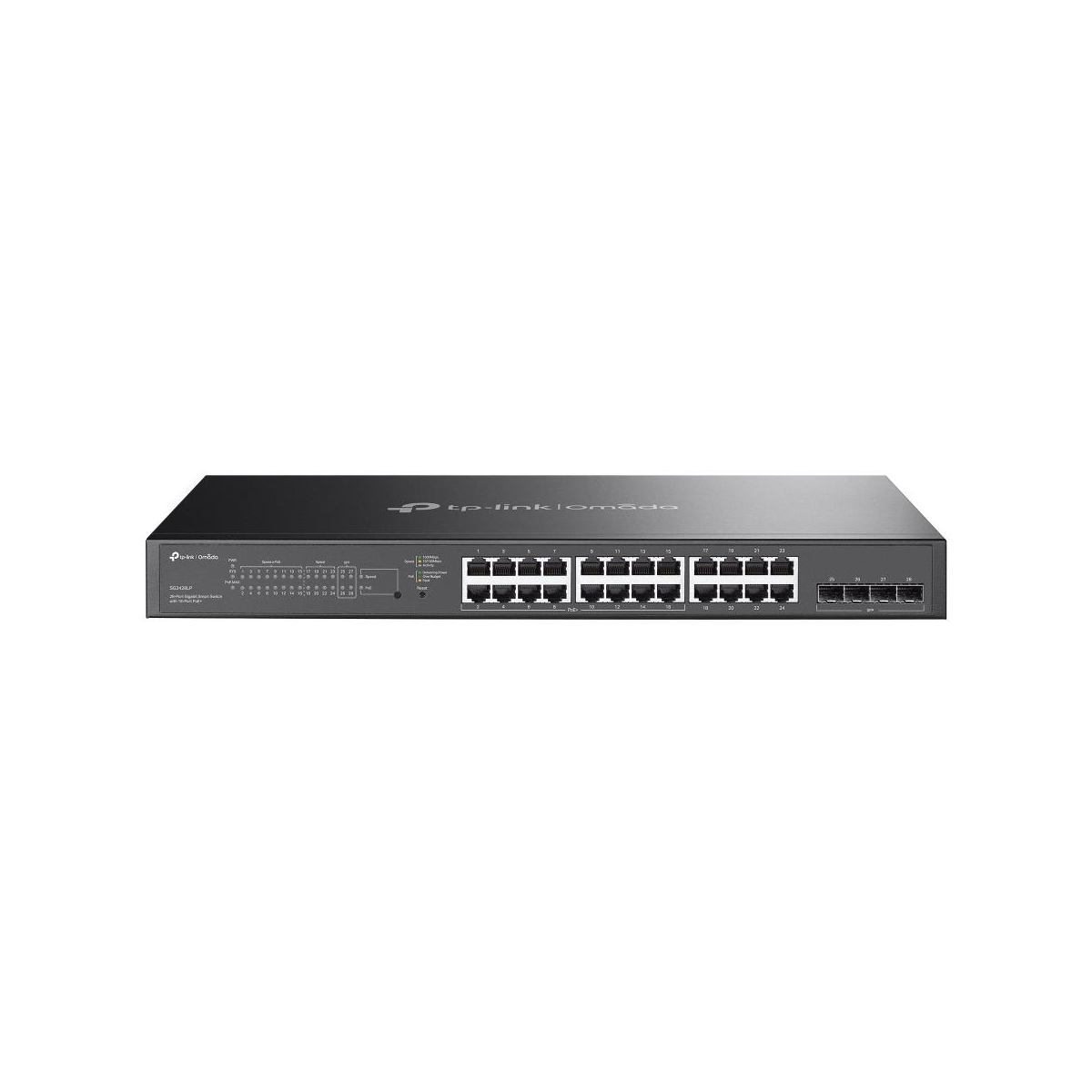

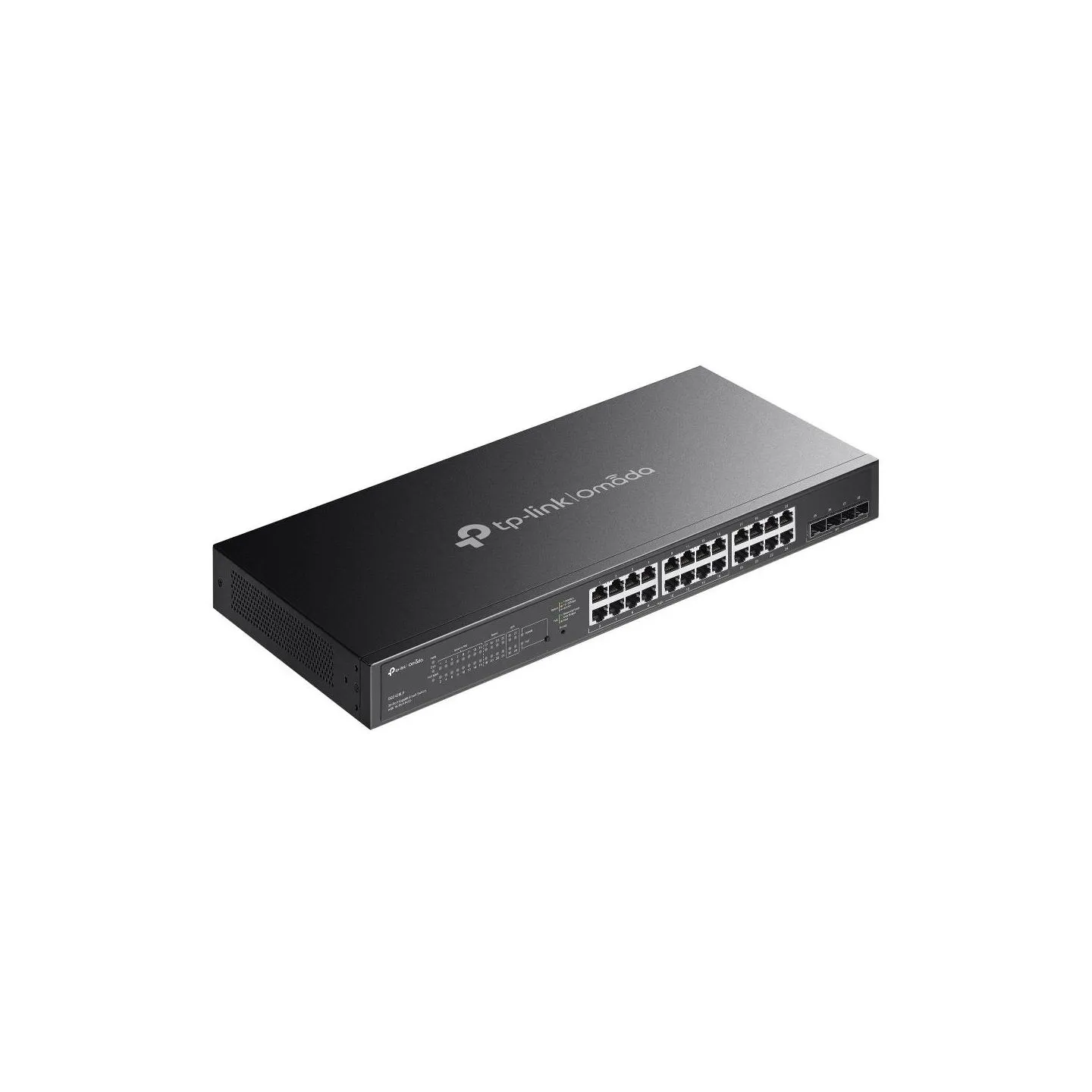

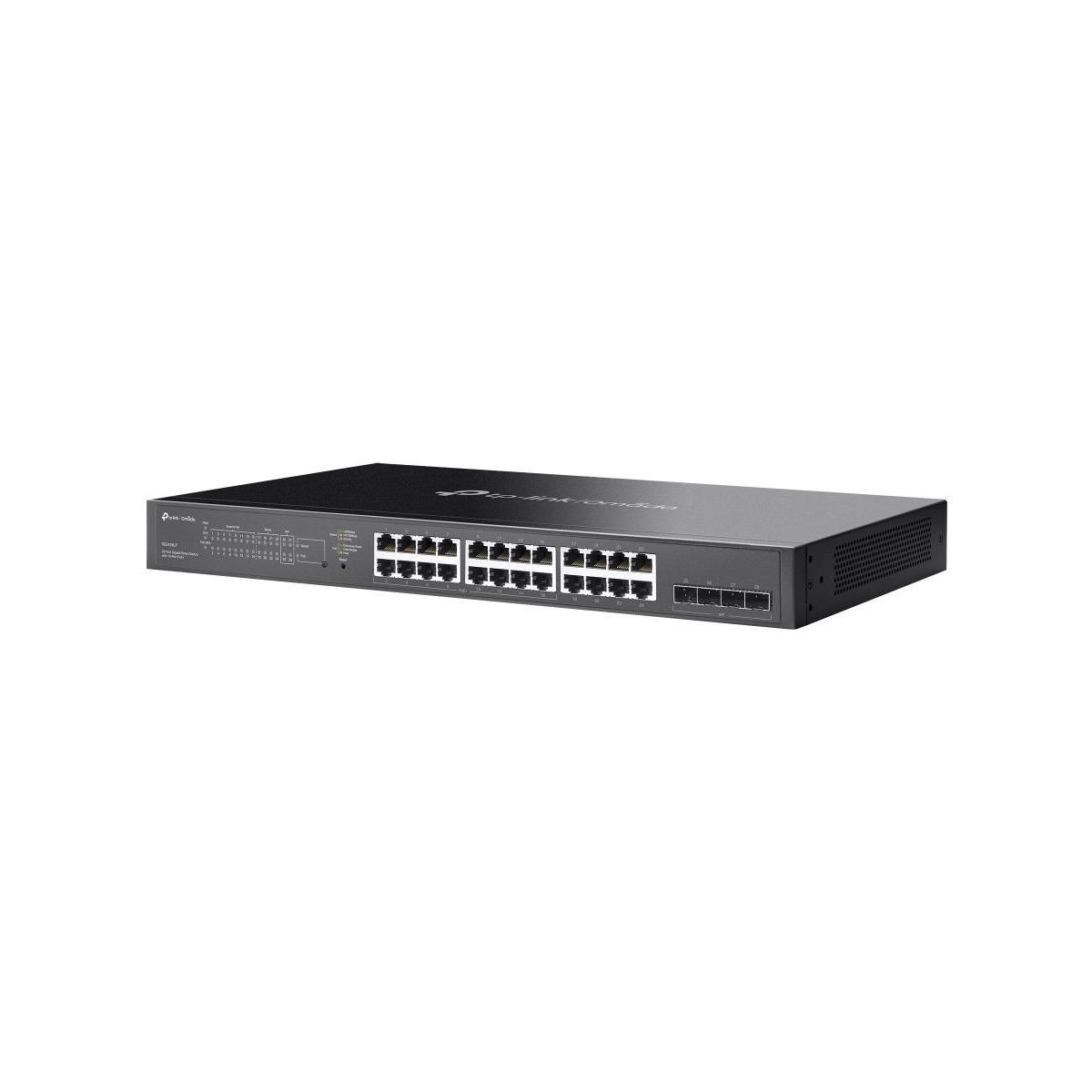

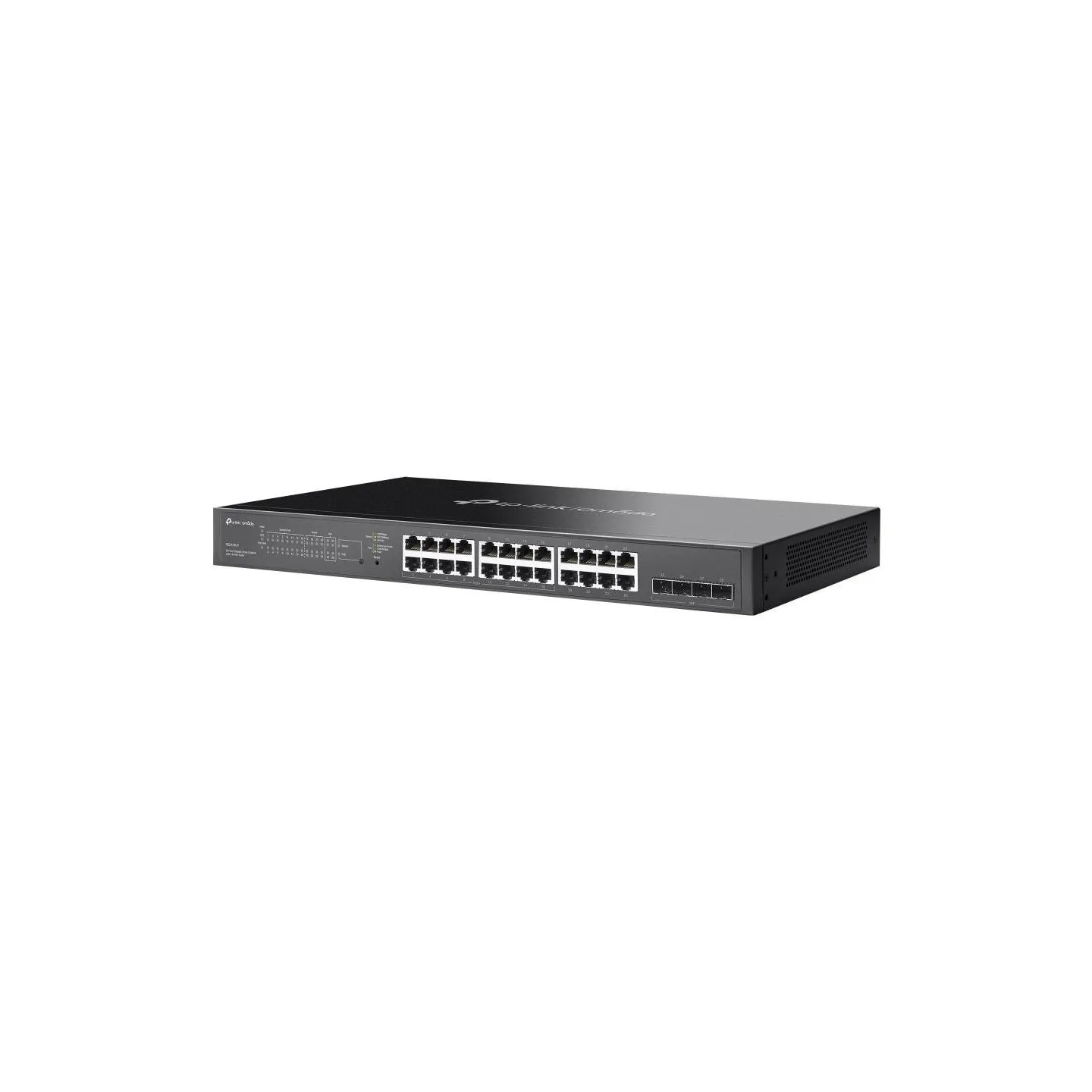

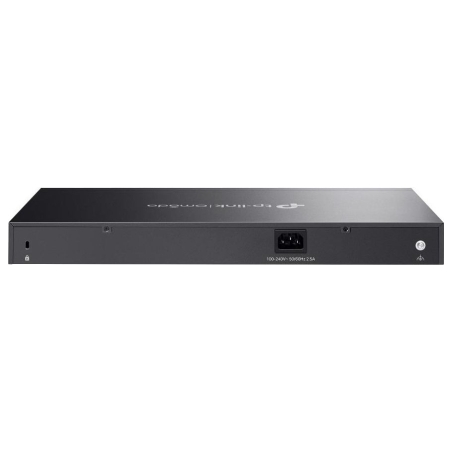

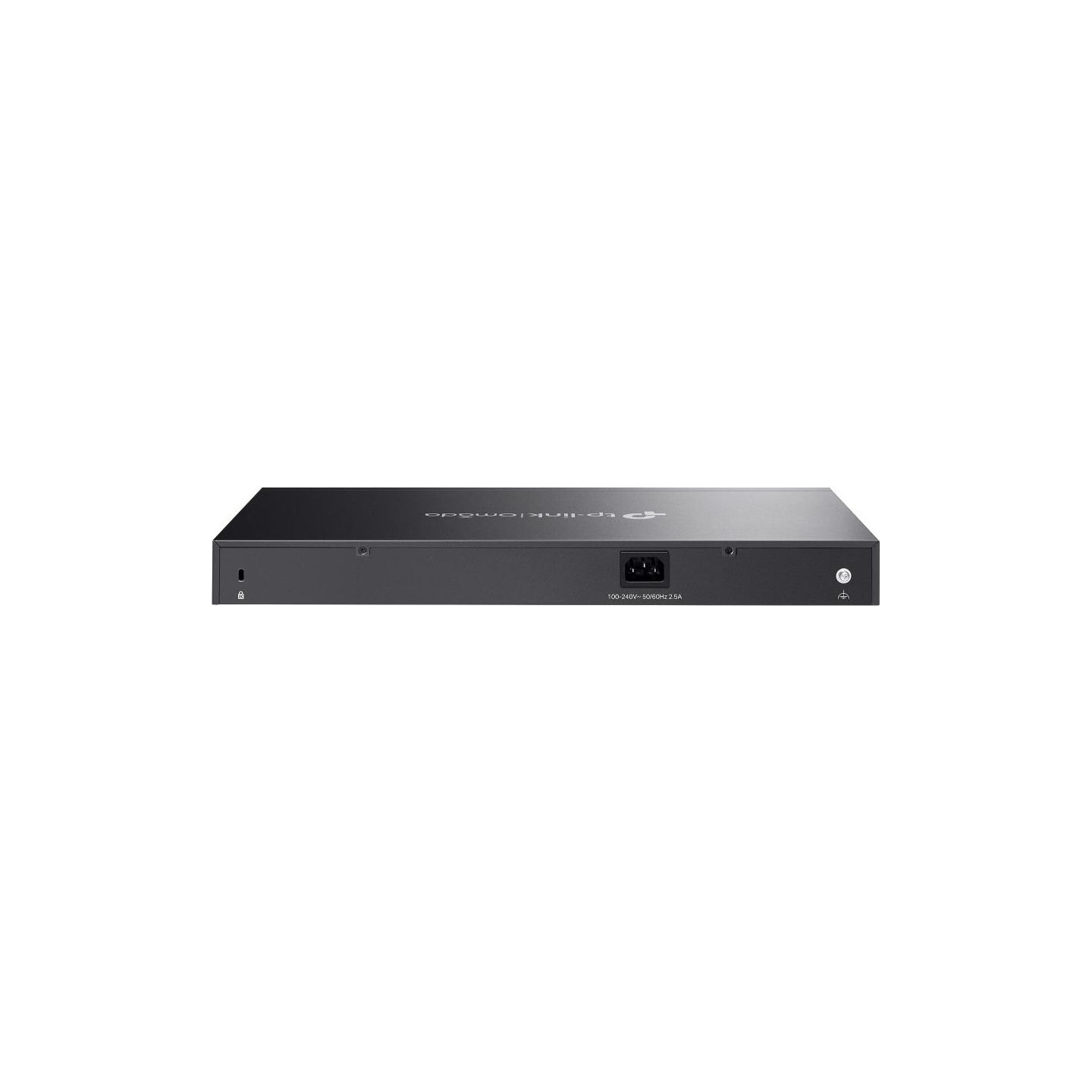

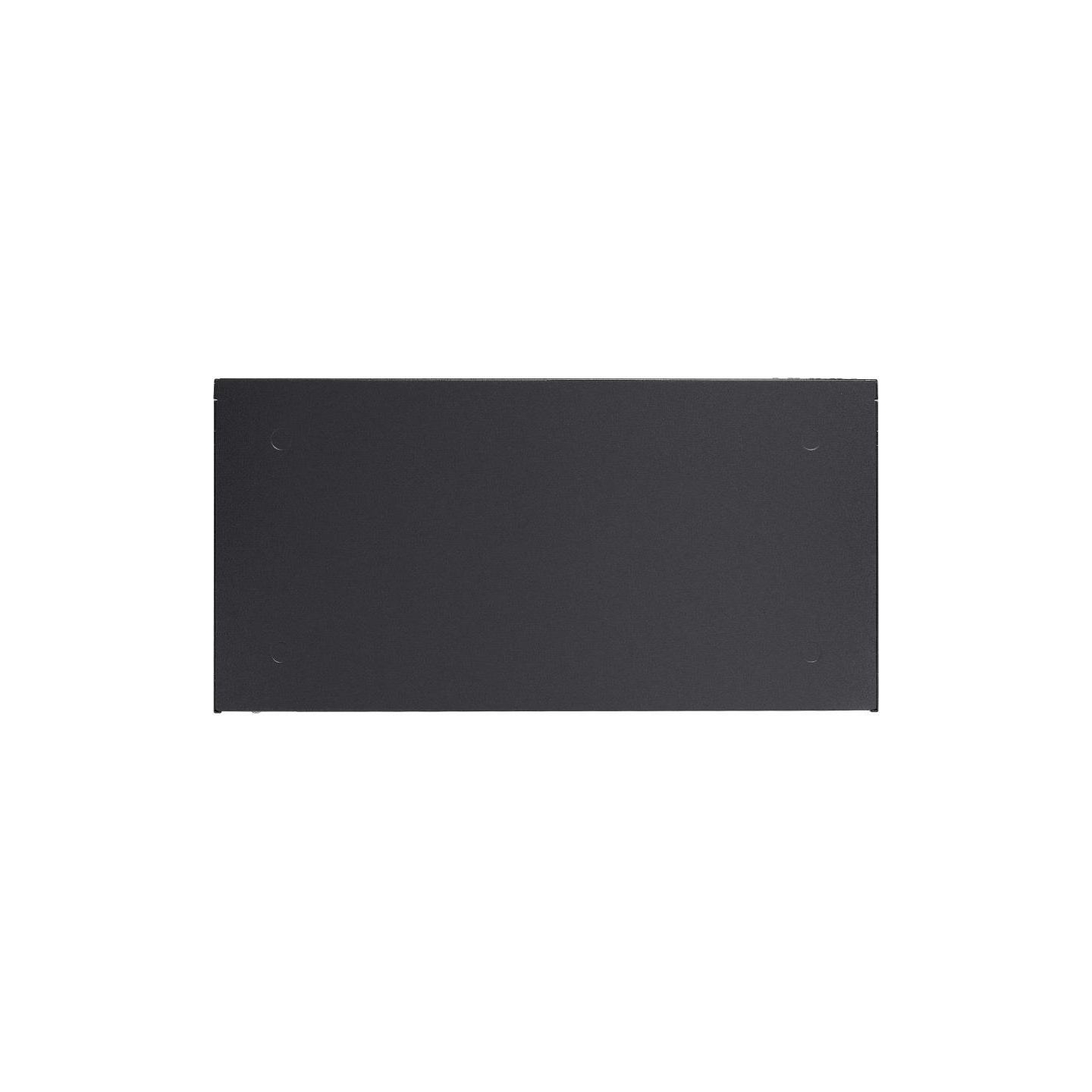

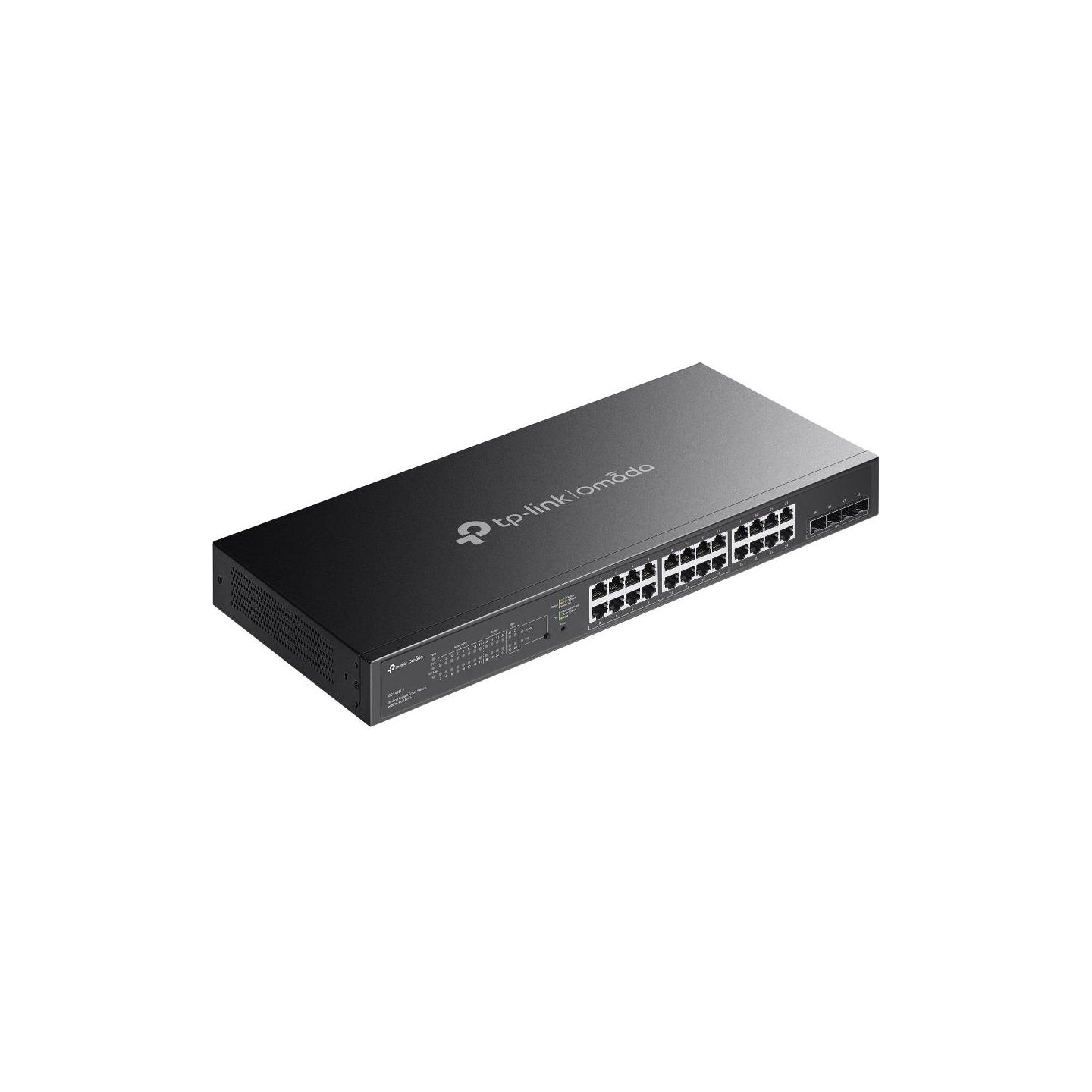

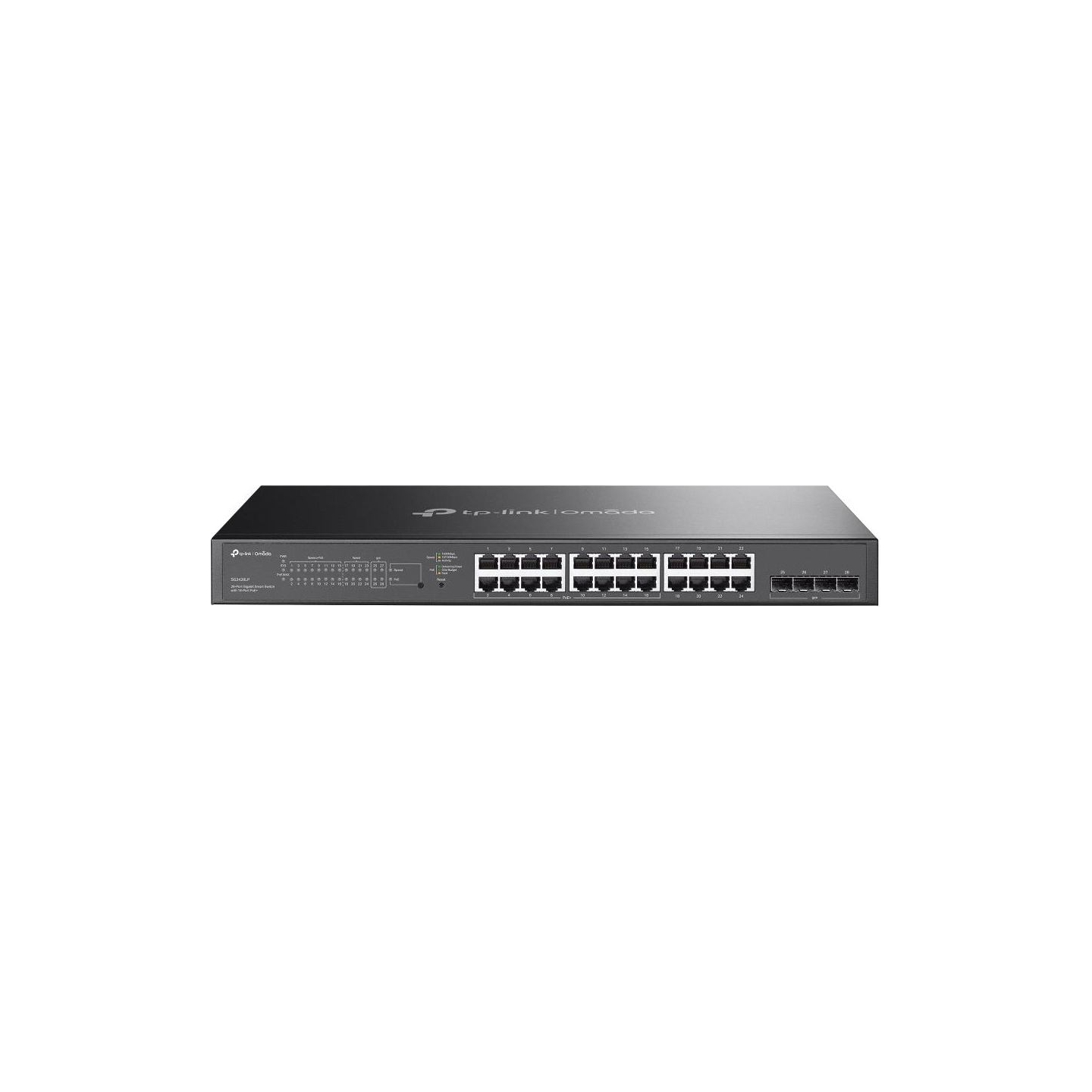

Tp-Link Switch SG2428LP 16xGE PoE+ 8xGE 4xSFP

Tp-Link Switch SG2428LP 16xGE PoE+ 8xGE 4xSFP

Name: Tp-Link Switch SG2428LP 16xGE PoE+ 8xGE 4xSFP
Brand: TP-LINK
SKU: SG2428LP
Price: 298.38 EUR
Availability: InStock

SKU SG2428LP Category Switches

€298.38

Tax included

Share on

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

16× Gigabit 802.3af/at PoE+ ports
8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
150 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for quiet operation

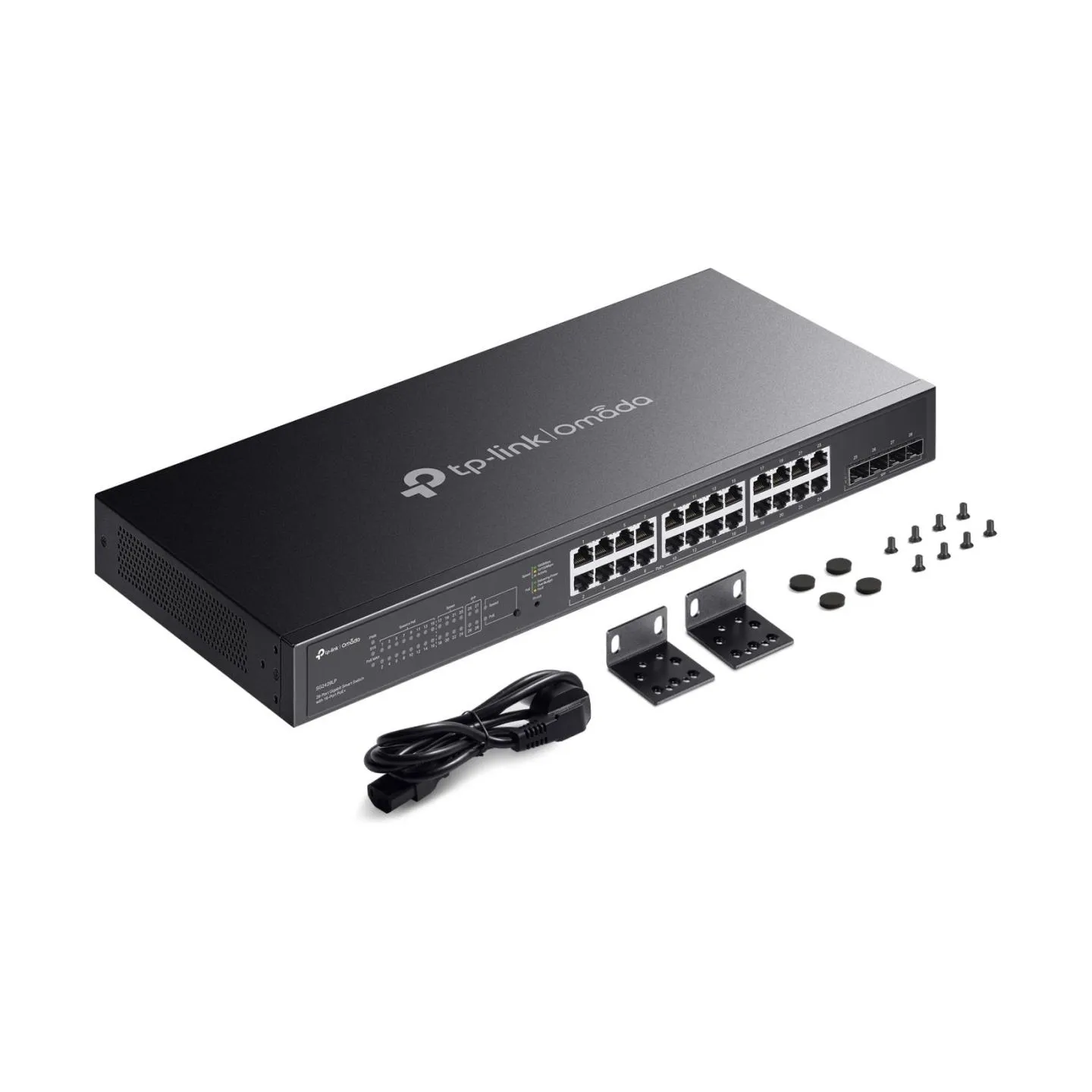

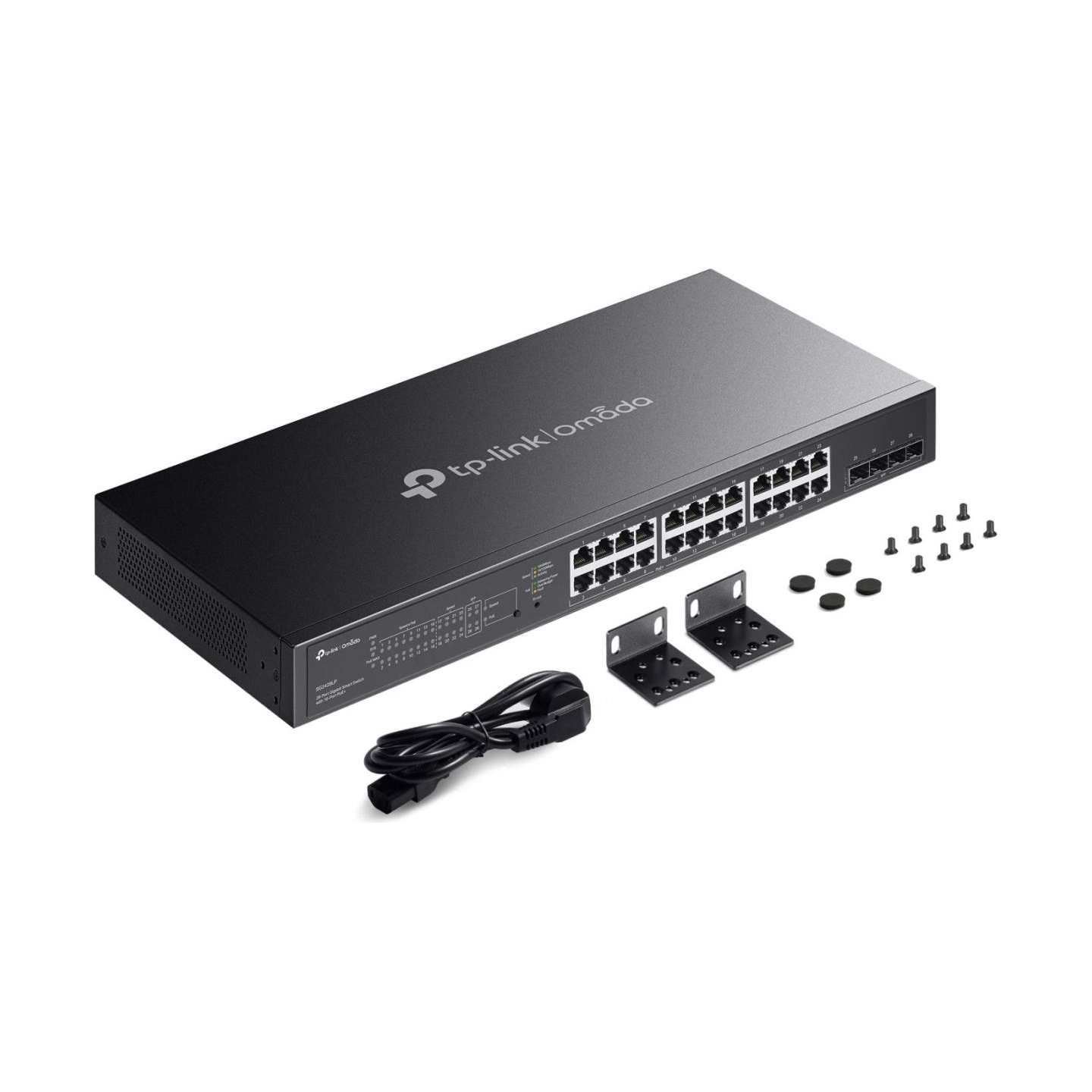

Durable metal casing and rackmountable design

Manufacturer Website:
https://www.tp-link.com/au/business-networking/omada-switch-smart/sg2428lp/#highlights

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.1
Unit Box Length: 0.535
Unit Box Width: 0.34
ARP inspection: Yes
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2/L2+
Switch type: Managed
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
10G support: No
Auto-negotiation: Yes
Flow control support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.3af/IEEE 802.3at
Number of VLANs: 4000
Spanning tree protocol: Yes
Virtual LAN features: MAC address-based VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN support: Yes
Forwarding rate: 41.66 Mpps
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Switching capacity: 56 Gbit/s
Access Control List (ACL): Yes
DHCP features: DHCP relay/DHCP server
IGMP snooping: Yes
MAC address filtering: Yes
Password protection: Yes
Multicast support: Yes
LED indicators: Yes
Product colour: Grey
Rack mounting: Yes
Fanless: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 184.7 W
Power source: AC/PoE
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 150 W
Heat dissipation: 628 BTU/h
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): -40 - 70 °C
Depth: 220 mm
Height: 44 mm
Width: 440 mm
Series: Omada
Model name: SG2428LP
Units per Shipping Box: 4
Unit Calculated Volume: 0.02178 cubm
Unit Calculated Weight: 4.35 kg
